Relaxdays Adjustable Rolling Garden Seat (Model 10050008) - Instruction Manual

1. Уводзіны

Thank you for choosing the Relaxdays Adjustable Rolling Garden Seat. This manual provides important information regarding the assembly, operation, maintenance, and safety of your new garden seat. Please read these instructions carefully before use and retain them for future reference.

This versatile rolling seat is designed to provide comfort and convenience for various tasks, including gardening and workshop activities. It features an adjustable height, a storage compartment, and pneumatic tires for easy maneuverability.

2. Інструкцыі па тэхніцы бяспекі

• Максімальная ёмістасць: Do not use with a weight exceeding 150 kg (330 lbs). Exceeding this limit can cause damage to the product and lead to injury.
• Стабільнасць: Always ensure the seat is on a stable, level surface before sitting down or standing up to prevent tipping and falls.
• Рэгуляванне вышыні: Adjust the seat height only when the seat is stationary and you are not seated on it. Ensure the adjustment mechanism is securely locked before use.
• Тэхнічнае абслугоўванне шын: Regularly check the pneumatic tires for proper inflation. Under-inflated tires can affect stability and maneuverability.
• Дзеці і хатнія жывёлы: Keep children and pets away from the product during assembly and use to prevent accidents.
• захоўванне: Store the seat in a dry, protected area when not in use to prevent rust and damage.

3. Кампаненты прадукту

The Relaxdays Adjustable Rolling Garden Seat includes the following components:

• 1x Rolling Garden Seat (main frame, seat, wheels, storage tray)
• Assembly hardware (bolts, nuts, washers)
• Кіраўніцтва па эксплуатацыі

выява: Скончанаview of the Relaxdays Rolling Garden Seat highlighting its key features: height adjustment, 150 kg maximum load capacity, integrated storage tray, and pneumatic wheels.

4. Інструкцыя па зборцы

Для гэтага прадукту патрабуецца зборка. Калі ласка, уважліва выканайце наступныя дзеянні:

1. Распакуйце кампаненты: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify that all components listed in Section 3 are present.
2. Прымацаваць колы: Securely attach the four pneumatic wheels to the main frame using the provided hardware. Ensure all bolts are tightened firmly.
3. Install Storage Tray: Position the storage tray beneath the seat frame and secure it according to the diagrams in the included manual.
4. Мацаванне сядзення: Attach the seat to the adjustable height mechanism on the main frame. Ensure the seat is oriented correctly and all fasteners are tight.
5. Канчатковая праверка: Before first use, double-check all connections and ensure the seat is stable and all parts are securely fastened.

выява: The fully assembled Relaxdays Rolling Garden Seat, showcasing its robust design and large pneumatic wheels.

5. Інструкцыя па эксплуатацыі

5.1. Рэгуляванне вышыні сядзення

The seat height can be adjusted to suit your needs. To adjust:

1. Ensure you are not seated on the garden seat.
2. Rotate the seat clockwise or counter-clockwise to raise or lower it. The threaded rod mechanism allows for smooth height adjustment.
3. Once the desired height is reached, ensure the seat is stable before use.

выява: Visual guide demonstrating the rotation mechanism for adjusting the seat height of the garden seat.

5.2. Moving the Garden Seat

The four pneumatic tires allow for easy movement across various terrains. Simply push or pull the seat to reposition it. Be mindful of uneven surfaces to maintain stability.

выява: A user comfortably seated on the Relaxdays Rolling Garden Seat while performing gardening work, illustrating its intended use.

6. Тэхнічнае абслугоўванне

• Уборка: Wipe down the metal and plastic surfaces with a damp тканінай. Пазбягайце абразіўных ачышчальнікаў, якія могуць пашкодзіць пакрыццё.
• Ціск у шынах: Periodically check and maintain the correct air pressure in the pneumatic tires. Refer to the tire sidewall for recommended pressure.
• змазка: Apply a small amount of lubricant to the height adjustment mechanism and wheel axles annually to ensure smooth operation.
• агляд: Regularly inspect all bolts, nuts, and welds for tightness and signs of wear or damage. Tighten any loose fasteners immediately. If any structural damage is observed, discontinue use.

выява: Падрабязны view of the pneumatic wheel, highlighting the robust construction and air valve for inflation.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

• Нумар мадэлі: 10050008
• Памеры вырабу (Г х Ш х В): 81 cm x 42 cm x 54 cm (adjustable height 40-49 cm)
• колер: Зялёны
• Матэрыял рамы: Steel (70%)
• Матэрыял сядзення: Поліпрапілен (ПП)
• Матэрыял колы: Rubber (20%), Plastic (10%)
• Максімальны вага Рэкамендацыя: 150 кг (330 фунтаў)
• Вага прадмета: 10.64 кг
• Патрабуецца зборка: так
• Уключаныя кампаненты: 1x Rolling Garden Seat
• Краіна паходжання: Кітай

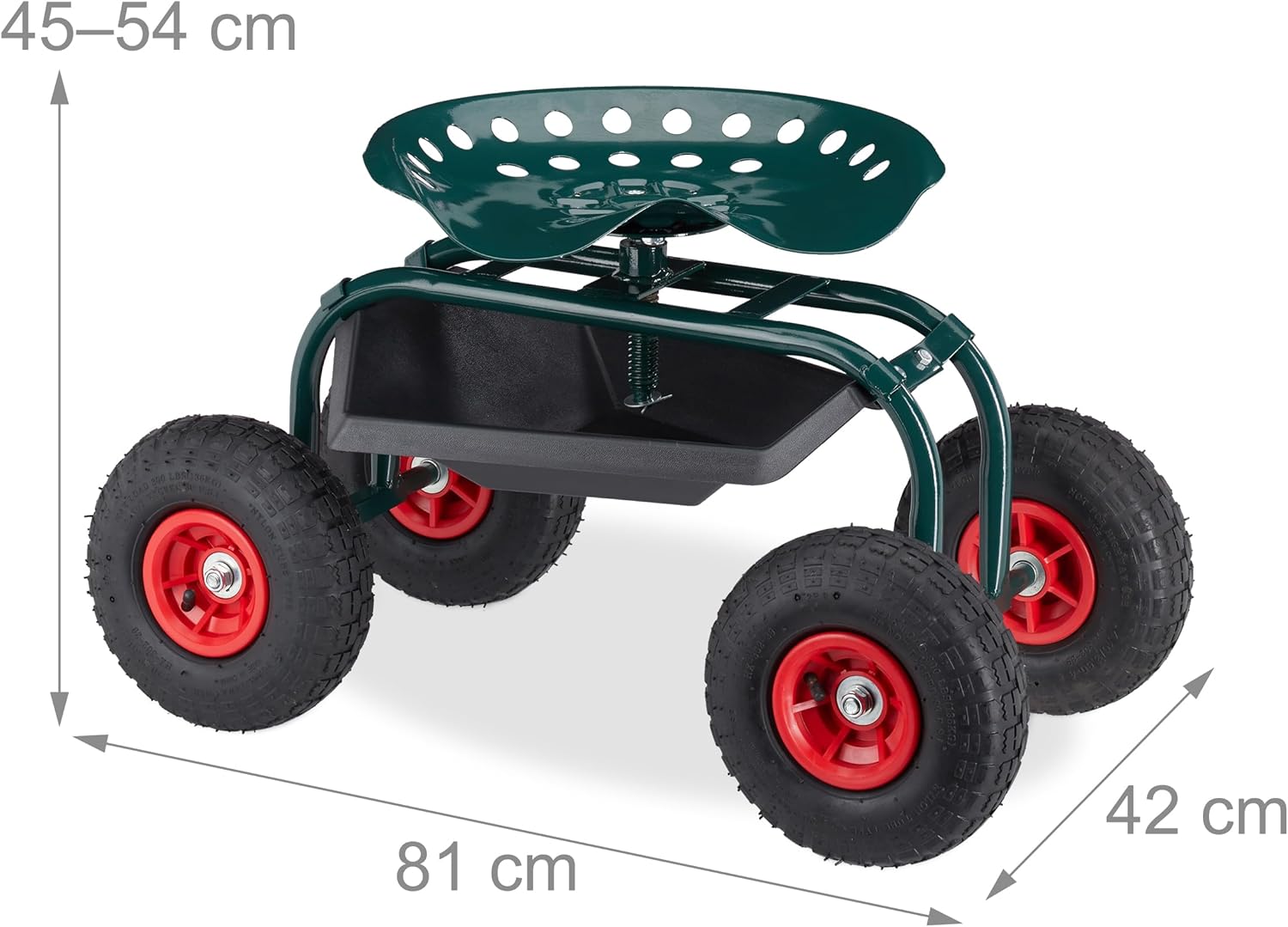

выява: Габарытны view of the Relaxdays Rolling Garden Seat, indicating its length, width, and adjustable height range.

9. Гарантыя і падтрымка

For warranty information or technical support, please contact Relaxdays customer service. Refer to the packaging or the official Relaxdays webсайт для кантактных дадзеных.

вытворца: Дні адпачынку
