BAUDCOM GPON Optical Line Terminal Router (BD-OLT-1000GZ) User Manual

1. Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of the BAUDCOM BD-OLT-1000GZ GPON Optical Line Terminal (OLT) Router. This device is designed for business use, offering robust Ethernet connectivity and high-speed data transfer capabilities for up to 128 users.

2. Прадукт скончыўсяview

2.1 Асноўныя магчымасці

• Тэхналогія падключэння: Gigabit Ethernet with 1 RJ45 port for stable and fast data transfer.
• Max Upstream Data Transfer Rate: 1000 megabits per second for smooth and efficient data transmission.
• Тып кантролера: Web Management and EMS (Element Management System) for easy and centralized control.
• Нумар мадэлі: BD-OLT-1000GZ, specifically designed for GPON Optical Line Terminal applications.
• Ёмістасць карыстальніка: Падтрымлівае да 128 карыстальнікаў.
• Узыходзячая сувязь: 10G uplink capability.

2.2 Што ў камплекце

• BAUDCOM BD-OLT-1000GZ OLT Unit

2.3 Фізічнае апісанне

The BD-OLT-1000GZ features a compact design with clearly labeled ports and indicators.

Малюнак 1: Спераду View of the OLT Unit. This image shows the front panel of the BAUDCOM BD-OLT-1000GZ OLT. Visible components include LED indicators for System (SYS), PON, and Power (PWR), a Reset button, a PON port, two GE (Gigabit Ethernet) ports, a 10GE SFP+ port, and a Console port.

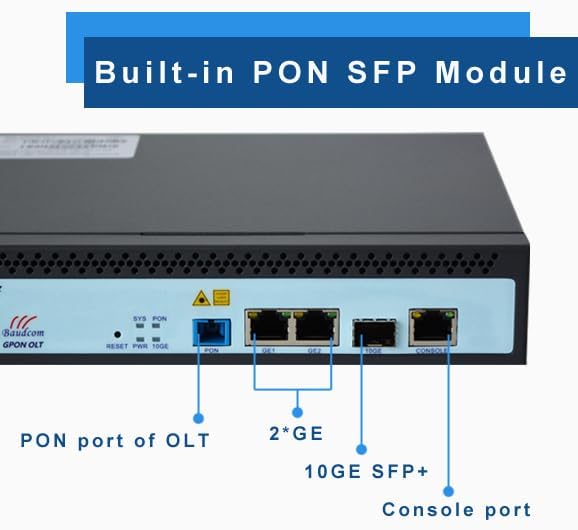

Figure 2: Front Panel Port Identification. This image provides a closer look at the front panel, clearly labeling the PON port, the two GE ports, the 10GE SFP+ port, and the Console port. It also highlights the built-in PON SFP Module.

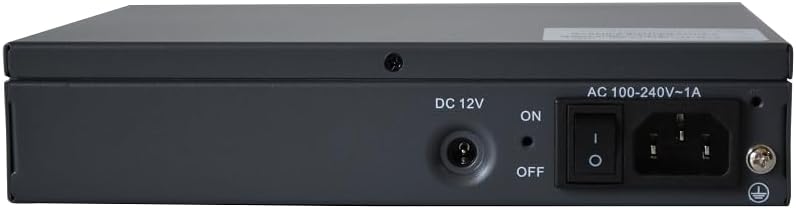

Малюнак 3: Задняя частка View of the OLT Unit. The rear panel includes the DC 12V power input, an ON/OFF power switch, and an AC 100-240V~1A power inlet, along with a grounding screw.

Figure 4: Pluggable Power Module. This image emphasizes the flexibility of the power input, allowing for both AC and DC power options.

3. Настройка

3.1 Мантаж у стойку (дадаткова)

The OLT unit can be mounted in a standard equipment rack using the provided rack ears.

Figure 5: OLT Unit with Rack Ears. This image shows the OLT unit alongside its detachable rack mounting ears, ready for installation into a cabinet.

1. Attach the rack ears to the sides of the OLT unit using the screws provided.
2. Secure the OLT unit into the equipment rack using appropriate rack screws.

3.2 Падключэнне харчавання

1. Ensure the power switch on the rear panel is in the ВЫКЛ становішча.
2. Connect the appropriate power cable (AC or DC, depending on your setup) to the power inlet on the rear panel.
3. Plug the other end of the power cable into a suitable power source.
4. For grounding, connect a grounding wire to the grounding screw on the rear panel and to a reliable ground source.

3.3 Сеткавыя злучэнні

1. PON-порт: Connect your GPON fiber optic cable to the PON port.
2. GE Ports (GE1, GE2): Connect Ethernet cables from your network devices (e.g., switches, routers) to the Gigabit Ethernet ports.
3. 10GE SFP+ Port: Insert a 10G SFP+ module (if not already built-in) and connect a fiber optic cable for high-speed uplink.
4. Порт кансолі: For initial configuration or direct management, connect a console cable to this port and to a computer.

4. Інструкцыя па эксплуатацыі

4.1 Уключэнне/выключэнне

1. To power on the device, flip the power switch on the rear panel to the ON становішча.
2. To power off the device, flip the power switch on the rear panel to the ВЫКЛ становішча.

4.2 Святлодыёдныя індыкатары

• SYS (Сістэма): Indicates the system status. A steady green light typically means the system is operating normally.
• PON: Indicates the status of the GPON link. A steady green light usually means the PON link is established.
• PWR (магутнасць): Indicates power status. A steady green light means the device is receiving power.

4.3 Пачатковая канфігурацыя

Initial configuration is typically performed via the Console port or through Web Management. Refer to the detailed software configuration guide for specific steps on setting up IP addresses, VLANs, and GPON services.

5. Web Management and EMS

The BAUDCOM BD-OLT-1000GZ supports both Web Management and Element Management System (EMS) for comprehensive control and monitoring.

• Web Кіраванне: Доступ да прылады web-based interface by entering its IP address into a web browser. This provides a graphical user interface for configuration and monitoring.
• EMS: For larger deployments and centralized management, the OLT can be integrated into an Element Management System. Consult your network administrator or BAUDCOM support for EMS integration details.

6. Тэхнічныя характарыстыкі

7. Тэхнічнае абслугоўванне

• Уборка: Regularly clean the exterior of the device with a soft, dry cloth. Do not use liquid or aerosol cleaners.
• Вентыляцыя: Забяспечце належную цыркуляцыю паветра вакол прылады, каб прадухіліць перагрэў. Не блакуйце вентыляцыйныя адтуліны.
• Асяроддзе: Operate the device in a cool, dry environment, away from direct sunlight, heat sources, and excessive dust or moisture.
• Абнаўленні прашыўкі: Перыядычна правярайце інфармацыю вытворцы webсайт для абнаўленняў прашыўкі, каб забяспечыць аптымальную прадукцыйнасць і бяспеку.

8. Выпраўленне непаладак

• Няма харчавання:
  • Праверце, ці надзейна падключаны кабель харчавання як да прылады, так і да разеткі.
  • Ensure the power switch on the rear panel is in the ON становішча.
  • Пераканайцеся, што разетка працуе.
• Няма падключэння да сеткі:
  • Check all Ethernet and fiber optic cable connections.
  • Verify that the link/activity LEDs for the connected ports are active.
  • Ensure proper IP configuration and VLAN settings.
• PON Link Issues:
  • Check the fiber optic cable for damage or improper connection.
  • Ensure the PON module is correctly seated.
  • Verify PON signal levels through the management interface.
• Прылада не адказвае:
  • Attempt to access the device via the Console port.
  • If necessary, perform a soft reset using the Reset button (refer to the software guide for reset procedures).

9. Гарантыя і падтрымка

9.1 Інфармацыя аб гарантыі

The BAUDCOM BD-OLT-1000GZ comes with a Гарантыя 1 год from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects but does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

9.2 Тэхнічная падтрымка

For technical assistance, troubleshooting, or warranty inquiries, please contact BAUDCOM support using the following information:

Figure 6: BAUDCOM Contact Information. This image provides various methods to contact BAUDCOM for support.

• электронная пошта: info@baudcom.com.cn
• тэлефон: +86 21 37709251
• Skype: robert.luo905
• WhatsApp: +8617317919235
• Адрас: 519A, Building A, Lianming Road 389, Minhang District, Shanghai City, China
• Webсайт: www.baudcom.com.cn
