1. Уводзіны
Thank you for choosing the Flatsons LIV-M01 88-Key Weighted Digital Piano. This instrument is designed to provide an authentic piano playing experience with advanced features for musicians of all levels. This manual will guide you through the setup, operation, and maintenance of your new digital piano.
Image 1.1: The Flatsons LIV-M01 88-Key Weighted Digital Piano, shown with included headphones and triple pedal unit.
2. Прадукт скончыўсяview
2.1 Кампаненты
- 88-Key Weighted Digital Piano Unit
- Тры педалі
- Адаптар сілкавання
- Навушнікі
- Музычны адпачынак
- Кіраўніцтва па эксплуатацыі
2.2 Панэль кіравання і падключэнні
The control panel features an LCD display and touch-sensitive buttons for various functions. The rear panel and underside provide connection ports for power, pedals, audio, and MIDI.
Малюнак 2.1: Падрабязны view of the LIV-M01 control panel, showing the LCD display and touch-sensitive function buttons.

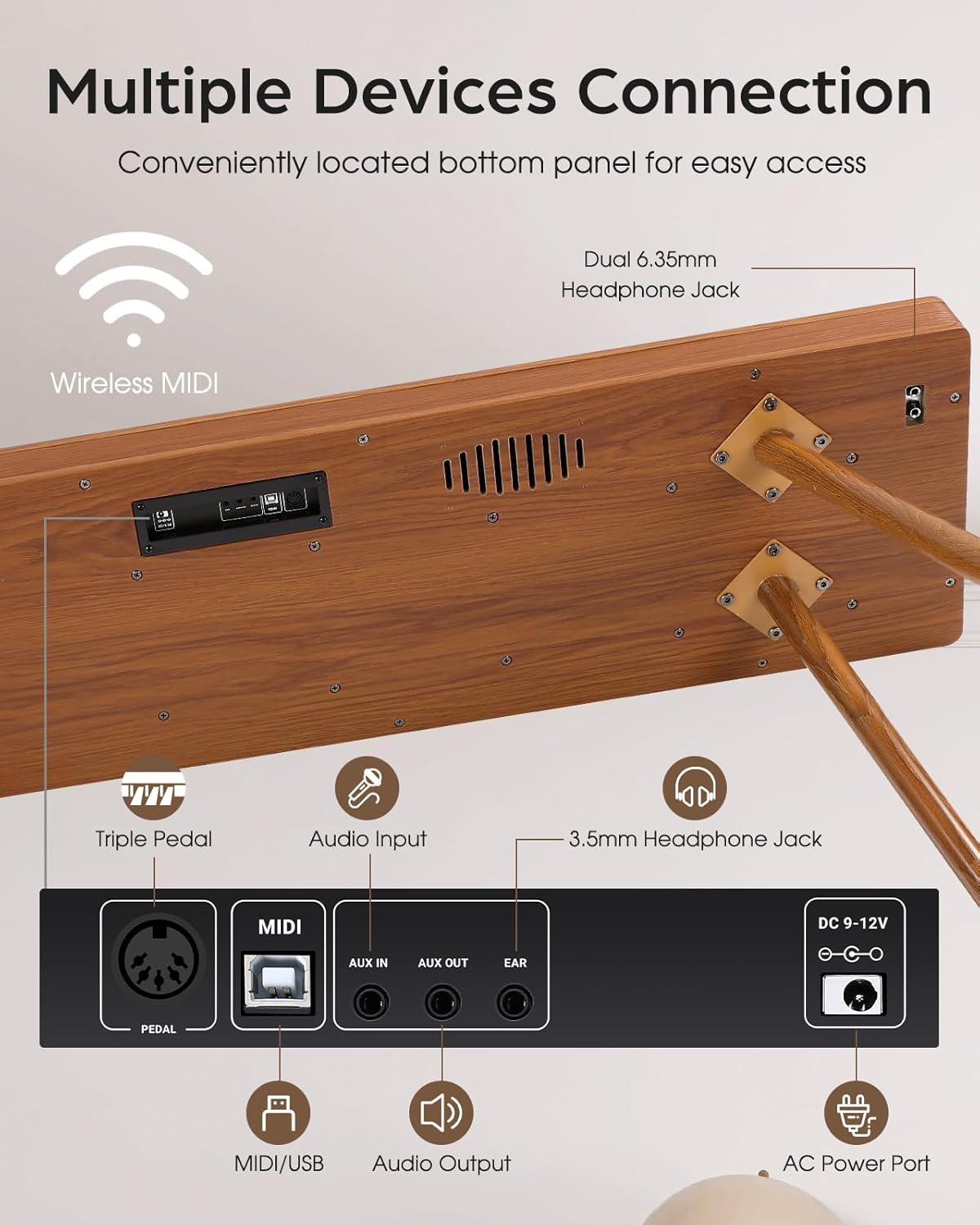

Image 2.2: The underside of the piano, illustrating the location of the triple pedal input, MIDI/USB, audio input/output, 3.5mm headphone jack, and AC power port.
3. Налада і зборка
Follow these steps to assemble and set up your digital piano.
3.1 Распакаванне
- Акуратна дастаньце ўсе кампаненты з упакоўкі.
- Праверце наяўнасць усіх пералічаных кампанентаў.
3.2 Зборка падстаўкі (пры наяўнасці)
The LIV-M01 typically comes with a detachable stand. Attach the legs securely to the main piano body using the provided hardware. Ensure all screws are tightened to prevent wobbling.
3.3 Connecting the Pedal Unit
- Locate the pedal input port on the underside of the piano (refer to Image 2.2).
- Connect the cable from the triple pedal unit firmly into this port.
3.4 Падключэнне харчавання
- Connect the power adapter to the DC 9-12V power port on the underside of the piano.
- Падключыце адаптар да звычайнай электрычнай разеткі.
3.5 Усталёўка пюпітра
Устаўце пюпітр у прызначаныя для гэтага пазы на верхняй панэлі піяніна.
Image 3.1: Dimensions of the LIV-M01 and a visual representation of included accessories such as power adapter, pedal unit, headphones, and cleaning cloth.
4. Асноўная аперацыя
4.1 Уключэнне/выключэнне сілкавання
Press the Power button on the control panel to turn the piano on or off.
4.2 Рэгуляванне гучнасці
Use the 'VOL+' and 'VOL-' touch buttons on the control panel to adjust the master volume. The current volume level will be displayed on the LCD screen.
4.3 Выбар тонаў
- Press the 'VOICE/RHYTHM' button to enter Tone selection mode.
- Use the 'SELECT+' and 'SELECT-' buttons to browse through the 128 available tones.
- The selected tone name or number will appear on the LCD display.
4.4 Выкарыстанне навушнікаў
Connect headphones to either the 3.5mm or 6.35mm headphone jacks on the underside of the piano for private practice. Connecting headphones will mute the internal speakers.
5. Пашыраныя магчымасці
5.1 Realistic Sound Sampлінг
The LIV-M01 utilizes a 192kHz/32-bit sampling rate and an advanced Dream5504 chip to reproduce the natural depth and resonance of a grand piano. This technology ensures clear, dynamic, and nuanced tones.
Image 5.1: Visual representation of the high-end audio chip (Dream5504) responsible for the piano's realistic sound sampлінг.
Image 5.2: Illustrates the high-definition sound source, emphasizing the quality of the piano's audio output.
5.2 Weighted Hammer Action Keys
The 88 full-size keys feature graded hammer action, mimicking the feel of an acoustic grand piano with heavier touch in the lower register and lighter touch in the higher register. Six levels of touch sensitivity allow for expressive playing.
Image 5.3: Explains the 88 fully weighted keys, highlighting the hammer action design, progressive weighting, and 6-level touch sensitivity.
Image 5.4: A visual representation of how key weighting changes across the keyboard, from light (PPP) to heavy (FFF).
5.3 Rhythm and Demo Songs
- Рытмы: The piano includes 100 preset rhythms. Press 'VOICE/RHYTHM' and use 'SELECT+'/'SELECT-' to choose a rhythm. Press 'SYNC' to start/stop.
- Дэманстрацыйныя песні: Explore 88 demo songs with accompaniment sync. Press 'DEMO/SONG' and use 'SELECT+'/'SELECT-' to select a song.

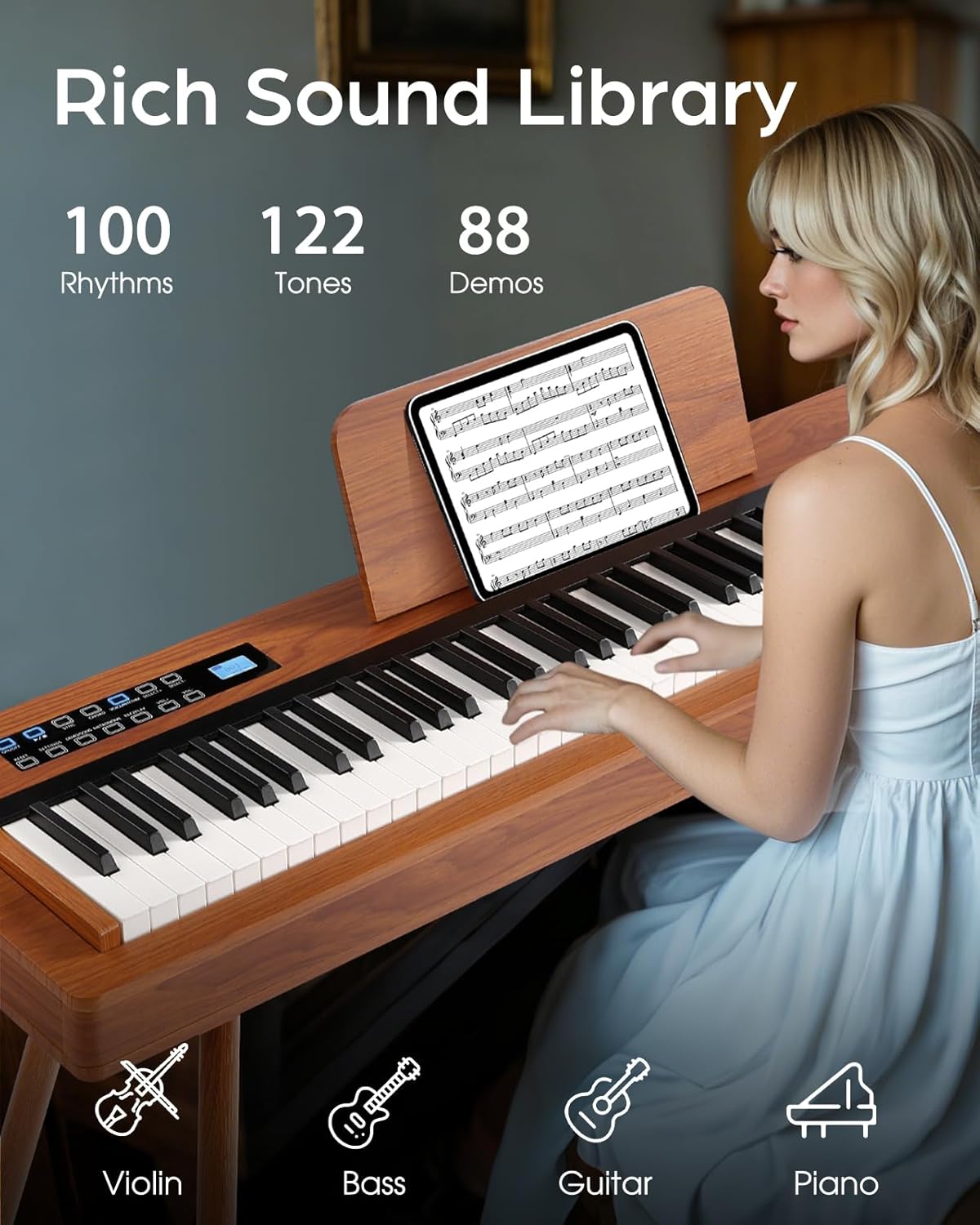

Image 5.5: Highlights the extensive sound library, including 100 rhythms, 122 tones, and 88 demo songs.
5.4 Метраном
Activate the metronome by pressing the 'METRONOME' button. Use 'SELECT+'/'SELECT-' to adjust the tempo from 30 to 250 BPM. This feature assists with timing and rhythm practice.
6. Сувязь
The LIV-M01 offers various connectivity options for enhanced functionality.
6.1 Wireless MIDI
Connect your digital piano wirelessly to compatible devices (phones, iPads, PCs) via MIDI. This allows interaction with music learning apps and digital audio workstations (DAWs).
Image 6.1: Demonstrates wireless MIDI connectivity, compatible with popular music applications like POP Piano, Synthesia, GarageBand, and Flowkey.
6.2 USB-MIDI
For a wired connection, use the USB MIDI port to connect to computers for recording or using software instruments.
6.3 Аўдыёўваход/выхад
- Аўдыёўваход (AUX IN): Connect external audio sources (e.g., MP3 player, smartphone) to play along with your favorite music.
- Audio Output (AUX OUT): Connect the piano to external ampлайфхакі, мікшеры або запісвальныя прылады.
7. Догляд і абслугоўванне
- Уборка: Выкарыстоўвайце мяккую сухую тканіну для працірання паверхні піяніна. Для ўстойлівага бруду злёгкуampпрамыйце тканіну вадой. Пазбягайце абразіўных ачышчальнікаў або растваральнікаў.
- Сыход за ключамі: Keep the keys clean. If they become dirty, wipe them gently with a soft, damp тканіна.
- захоўванне: Store the piano in a dry, temperate environment away from direct sunlight, extreme temperatures, and humidity.
- Транспарт: When moving the piano, ensure it is powered off and all cables are disconnected. Handle with care to avoid damage.
8. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| З дынамікаў няма гуку | Volume too low; Headphones connected; Power issue | Increase volume; Disconnect headphones; Check power connection |
| Клавішы не адказваюць | Piano not powered on; MIDI settings issue | Ensure power is on; Check MIDI settings if connected to external device |
| Педалі не працуюць | Pedal unit not connected properly | Ensure pedal cable is securely plugged into the correct port |
| Wireless MIDI not connecting | Bluetooth/Wireless MIDI not enabled on device; Interference | Ensure wireless MIDI is active on both piano and device; Reduce distance or interference |
9. Тэхнічныя характарыстыкі
- мадэль: LIV-M01
- ключы: 88 Full-Size, Fully Weighted, Graded Hammer Action
- Адчувальнасць да дотыку: 6 узроўняў
- Тоны: 128
- Рытмы: 100 Прадусталявана
- Дэманстрацыйныя песні: 88
- SampЛінг -курс: 192 кГц/32 біт
- Аўдыёчып: Мара5504
- Метраном: 30-250 BPM (Adjustable)
- Падключэнне: Wireless MIDI, USB MIDI, Audio Input (AUX IN), Audio Output (AUX OUT)
- Раздымы для навушнікаў: 1x 3.5 мм, 2x 6.35 мм
- Крыніца харчавання: Corded Electric (DC 9-12V)
- Памеры: Approximately 52.7 x 18.5 x 33.5 inches (L x W x H, with stand)
- Вага: Прыкладна 51.9 фунта
- Матэрыял корпуса: Wood (outer casing), Plastic/Synthetic Composite (keys)
10. Гарантыя і падтрымка
Flatsons is committed to customer satisfaction. Your LIV-M01 digital piano includes:
- 24-Month Product Guarantee: Пакрывае вытворчыя дэфекты і няспраўнасці пры нармальным выкарыстанні.
- Lifelong Expert Technical Support: Доступ да тэхнічнай падтрымкі на працягу ўсяго тэрміну службы прадукту.
- 30-Day Easy Return Policy: Згодна з палітыкай Amazon.
- Абслугоўванне кліентаў 24/7: For any inquiries or support needs.
For support, please contact Flatsons customer service through the platform of purchase or refer to the contact information provided with your product packaging.
Image 10.1: Summary of customer support and warranty benefits provided by Flatsons.
