Generic Refrigerator Ice Maker Assembly Instruction Manual

For Samsung Refrigerator Models

1. Уводзіны

This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of your new Generic Refrigerator Ice Maker Assembly. Please read this manual thoroughly before attempting any installation or repair to ensure proper function and to prevent potential damage or injury. This ice maker is designed as a replacement part for specific Samsung refrigerator models.

2. Інфармацыя па бяспецы

ПАПЯРЭДЖАННЕ: Рызыка паражэння электрычным токам. Адключыце сілкаванне перад абслугоўваннем.

  • Always disconnect the refrigerator from the power supply before attempting any installation, repair, or maintenance.
  • Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны, такімі як пальчаткі, каб пазбегнуць траўмаў.
  • If you are unsure about any part of the installation process, it is recommended to seek assistance from a qualified appliance technician.
  • Пасля ўстаноўкі пераканайцеся, што ўсе злучэнні надзейныя і належным чынам ізаляваныя.
  • Падчас усталёўкі не дапускайце дзяцей і хатніх жывёл да працоўнай зоны.

3. Змесціва ўпакоўкі

Пасля адкрыцця ўпакоўкі пераканайцеся, што ўсе кампаненты ёсць у наяўнасці і не пашкоджаны.

  • 1x Generic Refrigerator Ice Maker Assembly (as pictured)
Generic Refrigerator Ice Maker Assembly, front view

Малюнак 1: Фронт view of the Generic Refrigerator Ice Maker Assembly. This image shows the complete ice maker unit, including the ice mold and electrical wiring harness.

4. Сумяшчальнасць

This ice maker assembly is designed to replace the original ice maker in various Samsung refrigerator models. Please verify your refrigerator's model number against the list below to ensure compatibility. You can typically find your model number inside the refrigerator compartment or on the back of the unit.

Compatible Samsung Refrigerator Models:

  • RS25H5000BC, RS25H5000SP, RS25H5000SR, RS25H5000WW
  • RS25J500DBC, RS25J500DSG, RS25J500DSR, RS25J500DWW
  • RS261MDBP, RS261MDBP/XAA, RS261MDPN, RS261MDRS, RS261MDRS/XAA, RS261MDRSXAA
  • RS261MDWP, RS261MDWP/XAA
  • RS263TDBP, RS263TDBP/XAA, RS263TDBPXAA, RS263TDPN, RS263TDPN/XAA
  • RS263TDRS, RS263TDRS/XAA, RS263TDWP, RS263TDWP/XAA

If your model number is not listed or you are unsure about compatibility, please contact customer support for assistance.

5. Настройка і ўстаноўка

Follow these general steps for installing the ice maker assembly. Specific steps may vary slightly depending on your refrigerator model. Refer to your refrigerator's service manual for detailed instructions if available.

  1. Адключыць харчаванне: Unplug the refrigerator from the electrical outlet to prevent electric shock.
  2. Доступ да старога лёдагенератара: Open the freezer door and locate the existing ice maker. Depending on your model, you may need to remove an ice bucket or a cover panel.
  3. Disconnect Wiring and Water Line: Carefully disconnect the electrical wiring harness from the old ice maker. If a water line is directly connected to the ice maker, disconnect it as well.
  4. Remove Old Ice Maker: Unscrew or unclip the old ice maker from its mounting brackets. Note the orientation and how it was secured for reinstallation.
  5. Усталюйце новы лёдагенератар: Position the new Generic Ice Maker Assembly in the same location and orientation as the old one. Secure it using the existing screws or clips.
    6. Збоку view of ice maker showing electrical connectors

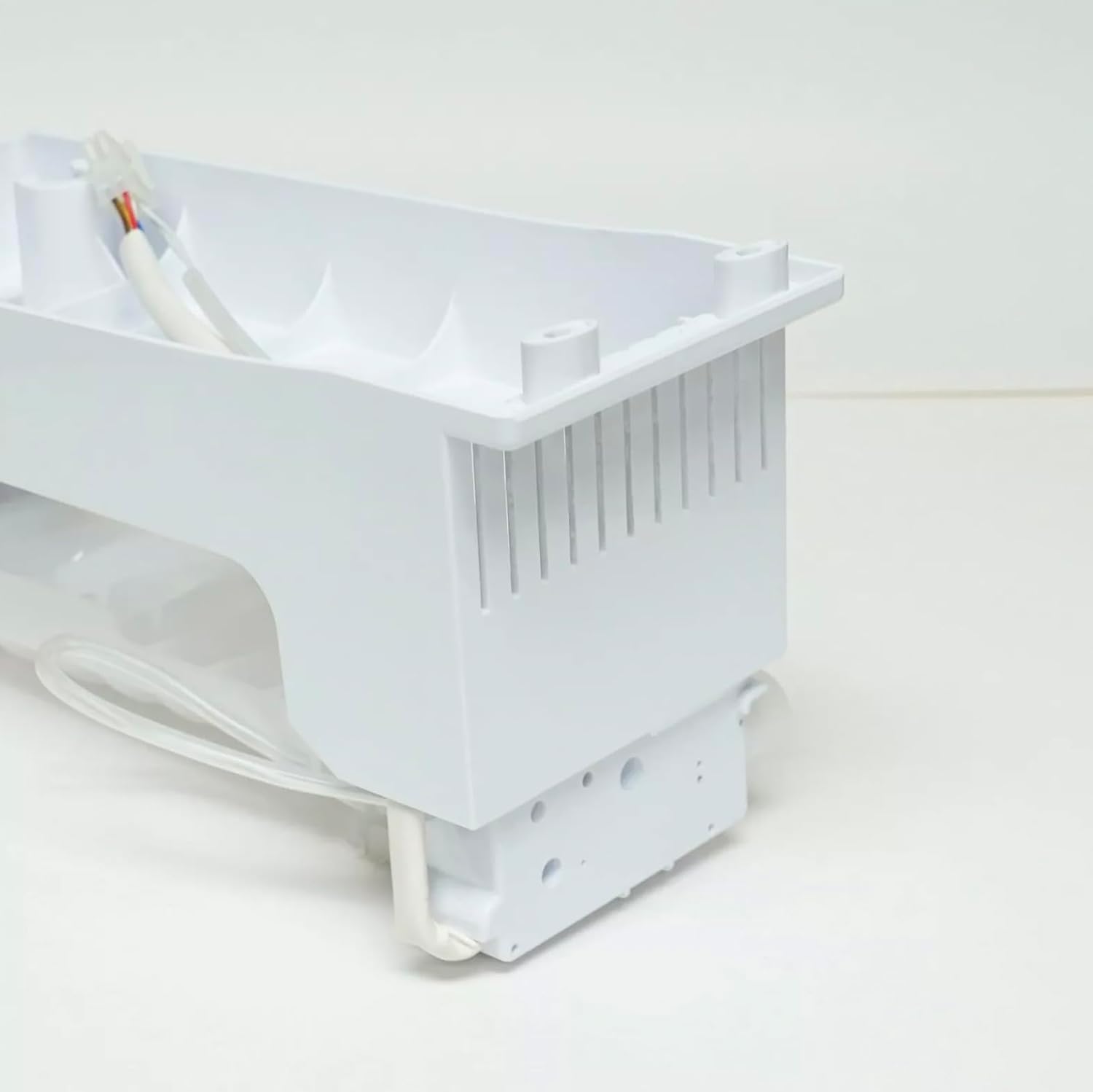

    Малюнак 2: Збоку view of the ice maker, highlighting the electrical connector port. Ensure this connection is secure during installation.

  6. Connect Wiring and Water Line: Reconnect the electrical wiring harness to the new ice maker. Ensure the connection is firm and fully seated. If applicable, reconnect the water line.
    7. Знізу view of ice maker showing mounting points

    Малюнак 3: Знізу view of the ice maker, showing the mounting points and structural support. These points align with the refrigerator's internal brackets.

  7. Replace Covers/Ice Bucket: Reinstall any cover panels or the ice bucket that were removed.
  8. Аднавіць сілу: Зноў падключыце халадзільнік да электрычнай разеткі.

6. Інструкцыя па эксплуатацыі

After installation, the ice maker will typically begin its first cycle within a few hours. The first few batches of ice may be smaller or have an unusual taste; it is recommended to discard these initial batches.

  • Ensure the ice maker's control arm (if present) is in the 'down' or 'on' position.
  • Allow 12-24 hours for the freezer compartment to reach optimal temperature and for the ice maker to produce a full bin of ice.
  • Check for any leaks around the water line connection points.

7. Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне дапамагае забяспечыць аптымальную прадукцыйнасць і даўгавечнасць вашага льдагенератара.

  • Уборка: Periodically remove the ice bucket and clean it with mild soap and warm water. Rinse thoroughly and dry completely before returning it to the freezer.
  • Фільтр для вады: If your refrigerator has a water filter, ensure it is replaced regularly according to the manufacturer's recommendations to maintain ice quality.
  • агляд: Occasionally inspect the ice maker for any signs of wear, damage, or ice buildup that might impede its function.

8. Выпраўленне непаладак

Калі ў вас узніклі праблемы з лёдагенератарам, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:

праблемаМагчымая прычынаРашэнне
Няма вытворчасці лёдуRefrigerator not plugged in; water supply off; ice maker arm in 'off' position; freezer temperature too high; clogged water filter.Check power connection; ensure water supply valve is open; lower ice maker arm; verify freezer temperature is below 0°F (-18°C); replace water filter.
Маленькія або полыя кубікі лёдуLow water pressure; clogged water filter; partially frozen water line.Check household water pressure; replace water filter; thaw water line if frozen.
Ice tastes badOld water in reservoir; dirty ice bucket; old water filter.Discard first few batches of ice; clean ice bucket; replace water filter.
Льдагенератар выдае незвычайныя гукіNormal operation sounds; loose components; motor issue.Some sounds are normal during ice production. If persistent or loud, check for loose parts. If problem persists, contact support.

Калі ў вас праблемы, якія не пералічаны тут, або калі дзеянні па ліквідацыі непаладак не дапамаглі вырашыць праблему, звярніцеся ў службу падтрымкі кліентаў.

9. Тэхнічныя характарыстыкі

  • Назва прадукту: Refrigerator Ice Maker Assembly
  • Марка: Радавыя
  • Назва мадэлі: Лёдагенератар
  • Памеры вырабу (Г х Ш х В): 1" x 1" x 1" (Note: These dimensions appear to be placeholder values. Actual dimensions may vary slightly.)
  • Ёмістасць: 1 Cubic Feet (Ice storage capacity, approximate)
  • тtage: 1V (Note: This voltage appears to be a placeholder value. The actual operating voltage will be determined by the refrigerator's internal power supply for the ice maker.)
  • Уключаныя кампаненты: Лёдагенератар

10. Гарантыя і падтрымка кліентаў

This Generic Refrigerator Ice Maker Assembly is intended as a replacement part. For specific warranty information, please refer to the retailer or seller from whom you purchased the product.

If you have any questions regarding compatibility, installation, or troubleshooting, please do not hesitate to contact our customer support team. We aim to resolve your inquiries within 24 hours.

Кантактная інфармацыя:

  • Звярніцеся да дакументацыі па куплі, каб атрымаць канкрэтную кантактную інфармацыю.
  • Online support may be available through the seller's webсайт.

© 2024 Generic. Усе правы абаронены.
