MARBERO M440

MARBERO M440 222Wh Portable Power Station

Кіраўніцтва карыстальніка

1. Уводзіны

Thank you for choosing the MARBERO M440 Portable Power Station. This device is designed to provide reliable power for various electronic devices during outdoor activities, emergencies, or as a backup power source. With its high capacity and multiple output options, it ensures your essential devices remain powered.

2. Прадукт скончыўсяview

The MARBERO M440 Portable Power Station features a 222Wh/60000mAh capacity, capable of powering a wide range of electronics. Its compact and lightweight design makes it ideal for portability.

Асноўныя характарыстыкі:

  • Вялікая ёмістасць: 222Wh/60000mAh for extended power supply.
  • Multi-Output Ports: Includes AC outlets, DC ports, and USB ports (Type-A and Type-C) for versatile device charging.
  • Emergency LED Flashlight: Built-in LED lights with multiple brightness levels and an SOS mode for emergencies.
  • Multiple Recharging Methods: Can be recharged via wall outlet, car adapter, or compatible solar panel (sold separately).
  • Пашыраная бяспека: Equipped with a Battery Management System (BMS) for voltage, temperature, short-circuit, over-charge, overload, and over-voltagэлектронная абарона.

Device Capacity Exampлес:

  • Mobile Phone: Approximately 24 full charges
  • Laptop: Approximately 5 full charges
  • CPAP Machine: Up to 8 hours of operation
  • LED Light (5W): Up to 45 hours of illumination
  • Mini Refrigerator (40W): Up to 5 hours of operation
MARBERO M440 Power Station Capacity Overview
Малюнак 1: Закончанаview of MARBERO M440 Power Station capacity and typical device recharges/run times.
MARBERO M440 Power Station Device Compatibility
Figure 2: The MARBERO M440 is compatible with various devices including smartphones, iPads, PSPs, and GoPro cameras.

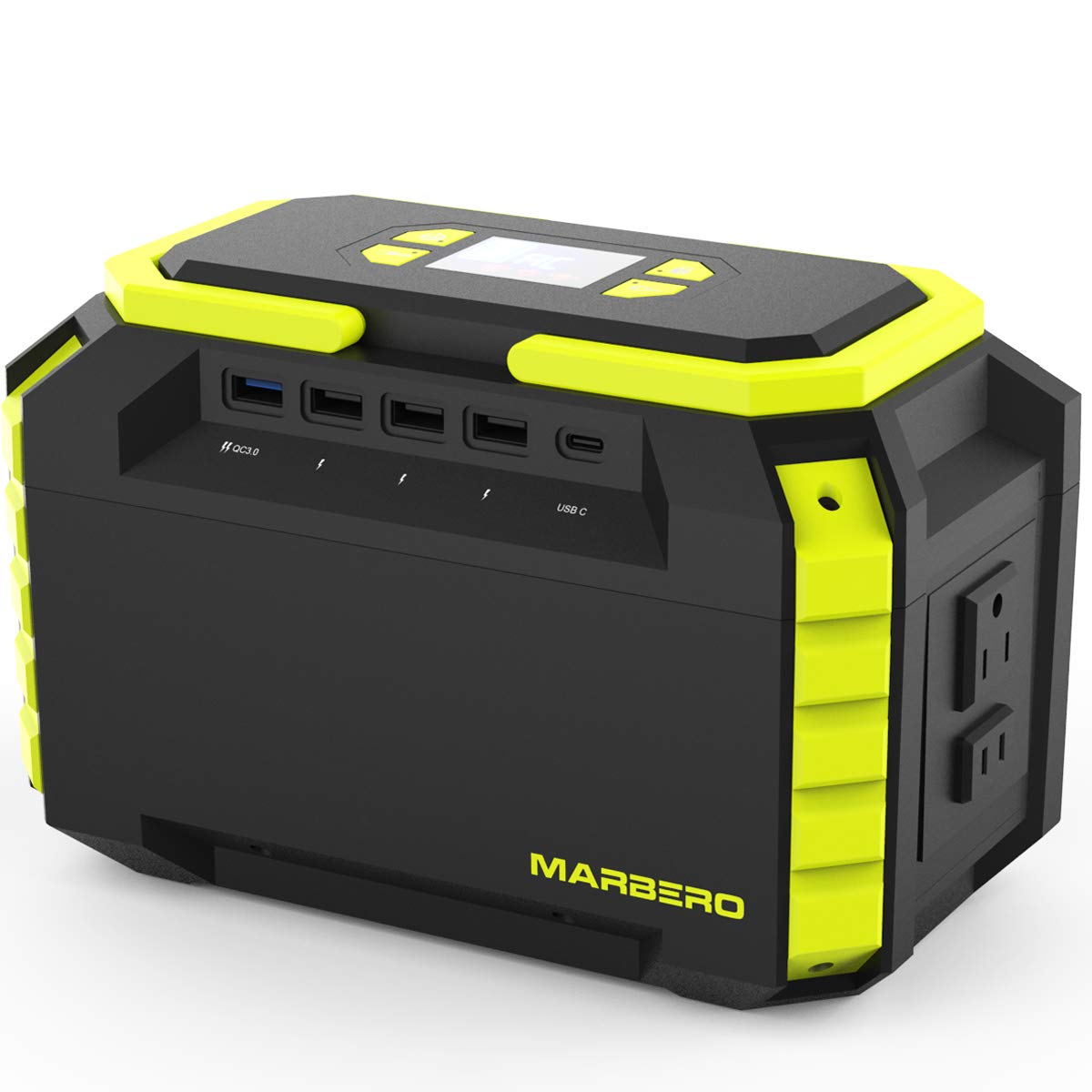

MARBERO M440 Power Station Port Layout
Малюнак 3: падрабязна view of the MARBERO M440's ports, including USB, AC outlets, and DC input/output.

3. Настройка

Before initial use, fully charge your MARBERO M440 Power Station. This ensures optimal battery performance and longevity.

Першапачатковая зарадка:

  1. Connect the provided AC power adapter to the DC IN port on the power station.
  2. Падключыце адаптар сілкавання да стандартнай разеткі.
  3. The LED display will indicate charging progress. The unit is fully charged when all battery indicator segments are illuminated and steady.

4. Інструкцыя па эксплуатацыі

The MARBERO M440 is designed for user-friendly operation. Follow these steps to power your devices.

Уключэнне/выключэнне:

  • Каб уключыць прыладу, націсніце і ўтрымлівайце галоўную кнопку харчавання, пакуль не загарыцца дысплей.
  • Каб выключыць прыладу, націсніце і ўтрымлівайце галоўную кнопку харчавання, пакуль не выключыцца дысплей.

Выкарыстанне разетак пераменнага току:

  1. Пераканайцеся, што электрастанцыя ўключана.
  2. Press the AC power button to activate the AC outlets. The AC indicator light will turn on.
  3. Plug your AC-powered device into one of the 110V AC outlets.
  4. After use, press the AC power button again to turn off the AC outlets and conserve power.

Using DC & USB Ports:

  1. Пераканайцеся, што электрастанцыя ўключана.
  2. Press the DC/USB power button to activate the DC and USB ports. The corresponding indicator light will turn on.
  3. Connect your device to the appropriate USB (Type-A, QC3.0, Type-C) or DC output port.
  4. After use, press the DC/USB power button again to turn off these outputs.

5. Метады зарадкі

The MARBERO M440 offers three convenient ways to recharge its internal battery.

1. Wall Outlet Charging:

  • Use the included AC power adapter.
  • Plug the adapter into a standard wall socket and connect it to the power station's DC IN port.
  • Час зарадкі: прыкладна 5-6 гадзіны.

2. Car Charger Charging:

  • Use the included car adapter (12V).
  • Connect the car adapter to your vehicle's 12V cigarette lighter socket and to the power station's DC IN port.
  • For efficient charging, ensure your car engine is running.
  • Час зарадкі: прыкладна 6-7 гадзіны.

3. Solar Panel Charging (Solar Panel Not Included):

  • Connect a compatible 15V~24V/1.2A solar panel (sold separately) to the power station's DC IN port.
  • Place the solar panel in direct sunlight for optimal charging.
  • Charging time will vary depending on solar intensity and panel wattage.
MARBERO M440 Power Station Three Recharging Methods
Figure 4: Visual representation of the three recharging methods: wall outlet, 12V car port, and solar panel.

6. LED Flashlight Operation

The power station includes two built-in LED flashlights for illumination in low-light conditions or emergencies.

Кіраванне ліхтарыкам:

  1. Press the dedicated LED flashlight switch once to turn on the lights at the first brightness level.
  2. Press the switch a second time for a brighter setting.
  3. Press the switch a third time to activate the SOS flashing mode.
  4. Press the switch a fourth time to turn off the flashlight.

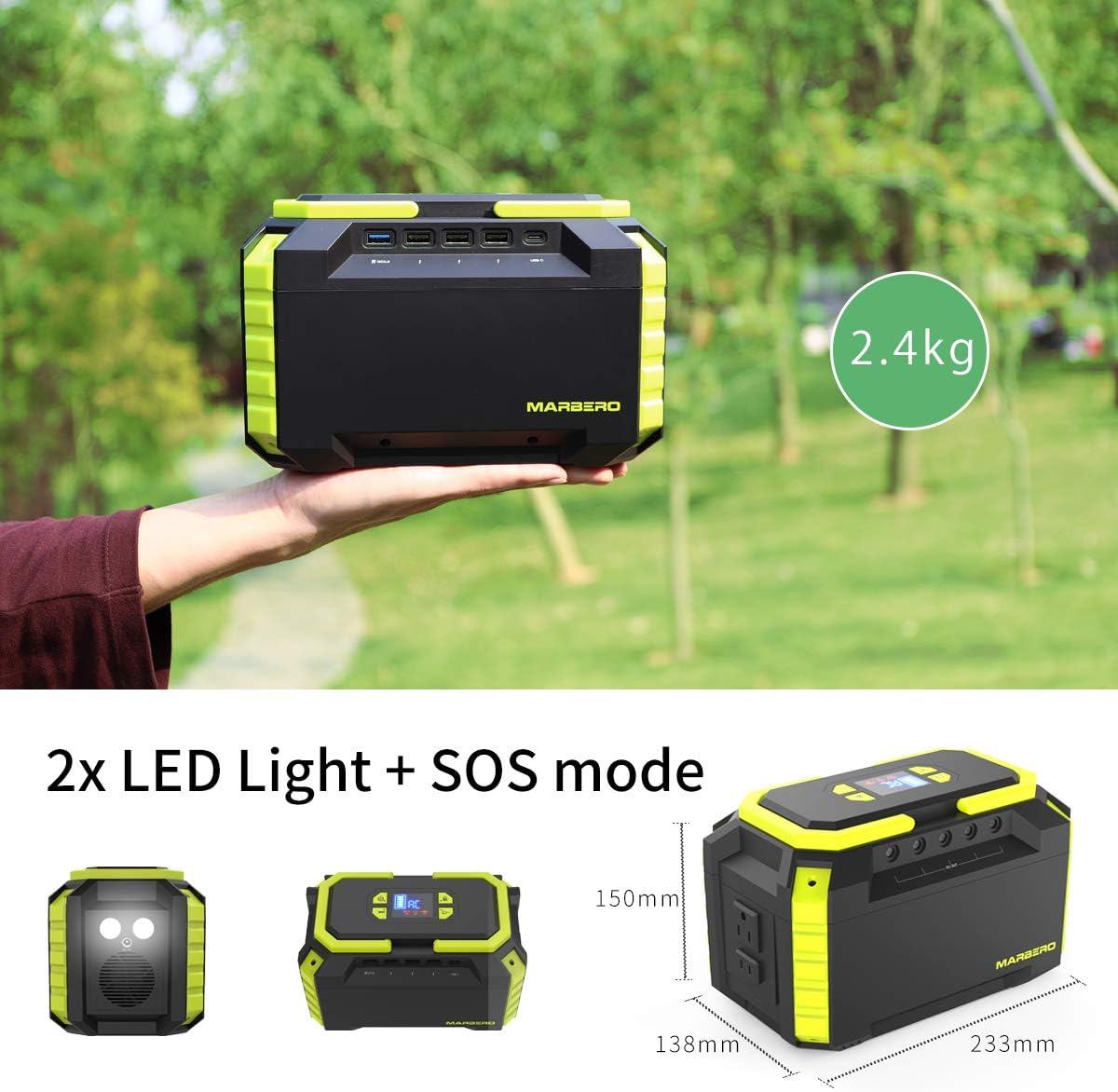

MARBERO M440 Power Station Compact Size and LED Flashlight
Figure 5: The compact MARBERO M440 with its dual LED lights and SOS mode for emergency use.

7. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and optimal performance of your power station.

  • захоўванне: Захоўвайце электрастанцыю ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
  • Частата зарадкі: If not used regularly, recharge the unit every 3-6 months to maintain battery health.
  • Уборка: Для чысткі вонкавага выгляду выкарыстоўвайце мяккую сухую тканіну. Не выкарыстоўвайце абразіўныя ачышчальнікі і не апускайце прыладу ў ваду.
  • Пазбягайце празмернай разрадкі: Do not allow the battery to completely drain for extended periods.

8. Выпраўленне непаладак

If you encounter issues with your MARBERO M440, refer to the following common solutions.

Прылада не ўключаецца:

  • Ensure the battery is charged. Connect to a power source and allow it to charge for at least 30 minutes.
  • Press and hold the main power button for 3-5 seconds to ensure it's properly activated.

Прылады не зараджаюцца:

  • Verify that the specific output port (AC, DC, USB) is activated by pressing its respective power button.
  • Check if the device's power consumption exceeds the power station's output limit (200W for AC).
  • Ensure the charging cables are securely connected to both the power station and your device.
  • If using AC, check if the device requires a pure sine wave inverter (this unit provides a modified sine wave, which may not be compatible with all sensitive electronics).

Павольная зарадка:

  • When charging via solar panel, ensure the panel is in direct, unobstructed sunlight.
  • Check the solar panel's output specifications to ensure it meets the recommended 15V~24V/1.2A input.
  • Ensure the charging adapter is the original one provided or a compatible replacement.

Абарона ад перагрузкі / кароткага замыкання:

  • The unit will automatically shut off if an overload or short circuit is detected.
  • Disconnect all devices, wait a few minutes, and then restart the power station.
  • Reduce the load by connecting fewer devices or devices with lower power consumption.

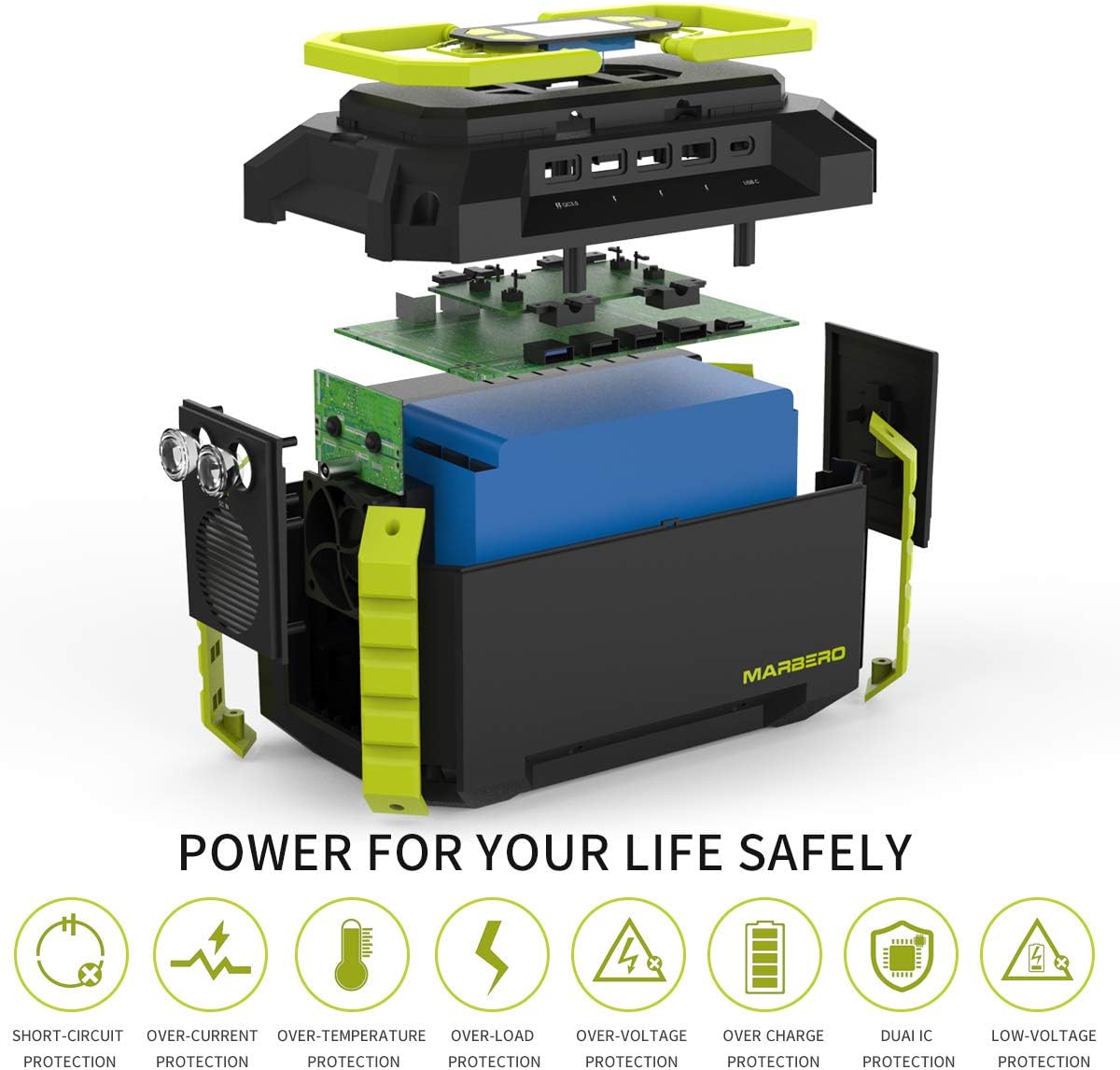

MARBERO M440 Power Station Internal Components and Safety Protections
Figure 6: The MARBERO M440 incorporates multiple safety protections, including short-circuit, over-current, over-temperature, over-load, over-voltage, over-charge, dual IC, and low-voltagэлектронная абарона.

9. Тэхнічныя характарыстыкі

АсаблівасцьДэталь
МаркаМАРБЕРА
Назва мадэліМ440
Ёмістасць222Wh / 60000mAh
Выхад пераменнага току110V, 200W (300W Peak)
Выхад пастаяннага току9-12.6V/10A (Max 15A)
USB выхад3x USB (4.6A Max), 1x QC3.0 USB, 1x USB Type-C (5~9V/2A)
Уваход пастаяннага току (зарадка)15V~24V/1.2A
Крыніца харчаванняBattery Powered, Solar Powered, AC Powered
Тып батарэіЛітый-іённы
Вага прадмета2.9 фунта (прыблізна 1.3 кг)
Памеры прадукту7.2" Д х 4.3" Ш х 4.6" В (прыблізна 18.3 см Д х 10.9 см Ш х 11.7 см В)
АсаблівасціAutomatic Shut Down, Emergency Light, Portable, Lightweight, High-capacity, Short Circuit Protection, Over Charge Protection, Overload Protection, Over-Voltagе Абарона
Уключаныя кампаненты1*MARBERO Portable Power Station M440, 1*Power Adapter, 1*Cigarette Lighter Adapter, 1*User Manual

10. Інфармацыя па бяспецы

Read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

  • Не разбірайце, не рамантуйце і не мадыфікуйце прыбор.
  • Не падвяргайце прыладу ўздзеянню агню або высокіх тэмператур.
  • Не выкарыстоўвайце і не захоўвайце прыладу ў ваннай пакоі або ў месцах, дзе яна можа падвяргацца ўздзеянню вады ці вільгаці.
  • Do not use the unit if it is damaged or has been modified.
  • Захоўваць у месцах, недаступных дзецям.
  • Use only original or certified compatible accessories.
  • Забяспечце належную вентыляцыю падчас выкарыстання і зарадкі.

11. Гарантыя і падтрымка

MARBERO products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your M440 Portable Power Station, please refer to the contact details provided in your product packaging or visit the official MARBERO webсайт.

Калі ласка, захавайце доказы пакупкі для прэтэнзій па гарантыі.
