Zomagas 24 Inch Wall Mount Range Hood (Model 1760TS) Instruction Manual

1. Важныя інструкцыі па бяспецы

Please read all instructions carefully before installing or operating this appliance. Keep this manual for future reference.

Агульная бяспека

• Заўсёды адключайце сілкаванне перад абслугоўваннем або чысткай прылады.
• Ensure proper installation in accordance with local codes and regulations.
• Гэты прыбор прызначаны толькі для хатняга выкарыстання.
• Do not operate the range hood if it is damaged. Contact customer support.

Электрабяспека

• Ensure the electrical supply matches the rating label on the appliance.
• The range hood must be properly grounded.
• Не выкарыстоўвайце падаўжальнікі і незаземленыя адаптары.

2. Прадукт скончыўсяview

The Zomagas 24 Inch Wall Mount Range Hood (Model 1760TS) is designed to effectively remove smoke, grease, and odors from your kitchen. It features a powerful 450 CFM motor, gesture sensing and touch controls, and convertible ventilation options.

Асноўныя характарыстыкі:

• Powerful 450 CFM Motor: Efficiently captures cooking fumes.
• Gesture Sensing & Touch Control: Modern and intuitive operation.
• 3-хуткасны вентылятар: Adjustable fan speeds for various cooking needs.
• Delayed Shutdown Function: Clears residual smoke after cooking.
• Ducted/Ductless Convertible: Flexible installation options.
• Перагародкавыя фільтры з нержавеючай сталі: Easy to remove and dishwasher-safe for optimal efficiency.
• Святлодыёднае асвятленне: Provides clear illumination for your cooking area.

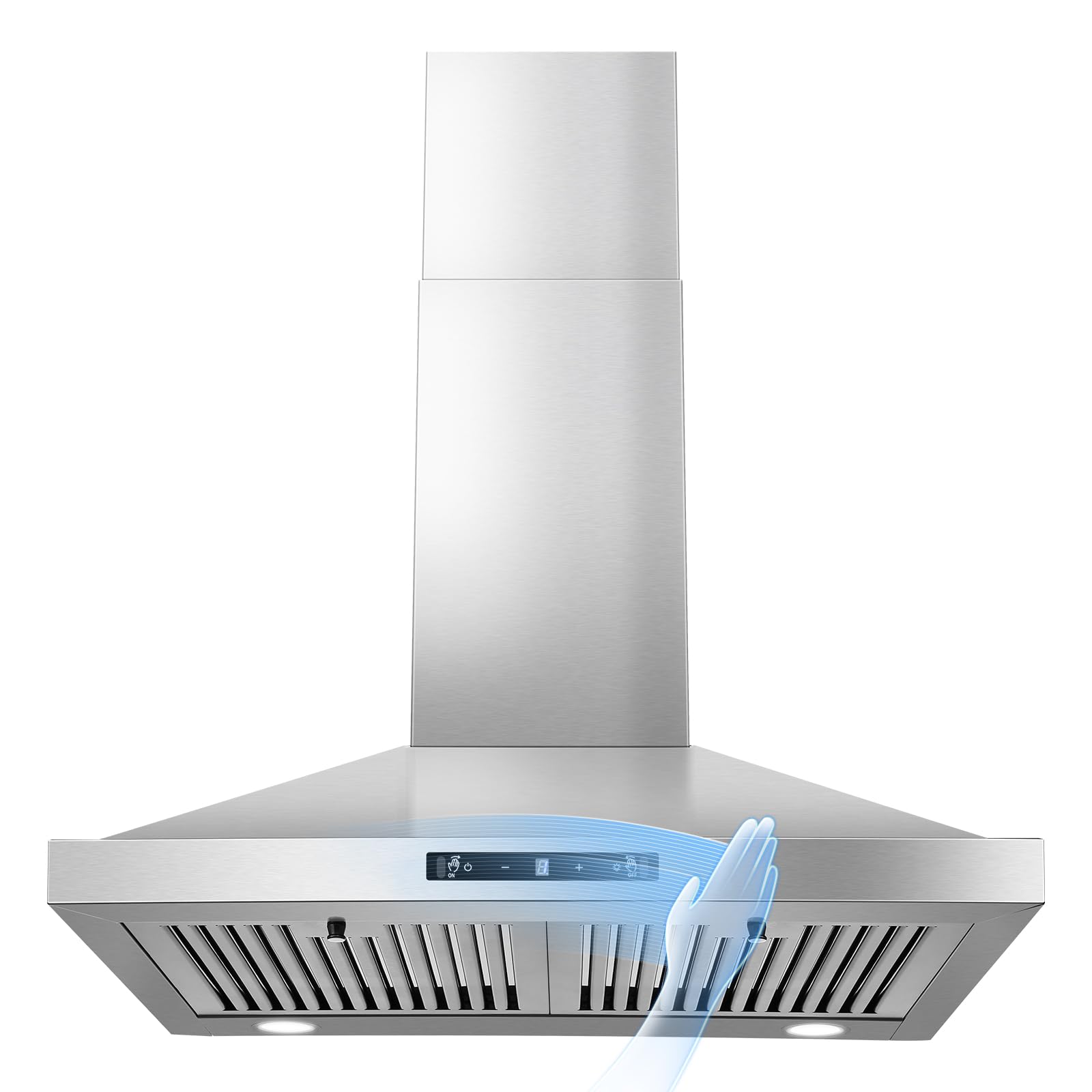

Выява 2.1: Спераду view of the Zomagas 24 Inch Wall Mount Range Hood.

Image 2.2: Detailed dimensions of the Zomagas 24 Inch Wall Mount Range Hood.

3. Кампаненты ў камплекце

The following components are typically included with your Zomagas Range Hood:

• Range Hood Unit
• Installation Kit (mounting brackets, screws, anchors)
• Кіраўніцтва па эксплуатацыі
• Святлодыёдныя лямпы (папярэдне ўсталяваныя)
• Stainless Steel Baffle Filters (pre-installed)
• Ducting (if applicable for ducted installation)

4. Ўстаноўка

Proper installation is crucial for the performance and safety of your range hood. It is recommended to have a qualified technician perform the installation.

Мантаж

• This is a wall-mount range hood. Ensure the wall structure can support the weight of the unit.
• Refer to the detailed diagrams in the included installation kit for precise measurements and mounting steps.
• Maintain the recommended distance between the cooking surface and the bottom of the range hood for optimal performance and safety.

Ducted/Ductless Conversion

The range hood is convertible for both ducted and ductless operation.

• Канальны рэжым: Connects to an external exhaust pipe (6-inch top ducted vent) to vent air outside.
• Ductless Mode: Requires an optional Carbon Filter Kit (Part CFZMG01) to recirculate filtered air back into the kitchen. Install carbon filters as per their instructions.

Image 4.1: Illustration of ducted mode with exhaust pipe and ductless mode with carbon filter kit.

Ўсталявальнае відэа

5. Аперацыя

The Zomagas Range Hood offers convenient control options for a seamless cooking experience.

Панэль кіравання

The range hood features a soft-touch control panel for easy operation.

Распазнаванне жэстаў

Wave your hand across the two sensing points to adjust power and fan speed without touching the panel.

• Wave to turn the range hood and lights on/off.
• Wave to cycle through fan speeds (1-2-3).
• A wave gesture can also activate a 3-minute delayed shutdown.

Image 5.1: Diagram illustrating the gesture control functionality of the range hood.

Рэгуляванне хуткасці кручэння вентылятара

The range hood has 3 fan speeds to accommodate different cooking intensities:

• Нізкая хуткасць: Suitable for simmering or light cooking.
• Сярэдняя хуткасць: Ideal for general cooking.
• Высокая хуткасць: Recommended for frying or stir-frying to quickly remove strong odors and smoke.

Image 5.2: Visual representation of the three fan speeds and their recommended uses.

Delayed Shutdown Function

This function helps to exhaust any remaining smoke or odors from the kitchen after you finish cooking.

• 5-Minute Delay: Long-press the 'Light' button on the touch panel.
• 3-Minute Delay: Activate with a wave gesture.

Image 5.3: Illustration of the 5-minute delayed shutdown function.

Святлодыёднае асвятленне

The integrated LED lights provide bright illumination for your cooking surface. Use the touch control or gesture sensing to turn the lights on or off.

6. Тэхнічнае абслугоўванне і ачыстка

Рэгулярнае тэхнічнае абслугоўванне забяспечвае аптымальную прадукцыйнасць і даўгавечнасць вашай выцяжкі.

Перашкодныя фільтры

The stainless steel baffle filters are designed for easy removal and cleaning.

• Выдаленне: Gently pull the latch on each filter to release it from the housing.
• Уборка: The filters are dishwasher-safe. Alternatively, wash them by hand with warm, soapy water. Rinse thoroughly and allow to dry completely before reinstallation.
• Частата: Clean filters regularly, depending on cooking frequency and type, to maintain air purification efficiency.

Image 6.1: Illustration of the removable, dishwasher-safe baffle filters.

Знешняя ўборка

• Wipe the stainless steel surfaces with a soft cloth and a non-abrasive stainless steel cleaner.
• Avoid using harsh chemicals or abrasive pads, which can scratch the surface.
• For the control panel, use a soft, damp cloth to wipe gently. Do not spray cleaners directly onto the panel.

7. Выпраўленне непаладак

Калі ў вас узніклі праблемы з выцяжкай, звярніцеся да наступных распаўсюджаных праблем і рашэнняў:

Image 7.1: Illustration indicating the quiet operation of the range hood, with noise levels below 55dB at high speed.

If the problem persists after attempting these solutions, please contact Zomagas customer support.

8. Тэхнічныя характарыстыкі

Detailed technical specifications for the Zomagas 24 Inch Wall Mount Range Hood (Model 1760TS):

9. Гарантыя і падтрымка

For warranty information, technical support, or replacement parts, please contact Zomagas customer service. Refer to your purchase documentation for specific warranty terms and contact details.

вытворца: Zomagas

Optional Carbon Filter Kit: Part CFZMG01 (for ductless conversion)
