Gedsffati HD13-CGS Combination Smoke, Gas, and CO Alarm User Manual

1. Уводзіны

The Gedsffati HD13-CGS is a multi-functional safety device designed to detect smoke, combustible gases (such as natural gas, LNG, LPG, methane, ethane, propane, and butane), and carbon monoxide (CO). This device plugs directly into a standard electrical outlet and features a built-in rechargeable battery for backup power during outages. It provides real-time monitoring and alerts users with sound and light alarms in the event of a detected hazard.

2. Важная інфармацыя па бяспецы

Please read and understand all instructions before installing and operating this alarm. Failure to follow these instructions may result in property damage, injury, or death. This alarm is designed to detect the presence of smoke, combustible gases, and carbon monoxide. It is not designed to detect fire, heat, or other gases. Regular testing and maintenance are crucial for proper operation.

• Do not paint over the alarm. Paint can clog the sensor openings and prevent the alarm from functioning correctly.
• Do not block the alarm's vents. Ensure proper airflow around the device.
• Do not install in areas with high humidity, excessive dust, or extreme temperatures.
• Test the alarm weekly to ensure it is functioning properly.
• У выпадку трывогі неадкладна пакіньце памяшканне і выклічце хуткую дапамогу.

3. Асаблівасці прадукту

• Combined Detection: Monitors smoke, carbon monoxide (CO), and various combustible gases including Natural Gas, Liquefied Natural Gas (LNG), Liquefied Petroleum Gas (LPG), Methane (CH4), Ethane (C2H6), Propane (C3H8), and Butane (C4H10).
• High Performance Sensors: Utilizes electrochemical reaction, semiconductor, and photoelectric effect principles for rapid and accurate detection. Sensors have an approximate lifespan of 5 years.
• Near Real-time Detection: Sensors operate every 2 seconds for frequent and fast detection.
• Убудаваная акумулятарная батарэя: Features a 1000 mAh lithium battery providing approximately 10 hours of backup power during electrical outagэс.
• Large Color LCD Screen: A 2.45-inch high-resolution display shows real-time measurements for CO concentration, gas levels, smoke status, temperature, and humidity.
• Гукавая і светлавая сігналізацыя: Emits a loud acoustic alarm and visual alerts when hazardous levels are detected (e.g., CO concentration above 50 ppm).

4. Змесціва ўпакоўкі

• Gedsffati HD13-CGS Combination Smoke, Gas, and CO Alarm Unit
• Кіраўніцтва карыстальніка

5. Настройка і ўстаноўка

5.1 Пачатковая налада

1. Unpack the alarm unit from its packaging.
2. Plug the device directly into a standard electrical outlet. Ensure the outlet is easily accessible and not obstructed.
3. Upon plugging in, the device will power on and begin its self-test sequence. The LCD screen will illuminate, and the built-in battery will start charging.

5.2 Placement Recommendations

Proper placement is critical for effective detection. Consider the following guidelines:

• Carbon Monoxide (CO) Detection: Install at least 5 feet (1.5 meters) from fuel-burning appliances. Place at knee level or higher, but not on the ceiling, as CO mixes with air.
• Выяўленне гаручых газаў: For natural gas (lighter than air), install near the ceiling, within 12 inches (30 cm) of the ceiling and 4-12 inches (10-30 cm) horizontally from the gas source. For LPG/propane (heavier than air), install near the floor, within 4-12 inches (10-30 cm) of the floor and 4-12 inches (10-30 cm) horizontally from the gas source.
• Выяўленне дыму: Install on the ceiling or high on a wall, away from corners. Avoid placing near windows, doors, or air vents where drafts might interfere with smoke reaching the sensor.
• General Placement: Install in common living areas, bedrooms, and near potential sources of hazards (e.g., kitchen with gas stove, furnace room). Avoid dead air spaces.

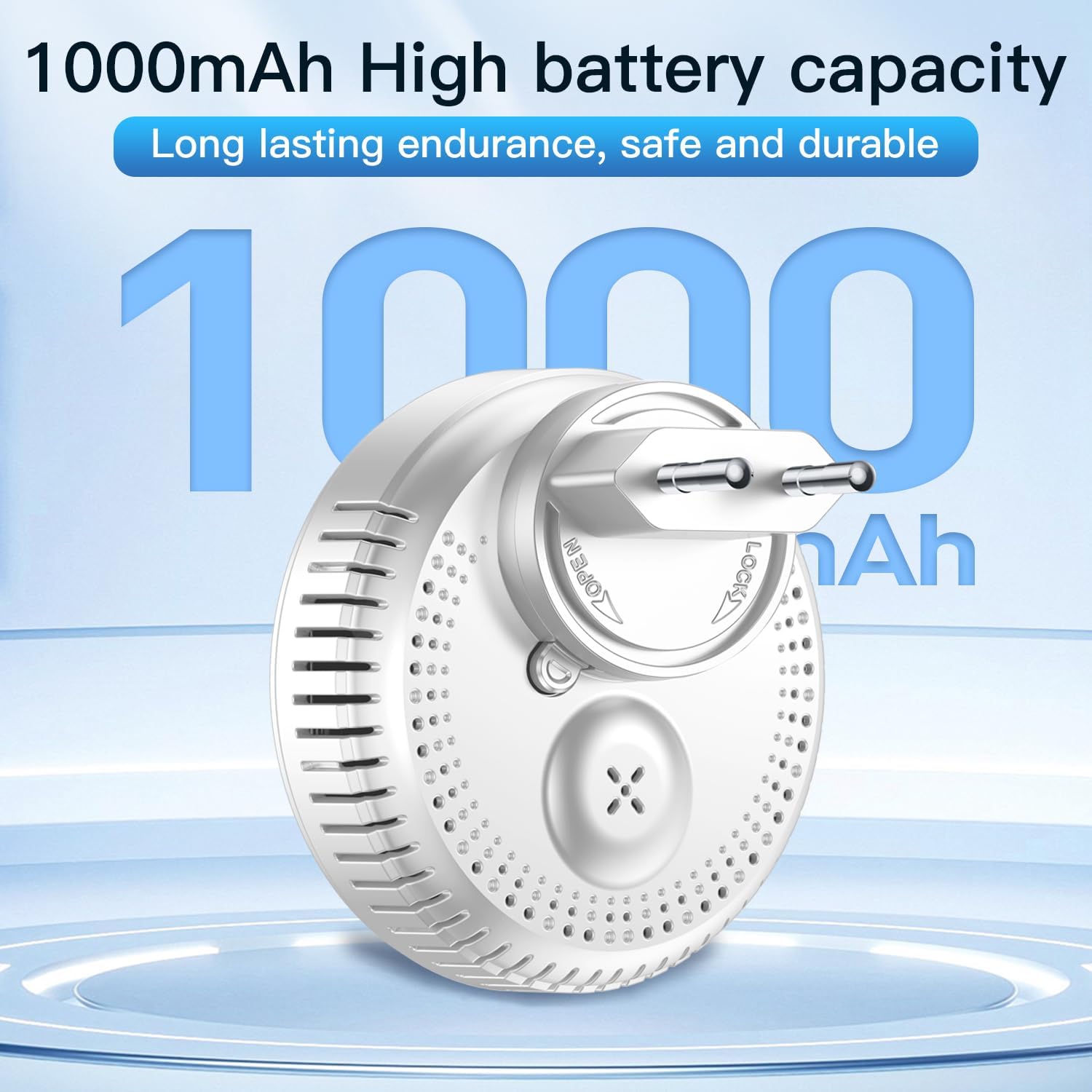

Малюнак 1: Задняя частка view of the alarm, highlighting the plug for direct wall outlet connection and the 1000mAh battery capacity.

Малюнак 2: Выпamples of suitable installation locations, including kitchens, living rooms, bedrooms, and recreational vehicles.

6. Інструкцыя па эксплуатацыі

6.1 Уключэнне/выключэнне сілкавання

The device powers on automatically when plugged into an electrical outlet. There is a power button on the front panel, which can be used to cycle through display modes or initiate a test.

Figure 3: Front panel with power button and visual alarm indicators.

6.2 Разуменне дысплея

2.45-цалевы каляровы ВК-экран адлюстроўвае інфармацыю ў рэжыме рэальнага часу:

• ГАЗ: Indicates the presence and level of combustible gases.
• CO PPM: Displays the concentration of carbon monoxide in parts per million (ppm).
• ДЫМ: Indicates the presence of smoke.
• тэмпература: Паказвае тэмпературу навакольнага асяроддзя.
• Вільготнасць: Displays the ambient humidity level.
• Індыкатар батарэі: Shows the charge level of the internal backup battery.

Малюнак 4: падрабязна view of the alarm's display, showing real-time readings for gas, CO, smoke, temperature, and humidity.

Figure 5: The alarm's display indicating current levels for gas, CO, smoke, temperature, and humidity.

6.3 Індыкацыі сігналізацыі

When hazardous levels of smoke, combustible gas, or carbon monoxide are detected, the alarm will activate:

• Гукавая сігналізацыя: A loud siren will sound.
• Візуальная сігналізацыя: The LCD screen will change color or display a warning message, and indicator lights may flash.

If the alarm sounds, immediately follow emergency procedures for your home or building. Do not ignore the alarm.

Figure 6: The alarm indicating an active alert with both sound and light.

7. Тэхнічнае абслугоўванне

7.1 Рэгулярная ўборка

Clean the alarm regularly to prevent dust and debris from accumulating and affecting sensor performance. Use a soft, damp тканінай для працірання вонкавай паверхні. Не выкарыстоўвайце ачышчальныя спрэі або растваральнікі.

7.2 Праверка сігналізацыі

Test the alarm weekly by pressing the test button (usually the power button or a dedicated test button). The alarm should sound, and the display should indicate a test in progress. If the alarm does not sound, refer to the troubleshooting section.

7.3 Інфармацыя аб батарэі

The built-in 1000 mAh lithium battery provides backup power. It recharges automatically when the device is plugged into an active electrical outlet. Ensure the device is always plugged in to maintain battery charge and continuous protection.

7.4 Тэрмін службы датчыка

The sensors in this device have an approximate lifespan of 5 years. After this period, the device should be replaced to ensure continued accuracy and reliability.

Figure 7: Internal components, illustrating the high-precision sensors and the 1000mAh battery.

8. Выпраўленне непаладак

9. Тэхнічныя характарыстыкі

• Марка: Гедсфаці
• мадэль: HD13-CGS
• Тыпы выяўлення: Smoke, Carbon Monoxide (CO), Combustible Gases (Natural Gas, LNG, LPG, Methane, Ethane, Propane, Butane)
• Прынцып датчыка: Electrochemical (CO), Semiconductor (Gas), Photoelectric (Smoke)
• Тэрмін службы датчыка: Прыкладна 5 гады
• Парог трывогі: >50 ppm CO, specific levels for combustible gas and smoke
• Дысплей: 2.45-цалевы каляровы ВК-дысплей
• Рэзервовы акумулятар: Літыевая акумулятарная батарэя ёмістасцю 1000 мАг
• Battery Backup Duration: Прыблізна 10 гадзіны (цалкам зараджаны)
• Крыніца харчавання: Убудова AC
• Вага прадмета: 90 грам
• UPC: 747086495718
• ASIN: B0DRGXG8P3

10. Гарантыя і падтрымка

Specific warranty information for the Gedsffati HD13-CGS alarm is not provided in this manual. Please refer to the product packaging or contact the manufacturer directly for warranty details and customer support inquiries.
