D'Addario Micro Headstock Rechargeable Tuner (PW-CT-12RC) Instruction Manual

1. Прадукт скончыўсяview

The D'Addario Micro Headstock Rechargeable Tuner is designed for fast and accurate tuning of various stringed instruments. Its compact and discreet design allows it to attach securely to your instrument's headstock, providing clear visual feedback without obstructing your view or instrument aesthetics. This tuner features a vibrant full-color LED display and a long-lasting USB-C rechargeable battery.

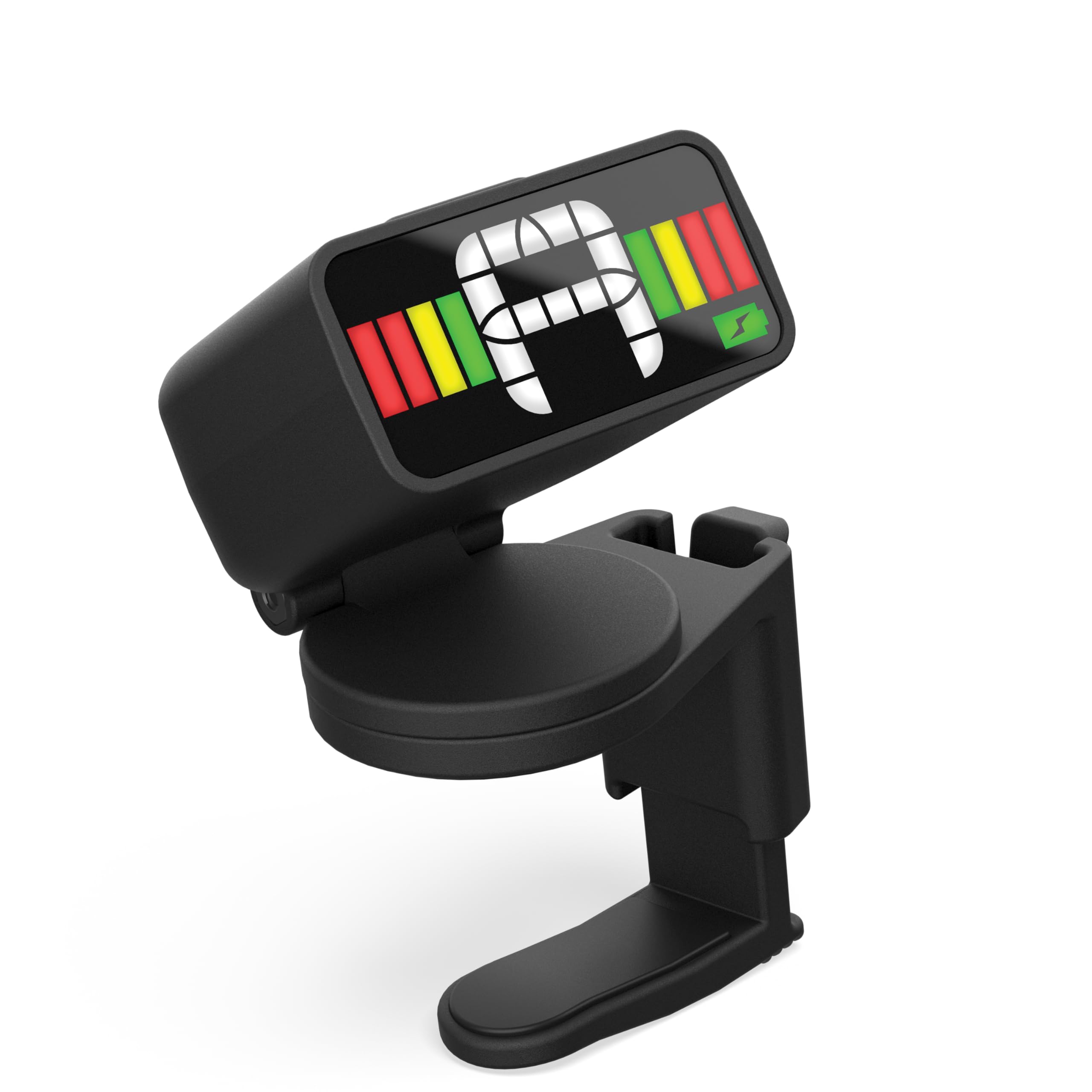

Figure 1: D'Addario Micro Headstock Rechargeable Tuner

2. Настройка і ўстаноўка

2.1 Charging the Tuner

Before first use, ensure the tuner is fully charged. The tuner comes with a 6-inch USB-C cable. Connect the cable to the tuner's USB-C port and plug the other end into a compatible USB power source. A full charge provides approximately 22 hours of tuning time.

Figure 2: Tuner connected to USB-C charging cable

2.2 Attaching to Instrument Headstock

1. Locate a suitable position on your instrument's headstock.
2. Gently open the padded clamp of the tuner.
3. Securely attach the tuner to the headstock, ensuring a firm grip without damaging the instrument's finish. The tuner's compact design allows it to be discreetly placed behind the headstock.

Figure 3: Tuner discreetly attached to a guitar headstock

Figure 4: Tuner securely clipped to a guitar headstock

2.3 Уключэнне/выключэнне

Press and hold the power button located on the tuner to turn it on or off. The tuner features an auto-off function to conserve battery life when not in use.

3. Інструкцыя па эксплуатацыі

3.1 Настройка інструмента

The D'Addario Micro Headstock Tuner utilizes an accurate piezo transducer to detect vibrations directly from your instrument, making it effective even in loud environments. It is suitable for acoustic guitar, electric guitar, bass guitar, mandolin, ukulele, and violin.

1. Once powered on, pluck a single string on your instrument.
2. The tuner's ultra-bright, full-color LED display will show the detected note and indicate whether it is sharp, flat, or in tune.
3. Adjust the tuning peg of the string until the display indicates the correct note and the indicator is centered and green.
4. Паўтарыце для ўсіх струн.

Figure 5: Tuner operating in a loud environment

3.2 Рэгуляванне Viewing кут

The tuner features a 360-degree swivel mechanism, allowing you to adjust the display to your preferred viewing angle for maximum flexibility.

Figure 6: Tuner with adjustable viewныя вуглы

3.3 Каліброўка

The tuner has a wide calibration range of 410-480Hz, ensuring precise performance for various tuning standards. Refer to the tuner's specific controls for adjusting the calibration frequency if needed.

3.4 Відэадэманстрацыя

4. Тэхнічнае абслугоўванне

4.1 Ачыстка

Wipe the tuner with a soft, dry cloth to remove dust or smudges. Avoid using harsh chemicals or abrasive materials.

4.2 Захоўванне

Store the tuner in a cool, dry place away from extreme temperatures and direct sunlight when not in use. Ensure it is powered off to preserve battery life.

5. Выпраўленне непаладак

5.1 Tuner Not Responding

• Ensure the tuner is charged. Connect it to the USB-C cable and a power source.
• Press and hold the power button for a few seconds to ensure it is powered on.

5.2 Inaccurate Tuning

• Ensure the tuner is securely attached to the instrument's headstock to properly detect vibrations.
• Check the calibration setting (410-480Hz) to ensure it matches your desired tuning standard.
• Pluck strings clearly and individually, avoiding sympathetic vibrations from other strings.

6. Тэхнічныя характарыстыкі

7. Гарантыя і падтрымка

For warranty information and customer support, please refer to the official D'Addario webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
