TECKNET Wireless Doorbell TK-WD809 Instruction Manual

1. Уводзіны

Thank you for choosing the TECKNET Wireless Doorbell. This manual provides detailed instructions for the installation, operation, and maintenance of your new doorbell system. Please read this manual carefully before use and retain it for future reference.

2. Змесціва ўпакоўкі

• 1 x Self-Powered Doorbell Transmitter
• 1 x Plug-in Receiver with Pass-Through Socket
• Mounting Hardware (Screws, Wall Plugs, Double-Sided Adhesive Tape)
• Кіраўніцтва карыстальніка

3. Прадукт скончыўсяview

3.1 Асноўныя магчымасці

• Перадатчык з аўтаномным харчаваннем: No batteries required for the doorbell button. It generates its own power when pressed.
• Plug-in Receiver with Pass-Through Socket: The receiver plugs directly into a wall outlet and includes an integrated socket, allowing you to use the outlet for other devices.
• Wide Wireless Range: Up to 300 meters (1000 ft) operating range in open areas.
• 60 Melodies & 5 Volume Levels: Choose from a variety of chimes and adjust the volume from 0dB to 120dB.
• Індыкатар RGB-святла: Visual alert for incoming calls, especially useful in noisy environments or for hearing-impaired users.
• Воданепранікальнасць і пыланепранікальнасць IP65: The transmitter is designed to withstand various weather conditions, functioning between -20°C and 60°C.
• Функцыя памяці: Retains your last selected melody and volume level even after a power outage.

3.2 Кампаненты

This image displays both the self-powered doorbell transmitter and the plug-in receiver, illustrating their design and relative sizes. The transmitter is shown on the left, and the receiver with its integrated socket is on the right.

Падрабязны view of the plug-in receiver, clearly showing the additional power socket integrated into its design, allowing other electrical devices to be plugged in simultaneously.

4. Настройка і ўстаноўка

4.1 Усталёўка перадатчыка (кнопкі дзвярнога званка)

1. Выберыце месца: Select a flat, clean surface near your door. Ensure the surface is free from dust and moisture.
2. Method 1: Adhesive Mounting
   • Старанна ачысціце месца мацавання.
   • Адклейце адзін бок двухбаковай клейкай стужкі і шчыльна прыляпіце яе да задняй панэлі перадатчыка.
   • Peel off the other side of the tape and press the transmitter firmly onto the desired location for at least 30 seconds.
3. Method 2: Screw Mounting
   • Адзначце на сцяне месцы для адтулін для шруб.
   • Прасвідруйце дзве адтуліны ў пазначаных месцах.
   • Устаўце дзюбелі ў прасвідраваныя адтуліны.
   • Align the transmitter with the holes and secure it with the provided screws.

This image demonstrates the simple process of attaching the self-powered transmitter to a wall using the provided double-sided adhesive. It highlights the ease of installation without the need for complex wiring.

4.2 Усталёўка прыёмніка

• Plug the receiver into any standard wall outlet within the desired range of the transmitter.
• Пераканайцеся, што разетка лёгкадаступная і не засмечаная.

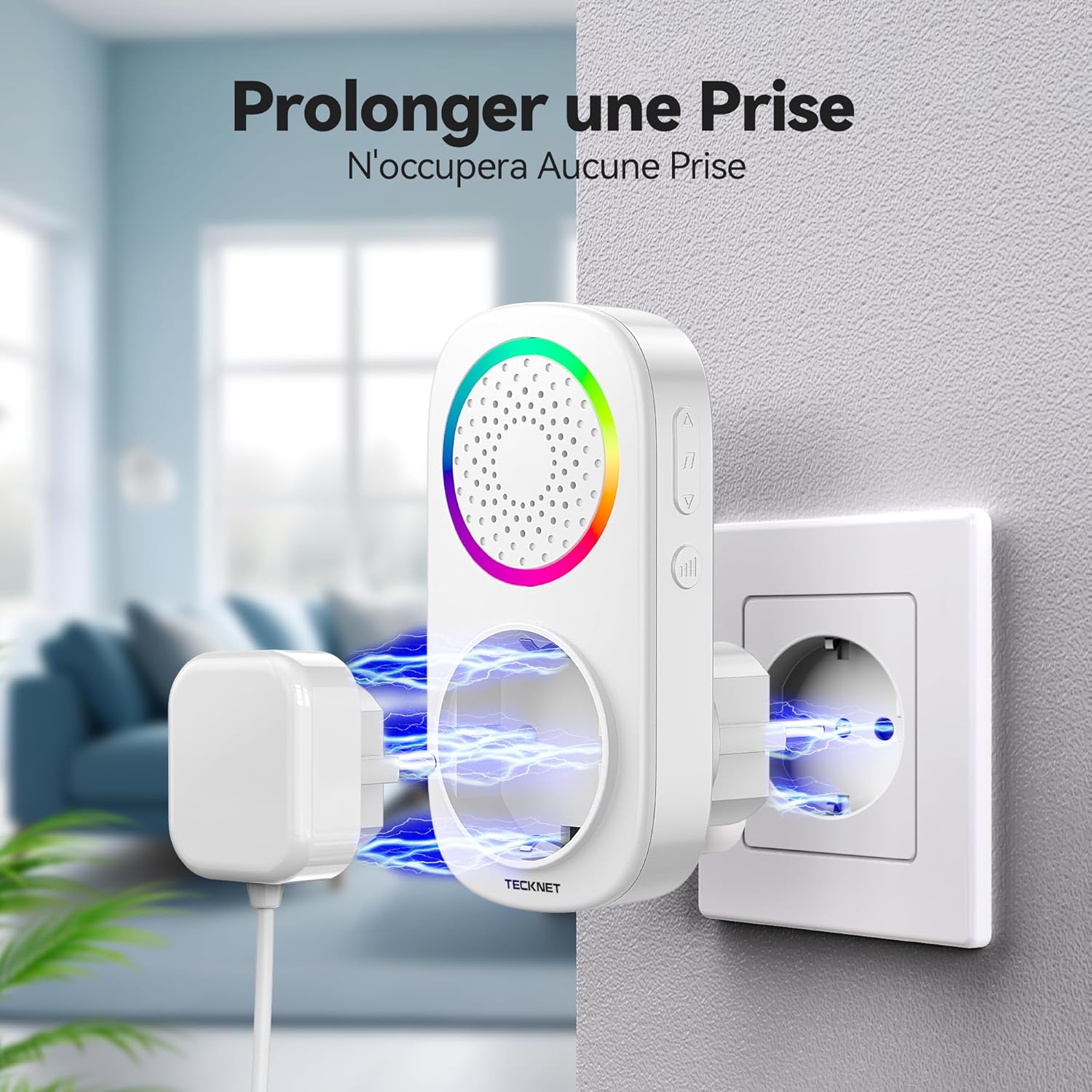

This image shows the receiver unit connected to a power outlet, with another plug inserted into its integrated pass-through socket, illustrating that it does not block the use of the outlet.

5. Інструкцыя па эксплуатацыі

5.1 Змена мелодый

The receiver has buttons on its side for melody selection. Press the Melody Up or Melody Down button to cycle through the 60 available chimes. The receiver will play a preview of each melody as you select it.

5.2 Рэгуляванне гучнасці

Націсніце Аб'ём button on the side of the receiver to cycle through 5 different volume levels (0dB to 120dB). Select the volume level that best suits your environment.

5.3 Changing Modes (Sound/Light)

The receiver offers different notification modes:

• Mode 1: RGB and Chime: The receiver will play the selected melody and illuminate its RGB light indicator.
• Mode 2: Chime Only: The receiver will only play the selected melody.
• Mode 3: RGB Only (Mute Mode): The receiver will only illuminate its RGB light indicator, without playing a sound. This is ideal for quiet environments or when you don't want to disturb others.

Каб пераключыцца паміж рэжымамі, націсніце і ўтрымлівайце Melody Up button for approximately 3 seconds. The mode will change with each long press.

This diagram illustrates the location of the control buttons on the side of the receiver unit, indicating which buttons are used for melody selection (up/down) and volume control.

This image depicts the receiver operating in mute mode, where only the colorful RGB light flashes to indicate a visitor, without producing any sound, ideal for quiet environments.

6. Тэхнічнае абслугоўванне

• Clean the doorbell transmitter and receiver regularly with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ensure the transmitter's button is free from debris to maintain optimal performance.
• The self-powered transmitter does not require battery replacement.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

• мадэль: TK-WD809
• Марка: ТЭКНЕТ
• Памеры (выраб): 8.4 х 7.3 х 11.9 см
• Вага (выраб): 210 грамаў
• Бесправадны дыяпазон: Да 300 метраў (1000 футаў) на адкрытай прасторы
• Мелодыі: 60 выбіраемых званочкаў
• Узроўні гучнасці: 5 узроўняў (ад 0 дБ да 120 дБ)
• Рэйтынг воданепранікальнасці: IP65 (перадатчык)
• Працоўная тэмпература: -20°C да 60°C (-4°F да 140°F)
• Power Source (Transmitter): Self-powered (no battery required)
• Крыніца харчавання (прыёмнік): Убудова AC

This image visually confirms the IP65 waterproof and dustproof rating of the transmitter, showing it exposed to water and functioning reliably in diverse environmental conditions, from cold to hot climates.

9. Афіцыйнае відэа прадукту

10. Гарантыя і падтрымка

TECKNET offers 36 months of professional customer support for registered users. If you encounter any issues during the use of your doorbell, please contact the TECKNET customer service team for assistance. Please refer to the product packaging or TECKNET's official webсайт для кантактных дадзеных.
