Electroni Spices W88-B 20A Solar Charger Controller User Manual

1. Уводзіны

The Electronic Spices W88-B 20A Solar Charger Controller is designed to efficiently manage the charging and discharging of 12V/24V solar power systems. This controller optimizes battery performance and extends battery life by preventing overcharging, over-discharging, and short circuits. It features dual USB ports for charging mobile devices and other USB-powered gadgets directly from the solar system. Utilizing intelligent PWM charging technology, it enhances energy conversion efficiency, making it suitable for off-grid solar setups, RVs, boats, and small solar installations. The user-friendly LCD display provides real-time data for effective monitoring and management. Constructed with durable and heat-resistant materials, the W88-B controller offers reliable long-term performance in various environmental conditions.

2. Асноўныя магчымасці

• мадэль: W88-B
• Намінальны выпtage: 12V/24V automatic identification
• Намінальны ток: 20А
• Макс. PV Voltage: 50В
• Максімальная ўваходная магутнасць фотаэлектрычных элементаў: 130W (for 12V system) / 260W (for 24V system)
• Тып дысплея: LCD/LED display for real-time monitoring
• Тэхналогія зарадкі: PWM battery charging
• Парты USB: Два порта USB для зарадкі прылады
• Асаблівасці абароны: Overcharging, over-discharging, short circuit, over-current, over-voltage, overheating, and lightning protection.
• Сумяшчальнасць з батарэяй: Suitable for lead-acid battery, lithium iron battery, lithium battery.
• матэрыял: Durable plastic and metal construction.

3. Прадукт скончыўсяview і Памеры

The W88-B solar charge controller features a compact design with clearly labeled terminals and an intuitive LCD display. Below are images illustrating the product's appearance and its key dimensions.

Малюнак 3.1: Спераду view of the Electroni Spices W88-B Solar Charger Controller, showing the LCD display, control buttons, USB ports, and terminal connections.

Figure 3.2: Dimensions of the W88-B Solar Charger Controller, indicating a length of 131 mm and a width of 69 mm.

4. Інфармацыя аб бяспецы і функцыі абароны

Always observe safety precautions when working with electrical systems. Ensure all connections are secure and correct before applying power. The W88-B controller incorporates multiple protection features to ensure safe operation of your solar system:

• Абарона ад перагрузкі па току: Запабягае пашкоджанняў ад празмернага току.
• Абарона ад перазарадкі: Stops charging when the battery is full to prevent overcharging.
• Абарона ад кароткага замыкання: Automatically disconnects in case of a short circuit.
• Над Voltagе абарона: Protects against damage from excessively high voltage.
• Over Heating Protection: Выключаецца, калі ўнутраная тэмпература перавышае бяспечныя межы.
• Абарона ад маланкі: Offers defense against lightning strikes.

Figure 4.1: Visual representation of the various protection features integrated into the W88-B Solar Charger Controller.

5. Настройка і ўстаноўка

Proper installation is crucial for the optimal performance and longevity of your solar charge controller. Follow these steps carefully:

1. Спачатку падключыце акумулятар: Connect the battery to the charge controller. Ensure correct polarity (+ to + and - to -). The controller will detect the battery voltage (12V or 24V) automatically.
2. Падключэнне сонечных панэляў: Connect the solar panels to the charge controller. Again, observe correct polarity.
3. Падключэнне нагрузкі пастаяннага току (неабавязкова): Connect your DC load (e.g., DC lights) to the load terminals of the controller.
4. Connect Inverter (Optional): If using an inverter for AC loads, connect it to the battery terminals (not directly to the controller's load terminals).

Важна: Always connect the battery to the controller first, then the solar panels, and finally the load. Disconnect in the reverse order: load, then solar panels, then battery.

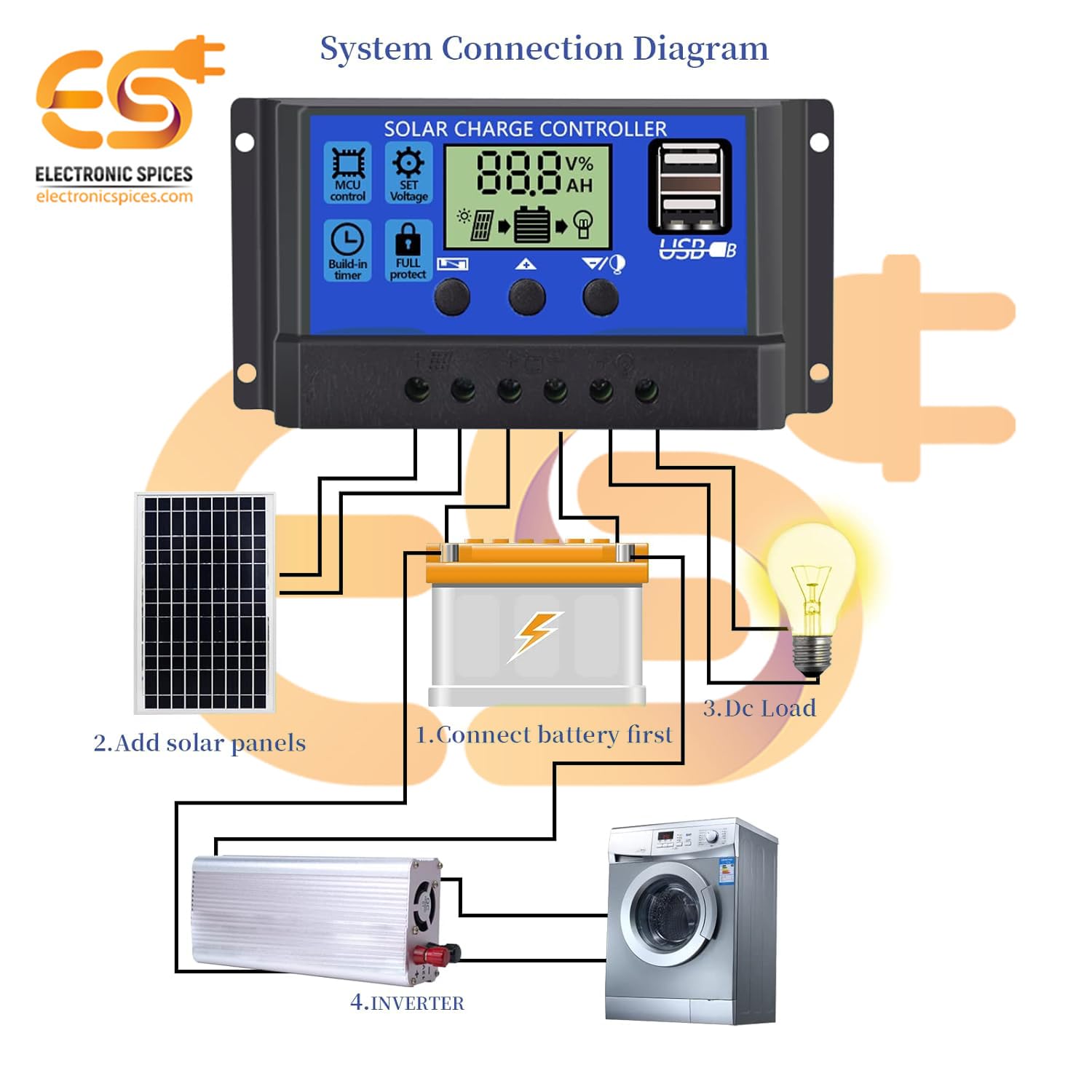

Figure 5.1: System connection diagram illustrating the proper sequence for connecting the battery, solar panels, DC load, and inverter to the solar charge controller.

Figure 5.2: A quick visual guide for connecting the solar panels, battery, and DC load to the W88-B controller.

6. Інструкцыя па эксплуатацыі

The W88-B controller features an LCD display that provides real-time information about your solar system's status.

Figure 6.1: Explanation of the digital display on the W88-B controller, showing indicators for solar panel charge, battery status, and load output.

6.1. Рэжымы адлюстравання

The LCD cycles through various display modes automatically. You can also manually cycle through them using the control buttons. Common displays include:

• Акумулятар Voltage: Паказвае бягучы аб'ёмtage падлучанай батарэі.
• Solar Panel Charge Status: Indicates if the solar panels are actively charging the battery.
• Load Output Status: Shows if the load output is active or inactive.

6.2. Кнопкі кіравання

The controller has three buttons for navigation and setting adjustments:

• Кнопка меню: Выкарыстоўваецца для ўваходу і выхаду з рэжымаў налад.
• Кнопка ўверх: Used to increase values or navigate upwards in menus.
• Кнопка ўніз: Used to decrease values or navigate downwards in menus.

Refer to the specific icons on the controller for functions like MCU control, set voltage, build-in timer, and full protect indicators.

7. Тэхнічнае абслугоўванне

To ensure the long-term reliability and performance of your W88-B solar charge controller, follow these maintenance guidelines:

• Рэгулярная ўборка: Трымайце кантролер чыстым і без пылу і смецця. Выкарыстоўвайце для чысткі мяккую сухую тканіну.
• Праверце злучэнні: Periodically inspect all wiring connections to ensure they are tight and free from corrosion. Loose connections can lead to power loss or overheating.
• Вентыляцыя: Ensure the controller is installed in a well-ventilated area to prevent overheating. Do not block the ventilation holes.
• Умовы навакольнага асяроддзя: While designed for durability, avoid exposing the controller to extreme moisture or direct sunlight for prolonged periods if not rated for such exposure.
• Зарад батарэі: Monitor your battery's health regularly. A failing battery can impact the controller's performance.

8. Выпраўленне непаладак

If you encounter issues with your W88-B solar charge controller, refer to the following common problems and their solutions:

Калі праблема не знікне пасля спробы гэтых рашэнняў, звярніцеся ў службу падтрымкі кліентаў.

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

This product is manufactured by Electronic Spices. For any technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Electronic Spices customer support. Please have your product model number (W88-B) and purchase details ready when contacting support.

вытворца: Электронныя спецыі

Кантактная інфармацыя: Refer to the contact details provided with your purchase or visit the official Electronic Spices webсайт для атрымання найбольш актуальнай інфармацыі аб падтрымцы.
