E-FENCE GPS Wireless Dog Collar Fence System Instruction Manual

1. Уводзіны і большview

The E-FENCE GPS Wireless Dog Collar Fence System provides a reliable and flexible solution for containing your dog within a defined outdoor area. Utilizing advanced GPS positioning technology, this system creates a wireless boundary without the need for physical wires or a separate transmitter. It features adjustable warning modes, health monitoring capabilities, and a durable, waterproof design for various outdoor conditions.

Image 1: The E-FENCE GPS Wireless Dog Collar Fence System in use, showing two collars and a dog within a virtual boundary.

Image 2: Illustration of the E-FENCE system's key benefits: no app, no subscription, no transmitter, and no digging required.

2. Інструкцыі па ўсталёўцы

2.1 Зарадка прылады

Before initial use, fully charge the collar receiver. The device uses a sustainably rechargeable 12V battery (included). A full charge ensures up to 48 hours of continuous operation.

2.2 Fitting the Collar

Ensure the collar is properly fitted to your dog. The E-FENCE collar is adjustable and suitable for most dogs weighing between 15 lbs and 120 lbs, with a neck size range of 12 to 28 inches. The collar strap can be trimmed if necessary for a custom fit. The contact points on the collar should touch your dog's skin for effective operation.

Image 3: Guide for adjusting the E-FENCE collar to fit various dog sizes, highlighting its croppable design.

2.3 Defining the Boundary

The system operates by establishing a central point and a circular boundary around it. Follow these steps to set up your containment area:

1. Determine Center Point: Place the collar receiver at the desired center of your containment area.
2. Activate GPS: Turn on the device and allow it to acquire a stable GPS signal.
3. Set Boundary Radius: Adjust the boundary radius from 65 feet (20 meters) up to 3280 feet (1000 meters). The adjustment increment is 10 feet (3 meters) per step.
4. Utilize 'REMEMBER' Function: For quick setup in previously used locations, activate the 'REMEMBER' function to recall the last set center point.

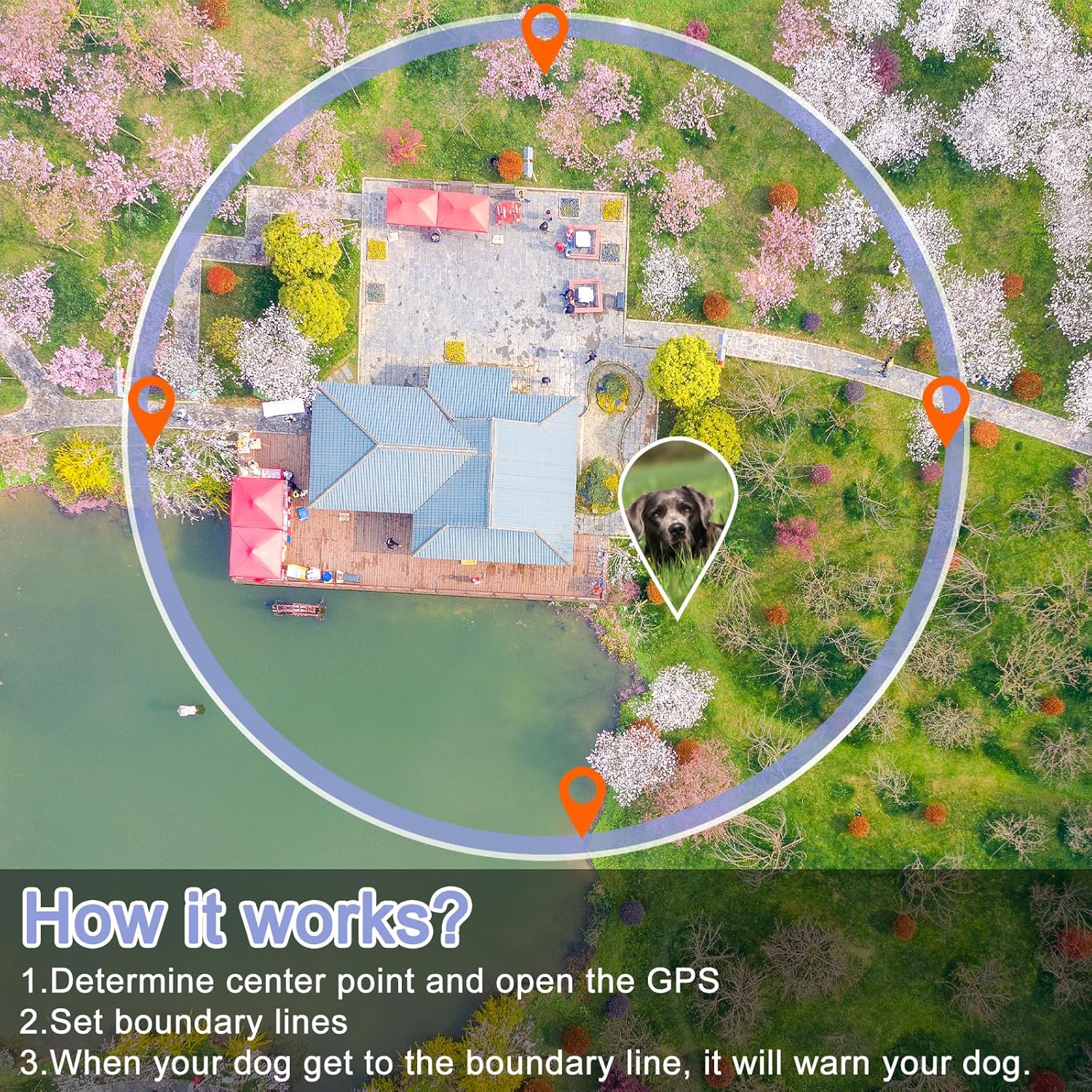

Image 4: Visual explanation of the E-FENCE system's operation, from determining the center point to setting boundary lines.

3. Інструкцыя па эксплуатацыі

3.1 Warning Modes

The E-FENCE system offers three adjustable warning modes to train your dog to stay within the defined boundary:

• Рэжым гукавога сігналу: Provides an audible warning. This mode can be toggled on or off (0-1 level).
• Рэжым вібрацыі: Delivers a gentle vibration. Intensity is adjustable from 0 to 3 levels.
• Electric Shock Mode: Provides a static correction. Intensity is adjustable from 0 to 10 levels.

These modes can be combined to create an effective training sequence tailored to your dog's temperament and size. The device uses simple physical buttons for control, eliminating the need for an app or Wi-Fi connection.

Малюнак 5: Падрабязны view of the three adjustable warning modes available on the E-FENCE collar.

3.2 Маніторынг здароўя

Beyond containment, the E-FENCE GPS wireless dog fence includes features to monitor your dog's health:

• Маніторынг сардэчнага рытму: Tracks your dog's heart rate.
• Маніторынг тэмпературы цела: Measures your dog's body temperature.
• Падлік крокаў: Records your dog's activity levels.

These features are designed to help ensure your dog's safe and healthy activity while using the system.

Выява 6: Канецview of the six functions, including health monitoring and training modes, integrated into the E-FENCE collar.

3.3 Воданепранікальная канструкцыя

The collar receiver boasts an IP7 waterproof rating, making it suitable for dogs who enjoy water activities or for use in rainy conditions. Ensure the charging port cover is securely sealed to maintain its waterproof integrity.

Image 7: Demonstration of the E-FENCE collar's IP7 waterproof capability, suitable for various wet environments.

4. Тэхнічнае абслугоўванне

4.1 Ачыстка

Regularly clean the collar and receiver unit with a damp cloth. Ensure the contact points are free of dirt or debris to maintain proper function. Do not use harsh chemicals or abrasive cleaners.

4.2 Сыход за акумулятарам

To maximize battery life, charge the device regularly, especially after extended periods of use. Avoid completely draining the battery frequently. Store the device in a cool, dry place when not in use.

4.3 Агляд

Periodically inspect the collar strap and receiver for any signs of wear or damage. Ensure the USB charging port cover is intact and properly sealed to maintain the IP7 waterproof rating.

5. Выпраўленне непаладак

• Прылада не ўключаецца: Ensure the battery is fully charged. Connect the device to the charger and attempt to power it on after a few minutes.
• Inconsistent Boundary Warnings: Verify that the device has a clear line of sight to GPS satellites. Obstructions like dense tree cover or tall buildings can interfere with GPS signal accuracy. Re-establish the center point if necessary.
• No Response at Boundary: Check the selected warning mode settings (Beep, Vibration, Electric Shock) and their intensity levels. Ensure the collar is fitted correctly with contact points touching the dog's skin.
• Кароткі тэрмін службы батарэі: Ensure the device is fully charged before each use. Battery performance can be affected by extreme temperatures.
• Пранікненне вады: Always ensure the USB charging port cover is securely closed before exposing the device to water to maintain its IP7 waterproof rating.

6. Тэхнічныя характарыстыкі

7. Гарантыя і падтрымка

7.1 Інфармацыя аб гарантыі

The E-FENCE GPS Wireless Dog Collar Fence System comes with a 2-year warranty. Please retain your proof of purchase for warranty claims.

7.2 Падтрымка кліентаў

For technical assistance, troubleshooting, or warranty inquiries, please contact E-FENCE customer support. Refer to the product packaging or the official E-FENCE webсайт для атрымання актуальнай кантактнай інфармацыі.
