Outsunny 11x11ft Pop Up Gazebo Screen Tent House Instruction Manual

1. Інфармацыя па бяспецы

Калі ласка, прачытайце і зразумейце ўсе інструкцыі перад зборкай і выкарыстаннем. Невыкананне гэтых інструкцый можа прывесці да пашкоджання вырабу або траўмаў.

• Умовы надвор'я: Do not leave the gazebo up in heavy weather conditions, including strong winds, heavy rain, or snow. Disassemble and store the unit to prevent damage.
• зборка: Adult assembly is required. It is recommended that two or more people assist with the setup for ease and safety.
• Пажарная бяспека: Трымайце ўсе крыніцы полымя і цяпла далей ад тканіны альтанкі. Тканіна не з'яўляецца вогнеўстойлівай.
• Бяспека: Always use the provided guy ropes and ground stakes to secure the gazebo firmly to the ground. Ensure all poles are properly connected and locked into place.
• Выбар сайта: Choose a level surface free from sharp objects or debris that could damage the fabric or frame.

2. Змесціва ўпакоўкі

Перад пачаткам зборкі пераканайцеся, што ўсе кампаненты ў наяўнасці. Калі якія-небудзь дэталі адсутнічаюць або пашкоджаныя, звярніцеся ў службу падтрымкі кліентаў.

• Pop-Up Gazebo Frame with Mesh Sidewalls
• Removable Roof Cover (UPF30+, 1500mm water resistance)
• 4 Roll-up Wind Panels
• Fiberglass Poles (11mm)
• вяроўкі
• Наземныя стаўкі
• Пераносная сумка для пераноскі

3. Інструкцыі па ўсталёўцы

Follow these steps for quick and easy assembly of your pop-up gazebo.

1. Распакуйце: Remove the gazebo from its portable carry bag.
2. Разгарнуць рамку: Lay the folded frame on a flat surface. With assistance, gently pull the frame outwards from opposing sides until it begins to expand.

Figure 3.1: Initial setup steps, showing removal from carry bag and pulling side straps.

3. Бяспечная рамка: Continue to pull the straps on all sides to fully extend the pop-up mechanism until the frame is completely open and stable. Ensure all locking mechanisms (if present) are engaged.
4. Attach Roof Cover: If desired, place the removable roof cover over the top of the frame. Secure it using the attached fasteners (e.g., hook-and-loop straps, clips) to ensure a snug fit.
5. Замацаванне на зямлі: Use the provided ground stakes to anchor each leg of the gazebo to the ground. For added stability, attach guy ropes to the designated points on the frame and stake them into the ground at an angle.

Figure 3.2: Securing the gazebo using fiberglass poles, ground stakes, and guy ropes.

4. Інструкцыя па эксплуатацыі

Your gazebo offers versatile options for comfort and protection.

4.1 Removable Roof Cover

The roof cover provides UPF30+ sun protection and 1500mm water resistance.

• Каб дадаць: Place the roof cover over the frame and secure all attachment points. This provides shade and protection from light rain.
• Каб выдаліць: Unfasten all attachment points and carefully lift the roof cover off the frame. Removing the roof cover increases ventilation and allows for an open-air experience.

Figure 4.1: Demonstrating the removable roof cover for sun protection or ventilation.

4.2 Adjustable Mesh Sidewalls and Wind Panels

The gazebo features four mesh sidewalls with integrated roll-up wind panels for customizable enclosure.

• Сеткаватыя бакавыя сценкі: The mesh provides insect protection and allows airflow.
• Roll-up Wind Panels: For increased airflow, roll up the wind panels and secure them at the top using the provided fasteners.
• Roll-down Wind Panels: For privacy or protection from light wind, roll down the wind panels. Secure them at the bottom to prevent flapping.

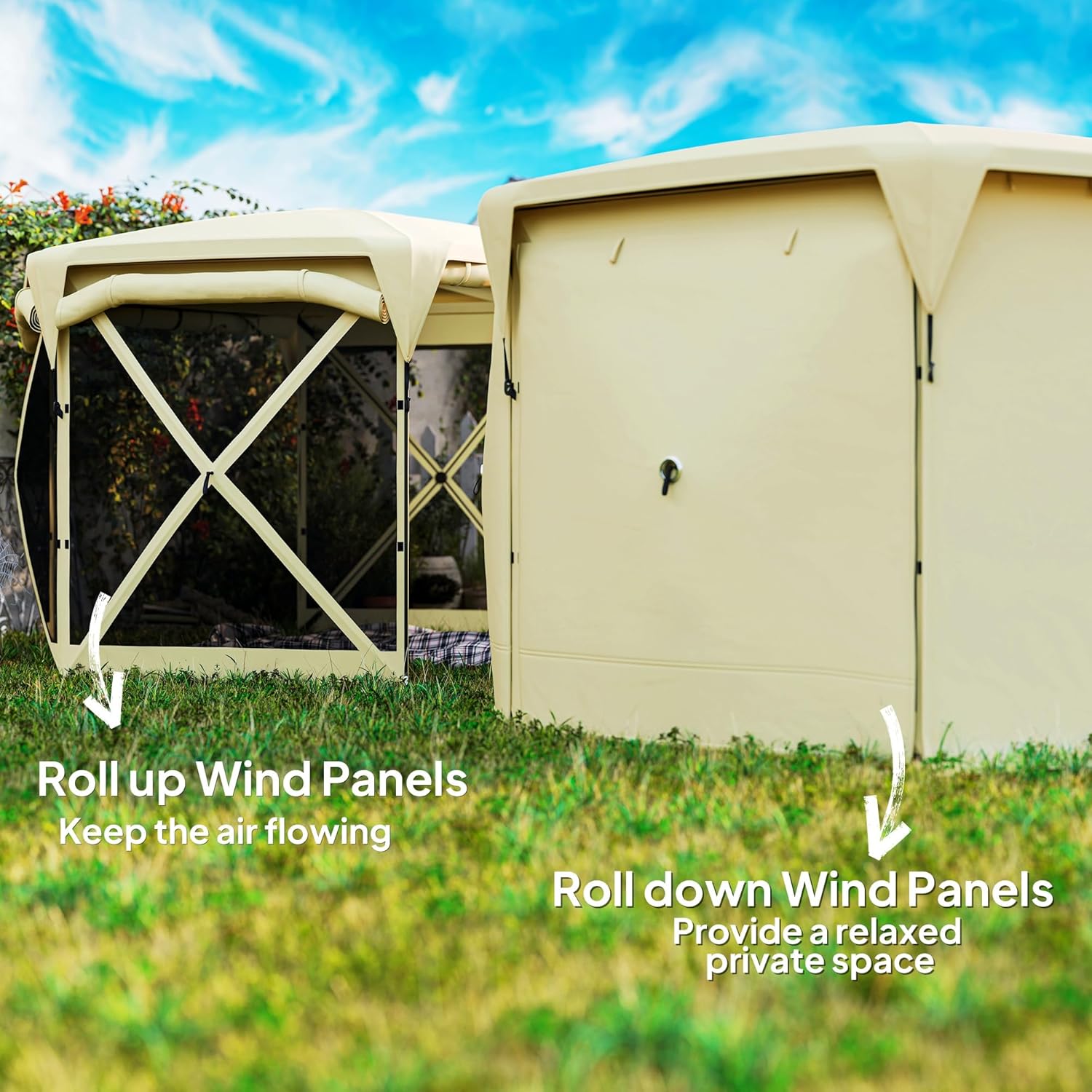

Figure 4.2: Using roll-up and roll-down wind panels for airflow or privacy.

Note: Two doors are included for easy access. These doors do not include mesh sidewalls.

5. Тэхнічнае абслугоўванне

Proper care will extend the life of your gazebo.

• Уборка: Clean the fabric with a mild soap and water solution. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
• Сыход за рамай: Працярыце рамку рэкламайamp cloth as needed. Inspect poles for any damage or bending before each use.
• захоўванне: Ensure the gazebo is completely dry before folding and storing it in the carry bag. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• агляд: Periodically check all fasteners, ropes, and stakes for wear and tear. Replace any damaged components to maintain safety and stability.

6. Выпраўленне непаладак

Вось рашэнні распаўсюджаных праблем, з якімі вы можаце сутыкнуцца.

• Difficulty Setting Up: Ensure the frame is fully extended and all straps are pulled taut. Sometimes, a second person can help align and extend the frame more easily. Practice can improve setup speed.
• Gazebo Not Stable: Verify that all ground stakes are firmly inserted into the ground and guy ropes are properly tensioned. Ensure the setup surface is level. In windy conditions, additional weights (not included) may be necessary.
• Назапашванне вады на даху: Ensure the roof cover is taut and properly secured to prevent water from pooling. Remove any accumulated water promptly to avoid damage.

7. Тэхнічныя характарыстыкі

Detailed product information for your Outsunny Pop Up Gazebo Screen Tent House.

Figure 7.1: Gazebo dimensions overview.

8. Гарантыя і падтрымка

For warranty information, missing parts, or technical support, please refer to the purchase documentation or contact Outsunny customer service directly. Keep your proof of purchase for any warranty claims.

Кантактную інфармацыю звычайна можна знайсці на сайце вытворцы webсайце або на ўпакоўцы.
