Carlett Lite Duo LETT430-L3 Shopping Trolley User Manual

1. Прадукт скончыўсяview

The Carlett Lite Duo LETT430-L3 is a versatile and lightweight 4-wheel shopping trolley designed for ease of use and convenience. It features a convertible 4-wheel to 2-wheel design, 360° swivel front wheels for exceptional maneuverability, an ergonomic adjustable handle, and a safety brake for stability. The trolley includes a large main bag with 48 liters capacity and an integrated 10-liter insulated bag for temperature-sensitive items.

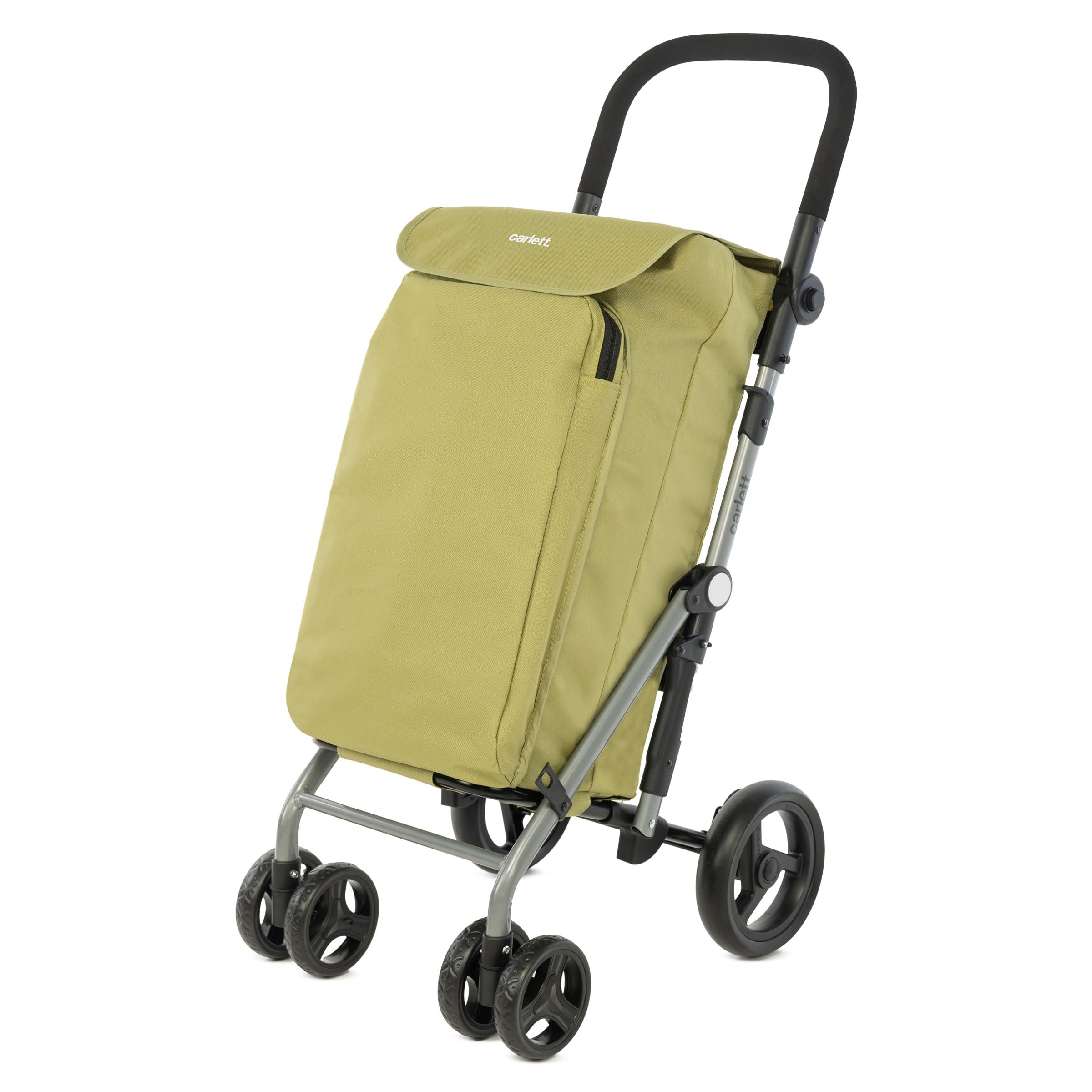

Малюнак 1.1: Фронт view of the Carlett Lite Duo LETT430-L3 shopping trolley, showcasing its overall design and olive color.

Малюнак 1.2: Збоку view of the trolley, illustrating its profile, wheels, and handle.

Малюнак 1.3: Key features diagram, highlighting the main bag, insulated bag, adjustable handle, compact folding mechanism, and integrated brake.

2. Настройка

The Carlett Lite Duo LETT430-L3 is designed for quick and easy assembly. Follow these steps to prepare your trolley for use:

1. Разгарніце рамку: Gently pull the frame apart until it locks into its open position. Ensure all locking mechanisms are securely engaged.
2. Прымацаваць колы: If the wheels are detached for shipping, insert them into their designated slots on the frame until they click into place. Verify that all four wheels rotate freely.
3. Замацуйце сумку: Place the main shopping bag onto the frame. The bag is typically secured with Velcro straps or clips. Ensure it is firmly attached to prevent shifting during use.
4. Адрэгулюйце ручку: Press the release buttons on the handle and extend it to your desired height. Release the buttons to lock the handle in position.

Малюнак 2.1: The trolley in its folded configuration, demonstrating its compact storage capability.

3. Інструкцыя па эксплуатацыі

This section details how to effectively use your Carlett Lite Duo LETT430-L3 shopping trolley.

3.1. Using the 4-Wheel and 2-Wheel Modes

• 4-Wheel Mode: For maximum stability and ease of pushing, use the trolley with all four wheels on the ground. The 360° swivel front wheels allow for effortless navigation in any direction.
• 2-Wheel Mode: To convert to 2-wheel mode, tilt the trolley backward onto its two larger rear wheels. This mode is useful for navigating stairs, curbs, or uneven terrain.

3.2. Рэгуляваная ручка

The ergonomic handle can be adjusted to suit your height for comfortable pushing. Press the buttons on the sides of the handle and slide it up or down. Release the buttons to lock it in place.

3.3. Safety Brake

The integrated safety brake provides stability when the trolley is stationary. Engage the brake by pressing the lever located near the handle or wheels (depending on model variation). Ensure the brake is disengaged before moving the trolley.

3.4. Using the Bags

• Main Bag (48L): Use the main compartment for general groceries and larger items. The bag is extensible to accommodate varying loads.
• Insulated Bag (10L): The front-mounted insulated bag is designed to keep frozen or fresh items at their optimal temperature during transport.

Малюнак 3.1: Visual guide to the adjustable handle, compact folding, safety brake, and extensible bag features.

4. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and optimal performance of your shopping trolley.

• Cleaning the Bag: The main bag is removable. Hand wash with mild soap and water, then air dry. Do not machine wash or tumble dry. The insulated bag can be wiped clean with a damp тканіна.
• Ачыстка рамы: Працярыце металічную раму рэкламайamp тканіна. Пазбягайце абразіўных ачышчальнікаў.
• Тэхнічнае абслугоўванне колаў: Periodically check the wheels for debris (hair, string, etc.) and remove them to ensure smooth rotation. The wheels are made of rubber.
• Праверка тармазоў: Regularly test the safety brake to ensure it engages and disengages properly.
• захоўванне: When not in use, fold the trolley compactly and store it in a dry place away from direct sunlight.

5. Выпраўленне непаладак

If you encounter any issues with your Carlett Lite Duo LETT430-L3, refer to the following common troubleshooting steps:

• Trolley does not fold/unfold smoothly: Check for any obstructions in the folding mechanism. Ensure all joints are clean and free of dirt. Apply a small amount of silicone lubricant if necessary.
• Wheels are stiff or not rotating: Inspect the wheels for tangled hair, lint, or other debris. Remove any obstructions. Ensure the wheel axles are clean.
• Тормаз не ўключаецца/не адключаецца: Check the brake lever and cable (if applicable) for any damage or misalignment. Ensure no debris is blocking the brake mechanism.
• Bag is loose on the frame: Re-secure the bag using its Velcro straps or clips. Ensure they are properly fastened to the frame.

Калі праблема не знікне пасля выканання гэтых крокаў, звярніцеся ў службу падтрымкі кліентаў.

6. Тэхнічныя характарыстыкі

Малюнак 6.1: Capacity and weight summary graphic, showing 48 liters for the main bag, 10 liters for the insulated bag, and a 5 kg light structure.

7. Гарантыя і падтрымка

7.1. Інфармацыя аб гарантыі

Specific warranty details for the Carlett Lite Duo LETT430-L3 are not provided in this manual. Please retain your proof of purchase and contact the retailer or Carlett customer service for information regarding warranty coverage and terms.

7.2. Падтрымка кліентаў

For further assistance, technical support, or inquiries about replacement parts, please visit the official Carlett website or contact your point of purchase. Spare parts availability information is currently unavailable through standard product listings.
