Уводзіны
This manual provides detailed instructions for the Kyglaring LED Light Kit, specifically designed to illuminate your Lego Tudor Corner 10350 building set. It covers the components included, step-by-step installation guidance, operational procedures, maintenance tips, and troubleshooting advice to help you enhance your model's display.
Што ўключана
The Kyglaring LED Light Kit package contains the following components:

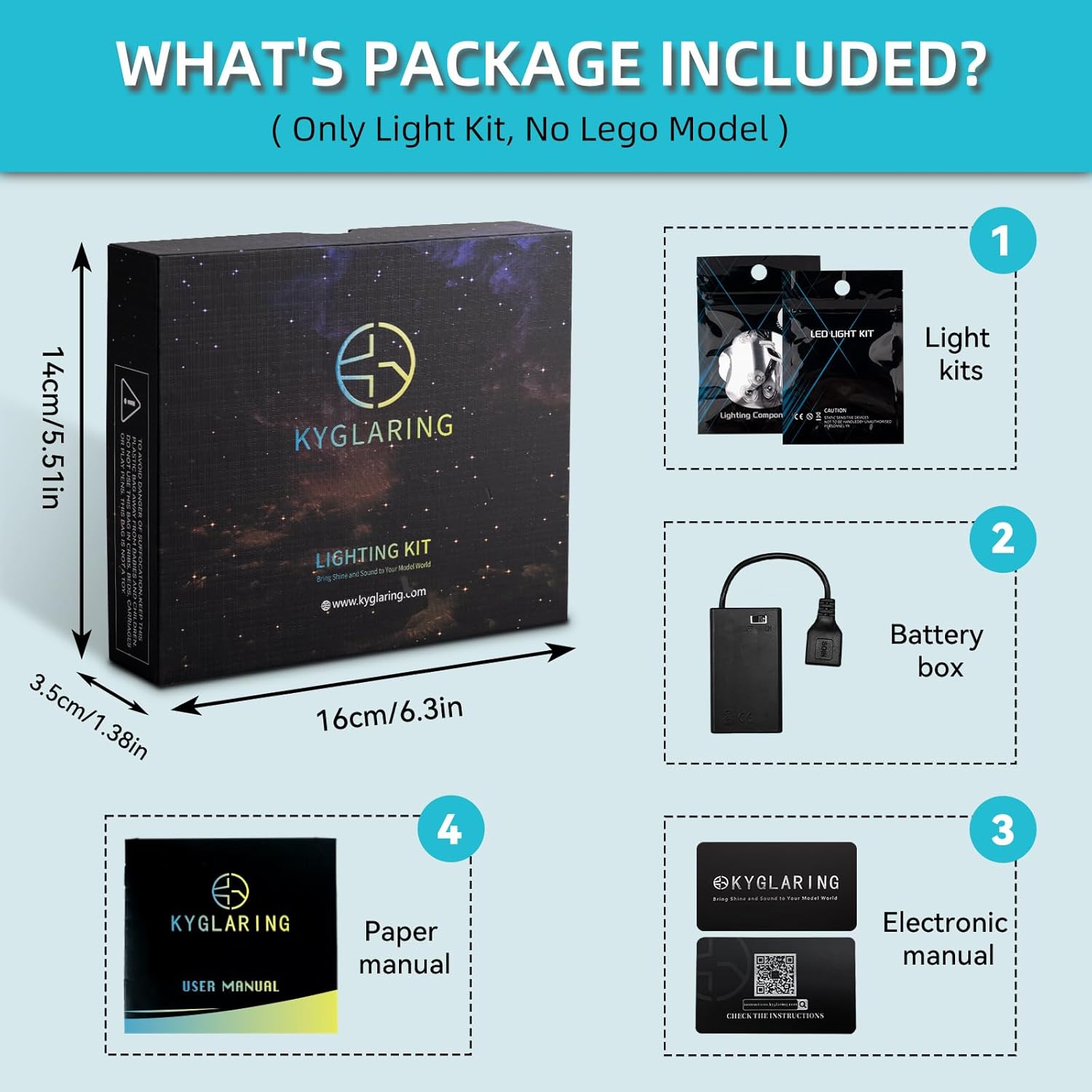

This image displays the contents of the Kyglaring LED Light Kit package, including light kits, a battery box, an electronic manual card, and a paper manual.
- Light kits (various LED lights and connecting wires)
- Battery box (for power, batteries not included)
- Electronic manual (QR code for online instructions)
- Paper manual (basic guide)
For comprehensive and detailed electronic installation instructions, please visit the official Kyglaring webсайт: instructions.kyglaring.com
Настройка і ўстаноўка
The Kyglaring LED light kit is designed for straightforward integration with your Lego Tudor Corner 10350 set. No specialized tools are required for installation.
Агульныя рэкамендацыі па ўсталёўцы
- Падрыхтоўка: Ensure your Lego Tudor Corner 10350 model is fully assembled before beginning the light kit installation.
- Праверка кампанентаў: Before installation, test each light component to confirm it is functioning correctly.
- Выконвайце інструкцыі: Refer to the detailed video or PDF installation instructions provided online (via the QR code) or in the included paper manual. These step-by-step guides are crucial for proper and successful installation.
- Кіраванне кабелем: лamp holders feature a hidden cable design. Carefully route wires to ensure they are not pinched, stretched, or pulled too hard, as this could damage the components.
- Злучэнне: Use the specially designed snap-on connectors to attach the light components securely.
Электразабеспячэнне
The light kit requires a 5V power input. You can power it using the provided USB cable and battery box (batteries are not included). The USB cable can be connected to a mobile power bank, a wall adapter, or other compatible USB devices. Ensure the maximum power output of your USB source does not exceed 6F.
This image shows the Lego Tudor Corner 10350 model beautifully illuminated by the Kyglaring LED Light Kit, highlighting various lit sections of the building.
Інструкцыя па эксплуатацыі
Once the Kyglaring LED Light Kit is installed and connected to a power source, your Lego Tudor Corner 10350 model will be illuminated.
- Уключэнне/выключэнне харчавання: Connect the power source (USB or battery box) to activate the lights. Disconnect the power source to turn them off.
- Brightness and Effects: This classic version of the light kit typically provides a steady illumination. If your specific kit includes a remote control or switch for adjusting brightness or light effects, please refer to the detailed online instructions for its operation.
- Дысплей: The lights are designed to enhance the visual appeal of your model, transforming it into a vibrant and dynamic display piece.
This image provides a side-by-side comparison, illustrating the dramatic visual enhancement achieved by the Kyglaring LED Light Kit on the Lego Tudor Corner 10350 model.
Тэхнічнае абслугоўванне
Proper care will ensure the longevity and optimal performance of your Kyglaring LED Light Kit.
- Уборка: Gently dust the light components and wires with a soft, dry cloth. Avoid using liquids, solvents, or abrasive cleaners, as these can damage the lights or wiring.
- Апрацоўка: Always handle the light components and wires with care. Avoid pulling on the wires or applying excessive force to the lights to prevent damage.
- Захоўванне: If you need to disassemble the kit for storage, carefully disconnect all components and store them in a dry, safe place away from direct sunlight and extreme temperatures.
Ліквідацыю непаладак
If you encounter any issues with your Kyglaring LED Light Kit, please refer to the following table for common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Святло не ўключаецца | No power, loose connection, faulty component | Check the power source (USB connection or batteries in the battery box), ensure all connections are secure, and re-test individual components if necessary. |
| Some lights are dim or flickering | Loose connection, insufficient power, damaged wire | Verify all connections are firm, ensure the power source is adequate (e.g., fresh batteries), and carefully inspect wires for any visible damage. |
| Lights not fitting correctly | Incorrect placement, Lego model not fully assembled | Double-check the installation guide for correct light placement. Ensure the Lego model itself is correctly and securely assembled. |
If you encounter persistent issues that cannot be resolved using the troubleshooting guide, please contact Kyglaring customer support for further assistance.
Тэхнічныя характарыстыкі
- Сумяшчальнасць мадэляў: Designed for Lego Tudor Corner 10350 Building Set
- Увод магутнасці: 5 В
- Параметры харчавання: USB cable, Battery box (batteries not included)
- Матэрыял: Высакаякасны пластык
- Уключаныя кампаненты: LED Light Kit (Lego model not included)
- Памеры ўпакоўкі: Прыкладна 6.3 х 5.51 х 1.38 цалі
- Вага ўпакоўкі: Approximately 0.4 Pounds
Гарантыя і падтрымка
Kyglaring is committed to providing a beautiful creative experience. If you encounter any technical difficulties or issues when using your product, our dedicated light and shadow consultants are available to help you solve the problem in a timely manner.
For further support, you can visit the official Kyglaring store on Amazon: Kyglaring Store.
