FLUENTPOWER 3/4HP Submersible Sump Pump

1. Уводзіны і агляд прадуктуview

This manual provides essential information for the safe and efficient operation of your FLUENTPOWER 3/4HP Submersible Sump Pump, Model FSP750C-3. This powerful utility pump is designed for effective water drainage from various sources such as swimming pools, garden ponds, and flooded basements. It features a robust 3/4 HP motor, a maximum flow rate of 3,000 GPH, and a vertical float switch for automatic operation.

Выява 1: Канецview of the FLUENTPOWER Sump Pump highlighting its powerful motor, oil-filled seal, and overheat protection.

2. Інфармацыя па бяспецы

Always prioritize safety when operating electrical equipment near water. Read and understand all instructions before use. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Пераканайцеся, што крыніца харчавання адпавядае магутнасці помпыtage (110 вольт).
• Не выкарыстоўвайце помпу з пашкоджаным шнуром або вілкай.
• Never handle the pump or its power cord with wet hands.
• Заўсёды адключайце харчаванне перад выкананнем любога тэхнічнага абслугоўвання або рэгулявання.
• Трымайце дзяцей і хатніх жывёл далей ад працоўнай зоны.
• Не перапампоўвайце лёгкаўзгаральныя або агрэсіўныя вадкасці.
• Avoid dry running the pump, as this can cause damage.

3. Змесціва ўпакоўкі

Пры распакаванні пераканайцеся, што ўсе кампаненты наяўныя:

• FLUENTPOWER Submersible Sump Pump
• Vertical Float Switch (pre-attached or separate)
• 16.4-foot Power Cord (main pump)
• 10-foot Power Cord (float switch, piggy-back plug)
• GHT 3/4" Adapter
• NPT 1" Adapter
• Зваротны клапан
• Rope for lowering/raising
• Mounting bracket for pump
• Mounting bracket for pipe
• Шланг з нержавеючай сталі клamp
• Чатыры шрубы

4. Настройка і ўстаноўка

Follow these steps to prepare your sump pump for operation:

1. Attach Discharge Adapters: Select the appropriate adapter (GHT 3/4" or NPT 1") for your discharge hose. The check valve should be installed into the joint by rotating the adapter into the pump thread. For high capacity pumping, use the G 1-1/4" discharge port.
2. Install Vertical Float Switch: The vertical float switch can be installed in two ways:
   • Fixed on the pump: Use the provided mounting bracket and screws to attach the float switch directly to the pump body. This is suitable for smaller pits.
   • Fixed on a pipe: Use the stainless steel hose clamp and pipe mounting bracket to secure the float switch to a vertical pipe in the sump pit. This allows for more flexible activation level adjustment.

   Ensure the float switch can move freely without obstruction to prevent continuous operation or failure to activate.

3. Attach Rope: Securely tie the provided rope to the pump handle. This rope is used for safely lowering and retrieving the pump from the water, preventing damage to the power cord.

Image 2: Step-by-step guide for connecting adapters, submerging the pump, and initiating automatic operation.

Image 3: Illustration of the vertical float switch operation, showing activation at 4 inches and deactivation at 1.6 inches.

5. Інструкцыя па эксплуатацыі

The pump offers two operating modes:

• Аўтаматычная праца: When the vertical float switch is installed, the pump will automatically turn on when the water level reaches approximately 4 inches and turn off when the water level drops to about 1.6 inches. The maximum submersion depth for automatic operation is 8 feet.
• Кіраванне ўручную: For continuous pumping or to achieve a lower residual water level (down to 0.4 inches), you can operate the pump manually by plugging and unplugging the power cord. The maximum submersion depth for manual operation is 13 feet. Ensure the pump does not run dry for extended periods in manual mode.

The pump can handle solids up to 1/5 inch in diameter. It is suitable for clean water drainage.

Image 4: Visual representation of the Automatic and Manual operating modes, including water level triggers and power cord lengths.

Image 5: Important usage guidelines, including lifting the pump by rope, not pulling the power cord, and avoiding dry running.

6. Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and extends the pump's lifespan:

• Уборка: Periodically clean the pump's intake screen to remove debris that may obstruct water flow.
• агляд: Regularly inspect the power cord, float switch, and pump housing for any signs of damage or wear.
• захоўванне: If storing the pump for an extended period, clean it thoroughly and store it in a dry, frost-free location.

7. Выпраўленне непаладак

If your pump is not operating correctly, consider the following common issues:

• Помпа не запускаецца: Check if the pump is properly plugged into a working power outlet. In automatic mode, ensure the water level is high enough to activate the float switch. Inspect the power cord for damage.
• Pump runs but no water flows: Check for blockages in the intake screen or discharge hose. Ensure the pump is fully submerged and primed. Verify the check valve is installed correctly and not stuck.
• Помпа працуе бесперапынна: In automatic mode, check if the float switch is stuck in the 'on' position or if the water level is consistently above the 'off' threshold.
• Reduced flow rate: Clean the intake screen. Check for kinks or obstructions in the discharge hose.

Калі праблемы не знікнуць, звярніцеся да раздзела гарантыі і падтрымкі.

8. Тэхнічныя характарыстыкі

Image 6: Detailed specifications and dimensions of the sump pump.

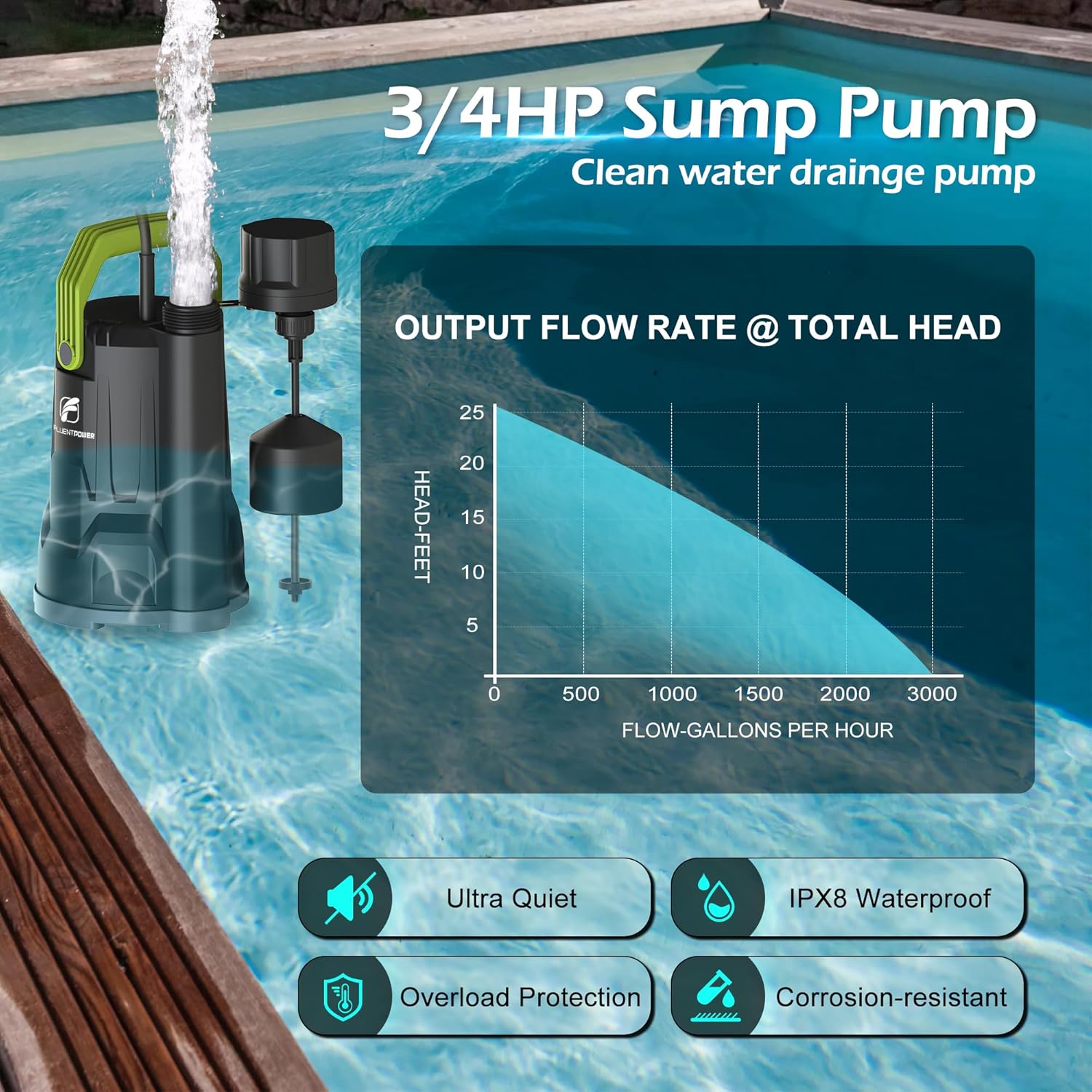

Image 7: Performance curve and additional features of the 3/4HP Sump Pump.

9. Гарантыя і падтрымка

FLUENTPOWER is committed to providing reliable products and excellent customer service. We offer lifelong technical consultation and 24-hour customer service to assist you with any questions or issues you may encounter.

Please retain your proof of purchase for warranty claims. For support, contact our customer service team through the retailer's platform or visit the official FLUENTPOWER webсайт.
