Generic Claw Mechanism for Arcade Grabber Parts

Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of the Generic Claw Mechanism, designed for use in arcade grabber and vending machines. Please read these instructions carefully before proceeding to ensure proper function and to maximize the lifespan of your product.

Прадукт скончаныview

The Generic Claw Mechanism is a robust replacement part for various arcade and vending machines. Constructed from durable iron material, it features a reinforced coil for enhanced grabbing power and is designed for straightforward installation.

Малюнак 1: Спераду view of the Claw Mechanism with key dimensions. The installation diameter is 4.5 cm (1.77 inches), and the overall height is 21 cm (8.27 inches).

Настройка і ўстаноўка

The claw mechanism is designed for easy installation. Follow these steps to replace or install the unit:

1. Падрыхтоўка: Ensure the arcade machine is powered off and disconnected from the main power supply before beginning any installation or maintenance.
2. Доступ: Open the machine's access panel to reach the existing claw mechanism or the designated installation area.
3. Зняцце (пры замене): Carefully disconnect any wiring and mounting hardware from the old claw mechanism. Remove the old unit.
4. Ўстаноўка: Position the new Generic Claw Mechanism in the designated area. The installation diameter is 4.5 cm (1.77 inches). Secure it using appropriate mounting hardware (not included).
5. Праводка: Connect the coil wiring to the machine's control system. Ensure all connections are secure and correctly polarized according to your machine's wiring diagram.
6. Тэставанне: Close the access panel, reconnect power, and perform a test run to ensure the claw opens, closes, and moves correctly.

Figure 2: The claw mechanism shown installed within an arcade machine, demonstrating its operational context.

Інструкцыя па эксплуатацыі

Once installed, the claw mechanism operates as part of the arcade machine's control system. Its primary function is to grab and lift prizes.

• Grabbing Action: The reinforced coil provides a strong grip, allowing the claw to securely hold items. The claw's open size is 13.5 cm (5.31 inches), accommodating various prize sizes.
• Рух: The claw's movement (up, down, left, right) is controlled by the arcade machine's joystick and buttons, which activate the internal motor and coil of the claw.
• Выдача прыза: Upon reaching the prize chute, the claw will automatically release its grip, dropping the prize.

Figure 3: The claw mechanism actively grabbing a plush toy, demonstrating its functionality during operation.

Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and extends the life of your claw mechanism.

• Уборка: Periodically clean the exterior of the claw with a dry, soft cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
• агляд: Regularly inspect the claw for any signs of wear, damage, or loose connections. Pay attention to the coil and the moving parts of the claw fingers.
• змазка: If the claw's movement becomes stiff, apply a small amount of silicone-based lubricant to the pivot points. Do not over-lubricate.
• Праводка: Check all electrical connections for tightness and ensure there are no frayed wires.

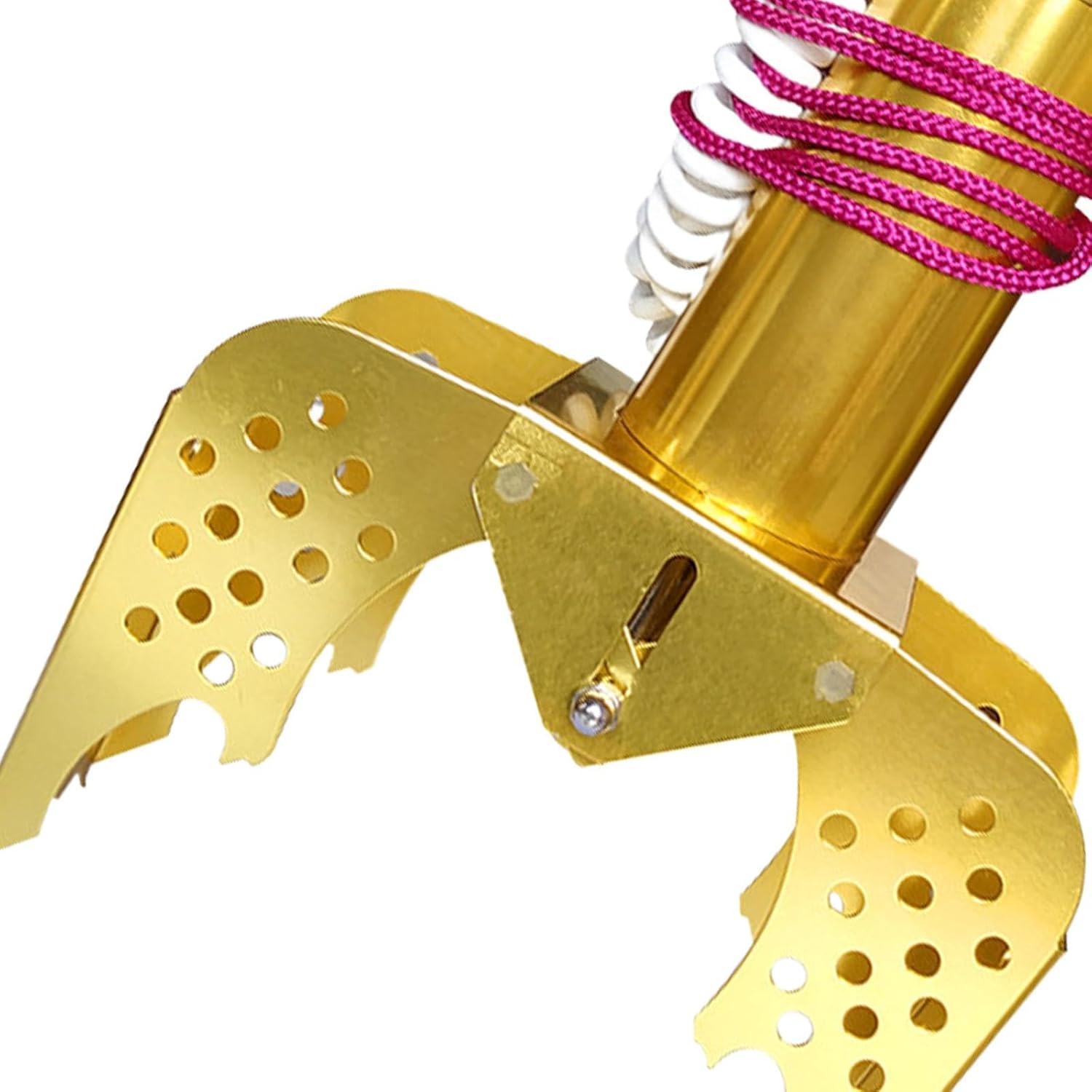

Малюнак 4: Падрабязны view of the claw mechanism, highlighting its robust construction and internal components for maintenance inspection.

Ліквідацыю непаладак

If you encounter issues with your claw mechanism, refer to the following common problems and solutions:

• Claw Not Moving:
  • Check power supply to the machine.
  • Verify all wiring connections to the claw mechanism are secure.
  • Inspect for any physical obstructions preventing movement.
• Кіпцюр не хапае/не адпускаеццаasing Properly:
  • Ensure the coil is properly connected and receiving power.
  • Check for debris or damage in the claw fingers that might impede opening or closing.
  • Verify the claw's pivot points are not stiff and are adequately lubricated.
• Weak Grip:
  • Inspect the coil for damage or wear.
  • Ensure the power supply to the coil is sufficient.

If problems persist after attempting these solutions, consult a qualified technician or the arcade machine's manufacturer for further assistance.

Тэхнічныя характарыстыкі

Інфармацыя аб гарантыі

No specific warranty information is provided for this Generic Claw Mechanism. Please refer to the retailer or your purchase documentation for any applicable return or warranty policies.

Падтрымка

For technical support or inquiries regarding this product, please contact the seller or the manufacturer of your arcade machine. Specific contact information for Generic is not available in this manual.
