1. Уводзіны
The Gens ace Imars S10 G-Tech Series charger is a compact and intelligent charging solution designed for 2S-3S LiPo batteries. Featuring G-Tech smart chip technology, it automatically identifies battery information for safe and efficient charging. This manual provides essential information for the proper setup, operation, and maintenance of your Imars S10 charger.

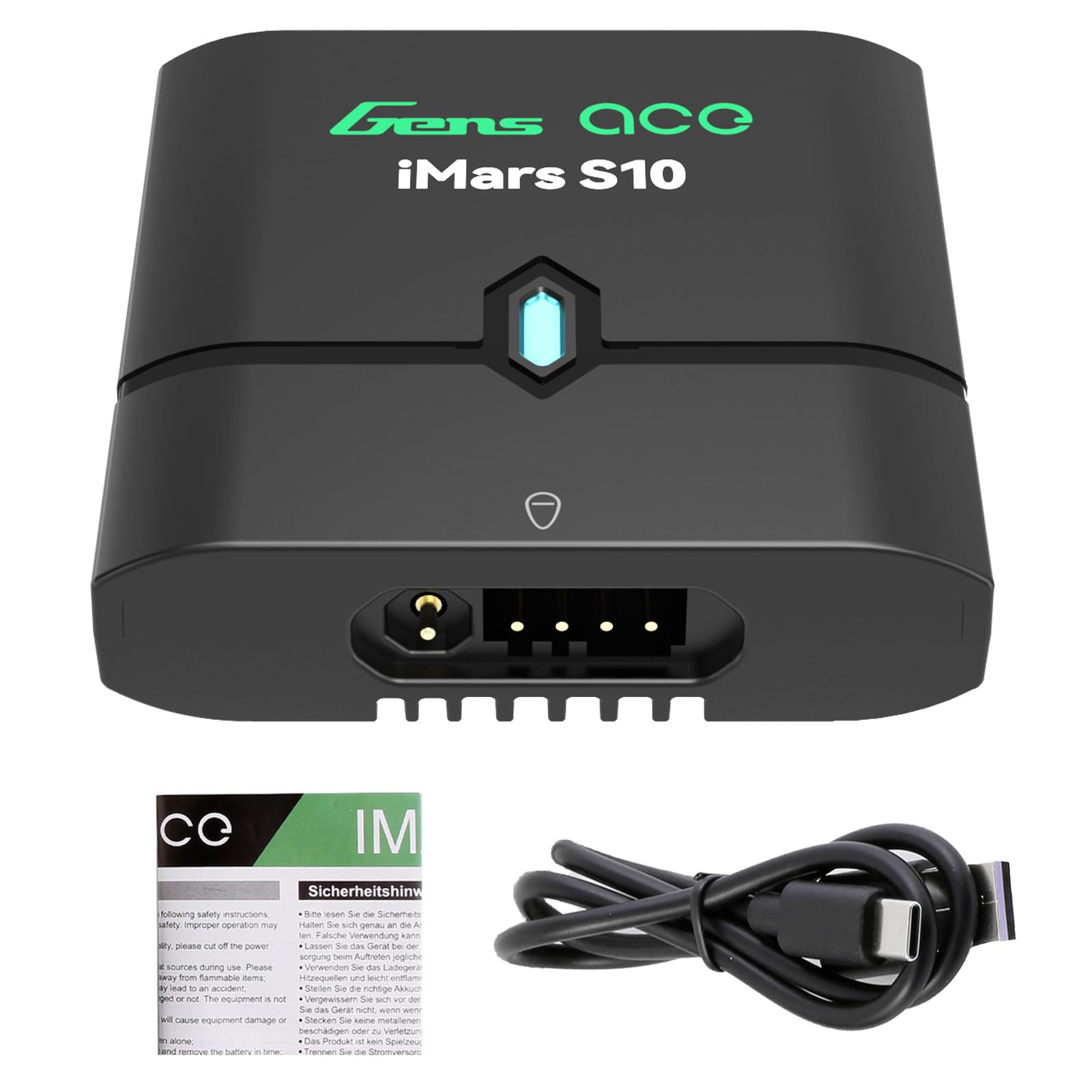

Image 1.1: Gens ace Imars S10 Charger overview. This image shows the compact design of the charger with its central LED indicator.
2. Інфармацыя па бяспецы
ПАПЯРЭДЖАННЕ: Failure to follow these safety instructions can result in fire, property damage, or serious injury.
- Always charge LiPo batteries in a fire-safe location, away from flammable materials.
- Ніколі не пакідайце без нагляду зараджаныя акумулятары.
- Ensure the charger is connected to a stable 5V DC power source with at least 2A output. Do not use 5V/1A power supply adapters.
- Only charge 2S or 3S LiPo batteries. Do not attempt to charge other battery types or cell counts.
- Verify battery polarity before connecting. The charger has output reverse connection protection and alarm, but always double-check.
- Do not short-circuit the charging terminals.
- Трымайце зарадная прылада далей ад вады, вільгаці і экстрэмальных тэмператур.
- Не спрабуйце адкрываць або мадыфікаваць зарадную прыладу.
- Захоўваць у месцах, недаступных дзецям.
- If the battery becomes hot, swells, or shows any signs of damage during charging, immediately disconnect it and move it to a safe, non-flammable area.
3. Змесціва ўпакоўкі
Carefully unpack your Gens ace Imars S10 charger and verify that all items are present:
- Gens ace Imars S10 Charger
- DC Input Cable (USB-C)
- Кіраўніцтва карыстальніка (гэты дакумент)

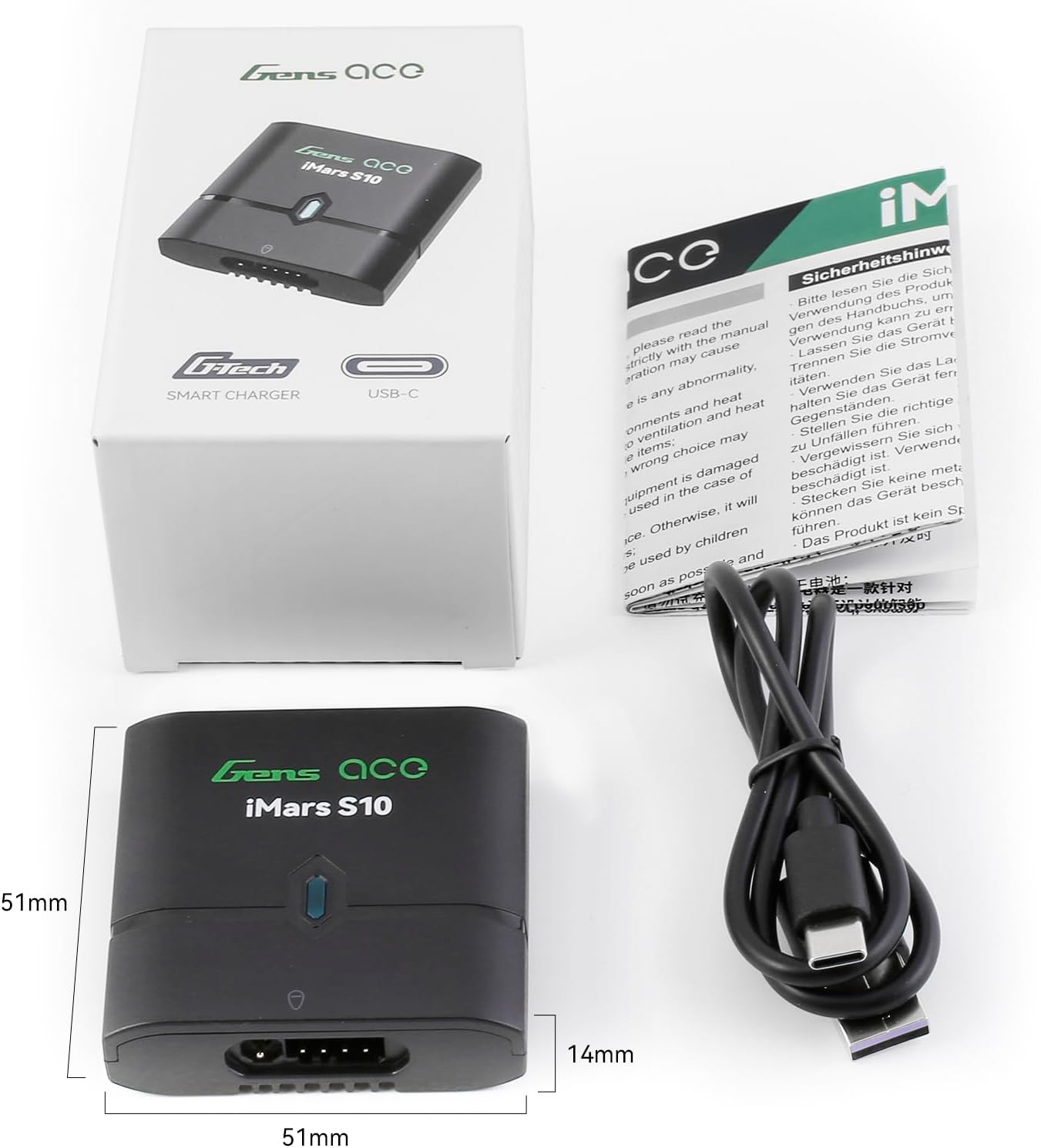

Image 3.1: Contents of the Gens ace Imars S10 package, including the charger, USB-C cable, and user manual.
4. Асаблівасці прадукту
- Smart G-Tech Technology: Built-in smart chip automatically identifies G-Tech smart battery information, initiates automatic charging, and stops when fully charged.
- Універсальная сумяшчальнасць: Supports most 2S-3S LiPo batteries, including G-Tech and other regular batteries.
- Функцыі бяспекі: Анармальны аб'ём батарэіtage alarm, output reverse connection protection and alarm, balance port reverse connection protection and alarm.
- Кампактны і партатыўны: Super mini dimensions (51x51x14mm) and lightweight (approx. 23g) for easy transport.
- Уваход USB-C: Can be powered by various 5V/2A USB power sources (phone/computer power supply, power bank).
- Low Power Charging: Designed for safer, slower charging of smaller capacity batteries (250mAh to 3000mAh).
Image 4.1: The Imars S10 charger demonstrating compatibility with both G-Tech and standard LiPo batteries via the balance port.
5. Тэхнічныя характарыстыкі
| Спецыфікацыя | Каштоўнасць |
|---|---|
| Зарадка харчавання | 10 Вт |
| Ток зарада | Макс. 0.8А |
| Уваходны кнtage | 5 В пастаяннага току |
| Уваходны ток | DC 2A (Unavailable for 5V/1A power supply adapter input) |
| Выхад Voltage | 5V ~ 13.05V |
| Ток балансу | Макс. 80 мА |
| Уваходны порт | USB-C (BC1.2/SDP/CDP/DCP/Apple 5V/2.4A compatible) |
| Раз'ём для зарадкі | Only Balancing Connector allowed |
| Падтрымліваюцца тыпы батарэй | LiPo 2~3S |
| Працоўная тэмпература | 0°C ~ 45°C |
| Тэмпература захоўвання | -20°C ~ 60°C |
| Памеры (Д х Ш х У) | 51mm x 51mm x 14mm (2"D x 2"W x 0.6"H) |
| Вага нета | Прыбл. 23 г |
| Атэстацыя | CE |
Image 5.1: A visual representation of the Gens ace Imars S10 charger's key parameters and specifications.
Image 5.2: Physical dimensions (length, width, height) and weight of the Gens ace Imars S10 charger.
6. Настройка
- Падключыце харчаванне: Connect the provided USB-C cable to the input port of the Imars S10 charger. Plug the other end of the USB-C cable into a compatible 5V DC power source with a minimum output of 2A. Ensure the power source is stable.
- Падрыхтуйце батарэю: Ensure your LiPo battery is a 2S or 3S type and is in good physical condition, free from swelling or damage.
- Identify Balance Port: Locate the balance port on your LiPo battery. This is a small white connector with multiple pins.
7. Інструкцыя па эксплуатацыі
- Падключыце акумулятар: Carefully plug the balance connector of your 2S or 3S LiPo battery into the corresponding balance port on the Imars S10 charger. Ensure the connector is inserted correctly, aligning the pins. The charger features balance port reverse connection protection.
- Працэс зарадкі:
- Для G-Tech Smart Batteries: The charger will automatically detect the battery type and parameters, initiating the charging process.
- Для Regular 2S-3S LiPo Batteries: The charger will detect the cell count and begin charging.
- Святлодыёдны індыкатар:
- A міргае чырвонае святло indicates the battery is currently charging.
- A суцэльнае зялёнае святло indicates the battery is fully charged. The charger will automatically stop charging.
- Адключыце акумулятар: Once the LED indicator turns solid green, safely disconnect the battery from the charger.
Важна: Always monitor the battery during charging. If any abnormality is observed, disconnect the battery immediately.
8. Тэхнічнае абслугоўванне
- Уборка: Use a soft, dry cloth to clean the charger. Do not use solvents or abrasive cleaners.
- захоўванне: Захоўвайце зарадная прылада ў прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
- агляд: Periodically inspect the charger and cables for any signs of damage. Do not use if damaged.
9. Выпраўленне непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Charger LED does not light up when connected to power. | No power or insufficient power input. | Ensure the USB-C cable is securely connected. Verify the power source is providing 5V DC and at least 2A. Do not use 5V/1A adapters. |
| Charger does not start charging (LED remains off or shows error). | Battery not connected correctly, battery type unsupported, or battery fault. | Check battery balance connector for correct insertion and polarity. Ensure the battery is a 2S or 3S LiPo. Inspect the battery for damage. The charger has protection for reverse connection and abnormal voltage. |
| Charging takes an unusually long time. | Low input current from power source or high capacity battery. | Ensure your power source provides a full 2A output. Charging larger capacity batteries (e.g., 3000mAh) will naturally take longer due to the 0.8A max charge current. |
| Charger LED flashes rapidly or indicates an error. | Анармальны аб'ём батарэіtage, reverse connection, or internal fault. | Immediately disconnect the battery and power source. Recheck connections. If the issue persists, the battery may be faulty, or the charger may require service. |
10. Гарантыя і падтрымка
The Gens ace Imars S10 charger comes with a Гарантыя 180 дзён from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by misuse, unauthorized modification, accident, or improper operation.
For technical support, warranty claims, or further assistance, please contact Gens ace customer service through their official website or the retailer where the product was purchased. Please have your purchase receipt and product model number (Imars S10) available when contacting support.
