TIDRADIO TD-H3 Plus GMRS Handheld Radio User Manual

1. Уводзіны

This manual provides detailed instructions for the operation, setup, and maintenance of your TIDRADIO TD-H3 Plus GMRS Handheld Radio. Please read this manual thoroughly before using the device to ensure proper functionality and safety. The TD-H3 Plus is a 5W GMRS handheld radio featuring multi-band reception, USB-C charging, wireless programming, and integration with the Odmaster App.

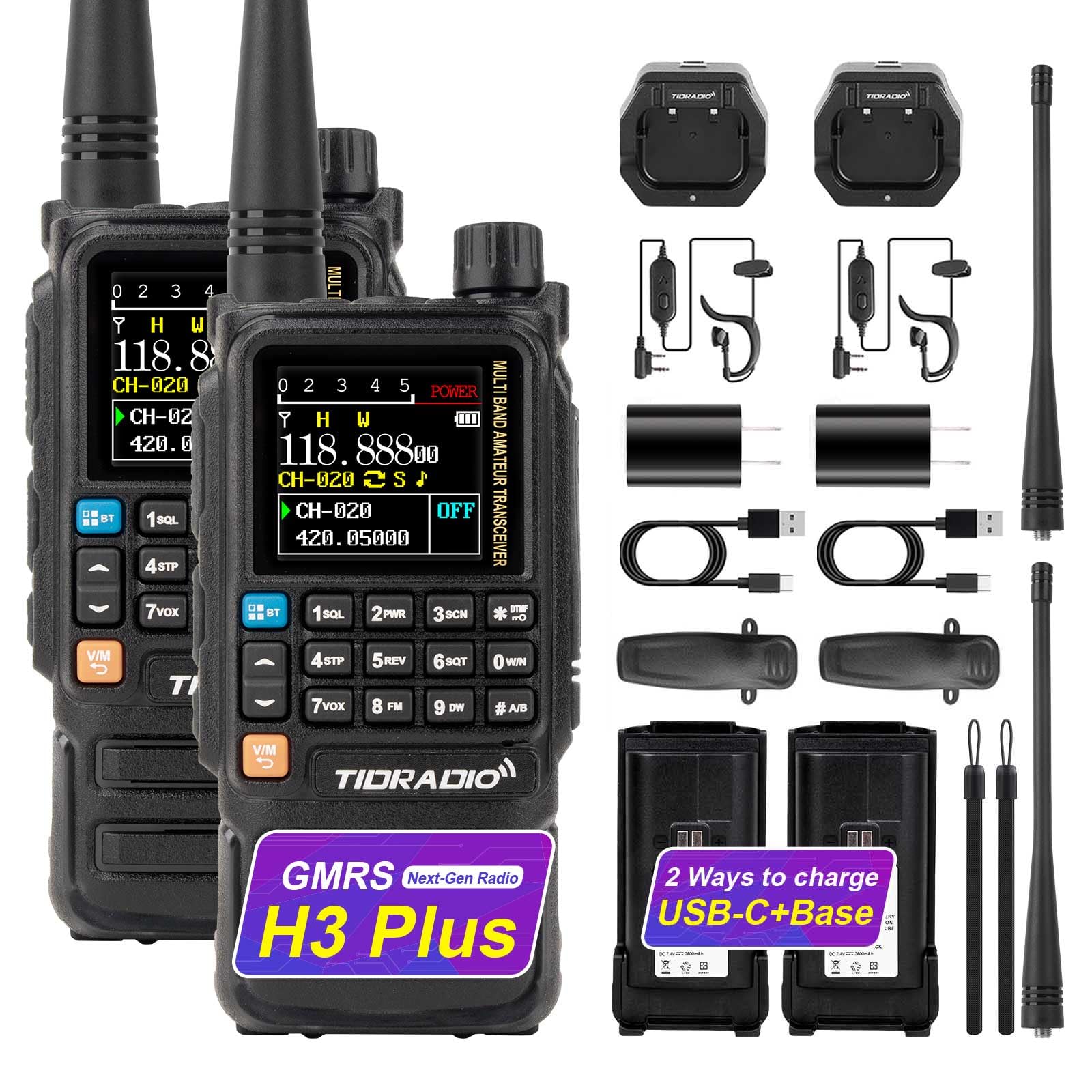

Image 1: TIDRADIO TD-H3 Plus GMRS Handheld Radio, a compact and feature-rich two-way radio.

2. Што ў скрынцы

Your TIDRADIO TD-H3 Plus GMRS Radio package includes the following items:

• 2 x TD-H3 Plus GMRS Radio
• 2 х 2500 мАг акумулятар
• 2 x USB-C Cable & Desktop Charger
• 2 х Стандартная антэна
• 2 х Навушнік
• 2 х заціск для рамяня
• 2 х ручны рэмень
• 1 х Кіраўніцтва карыстальніка

3. Асноўныя магчымасці

The TD-H3 Plus GMRS Radio offers a range of advanced features for enhanced communication:

• Шматдыяпазонны прыём: Covers GMRS (RX/TX), FM, AM Aviation, VHF, and UHF bands.
• USB-C Charging & Programming: Convenient charging and direct programming via USB-C port.
• Бесправадное праграмаванне: Configure settings via Bluetooth using the Odmaster App.
• Odmaster App Integration: Enables calling, audio functions, and global walkie-talkie functionality.
• Метэаралагічнае радыё NOAA: Provides real-time weather alerts and broadcasts.
• Frequency Copy: One-touch duplication of frequency settings.
• Наладжвальныя бакавыя клавішы: Assign shortcuts for various functions like FM, Lamp, TONE, Alarm, Weather, PTT2, OD PTT.
• Дзве кнопкі PTT: Separate Push-to-Talk buttons for different channels.
• Палепшанае сховішча: 128MB external storage for more functions.
• Абнаўленне прашыўкі: Supports upgrades via Odmaster Web platform (CH340 cable required) or USB-C.

Малюнак 2: Аверview of the key features of the TD-H3 Plus GMRS radio, including wireless programming, multi-band reception, and NOAA weather radio.

4. Настройка

1. Усталяваць батарэю: Сумясціце батарэйку з задняй панэллю радыё і ўстаўце яе на месца, пакуль яна надзейна не зашчоўкне.
2. Падключыце антэну: Закруціце антэну, якая ўваходзіць у камплект, па гадзіннікавай стрэлцы на раз'ём антэны ў верхняй частцы радыёпрыёмніка, пакуль яна не будзе зацягнутая рукамі.
3. Першапачатковая плата: Before first use, fully charge the radio's battery using either the desktop charger or the USB-C port. Refer to the 'Charging' section for details.

5. Інструкцыя па эксплуатацыі

5.1 Уключэнне/выключэнне сілкавання

Каб уключыць радыё, павярніце ручку гучнасці па гадзіннікавай стрэлцы. Каб выключыць, павярніце яе супраць гадзіннікавай стрэлкі, пакуль не пачуеце пстрычку.

5.2 Рэгулятар гучнасці

Adjust the audio volume by rotating the volume knob located at the top of the radio. The display may show a visual indicator of the current volume level.

5.3 Выбар канала

Use the keypad to directly enter channel numbers or use the up/down arrow buttons to navigate through available channels. The display shows the current channel and frequency.

Image 3: The TD-H3 Plus features multiple display modes and 18 menu color options for user customization.

5.4 Націсні і размаўляй (PTT)

Press and hold the main PTT button on the side of the radio to transmit. Release to receive. The TD-H3 Plus also features dual PTT buttons for quick switching between two active channels.

5.5 Метэаралагічнае радыё NOAA

Access NOAA Weather Radio for real-time weather alerts and broadcasts. This feature can be assigned to a customizable side key for quick access.

Image 4: The TD-H3 Plus includes a built-in NOAA Weather Radio for receiving critical weather alerts.

5.6 FM -радыё

The radio includes an FM broadcast receiver. Tune into your favorite FM stations for entertainment.

5.7 SMS Function

The TD-H3 Plus supports real-time text messaging for efficient communication. Navigate to the SMS menu to send, receive, and manage messages.

Image 5: The SMS function allows for real-time text communication between radios.

5.8 One-Touch Frequency Copy

Hold down the '1' key to activate the frequency copy feature. This allows you to quickly identify and duplicate frequencies from other transmitting radios, saving them to a new channel.

Image 6: The one-key frequency match feature simplifies channel setup by copying frequencies from other radios.

5.9 Cell Phone Voice Calling Mode

When integrated with the Odmaster App, the radio can function as an audio device for answering and making calls. Short press '1' to answer, short press '3' or PTT to hang up. Long press '4' to call back the previous number.

Image 7: The radio can be used for voice calls when connected to a smartphone via the Odmaster App.

5.10 Wireless Speaker Function

Play music from your connected device through the TD-H3 Plus using its wireless speaker function.

Image 8: The TD-H3 Plus can function as a wireless speaker for playing audio from a connected device.

6. Абнаўленне прашыўкі

To ensure optimal performance and access to the latest features, it is recommended to keep your radio's firmware updated. The TD-H3 Plus supports firmware upgrades via USB-C cable or the Odmaster Web платформа.

6.1 Firmware Upgrade via CH340 Cable

This method involves connecting the radio to a computer using a CH340 programming cable and using a dedicated upgrade tool.

6.2 Firmware Upgrade via USB-C Cable

The radio can also be upgraded directly via its USB-C port. This method is often simpler and more convenient.

6.3 Firmware Upgrade via Odmaster Web

The Odmaster Web platform provides a streamlined process for firmware upgrades. This method is fully compatible with macOS (requires FTDI programming cable).

Важна: After upgrading to firmware V1.0.37, you can use a shortcut key to switch between GMRS, HAM, and normal versions. If you require assistance with this process, please contact the seller for detailed instructions.

7. Праграмаванне

The TD-H3 Plus offers multiple programming methods to customize your radio settings:

• Odmaster App (Bluetooth Programming): Connect your radio to the Odmaster app on your smartphone (iOS/Android) via Bluetooth for wireless programming. This allows for easy configuration of channels, frequencies, and other settings.
• USB-C Programming: Directly connect the radio to your computer using a USB-C cable for programming with compatible software like CHIRP or CPS.
• CH340/FTDI Cable Programming: Use a dedicated CH340 (for Windows) or FTDI (for macOS) programming cable with CHIRP or CPS software for advanced configuration.

Image 9: The Odmaster App allows for convenient wireless programming and integration with your smartphone.

8. Multi-band Reception

The TD-H3 Plus is designed for versatile reception across various frequency bands:

• GMRS Frequencies (RX/TX): 462.55000-467.72500 МГц
• FM Broadcasts (RX Only): 87-108 МГц
• AM Aviation Bands (RX Only): 108-136 МГц
• VHF (RX Only): 136-174MHz, 200-230MHz, 350-370MHz
• UHF (RX Only): 400-520 МГц

Image 10: The radio supports multi-band reception across GMRS, FM, AM, VHF, and UHF frequencies.

9. Зарадка

The TD-H3 Plus offers flexible charging options to keep your radio powered:

• Зарадка USB-C: Connect a USB-C cable directly to the radio's USB-C port for fast charging. This is convenient for charging with power banks, laptops, or car chargers.
• Desktop Base Charging: Place the radio in the provided desktop charging cradle for convenient charging at home or in the office.

Image 11: The TD-H3 Plus can be charged via desktop base, USB-C cable, laptop, or car charger.

10. Наладжвальныя функцыі

The side keys of the TD-H3 Plus can be customized to provide quick access to frequently used functions. Options include:

• FM-радыё
• Lamp (Ліхтарык)
• ТОН
• Сігналізацыя
• Weather (NOAA)
• PTT2 (Secondary PTT)
• OD PTT (Odmaster Push-to-Talk)

11. Выпраўленне непаладак

• Няма харчавання: Ensure the battery is correctly installed and fully charged. Check the battery contacts for any obstruction.
• Немагчыма перадаць/прыняць: Verify that the antenna is securely attached. Check the selected channel and frequency settings. Ensure you are within range of other radios or repeaters.
• Дрэнная якасць гуку: Adjust the volume. Check the earpiece or microphone connection if in use. Ensure no obstructions are blocking the speaker or microphone.
• Праблемы праграмавання: Ensure the correct drivers are installed for your programming cable (CH340/FTDI). Verify the Odmaster App or programming software is up-to-date and correctly configured.
• Radio Locks Up: If the radio becomes unresponsive, try removing and reinserting the battery to perform a hard reset.

12. Тэхнічныя характарыстыкі

13. Падтрымка

For any questions, technical support, or assistance with firmware updates and unlocking procedures, please contact the seller directly through your purchase platform. Navigate to "Orders" > "Get Help" > Select the order > Click "Other" > Send to "Seller" > Then send your question.
