1. Уводзіны
The MiLESEEY S7 Pro is an advanced laser distance meter designed for precise and efficient measurements in various environments, particularly large outdoor projects. Featuring a digital viewfinder, P2P technology, and app connectivity, this tool offers enhanced accuracy and functionality for professional and DIY users. This manual provides detailed instructions for the safe and effective operation of your device.
2. Інфармацыя па бяспецы
Калі ласка, прачытайце і зразумейце ўсе інструкцыі па тэхніцы бяспекі перад выкарыстаннем прылады. Невыкананне гэтых інструкцый можа прывесці да ўздзеяння лазернага выпраменьвання, паражэння электрычным токам, пажару або сур'ёзных траўмаў.
- Лазернае выпраменьванне: Гэта прылада выпраменьвае лазернае выпраменьванне класа 2. Не глядзіце ў лазерны прамень і не накіроўвайце яго на іншых людзей або жывёл.
- Абарона вачэй: Always wear appropriate eye protection when operating the device, especially in bright conditions where the laser dot may be difficult to see.
- дзеці: Захоўвайце прыладу ў месцах, недаступных дзецям.
- Асяроддзе: Do not operate the device in explosive atmospheres or near flammable liquids or gases.
- Мадыфікацыі: Do not attempt to modify or disassemble the device. Repairs should only be performed by authorized service personnel.
- Бяспека акумулятара: Use only the specified rechargeable AAA batteries. Ensure correct polarity when inserting batteries. Do not mix old and new batteries or different types of batteries.
3. Змесціва ўпакоўкі
Праверце, ці ёсць усе прадметы ў вашай упакоўцы:
- 1x MiLESEEY S7 Pro Outdoor Laser Measure
- 1x футляр для пераноскі
- 1x Рэмень для рукі
- 1x Кіраўніцтва карыстальніка (гэты дакумент)
- 3x Rechargeable AAA Battery
- 1x кабель для зарадкі USB
Image: Contents of the MiLESEEY S7 Pro package, showing the device, case, strap, manual, and batteries.
4. Настройка
4.1 Устаноўка батарэі
- Знайдзіце вечка батарэйнага адсека на задняй панэлі прылады.
- Open the cover and insert the three rechargeable AAA batteries, ensuring correct polarity (+/-).
- Надзейна зачыніце крышку батарэйнага адсека.
4.2 Зарадка прылады
Connect the device to a USB power source using the provided USB charging cable. The battery indicator on the display will show charging status. Ensure the device is fully charged before first use for optimal performance.
4.3 Уключэнне/выключэнне
- Каб уключыць, націсніце і ўтрымлівайце Магутнасць кнопка (
), пакуль не загарыцца дысплей. - Каб выключыць харчаванне, націсніце і ўтрымлівайце Магутнасць button again. The device will also automatically power off after a period of inactivity to conserve battery.
5. Інструкцыя па эксплуатацыі
5.1 Асноўныя вымярэнні
- Point the laser aperture towards the target.
- Націсніце ВЫМЯР кнопка () once to activate the laser.
- Націсніце ВЫМЯР button again to take a measurement. The result will be displayed on the screen.
5.2 лічбавы Viewшукальнік
The integrated 4X adjustable zoom digital camera with on-screen targeting crosshairs allows you to easily locate the laser spot and confidently measure outdoors, even in bright sunlight conditions.
- The viewfinder display shows a live image of the target area.
- Use the crosshairs to precisely align the laser with your desired measurement point.
- Adjust the zoom level as needed for better visibility of distant targets.
Image: The MiLESEEY S7 Pro's digital viewfinder displaying a target with crosshairs for accurate laser point location.
Image: A user aiming the MiLESEEY S7 Pro laser distance meter outdoors, utilizing the digital viewfinder for precise targeting.
5.3 P2P Technology (Point-to-Point)
The 360° high-accuracy tilt sensor and integrated smart base enable P2P technology, allowing you to capture accurate measurements between any two points from a single remote location. This is ideal for complex measurements where direct access to both points is difficult.

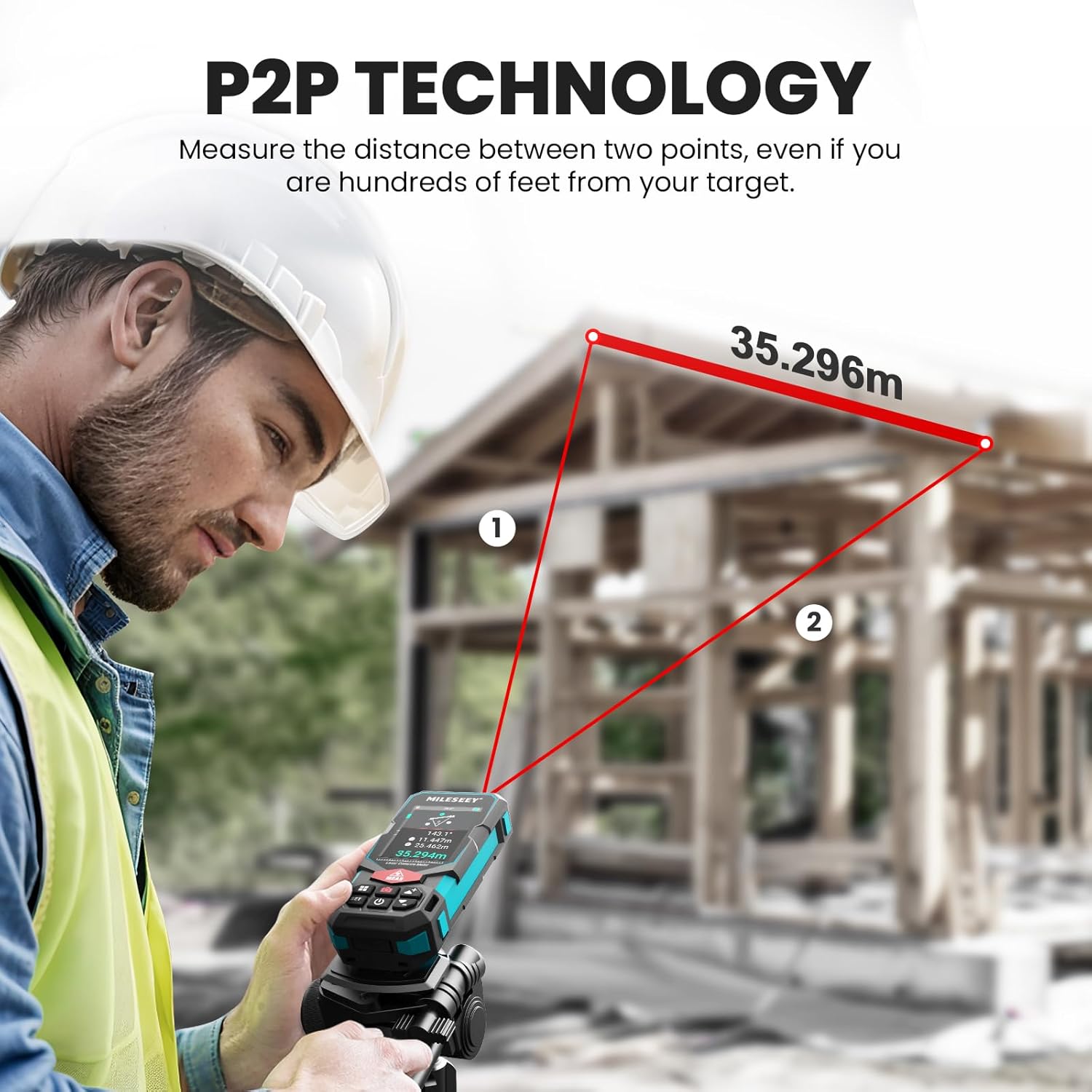

Image: An illustration of the P2P measurement capability, demonstrating how the device measures the distance between two points (P1 and P2) from a single vantagкропка е.
5.4 Падключэнне прыкладання
The MiLESEEY S7 Pro connects to a dedicated app, allowing you to transfer measurement data directly to your smartphone or tablet. Within the app, you can:
- Enter dimensions onto on-site photographs.
- Draw projects and construct plans.
- Store up to 1,000 groups of data in the app's memory.
Image: The MiLESEEY S7 Pro connected to a smartphone, showing measurement data being displayed and managed within the companion application.
5.5 Рэжымы вымярэнняў
The device offers a variety of measurement modes accessible through its intuitive user interface:
Image: A visual guide to the various measurement functions available on the MiLESEEY S7 Pro, including single measurement, area, volume, and advanced calculations.
- Адзінае вымярэнне: Standard distance measurement.
- Плошча: Calculates the area of a surface.
- Аб'ём: Calculates the volume of a space.
- Pythagoras (2-point & 3-point): Indirect measurement using the Pythagorean theorem.
- Auto Level Measurement: Measures horizontal distance automatically.
- Auto Height Measurement: Measures vertical height automatically.
- P2P: Point-to-point measurement (as described above).
- Trapezium Measurement: Calculates area of a trapezium.
- Triangle Area: Вылічвае плошчу трохвугольніка.
- Circular Area: Calculates the area of a circle.
- Аб'ём цыліндру: Вылічвае аб'ём цыліндра.
- Stake Out: Helps mark out specific distances.
- Дадаць/адняць: Allows for addition or subtraction of measurements.
5.6 Карыстальніцкі інтэрфейс і дысплей
The S7 Pro features a humanized user interface with an intuitive navigation menu and a large 2.4" IPS backlit display. The rotation display keeps measurements aligned with the device, ensuring clear readability from any angle. You can easily switch between white text on a black screen and black text on a white screen for optimal visibility in varying light conditions.
Image: The MiLESEEY S7 Pro's display showcasing its intuitive navigation menu with various function icons.

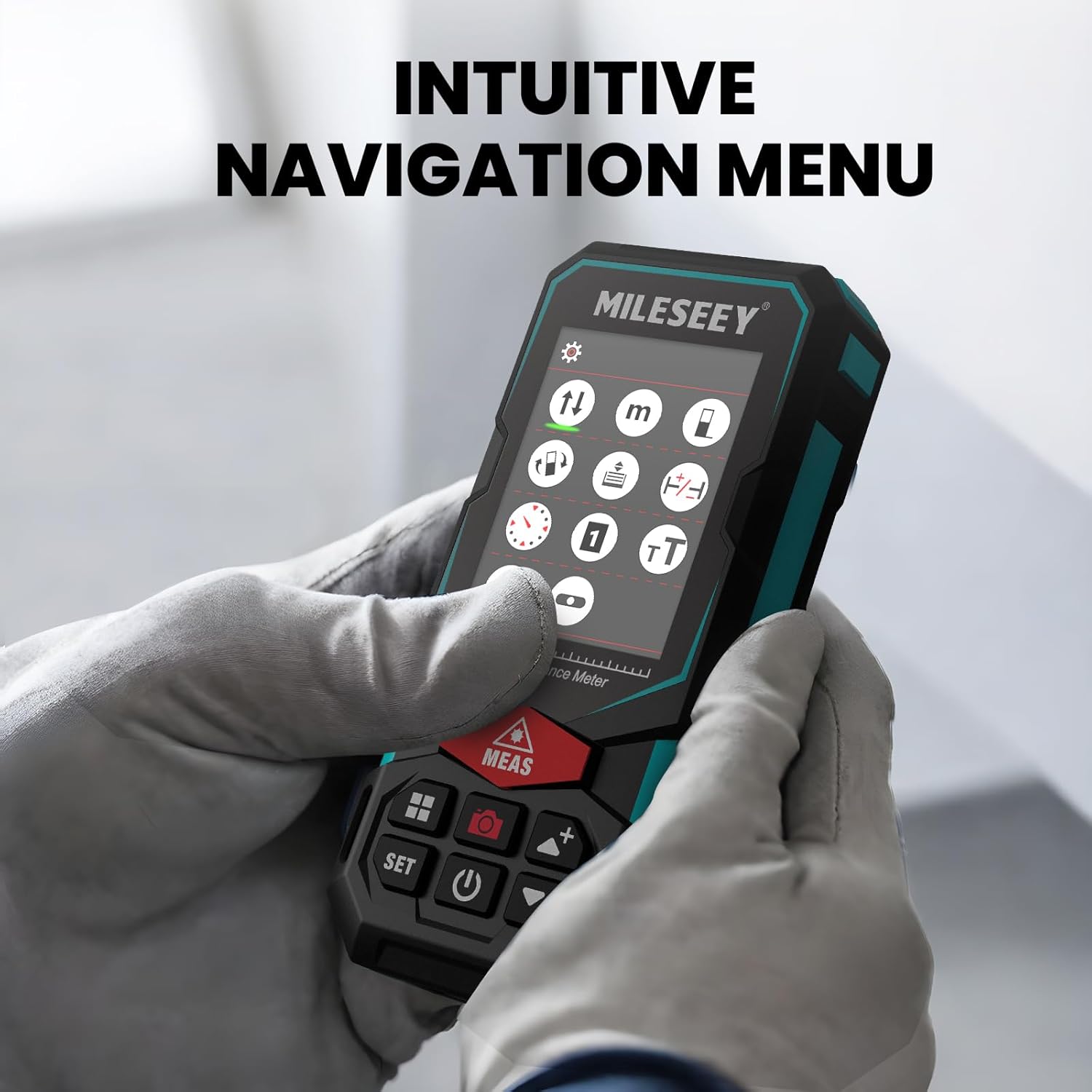

Image: A user interacting with the MiLESEEY S7 Pro, highlighting the intuitive navigation menu on its screen.
Image: The MiLESEEY S7 Pro's display demonstrating excellent visibility in both bright sunlight and low light environments.
6. Тэхнічнае абслугоўванне
Proper maintenance ensures the longevity and accuracy of your MiLESEEY S7 Pro.
- Уборка: Выкарыстоўвайце мяккі, damp cloth to clean the device. Do not use harsh chemicals or abrasive cleaners. Clean the lens regularly with a soft, lint-free cloth.
- захоўванне: Store the device in its carrying case in a cool, dry place when not in use. Avoid extreme temperatures and direct sunlight.
- Сыход за батарэяй: If the device will not be used for an extended period, remove the batteries to prevent leakage. Recharge batteries regularly to maintain their capacity.
- Абарона IP65: The device features IP65 protection, making it resistant to dust and water splashes. However, it is not designed for submersion. Clean off any dust or dirt after use in harsh conditions.
Image: The MiLESEEY S7 Pro demonstrating its IP65 protection, shown covered in dust but still functional.
Image: The MiLESEEY S7 Pro, designed with IP65 protection, shown in a dusty environment, highlighting its durability.
7. Выпраўленне непаладак
If you encounter issues with your MiLESEEY S7 Pro, refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Прылада не ўключаецца. | Разраджаныя або слабыя батарэі; няправільная ўстаноўка батарэй. | Charge the batteries or replace them. Ensure batteries are inserted with correct polarity. |
| Недакладныя вымярэнні. | Laser beam obstructed; unstable surface; device not calibrated. | Ensure clear line of sight. Place device on a stable surface. Perform self-calibration if available (refer to device menu). |
| Праблемы з падключэннем да праграмы. | Bluetooth not enabled; app not updated; device not paired. | Ensure Bluetooth is active on both devices. Update the app to the latest version. Follow app pairing instructions. |
| Display not clear in bright light. | Налады дысплея. | Switch display mode to black text on white screen for better contrast. |
8. Тэхнічныя характарыстыкі
Key technical specifications for the MiLESEEY S7 Pro Laser Distance Meter:
- Марка: МіЛЕСІ
- Нумар мадэлі: MCLD-CA-MS-S7
- Дыяпазон вымярэння: Up to 330 ft (100 yards)
- Дакладнасць: Up to +/- 2mm (1/16")
- Лічбавы Viewшукальнік: 4X Adjustable Zoom Camera
- Падключэнне: App Connected (P2P Technology)
- Клас абароны: IP65 (Dust and water splash resistant)
- Дысплей: 2.4-цалевы IPS-дысплей з падсветкай
- батарэі: 3x Rechargeable AAA Battery (Included)
- матэрыял: Acrylonitrile Butadiene Styrene, Rubber
- Вага прадмета: 300 грам
- Памеры прадукту: 12 Д х 5 Ш х 2.5 У сантыметраў
9. Гарантыя і падтрымка
The MiLESEEY S7 Pro Laser Distance Meter comes with a Гарантыя 24 месяцаў from the date of purchase, covering manufacturing defects. For warranty claims, technical support, or any inquiries, please contact Mileseey Direct, the manufacturer's contact. Please retain your proof of purchase for warranty validation.
