Generic Double Santa Maria Grill Instruction Manual

1. Уводзіны

Thank you for choosing the Generic Double Santa Maria Grill. This high-quality, stainless steel grill is designed for outdoor cooking, offering a versatile and enjoyable grilling experience. Its dual cooking areas, adjustable height V-grates, and integrated brasero make it ideal for various grilling techniques, particularly Argentine-style barbecue. This manual provides essential information for safe assembly, operation, and maintenance of your new grill.

2. Інфармацыя па бяспецы

Please read and understand all safety warnings and instructions before assembling or operating this grill. Failure to follow these instructions may result in property damage, bodily injury, or even death.

• Толькі для вонкавага выкарыстання: This grill is designed for outdoor use in a well-ventilated area. Do not operate indoors or in enclosed spaces.
• афармленне: Maintain a minimum distance of 10 feet (3 meters) from combustible materials (e.g., wooden decks, fences, overhanging branches).
• Стабільная паверхня: Always place the grill on a level, stable, non-combustible surface.
• Дзеці і хатнія жывёлы: Keep children and pets away from the grill at all times, especially during operation and while it is cooling down.
• Гарачыя паверхні: The grill surfaces become extremely hot during use. Use heat-resistant gloves or tools when handling hot components.
• Тып паліва: Use only charcoal as fuel for this grill. Do not use gasoline, kerosene, or alcohol to light or relight charcoal.
• Вогнетушыцель: Keep a fire extinguisher or a bucket of sand readily available in case of a grease fire.
• Утылізацыя попелу: Дайце попелу цалкам астыць, перш чым выкідваць яго. Ніколі не выкідвайце гарачы попел у лёгкаўзгаральныя кантэйнеры.
• зборка: Ensure all components are correctly assembled and secured before use.

3. Змесціва ўпакоўкі

Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not attempt to assemble the grill. Contact customer support for assistance.

• Main Frame Assembly (with uprights and crossbar)
• V-Grates (2)
• Drip Pans (2)
• Brasero (Fire Basket)
• Adjustment Wheels (2)
• Adjustment Levers (2)
• Cables/Chains for Grate Adjustment
• Hardware (nuts, bolts, etc. for securing wheels)
• Інструкцыя па эксплуатацыі (гэты дакумент)

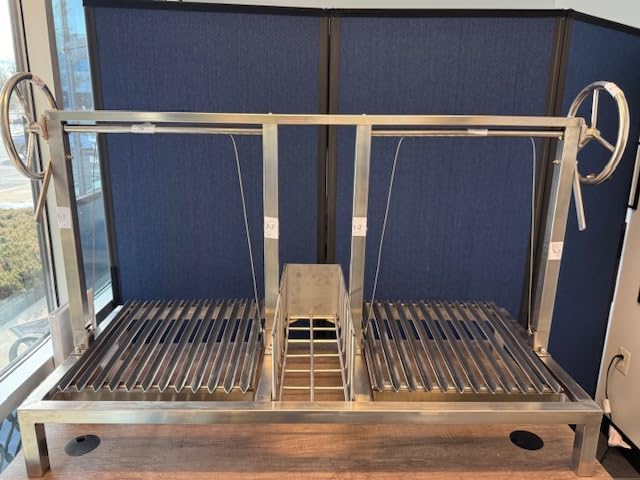

Image 3.1: Main frame assembly with brasero and V-grates.

4. Налада і зборка

The Generic Double Santa Maria Grill is designed for easy and intuitive assembly. It can be built into an existing DIY brick BBQ structure or an outdoor kitchen. Follow these steps for proper setup:

1. Распакуйце кампаненты: Асцярожна выміце ўсе дэталі з упакоўкі і раскладзеце іх на чыстай роўнай паверхні. Праверце наяўнасць усіх кампанентаў, пералічаных у раздзеле 3.
2. Ўсталяваць стойкі: If the uprights are not already integrated, slide them into the designated slots on the main frame. Ensure they are securely seated.
3. Прымацаваць папярочную планку: Position the main crossbar (the horizontal bar from which the grates hang) between the uprights.
4. Mount Adjustment Wheels: Attach the adjustment wheels to the top of the uprights using the provided locking nuts. Ensure the cables/chains are correctly routed through the mechanism.
5. Insert V-Grates and Drip Pans: Carefully lower the V-grates into their respective positions, ensuring they are properly suspended by the cables/chains. Place the removable drip pans beneath the V-grates.
6. Position Brasero: Place the brasero (fire basket) in the central designated area between the two cooking zones.
7. Канчатковае месца: Once assembled, carefully place the entire grill unit into your existing DIY brick BBQ or outdoor kitchen structure. Ensure it is level and stable.

Image 4.1: Fully assembled grill unit, ready for installation.

Малюнак 4.2: Падрабязны view of a V-grate and the brasero.

5. Інструкцыя па эксплуатацыі

This section details how to safely and effectively use your Double Santa Maria Grill for optimal cooking results.

5.1. Запальванне вугалю

1. Place charcoal briquettes or lump charcoal into the central brasero.
2. Use a charcoal chimney starter or appropriate fire starters to ignite the charcoal. Never use flammable liquids like gasoline.
3. Allow the charcoal to burn until it is covered with a light gray ash, indicating it is ready for cooking.
4. Once hot, carefully transfer the glowing coals from the brasero to beneath the V-grates using long-handled tongs. Distribute them evenly for consistent heat, or create zones for different cooking temperatures.

Image 5.1: Grill in operation, showing charcoal in the brasero and food on the grates.

5.2. Adjusting Grill Height

The adjustable height mechanism allows precise control over cooking temperature by raising or lowering the V-grates relative to the charcoal.

1. Each cooking area has its own independent adjustment wheel and lever.
2. To adjust the height, hold the adjustment lever firmly.
3. While holding the lever, rotate the corresponding wheel to raise or lower the V-grate.
4. Release the lever once the desired cooking height is achieved. The mechanism will lock the grate in place.
5. Lowering the grate closer to the coals increases heat intensity; raising it reduces heat intensity.

Image 5.2: Grill in use, demonstrating the dual cooking areas and adjustable grates.

5.3. Cooking with V-Grates

The V-grates are designed to channel grease away from the fire, reducing flare-ups and enhancing flavor. The removable drip pans collect the grease for easy disposal.

• Place food directly on the V-grates.
• Monitor cooking progress and adjust grate height as needed to achieve desired doneness.
• The dual cooking areas allow for simultaneous cooking of different items at varying temperatures.

6. Тэхнічнае абслугоўванне і ачыстка

Рэгулярная чыстка і абслугоўванне падоўжаць тэрмін службы вашага грылю і забяспечаць аптымальную прадукцыйнасць.

1. Астуджэнне: Заўсёды дайце грылю цалкам астыць перад чысткай.
2. Remove Ashes: Once cooled, carefully remove all ashes from the brasero and beneath the grates. Dispose of ashes in a non-combustible container.
3. Clean V-Grates: The V-grates are removable for easy cleaning. Scrape off any food residue with a grill brush. For stubborn residue, the grates can be washed with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely to prevent water spots.
4. Empty Drip Pans: Remove and empty the grease from the drip pans. Wash them with warm, soapy water, rinse, and dry.
5. Чысты знешні выгляд: Працярыце ўсе паверхні з нержавеючай сталі сродкам для абразіўнай апрацоўкіamp cloth and a mild detergent. For a streak-free shine, use a stainless steel cleaner. Avoid abrasive cleaners or scouring pads, which can scratch the surface.
6. Inspect Cables/Chains: Periodically inspect the grate adjustment cables/chains for any signs of wear or damage. Replace if necessary.
7. захоўванне: If the grill is not built into a permanent structure, consider covering it with a weather-resistant grill cover when not in use to protect it from the elements.

Малюнак 6.1: Збоку view illustrating the removable V-grate and drip pan for cleaning.

7. Выпраўленне непаладак

У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца пры выкарыстанні грылю.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка кліентаў

For warranty information or customer support inquiries, please refer to the retailer where you purchased this product or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

Please have the model number (Double) and ASIN (B0F4Y5THSV) available when contacting support.
