LIFKOME DC101

LIFKOME DC101 Digital Kitchen Timer

Кіраўніцтва карыстальніка

1. Уводзіны

Thank you for choosing the LIFKOME DC101 Digital Kitchen Timer. This device is designed to assist with various timing needs, from cooking and baking to timed activities and reminders. Featuring a large LCD display, simple controls, and a loud alarm, it is an essential tool for any kitchen or task requiring precise timing.

2. Змесціва ўпакоўкі

  • 1 x LIFKOME DC101 Digital Kitchen Timer

3. Прадукт скончыўсяview

3.1 Асноўныя магчымасці

  • Large LCD display for easy readability.
  • Loud alarm system to ensure timers are heard.
  • Simple 3-button operation (M, S, Start/Stop).
  • Countdown and count-up timer functions.
  • Magnetic back for convenient attachment to metal surfaces.
  • Integrated kickstand for tabletop use.
  • Maximum timing capacity: 99 minutes and 59 seconds.

3.2 Кампаненты

Familiarize yourself with the timer's components:

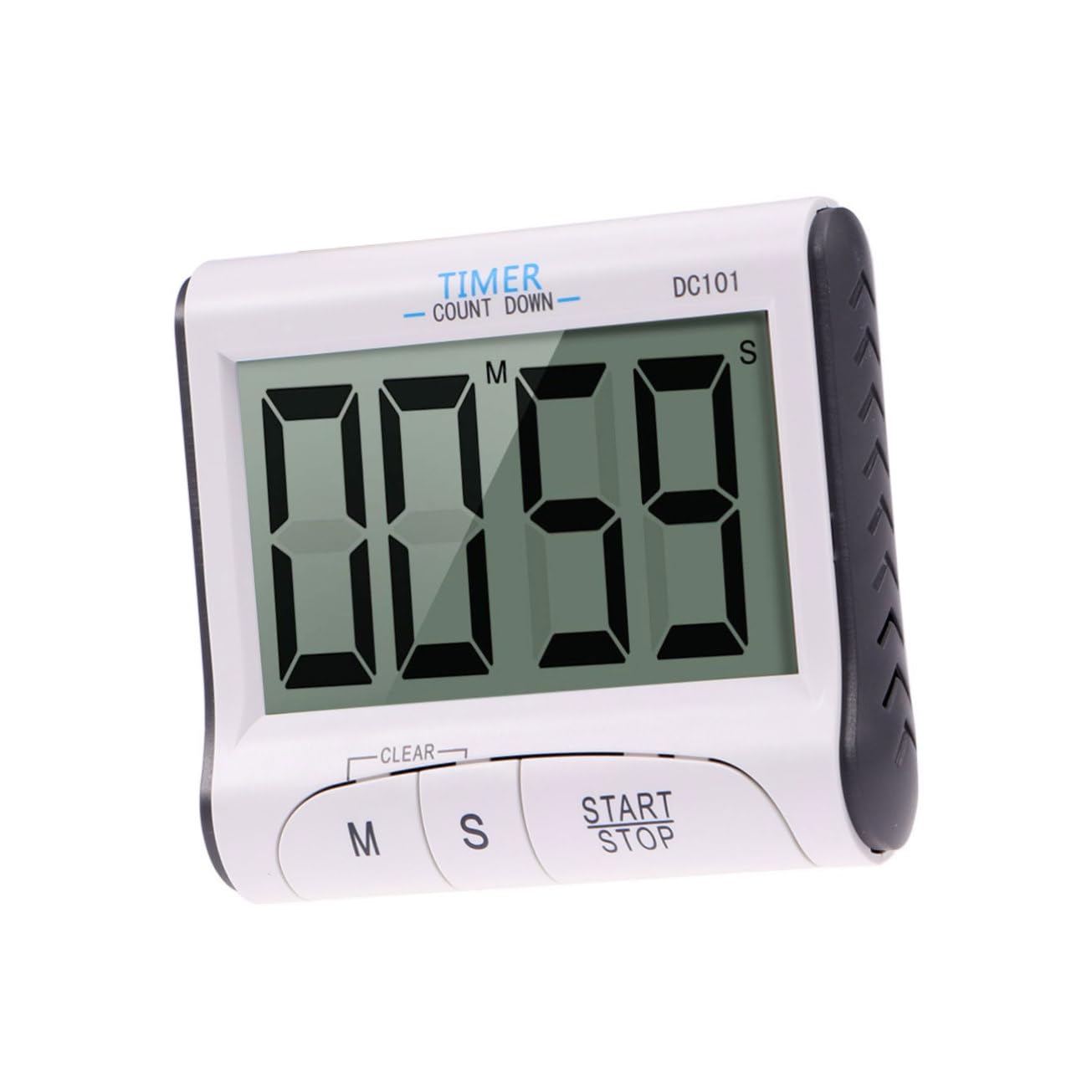

Фронт view of LIFKOME DC101 Digital Kitchen Timer showing LCD display and three control buttons: M, S, and Start/Stop.

Малюнак 1: Спераду View. This image displays the front of the LIFKOME DC101 Digital Kitchen Timer, highlighting its large LCD screen and the three primary control buttons: 'M' for minutes, 'S' for seconds, and 'Start/Stop' for initiating or pausing the timer. The 'CLEAR' label is also visible above the 'M' and 'S' buttons.

Назад view of LIFKOME DC101 Digital Kitchen Timer with kickstand extended, showing the battery compartment and magnetic strip.

Малюнак 2: Назад View with Kickstand. This image shows the back of the timer with its integrated kickstand extended, allowing it to stand upright on a flat surface. The battery compartment cover and the magnetic strip for attaching to metal surfaces are also visible.

4. Настройка

4.1 Устаноўка батарэі

  1. Знайдзіце батарэйны адсек на задняй панэлі таймера.
  2. Зрушыце вечка батарэйнага адсека ўніз, каб адкрыць яго.
  3. Insert one AAA battery (not included), ensuring the correct polarity (+/-) as indicated inside the compartment.
  4. Зачыніце вечка батарэйнага адсека, зрушыўшы яго ўверх, пакуль ён не зафіксуецца пачуўшы пстрычку.
Назад view of LIFKOME DC101 Digital Kitchen Timer showing the battery compartment cover.

Малюнак 3: Адсек для батарэй. This image illustrates the back of the timer, specifically highlighting the battery compartment where a single AAA battery is to be inserted.

4.2 Размяшчэнне

The timer can be placed in two ways:

  • Магнітнае мацаванне: Use the magnet on the back to attach the timer to metal surfaces like refrigerators or oven doors.
  • Настольная падстаўка: Extend the integrated kickstand on the back to place the timer upright on any flat surface.

5. Інструкцыя па эксплуатацыі

5.1 Функцыя таймера зваротнага адліку

  1. Press the 'M' button to set the desired minutes (up to 99 minutes).
  2. Press the 'S' button to set the desired seconds (up to 59 seconds).
  3. To clear the set time, press both 'M' and 'S' buttons simultaneously.
  4. Press the 'Start/Stop' button to begin the countdown.
  5. To pause the countdown, press 'Start/Stop' again. Press it once more to resume.
  6. When the timer reaches zero, an alarm will sound. Press 'Start/Stop' to silence the alarm.

5.2 Count-Up Timer Function

  1. Ensure the timer display shows '00:00'. If not, press 'M' and 'S' simultaneously to clear any previous setting.
  2. Press the 'Start/Stop' button to begin counting up from zero.
  3. To pause the count-up, press 'Start/Stop' again. Press it once more to resume.
  4. To reset the count-up timer to '00:00', pause the timer and then press 'M' and 'S' simultaneously.

6. Тэхнічнае абслугоўванне

6.1 Ачыстка

  • Працярыце таймер мяккай, damp тканіна.
  • Do not use abrasive cleaners or immerse the timer in water.

6.2 Захоўванне

  • Захоўвайце таймер у прахалодным сухім месцы, калі ён не выкарыстоўваецца.
  • Пры працяглым захоўванні выміце батарэйку, каб прадухіліць уцечку.

7. Выпраўленне непаладак

праблема Магчымая прычына Рашэнне
Дысплей пусты або цьмяны. Батарэя разраджаная або няправільна ўсталяваная. Replace the battery with a new AAA battery, ensuring correct polarity.
Сігналізацыя не спрацоўвае. Timer volume is too low (if adjustable) or timer is not reaching zero. Ensure the timer counts down to 00:00. The DC101 has a fixed loud alarm. If it fails, replace the battery.
Кнопкі не рэагуюць. Нізкі зарад батарэі або ўнутраная няспраўнасць. Replace the battery. If the issue persists, the unit may require replacement.

8. Тэхнічныя характарыстыкі

  • мадэль: DC101
  • матэрыял: Пластыкавыя
  • колер: Белы
  • Крыніца харчавання: 1 батарэйкі тыпу AAA (не ўключаны)
  • Памеры прадукту: Approximately 3.15" W x 2.87" D x 0.87" H (8.00cm x 7.30cm x 2.20cm)
  • Вага прадмета: 2.24 унцыі
  • Налада максімальнага часу: 99 хвілін, 59 секунд
Фронт view of LIFKOME DC101 Digital Kitchen Timer with dimensions labeled as 3.1 inches / 8 cm width and 2.8 inches / 7 cm height.

Figure 4: Timer Dimensions. This image provides a visual representation of the timer's approximate dimensions, indicating a width of 3.1 inches (8 cm) and a height of 2.8 inches (7 cm).

9. Гарантыя і падтрымка

For warranty information or technical support, please refer to the retailer's return policy or contact the seller directly through your purchase platform. Keep your proof of purchase for any warranty claims.
