Keenso Digital Tachometer Gauge Instruction Manual

1. Уводзіны

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Keenso Digital Tachometer Gauge. This high-accuracy LCD display gauge is designed for various vehicle modifications, including cars, trucks, boats, and generator engines, providing precise engine speed (RPM) and hour readings.

Выява 1.1: Спераду view of the Keenso Digital Tachometer Gauge, featuring a black dial and silver bezel. The display shows RPM and hour readings.

Змест пакета:

• 1 x 0-9990RPM Tachometer Gauge
• 1 x Connecting Cable
• 1 х Інструкцыя па эксплуатацыі

2. Асаблівасці

• Высокая дакладнасць: Utilizes a stepping motor for precise RPM display and a clear LCD for hour readings.
• Трывалая канструкцыя: Made from stainless steel and plated plastic for long-lasting performance.
• Рэйтынг воданепранікальнасці: IP67 protection class, allowing operation underwater up to 1 meter. Features curved glass with anti-fog function.
• Шырокі Voltagе дыяпазон: Designed for ultra-wide working voltage of 9-32V DC, with a maximum tolerance of 36V (for less than 1 minute).
• Нізкае энергаспажыванне: Efficient design ensures extended service life.
• Універсальнае прымяненне: Suitable for various stepping gauges and compatible with car, truck, boat, and generator engines.

3. Тэхнічныя характарыстыкі

Выява 3.1: Спераду view of the tachometer, illustrating its approximate 52mm (2-inch) installation diameter.

4. Усталёўка і налада

Follow these steps for proper installation of your tachometer gauge. Ensure the vehicle's power is disconnected before beginning installation.

4.1 Mounting the Gauge

1. Choose a suitable location on your dashboard or panel for installation.
2. Cut a circular hole with an approximate diameter of 52mm (2 inches) at the chosen location.
3. Insert the tachometer gauge into the hole.
4. Secure the gauge from the back using the provided mounting bracket and nuts.

4.2 Правадныя злучэнні

Refer to the wiring diagram below and the provided connecting cable for correct connections. Incorrect wiring can damage the device or vehicle electrical system.

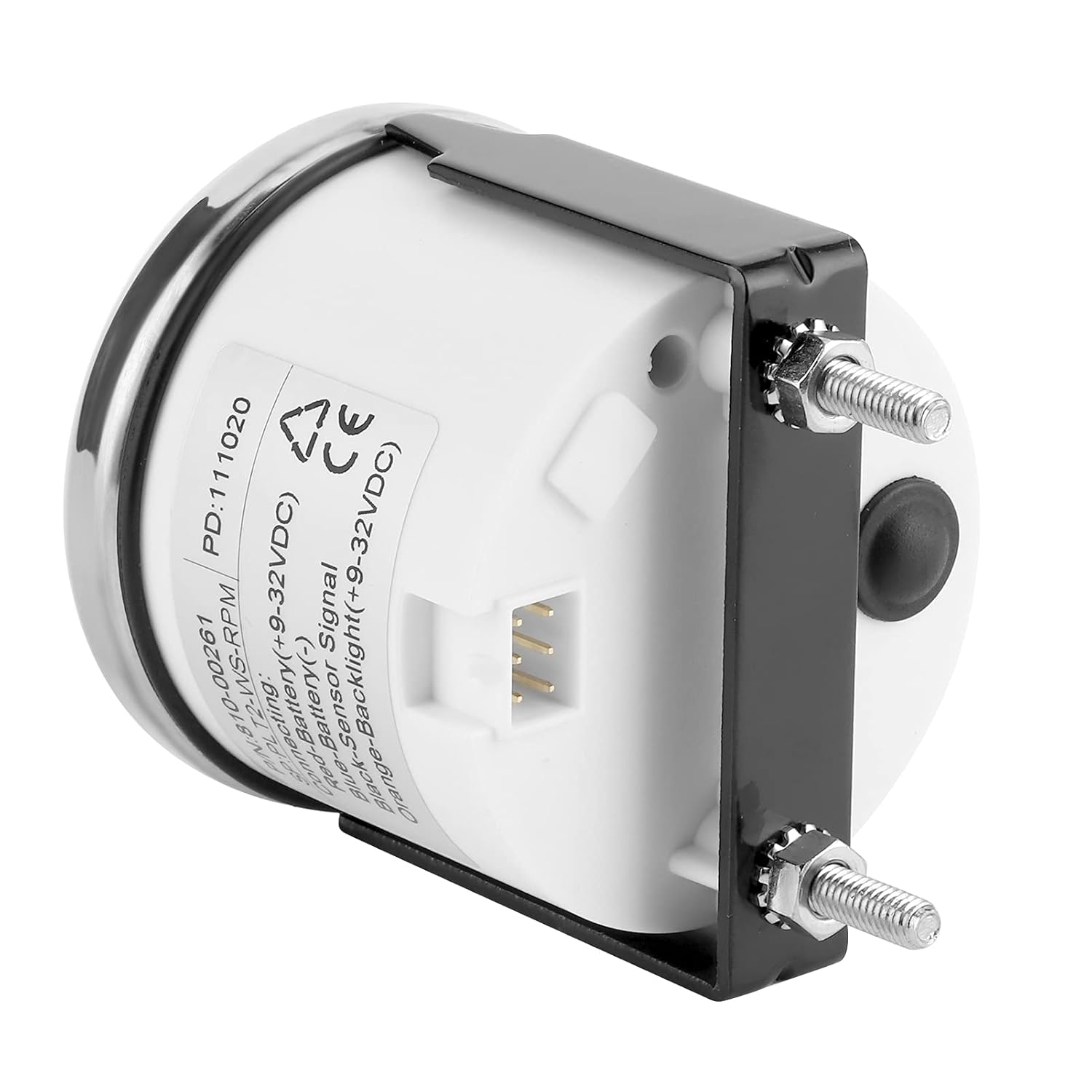

Малюнак 4.1: ззаду view of the tachometer, displaying the wiring terminals and connection points.

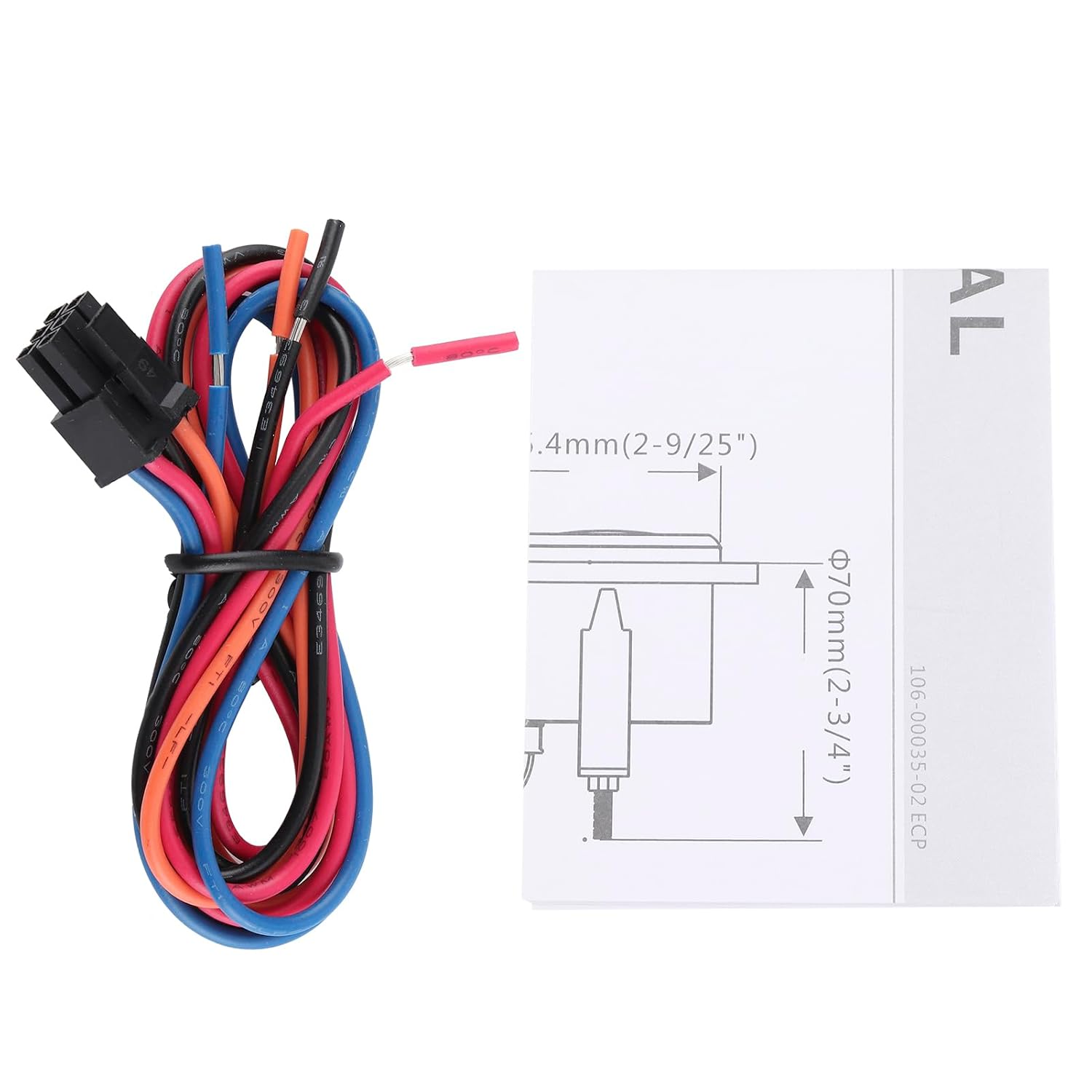

Image 4.2: The included connecting cable harness with color-coded wires for installation.

• Чырвоны провад: Connect to Battery Positive (+9-32V DC).
• Сіні провад: Connect to Battery Negative (-).
• Чорны провад: Connect to Signal Input. This receives the pulse signal from your tacho sensor, engine, alternator, ignition coil, or crankshaft sensor.
• Orange/Yellow Wire: Connect to Backlight Positive (+9-32V DC). This powers the red backlight.

After all connections are made, ensure they are secure and insulated to prevent short circuits. Reconnect the vehicle's power.

5. Інструкцыя па эксплуатацыі

The Keenso Digital Tachometer Gauge provides real-time engine RPM and accumulated operating hours on its LCD display.

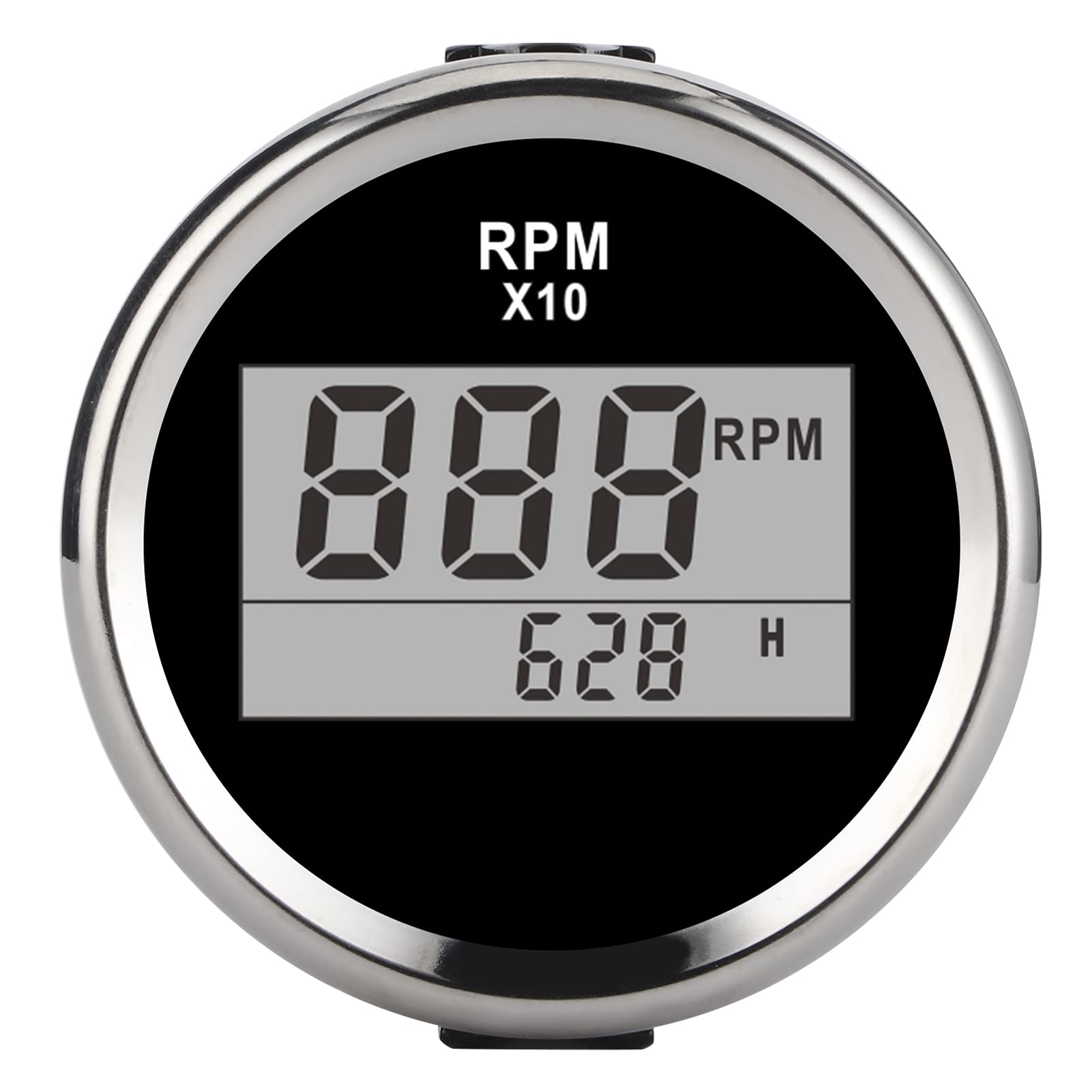

Малюнак 5.1: Крупны план view of the digital display, clearly showing RPM (Revolutions Per Minute) and accumulated operating hours (H).

5.1 Чытанне паказанняў на дысплеі

• The large digital numbers indicate the engine's RPM (Revolutions Per Minute), typically displayed as "RPM x10" or similar, meaning the displayed value should be multiplied by 10. The indicating range is 0-9990 RPM.
• The smaller digital numbers, usually accompanied by an "H", display the total accumulated operating hours of the engine.

5.2 Уключэнне/выключэнне сілкавання

The gauge will power on automatically when connected to a 9-32V DC power source and will display readings once an engine pulse signal is detected. It powers off when the power source is disconnected.

6. Тэхнічнае абслугоўванне

The Keenso Digital Tachometer Gauge is designed for durability and requires minimal maintenance.

• Уборка: Wipe the display and bezel with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the surface or anti-fog coating.
• Воданепранікальнасць: The gauge has an IP67 rating, meaning it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, prolonged submersion or high-pressure water jets should be avoided.
• Сувязі: Periodically check wiring connections to ensure they remain secure and free from corrosion.

7. Выпраўленне непаладак

If you encounter issues with your tachometer gauge, refer to the following common problems and solutions:

• Няма дысплея/няма харчавання:
  • Check the power connections (Red wire to positive, Blue wire to negative) for proper voltage (9-32V DC) and secure contact.
  • Ensure the backlight wire (Orange/Yellow) is correctly connected if the backlight is not illuminating.
• Incorrect RPM Reading:
  • Verify the signal wire (Black) is correctly connected to a reliable pulse signal source (tacho sensor, ignition coil, alternator, crankshaft sensor).
  • Ensure the signal source is functioning correctly.
  • Check for any loose or corroded connections in the signal line.
• Display Flickering or Intermittent:
  • Check all wiring for loose connections or damaged insulation.
  • Ensure the power supply is stable and within the 9-32V DC operating range.

If problems persist after attempting these solutions, please contact Keenso customer support for further assistance.

8. Гарантыя і падтрымка

Keenso products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the contact information provided with your purchase or visit the official Keenso webсайт.

When contacting support, please have your product model number (Keenso1ash52fivb-12) and purchase details available.
