Electric Bike User Manual

1. Прадукт скончыўсяview

The Aairsk RS5 Electric Bike is designed for efficient commuting and leisure travel, offering a blend of power, portability, and safety features. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure a safe and enjoyable riding experience.

Image: The Aairsk RS5 Electric Bike, showcasing its compact folded state, unfolded configuration, and included accessories such as keys and a phone holder.

2. Налада і зборка

Before your first ride, ensure all components are correctly assembled and secured. The Aairsk RS5 comes largely pre-assembled, requiring minimal setup.

2.1 Раскладванне ровара

1. Place the folded bike on a flat, stable surface.
2. Release the frame latch located on the main frame. Carefully unfold the frame until it locks into place. Ensure the latch is securely fastened.
3. Adjust the handlebar stem. Release the stem latch, raise the handlebar to your desired height, and secure the latch.
4. Разгарніце педалі.
5. Adjust the seat post height. Open the quick-release lever, adjust the seat to a comfortable riding position (ensure your feet can touch the ground), and close the lever firmly.

Image: Illustration of the folding mechanism, highlighting the compact design of the Aairsk RS5 electric bike.

2.2 Усталёўка і зарадка акумулятара

The Aairsk RS5 features a removable battery for convenient charging.

• To install the battery, align it with the battery compartment and slide it in until it clicks securely. Use the provided key to lock the battery in place.
• Before first use, fully charge the battery. Connect the charger to the charging port on the battery or directly on the bike, then plug it into a power outlet.
• The charging indicator light on the charger will change color (e.g., red to green) when charging is complete. Charging typically takes 5-6 hours.
• Always use the original charger provided with the bike.

Выява: Крупны план view of the 48V 15AH removable battery, emphasizing its intelligent safety features and lock mechanism.

3. Інструкцыя па эксплуатацыі

Familiarize yourself with the controls and riding modes before operating the bike.

3.1 Уключэнне/выключэнне і ВК-дысплей

• To power on the bike, press and hold the power button on the handlebar control panel. The LCD display will illuminate.
• The LCD display provides real-time information including speed, battery level, distance traveled, and current Pedal Assist System (PAS) mode.
• Каб выключыць прыладу, зноў націсніце і ўтрымлівайце кнопку харчавання, пакуль дысплей не выключыцца.

Image: The intelligent digital LCD display, showing current speed, battery status, and the integrated USB charging port for mobile devices.

3.2 Рэжымы язды

• Рэжым педалі: The bike operates like a traditional bicycle. You provide all the propulsion by pedaling.
• Рэжым сістэмы дапамогі пры кручэнні педаляў (PAS): As you pedal, the motor provides assistance. There are 3 levels of pedal assist, adjustable via the control panel. Higher levels provide more motor assistance.
• Чыста электрычны рэжым: Use the throttle to engage the motor without pedaling. This mode provides full electric power up to the maximum speed.

3.3 Тармазная сістэма

The Aairsk RS5 is equipped with front and rear mechanical disc brakes for reliable stopping power. Always apply both brakes simultaneously for effective and safe braking.

3.4 Safety Lighting

The bike features integrated LED headlights and rear brake lights for enhanced visibility, especially during night riding. Ensure lights are functional before riding in low-light conditions.

Image: The integrated LED safety lighting system, featuring a bright front headlight and a rear taillight that functions as a brake light, ensuring visibility.

4. Тэхнічнае абслугоўванне

Рэгулярнае тэхнічнае абслугоўванне забяспечвае даўгавечнасць і бяспечную працу вашага электравеласіпеда.

4.1 Сыход за акумулятарам

• Charge the battery regularly, even if not in frequent use, to maintain its health. Avoid completely draining the battery.
• Захоўвайце акумулятар у прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
• If storing for an extended period, charge the battery to about 50-60% capacity.

4.2 Tire Inspection and Pressure

• Regularly check tire pressure. Refer to the tire sidewall for recommended PSI. Proper inflation improves efficiency and prevents punctures.
• Inspect tires for wear, cuts, or embedded objects. The 14-inch puncture-resistant tires offer enhanced durability.

Выява: Падрабязная view of the 14-inch puncture-resistant tires, illustrating their multi-layered construction designed for durability and stability.

4.3 Праверка тармазной сістэмы

• Test brakes before each ride to ensure they are responsive.
• Check brake pads for wear and replace if necessary.
• Ensure brake cables are not frayed and are properly tensioned.

4.4 Генеральная ўборка

Рэгулярна чысціце ровар з дапамогай рэкламыamp тканінай. Пазбягайце выкарыстання мыйкі высокага ціску непасрэдна на электрычных кампанентах.

5. Выпраўленне непаладак

У гэтым раздзеле разглядаюцца распаўсюджаныя праблемы, з якімі вы можаце сутыкнуцца.

6. Тэхнічныя характарыстыкі

Image: Diagram illustrating the powerful brushless motor, highlighting its 748W peak power and capability to reach speeds of 20-22 MPH.

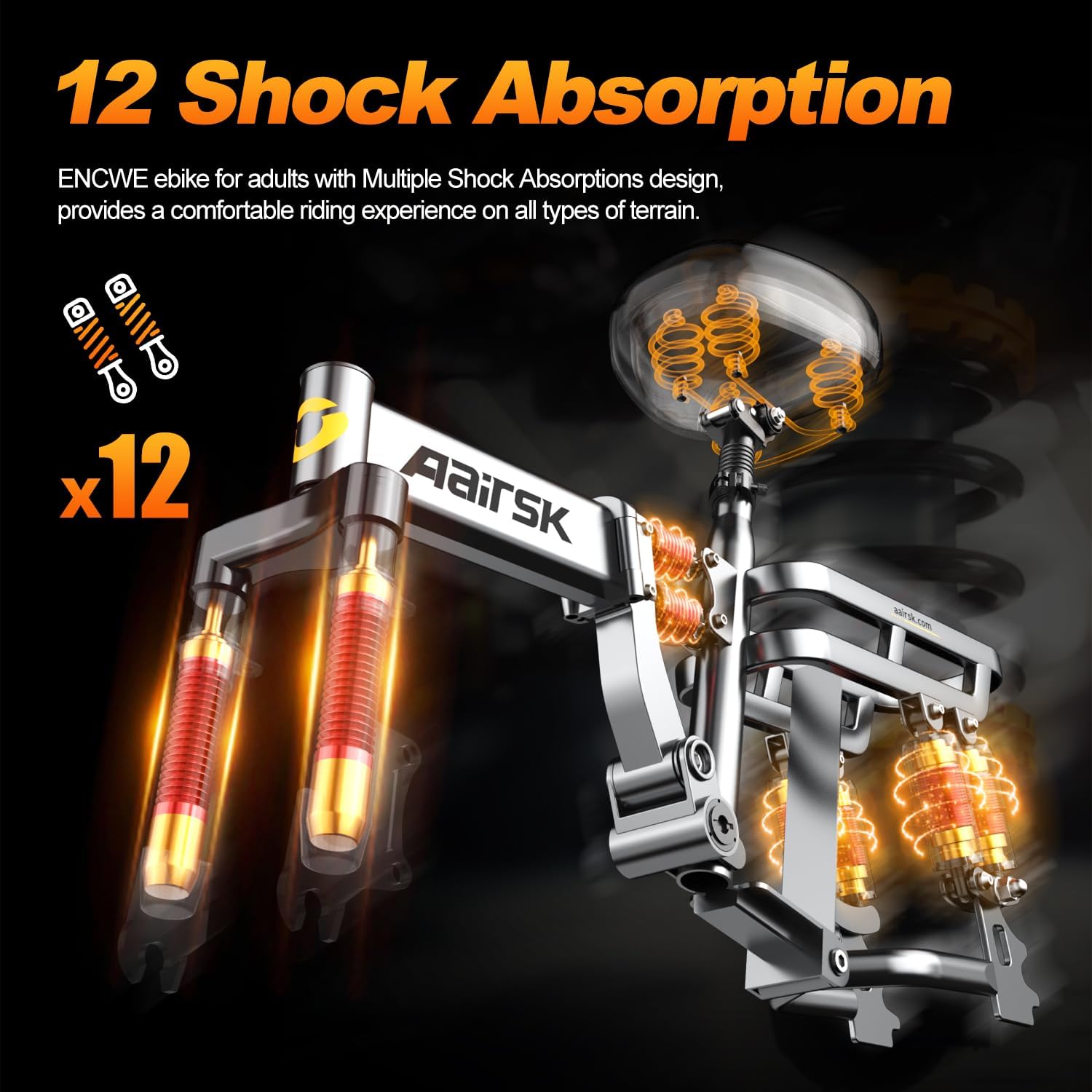

Image: Visual representation of the multi-spring shock absorption system, designed to provide a comfortable ride over various terrains.

7. Гарантыя і падтрымка

The Aairsk RS5 Electric Bike comes with a manufacturer's warranty and dedicated technical support.

• Гарантыя: 1-year Manufacturer Warranty for ebike's parts.
• Тэхнічнае абслугоўванне: 5-year technical service is provided.
• For warranty claims or technical assistance, please contact the seller "Aairsk- ebike" directly through your purchase platform.
