Inwa MZ-621 Outdoor Bluetooth Speaker User Manual

1. Уводзіны

Дзякуй за пакупкуasing the Inwa MZ-621 Outdoor Bluetooth Speaker. This manual provides detailed instructions for the proper installation, operation, and maintenance of your speaker. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device. Keep this manual for future reference.

2. Інфармацыя па бяспецы

Каб пазбегнуць пажару, паражэння электрычным токам або пашкоджання вырабу, калі ласка, выконвайце наступныя правілы бяспекі:

• Не падвяргайце дынамік уздзеянню экстрэмальных тэмператур або прамых сонечных прамянёў на працягу доўгага часу.
• Ensure the power adapter is connected to a suitable power source as specified.
• Do not attempt to disassemble, repair, or modify the speaker. Contact qualified service personnel for any repairs.
• Трымайце дынамік далей ад моцных магнітных палёў.
• Although the speaker is IPX5 waterproof, it is not designed for submersion in water. Avoid direct high-pressure water jets.
• Выкарыстоўвайце толькі адаптар сілкавання, які ўваходзіць у камплект.
• Захоўваць у месцах, недаступных дзецям.

3. Змесціва ўпакоўкі

Праверце наяўнасць усіх прадметаў у камплекце:

• 1 x Inwa MZ-621 Outdoor Bluetooth Speaker
• 1 х адаптар сілкавання
• Mounting Accessories (screws, brackets)
• 1 х пульт дыстанцыйнага кіравання
• Кіраўніцтва карыстальніка (гэты дакумент)

Image: Inwa MZ-621 Outdoor Bluetooth Speaker shown with its power adapter and remote control, illustrating typical package contents.

4. Прадукт скончыўсяview

The Inwa MZ-621 is a wall-mountable outdoor Bluetooth speaker designed for robust sound performance in various outdoor environments. It features a durable ABS enclosure and an IPX5 waterproof rating.

Кампаненты дынаміка:

• Пярэдняя рашотка: Protects the speaker drivers.
• НЧ-дынамік: 4-inch driver for bass frequencies.
• Твітар: 1-inch driver for high frequencies.
• Mounting Bracket Attachment Points: Located on the rear for secure installation.
• Уваходны порт харчавання: Для падключэння адаптара харчавання, які ўваходзіць у камплект.
• Control Panel/Indicator Light: (Typically on the rear or side) For power, Bluetooth pairing, and status indication.

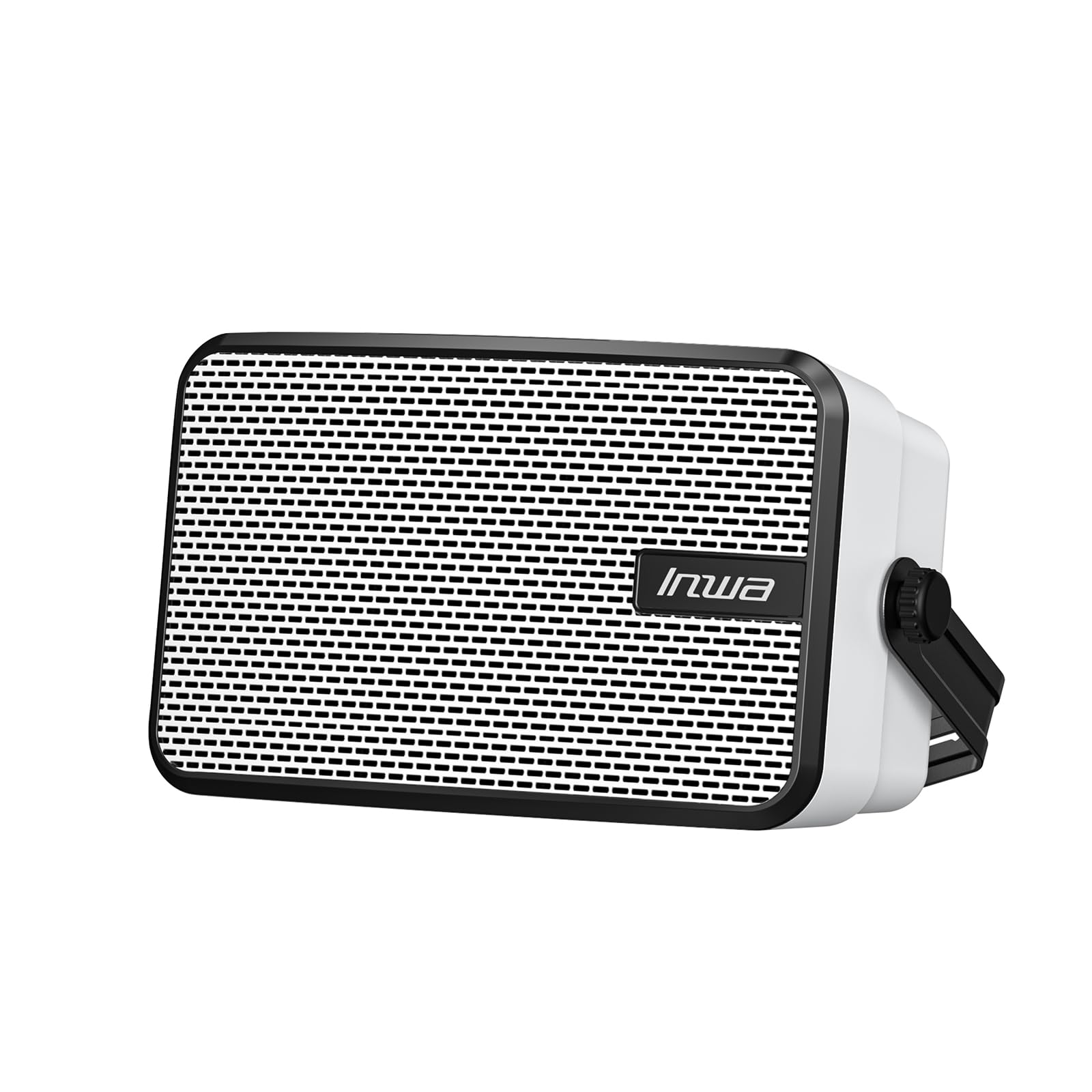

Выява: спераду view of the Inwa MZ-621 speaker, highlighting its protective grille and compact design.

5. Настройка

5.1. Устаноўка дынаміка

The MZ-621 speaker is designed for wall mounting. Choose a suitable location that provides optimal sound dispersion and is protected from direct, heavy rainfall, despite its IPX5 rating.

1. Выберыце месцазнаходжанне: Identify a sturdy surface (e.g., wall stud, solid wood beam) for mounting. Consider areas like under a porch roof, patio cover, or gazebo.
2. Пазначце адтуліны для свідравання: Use the included mounting bracket as a template to mark the drill holes on the chosen surface.
3. Прасвідраваць пілотныя адтуліны: Drill pilot holes appropriate for the included screws.
4. Прымацаваць кранштэйн: Securely fasten the mounting bracket to the surface using the provided screws.
5. Падключыць дынамік: Slide or attach the speaker onto the mounted bracket. Ensure it clicks securely into place or is fastened with any additional securing screws.

Image: An Inwa MZ-621 speaker shown mounted on an outdoor wall, demonstrating a typical installation scenario.

5.2. Падключэнне сілкавання

Connect the provided power adapter to the speaker's power input port. Plug the adapter into a standard electrical outlet. The speaker requires a constant power supply for operation.

6. Інструкцыя па эксплуатацыі

6.1. Уключэнне / выключэнне харчавання

Press and hold the Power button (location may vary, typically on the rear or side of the speaker or on the remote control) for a few seconds to turn the speaker on or off. An indicator light will illuminate when the speaker is powered on.

6.2. Спарванне Bluetooth

Каб падключыць прыладу праз Bluetooth:

1. Ensure the speaker is powered on and in Bluetooth pairing mode (the indicator light may flash).
2. На мабільнай прыладзе (смартфоне, планшэце і г.д.) уключыце Bluetooth і знайдзіце даступныя прылады.
3. Select "MZ-621" or "Inwa Speaker" from the list of found devices.
4. Once paired, the speaker will emit a confirmation sound, and the indicator light will become solid.

6.3. Multi-Speaker Wireless Sync

The MZ-621 supports wireless synchronization with up to 100 other compatible Inwa speakers (including MZ-632 models) to create a larger stereo system. The Bluetooth name for synchronized speakers is "sync speaker".

1. First Speaker (Master): Power on the first MZ-621 speaker and pair it with your mobile device as described in Section 6.2. This speaker will act as the master.
2. Additional Speakers (Slave): Power on any additional MZ-621 (or compatible MZ-632) speakers. Do not pair them individually with your mobile device.
3. Initiate Sync: On the master speaker (or via its remote control), activate the sync function. Refer to the specific button or remote control instruction for "sync" or "group pairing". The speakers will automatically search for and connect to each other.
4. Пацверджанне: Once connected, all synchronized speakers will play audio from your mobile device.

Note: Each speaker can also function as an individual Bluetooth speaker when not in sync mode.

6.4. Аперацыя дыстанцыйнага кіравання

The included remote control allows for convenient operation of the speaker. Functions typically include:

• Уключэнне/выключэнне харчавання
• Павялічыць/паменшыць гучнасць
• Прайграванне/Паўза
• Наступны/Папярэдні трэк
• Bluetooth Pairing Mode Activation
• Sync Mode Activation (for multi-speaker setup)

Image: The Inwa MZ-621 speaker shown alongside its remote control, illustrating the convenience of wireless operation.

7. Тэхнічнае абслугоўванне

7.1. Уборка

Працярыце вонкавы бок дынаміка мяккай губкайamp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or internal components. Ensure the power is disconnected before cleaning.

7.2. Захоўванне

If storing the speaker for an extended period, disconnect it from power and store it in a cool, dry place, away from direct sunlight and extreme temperatures.

7.3. Клас воданепранікальнасці (IPX5)

The MZ-621 has an IPX5 rating, meaning it is protected against low-pressure water jets from any direction. This makes it suitable for outdoor use and resistant to splashes and light rain. However, it is not designed to be submerged in water or exposed to high-pressure water streams.

8. Выпраўленне непаладак

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

10.1. Інфармацыя аб гарантыі

The Inwa MZ-621 Outdoor Bluetooth Speaker comes with a 180-Day Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

10.2. Падтрымка кліентаў

For technical assistance, warranty claims, or any questions regarding your Inwa MZ-621 speaker, please contact Inwa customer service. Contact information can typically be found on the official Inwa webсайт або праз вашу платформу для пакупак.

Inwa provides omni-channel customer service.
