Уводзіны
This manual provides instructions for the E-YOOSO M10 (Z686-1) Wired Mechanical Keyboard. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan. This keyboard features a 65% compact layout, mechanical blue switches, and customizable RGB backlighting, designed for office work and multimedia use.
Настройка
Падключэнне клавіятуры
- Locate the detachable USB cable provided with your keyboard.
- Connect the USB-C end of the cable to the port on the back of the E-YOOSO M10 keyboard.
- Plug the USB-A end of the cable into an available USB 2.0 port on your computer.
- The keyboard is plug-and-play; no additional drivers or software are required for basic functionality.
Image: The E-YOOSO M10 keyboard connected via its detachable USB cable to a computer, illustrating the wired connection setup.
Сумяшчальнасць
The E-YOOSO M10 keyboard is compatible with various operating systems, including:
- Windows (2000, XP, ME, Vista, 7, 8)
- Linux
- Mac OS
Інструкцыя па эксплуатацыі
Key Layout and Functions
The E-YOOSO M10 features a 65% compact layout with 68 keys, including dedicated arrow keys and access to F1-F12 functions via the Fn key. This design optimizes desktop space while retaining essential keys for productivity.
RGB Backlight Customization
The keyboard supports 18 customizable RGB backlight modes. Use the following key combinations to adjust the lighting effects:
- Fn + Ins: Switch between 18 different backlight modes.
- Fn + ← / →: Adjust the backlight speed.
- Fn + ↑ / ↓: Адрэгулюйце яркасць падсвятлення.
Image: The E-YOOSO M10 keyboard showcasing its RGB backlighting and illustrating the function key combinations for adjusting light effects, speed, and brightness.
Anti-Ghosting Feature
The keyboard is equipped with full N-Key Rollover, meaning all 68 keys are anti-ghosting. This ensures that every key press is registered accurately, even when multiple keys are pressed simultaneously, which is beneficial for fast typing and gaming.
Image: The E-YOOSO M10 keyboard in use on a desk, visually representing the N-Key Rollover capability by highlighting several simultaneously pressed keys.
Эрганамічны дызайн
The keyboard features an ergonomic design with double kickstands, allowing for adjustable typing angles. The keycaps are designed with an ergonomic suspension profile and double-color injection for comfortable and durable use.
Выява: Пабочны прафесіяналfile view of the E-YOOSO M10 keyboard, demonstrating its ergonomic design with varying keycap heights and the overall contoured shape for comfortable typing.
Тэхнічнае абслугоўванне
Чыстка клавіятуры
To maintain the appearance and functionality of your E-YOOSO M10 keyboard, follow these cleaning guidelines:
- Use a soft, dry cloth to wipe down the keycaps and chassis regularly.
- For deeper cleaning, you may use a slightly damp cloth with a mild cleaning solution, ensuring no liquid enters the keyboard.
- The PBT injection keycaps are designed to be anti-sweat and fade-resistant, requiring minimal special care.
- Выкарыстоўвайце сціснутае паветра, каб выдаліць пыл і смецце паміж клавішамі.
Выява: Падрабязны view of the E-YOOSO M10 keyboard's PBT injection keycaps, emphasizing their construction for clear backlighting, anti-sweat properties, and resistance to fading.
Ліквідацыю непаладак
Клавіятура не адказвае
- Пераканайцеся, што USB-кабель надзейна падключаны як да клавіятуры, так і да кампутара.
- Паспрабуйце падключыць кабель USB да іншага порта USB на вашым кампутары.
- Перазагрузіце кампутар.
- Калі вы карыстаецеся USB-канцэнтратарам, паспрабуйце падключыць клавіятуру непасрэдна да кампутара.
Backlight Not Working or Incorrect
- Check if the backlight is turned off. Use Fn + ↑ каб павялічыць яркасць.
- Пераключайцеся паміж рэжымамі падсветкі з дапамогай Fn + Ins каб паглядзець, ці вырашыць гэта праблему.
- Пераканайцеся, што клавіятура атрымлівае дастаткова харчавання ад порта USB.
Клавішы не рэгіструюцца або ўводзяцца два разы
- Пераканайцеся, што клавіятура чыстая і без смецця пад клавішамі.
- Test the keyboard on another computer to rule out a software or driver issue on your primary system.
Тэхнічныя характарыстыкі
| Марка | E-YOOSO |
| Нумар мадэлі | Z686-1 |
| Сувязь | Правадны (USB 2.0) |
| Тып перамыкача | Механічны сіні перамыкач |
| Колькасць ключоў | 68 Ключы |
| Макет | 65% Compact, QWERTY |
| Падсвятленне | RGB (18 рэжымы) |
| Анты-прывіды | Поўны N-Key Rollover |
| Клавішы | PBT Injection, Double-shot |
| Матэрыял | Acrylonitrile Butadiene Styrene (ABS), Aluminum Plate |
| Даўжыня кабеля | 4.9 ft (1.5 m) Detachable USB Cable |
| Сумяшчальнасць | Windows, Linux, Mac OS |
| Асаблівасці | Hot-swappable PCBA, North-facing LEDs, Pre-lubed Plate Mounted Stabilizer, Ergonomic Design |

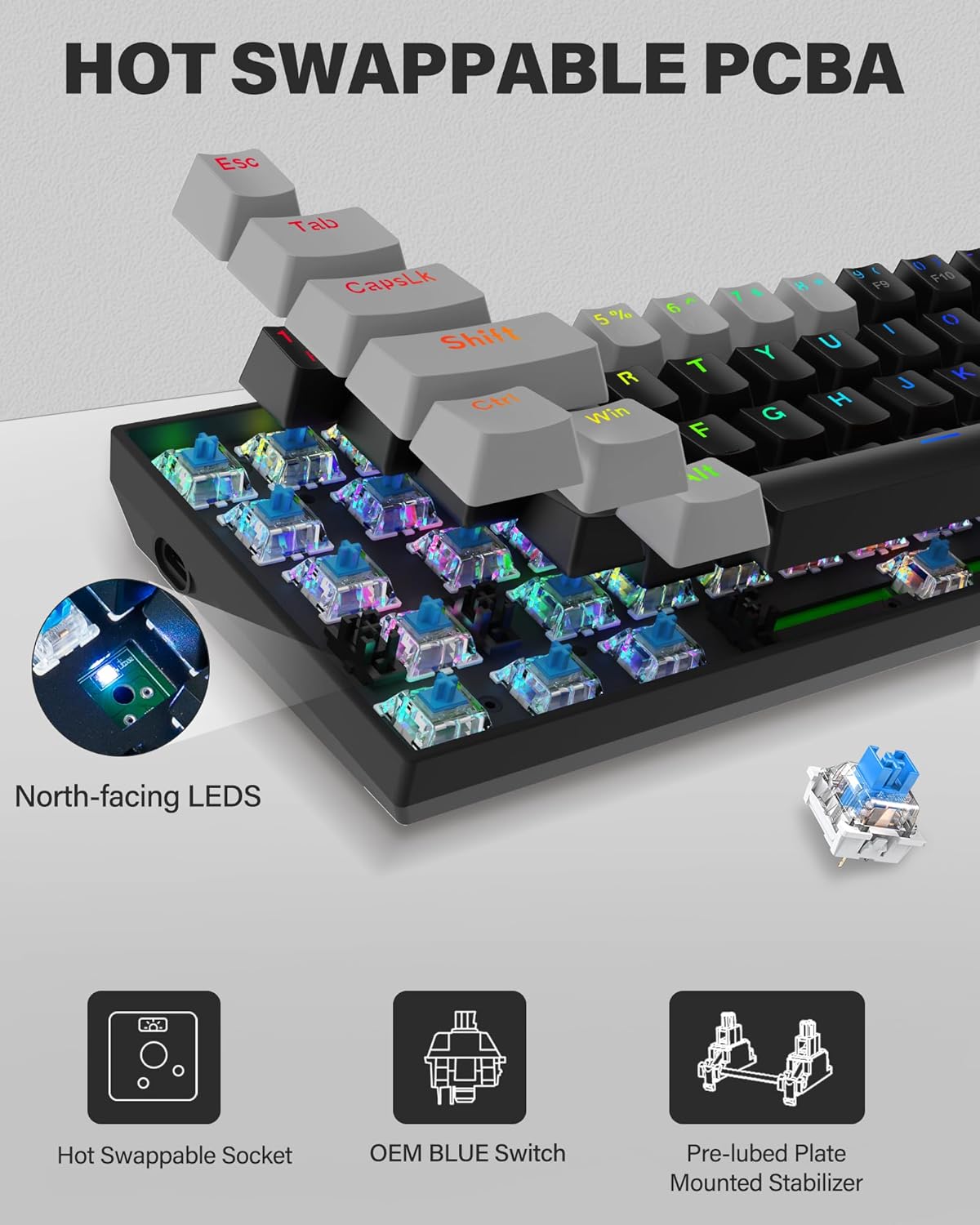

Image: A close-up of the E-YOOSO M10 keyboard's internal components, highlighting the hot-swappable PCBA, OEM Blue Switches, and pre-lubed plate-mounted stabilizers.
Image: An exploded diagram illustrating the layers of the E-YOOSO M10 keyboard, including PBT keycaps, Blue Switches, Positioning Plate, PCB Board, and Bottom Case.
Гарантыя
The E-YOOSO M10 (Z686-1) Wired Mechanical Keyboard comes with a Гарантыя 1 год з даты пакупкі. Гэтая гарантыя распаўсюджваецца на вытворчыя дэфекты і праблемы, якія ўзніклі ў выніку нармальнага выкарыстання. Калі ласка, захавайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.
Падтрымка
For further assistance, technical support, or warranty inquiries, please refer to the contact information provided on the E-YOOSO official website or your retailer's support channels. When contacting support, please have your product model (Z686-1) and proof of purchase available.
