Lumary Smart Water Timer + Smart WiFi 2 in 1 Soil Meter Instruction Manual

1. Уводзіны

This manual provides detailed instructions for the installation, operation, and maintenance of your Lumary Smart Water Timer and Smart WiFi 2 in 1 Soil Meter. This system is designed to automate garden watering based on soil moisture and temperature, promoting efficient water usage and plant health. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. Інфармацыя па бяспецы

• Ўздзеянне вады: The water timer is designed for outdoor use and is water-resistant, but should not be submerged in water. The soil meter is designed for soil insertion.
• Крыніца харчавання: Ensure the power source for the timer (if applicable, typically batteries) is correctly installed and of the specified type.
• Патрабаванні да сеткі: The smart features require a stable 2.4GHz Wi-Fi network. Ensure your network meets this requirement for optimal performance.
• Дзеці і хатнія жывёлы: Трымайце прыладу ў месцах, недаступных для дзяцей і хатніх жывёл, каб пазбегнуць выпадковых пашкоджанняў або траўмаў.
• Тэмпературныя абмежаванні: Do not expose the devices to extreme temperatures outside their operating range (typically 0°C to 50°C / 32°F to 122°F).
• Разборка: Не спрабуйце самастойна разабраць або адрамантаваць прыладу. Звярніцеся ў службу падтрымкі па дапамогу.

3. Змесціва ўпакоўкі

Праверце наяўнасць усіх прадметаў у камплекце:

• Lumary Smart Water Timer
• Lumary Smart WiFi 2 in 1 Soil Meter
• Кіраўніцтва карыстальніка (гэты дакумент)
• Required Batteries (if included, check packaging)
• Кароткае кіраўніцтва

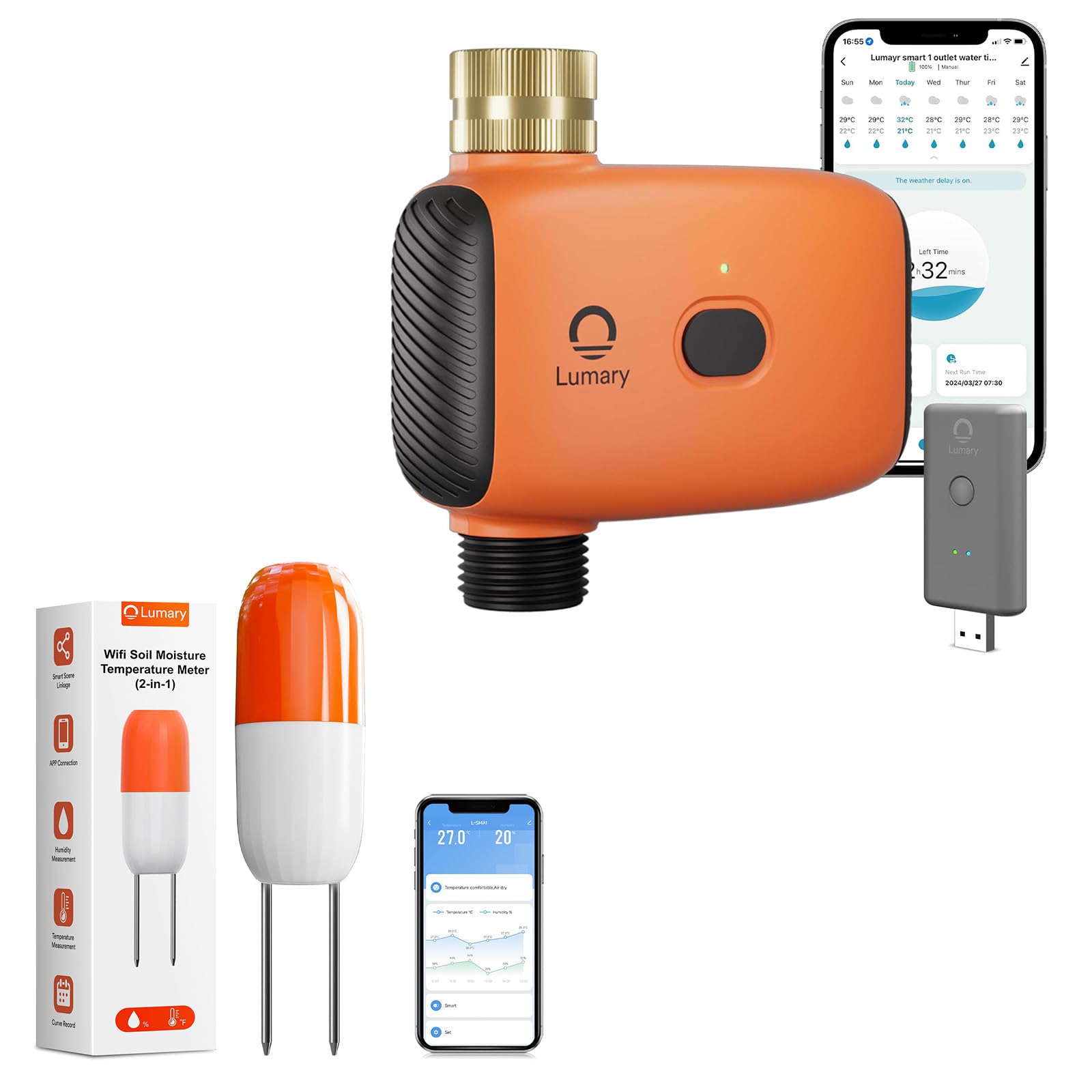

Image 1: Lumary Smart Water Timer and Smart WiFi 2 in 1 Soil Meter. This image displays the main components of the smart watering system, including the water timer unit and the soil meter probe.

4. Настройка

4.1. Install Batteries (if applicable)

If your devices require batteries, open the battery compartment on both the Smart Water Timer and the Smart WiFi 2 in 1 Soil Meter. Insert the specified battery type (e.g., AA or AAA) according to the polarity markings. Close the compartment securely.

4.2. Install Smart Water Timer

1. Падключэнне да крана: Screw the Smart Water Timer onto your outdoor garden faucet (spigot). Ensure a tight, leak-free connection. Hand-tighten only; do not overtighten.
2. Падключыце шланг: Attach your garden hose to the outlet of the Smart Water Timer.
3. Водазабеспячэнне: Turn on the faucet to allow water to flow to the timer. The timer will control the water flow to the hose.

4.3. Install Smart WiFi 2 in 1 Soil Meter

1. Размяшчэнне: Insert the probe of the soil meter into the soil near the plants you wish to monitor. Ensure the probe is fully inserted into the root zone for accurate readings.
2. Пазбягайце перашкод: Do not place the meter directly in standing water or in an area that will be frequently disturbed.

4.4. Загрузка праграмы і спалучэнне прылад

1. Спампаваць прыкладанне: Download the Lumary Smart app from your device's app store (iOS App Store or Google Play Store).
2. Стварыць уліковы запіс: Адкрыйце праграму і стварыце новы ўліковы запіс карыстальніка або ўвайдзіце ў сістэму, калі ў вас ужо ёсць уліковы запіс.
3. Дадаць прыладу: Follow the in-app instructions to add a new device. Select "Smart Water Timer" and "Smart WiFi Soil Meter" from the device list.
4. Падключэнне Wi-Fi: Ensure your smartphone is connected to a 2.4GHz Wi-Fi network. The devices will connect to this network. Follow the app's prompts to connect each device to your home Wi-Fi. This typically involves putting the device into pairing mode (refer to device-specific instructions in the app or quick start guide).
5. Найменне прылады: Assign a descriptive name to each device (e.g., "Front Yard Timer," "Rose Bush Soil Meter").

5. Інструкцыя па эксплуатацыі

5.1. Ручны паліў

To initiate watering manually:

1. Open the Lumary Smart app.
2. Select your Smart Water Timer.
3. Tap the "Manual On/Off" or similar button.
4. Set the desired watering duration and confirm. The timer will begin watering immediately and stop after the set time.

5.2. Scheduling Automatic Watering

To set up a time-based watering schedule:

1. In the Lumary Smart app, select your Smart Water Timer.
2. Перайдзіце ў раздзел «Расклад» або «Праграма».
3. Add a new schedule. Set the start time, duration, and days of the week for watering.
4. Save the schedule. The timer will activate automatically according to your settings.

5.3. Smart Soil Sensor Sync (Automated Watering)

This feature allows the water timer to respond to real-time soil conditions reported by the soil meter.

1. Ensure both the Smart Water Timer and the Smart WiFi 2 in 1 Soil Meter are paired and online in the Lumary Smart app.
2. In the app, navigate to the "Smart Scene," "Automation," or "Linkage" section.
3. Стварыце новае правіла аўтаматызацыі.
4. Умова: Select the Smart WiFi 2 in 1 Soil Meter. Set the condition, for example, "When soil moisture drops below 30%."
5. дзеянне: Select the Smart Water Timer. Set the action, for example, "Turn on Valve 1 for 5 minutes."
6. Save the automation. The system will now automatically water when the soil moisture level falls below your specified threshold.

5.4. Monitoring Soil Data

The Lumary Smart app provides real-time and historical data from your Smart WiFi 2 in 1 Soil Meter.

• Open the app and select your Smart WiFi 2 in 1 Soil Meter.
• View current soil moisture percentage and temperature readings.
• Access historical data and trends to understand your plant's watering needs over time.

6. Тэхнічнае абслугоўванне

• Уборка: Periodically wipe down the exterior of the water timer and the probe of the soil meter with a damp cloth. Do not use abrasive cleaners or submerge the electronic components.
• Замена батарэі: If the devices use batteries, replace them when the app indicates low battery or when the device stops responding. Use only the specified battery type.
• Зімоўка: Before freezing temperatures, disconnect the water timer from the faucet and drain any remaining water. Store both devices indoors in a dry, protected area to prevent damage from frost.
• Soil Meter Probe: Gently clean the soil meter probe if soil buildup affects readings. Avoid bending or damaging the probe.

7. Выпраўленне непаладак

7.1. Device Not Connecting to Wi-Fi

• Пераканайцеся, што ваша сетка Wi-Fi працуе на частаце 2.4 ГГц. Сеткі 5 ГГц не падтрымліваюцца.
• Check that the Wi-Fi signal strength is adequate at the device's location.
• Праверце, ці правільна ўведзены пароль Wi-Fi ў дадатку.
• Перазагрузіце маршрутызатар Wi-Fi і паспрабуйце падключыць прыладу яшчэ раз.
• Ensure the device is in pairing mode as per app instructions.

7.2. Water Timer Not Watering

• Праверце, ці цалкам адкрыты кран.
• Verify that the water timer has sufficient battery power (if applicable).
• Ensure there are no blockages in the hose or timer.
• Check the app for any active schedules or manual commands.
• If using smart automation, verify the soil moisture condition is met.

7.3. Inaccurate Soil Meter Readings

• Ensure the probe is fully inserted into the soil and making good contact.
• Clean the probe if there is significant soil buildup.
• Avoid placing the probe in extremely dry, sandy, or rocky soil, which can affect accuracy.
• Verify the soil meter is connected to Wi-Fi and transmitting data.

7.4. App Not Responding / Device Offline

• Праверце падключэнне да Інтэрнэту.
• Restart the Lumary Smart app.
• Check the device's battery level.
• If the device is offline, try re-pairing it with the app.

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

Lumary products come with a limited warranty. Please refer to the warranty card included in your package or visit the official Lumary website for detailed warranty terms and conditions. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Lumary customer service through the following channels:

• Webсайт: Visit the Lumary Store on Amazon (for general information and product range)
• электронная пошта: Refer to your product packaging or the Lumary webсайт, каб знайсці найноўшы адрас электроннай пошты службы падтрымкі.
• тэлефон: Refer to your product packaging or the Lumary webсайт, каб знайсці самы актуальны нумар тэлефона службы падтрымкі.

When contacting support, please have your product model number (B0F9QF3S2C) and purchase date available.
