1. Важная інфармацыя па бяспецы
Before using the PASYOU SKY80 Air Resistance Ski Trainer, please read and understand all instructions in this manual. Keep this manual for future reference. Failure to follow these safety guidelines may result in injury or damage to the equipment.
- Звярніцеся да ўрача: Заўсёды кансультуйцеся з медыцынскім работнікам, перш чым пачынаць любую новую праграму фізічных практыкаванняў, асабліва калі ў вас ёсць ранейшыя захворванні.
- Правільнае выкарыстанне: Use the ski trainer only for its intended purpose as described in this manual. Do not modify the equipment.
- Кантроль: Children and individuals with reduced physical, sensory, or mental capabilities should be supervised when using the equipment.
- Чыстая зона: Ensure a minimum clearance of 0.6 meters (2 feet) around the equipment during use. Keep pets and children away from the machine.
- Стабільная паверхня: Place the ski trainer on a flat, stable, and non-slip surface. Use a protective mat if necessary.
- Праверце перад выкарыстаннем: Before each workout, check all components for wear, damage, or loose parts. Do not use the equipment if any part is damaged.
- Абмежаванне вагі: Adhere to the maximum user weight limit specified for this product.
- Правільнае адзенне: Wear appropriate athletic clothing and footwear. Avoid loose clothing that could get caught in moving parts.
- Слухайце сваё цела: Неадкладна спыніце практыкаванні, калі адчуеце боль, галавакружэнне або дыхавіцу.
2. Прадукт скончыўсяview
The PASYOU SKY80 Air Resistance Ski Trainer is designed to provide a comprehensive full-body workout, simulating the movements of Nordic skiing. It features an advanced air resistance system and an electronic monitor to track your performance.

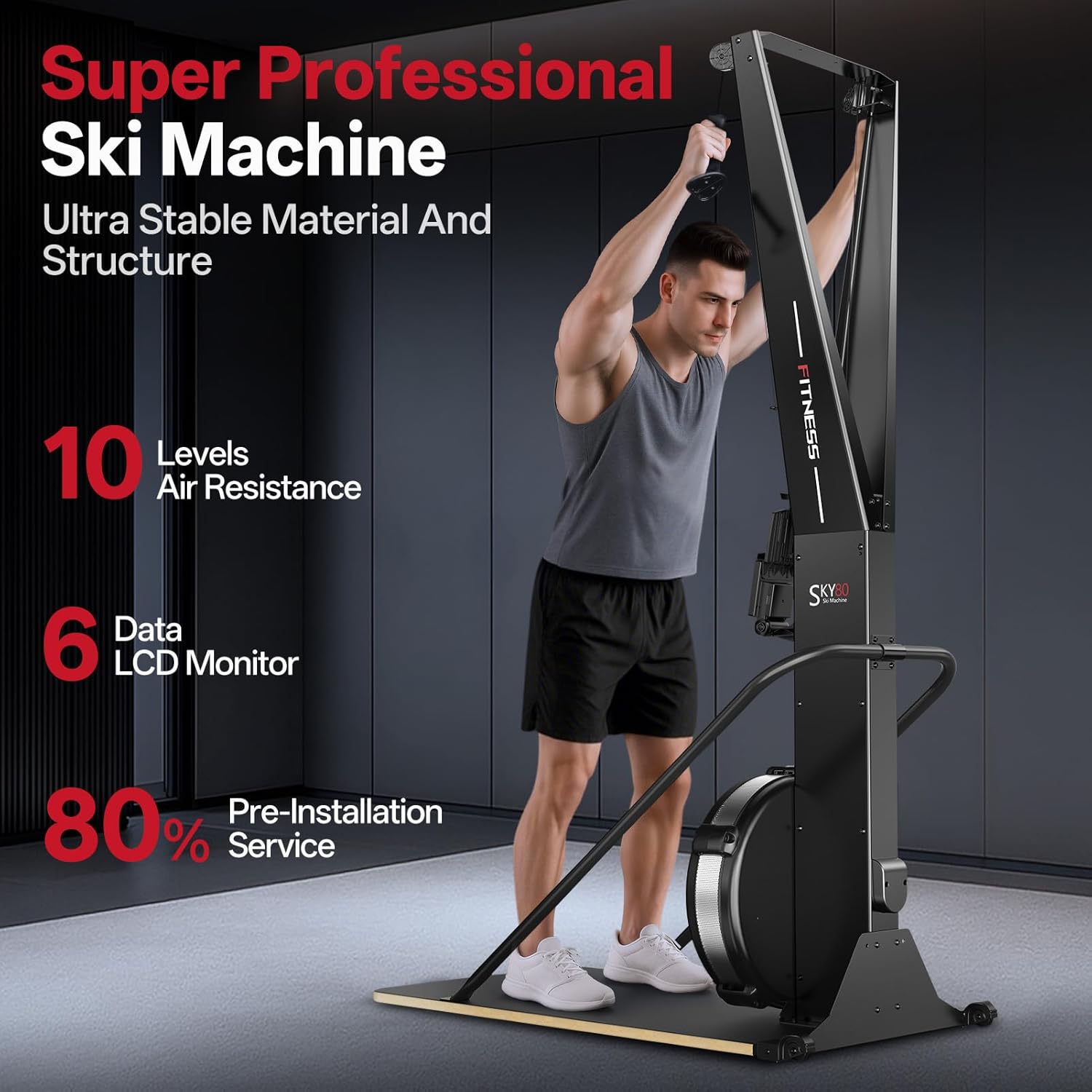

Figure 2.1: The PASYOU SKY80 Ski Trainer in use, showcasing its key features.
Асноўныя характарыстыкі:
- Adjustable Air Resistance: Features a 10-level damping system for precise control over airflow and resistance, suitable for various intensity levels.
- Realistic Ski Simulation: A responsive flywheel system accurately mimics the feel of Nordic skiing, providing smooth and consistent resistance.
- Маніторынг прадукцыйнасці: Equipped with a professional electronic monitor (PM) that displays real-time data including speed, watts, calories, and distance.
- Эрганамічны і трывалы дызайн: Constructed from high-strength alloy steel with ergonomic handles to ensure correct biomechanics and withstand intense workouts.
- Versatile Training: Ideal for resistance training, muscle strengthening, high-intensity interval training (HIIT), and rehabilitation programs.
Кампаненты:
- Flywheel and Air Dampэ-э: The core of the resistance system.
- Пацягніце ручкі: Ergonomically designed for comfortable grip and effective pulling motion.
- Electronic Monitor: Displays workout data.
- Base and Frame: Provides stability and structural integrity.
- Транспартныя колы: For easy relocation of the unit.
Figure 2.2: Close-up of the advanced air resistance structure.

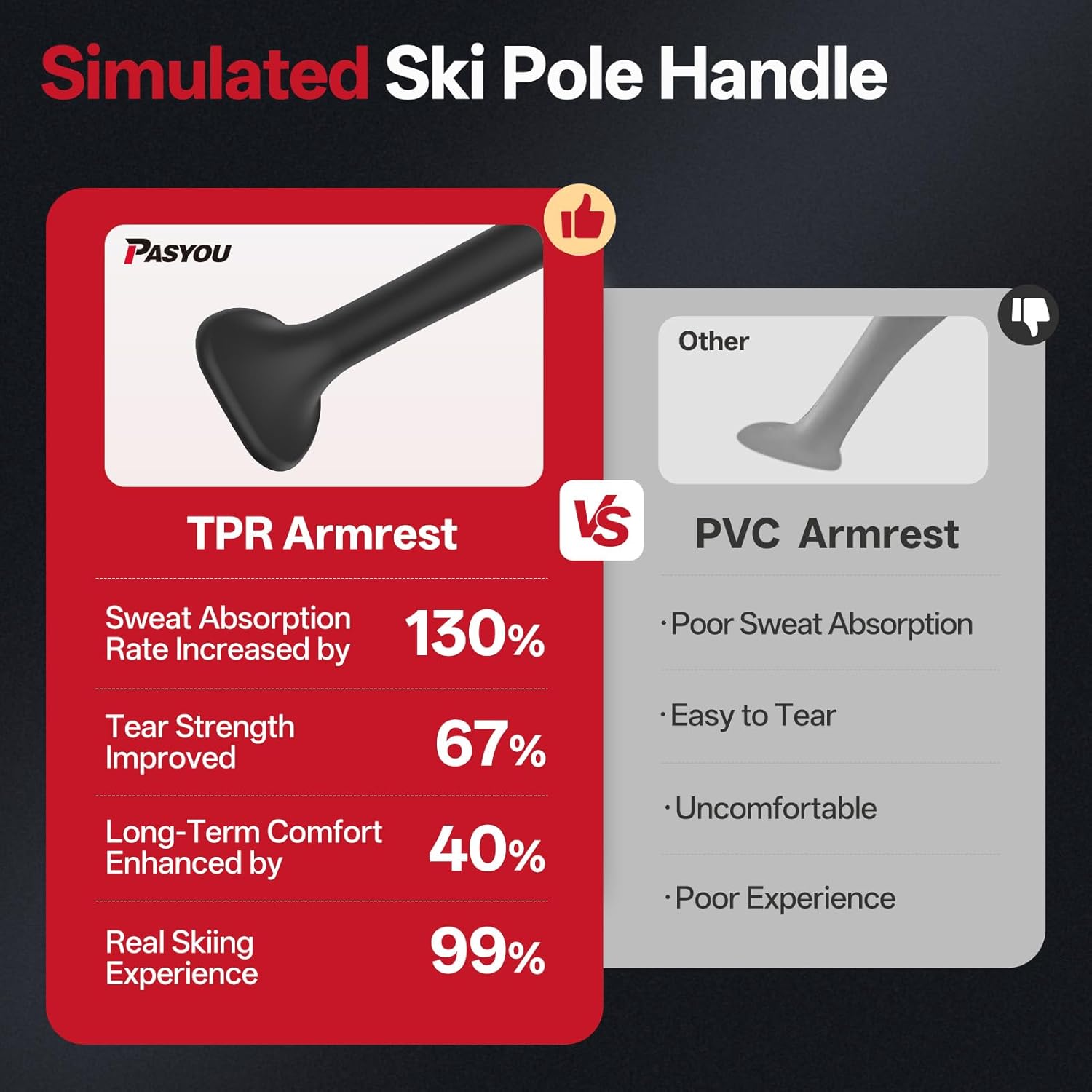

Figure 2.3: Comparison of TPR Armrest (left) and PVC Armrest (right). The TPR armrest offers improved sweat absorption, tear strength, long-term comfort, and a more realistic skiing experience.
3. Інструкцыі па ўсталёўцы
The PASYOU SKY80 Ski Trainer comes 80% pre-installed, requiring minimal assembly. Follow these steps to complete the setup:
- Распакуйце кампаненты: Асцярожна выміце ўсе дэталі з упакоўкі. Праверце наяўнасць усіх кампанентаў, пералічаных у пакавальным лісце.
- Прымацаванне вертыкальных апор: Secure the main vertical supports to the base unit using the provided hardware. Ensure all bolts are tightened securely.
- Install Monitor: Mount the electronic monitor onto its designated bracket. Connect any necessary cables as indicated in the assembly guide.
- Канчатковыя праверкі: Double-check all connections and ensure the unit is stable before first use.
An assembly guide and necessary tools are included in the package to facilitate quick setup, typically within 20 minutes.
Figure 3.1: Visual guide for the three main pre-installation steps.
4. Інструкцыя па эксплуатацыі
4.1 Рэгуляванне супраціву
The PASYOU SKY80 features a 10-level air resistance system. You can adjust the resistance level by moving the damper lever located on the flywheel housing. Higher numbers (10) indicate greater resistance, while lower numbers (1) provide lighter resistance.
- Узроўні 1-3: Ideal for warm-ups, rehabilitation, or light, steady-state cardio.
- Узроўні 4-7: Suitable for moderate intensity workouts, improving endurance and general fitness.
- Узроўні 8-10: Designed for high-intensity training, strength building, and simulating uphill skiing.
Experiment with different levels to find the resistance that best suits your workout goals and fitness level.

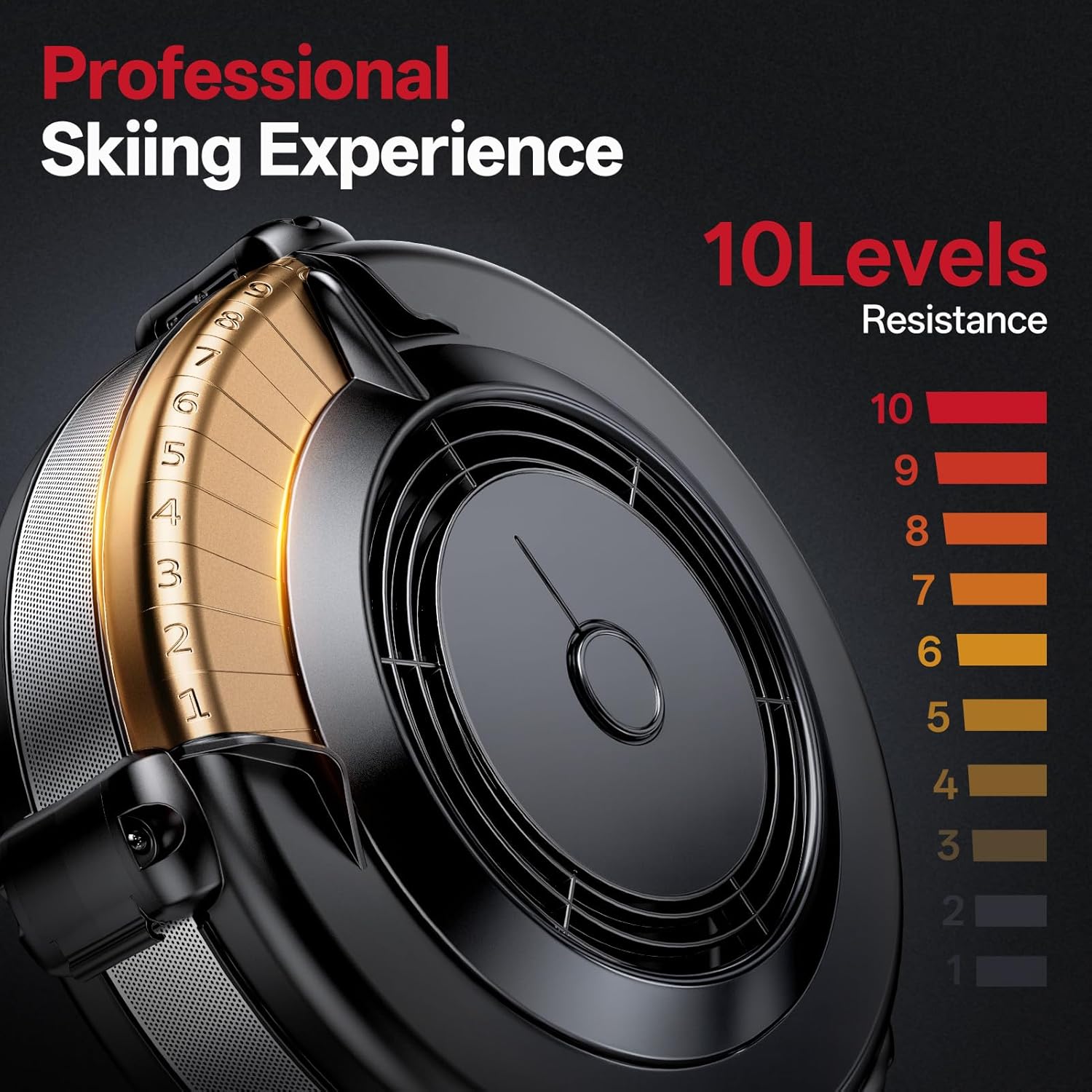

Figure 4.1: The 10-level resistance adjustment dial.
4.2 Using the Electronic Monitor
The integrated LCD monitor provides real-time feedback on your workout. Familiarize yourself with its functions:

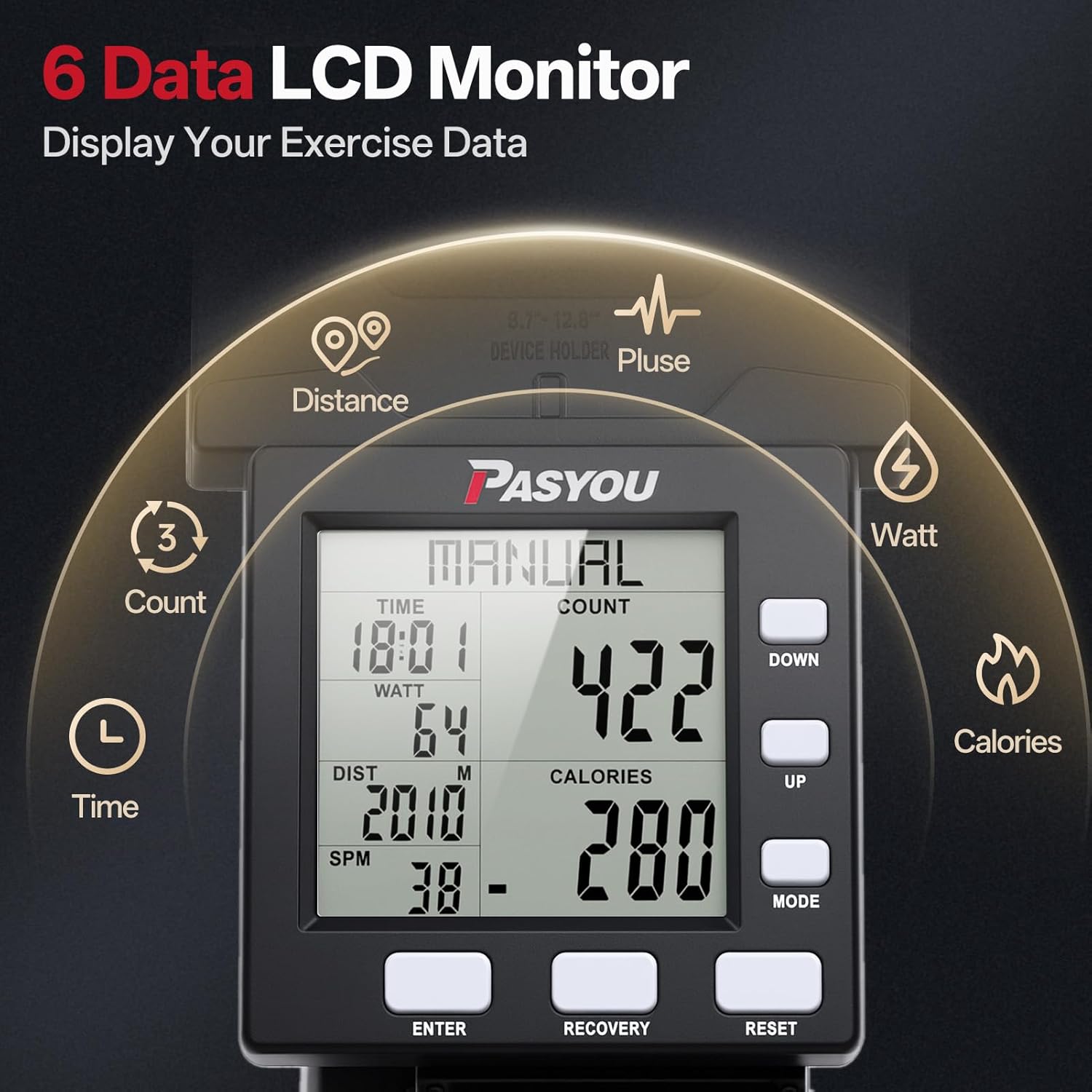

Figure 4.2: The 6-data LCD monitor displaying workout metrics.
- Час: Displays the duration of your current workout session.
- Лічыць: Shows the total number of pulls or strokes.
- Адлегласць: Estimates the distance covered during your workout.
- Ват: Measures the power output of your workout.
- Калорыі: Estimates the number of calories burned.
- Пульс: (If applicable, requires compatible heart rate monitor) Displays your heart rate.
Use the 'MODE' button to cycle through different display modes or to select specific metrics. The 'RESET' button will clear all workout data. Refer to the monitor's specific instructions for advanced functions like setting targets or recovery modes.
4.3 Workout Techniques
The ski trainer allows for various full-body exercises. The primary movement simulates Nordic skiing:
- Зыходная пазіцыя: Stand facing the machine with feet shoulder-width apart. Grasp the handles firmly with an overhand grip.
- The Pull: Initiate the movement by engaging your core and pulling the handles down towards your thighs. Bend your knees and hinge at your hips as if performing a squat.
- Пашырэнне: Extend your arms fully downwards, keeping your core engaged and back straight.
- Вяртанне: Control the return of the handles by reversing the motion, allowing your arms to extend upwards while maintaining a slight bend in your knees.
Focus on smooth, controlled movements rather than jerky motions. Maintain a consistent rhythm for optimal results. The ski trainer provides a low-impact, high-fat burning workout that simulates ski moves and engages your entire body.
Figure 4.3: User performing a ski simulation workout.
5. Тэхнічнае абслугоўванне
Regular maintenance ensures the longevity and safe operation of your PASYOU SKY80 Ski Trainer.
- Уборка: Працерці машыну рэкламайamp анучай пасля кожнага выкарыстання, каб выдаліць пот і пыл. Пазбягайце абразіўных ачышчальнікаў або растваральнікаў.
- Праверце злучэнні: Periodically inspect all bolts, nuts, and moving parts to ensure they are secure. Tighten any loose fasteners.
- Праверка кабеля: Check the pull cables for any signs of fraying or wear. Replace damaged cables immediately.
- Flywheel Cleaning: Keep the flywheel area free of dust and debris to ensure smooth operation of the air resistance system.
- захоўванне: When not in use, store the ski trainer in a clean, dry environment away from direct sunlight and extreme temperatures. The integrated transport wheels allow for easy relocation.
6. Выпраўленне непаладак
If you encounter any issues with your PASYOU SKY80 Ski Trainer, refer to the following common troubleshooting steps:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Манітор не адлюстроўвае дадзеныя | Low battery; Loose cable connection | Replace batteries; Check and secure all monitor cables. |
| Супраціў адчуваецца непаслядоўным | Damper setting too low; Debris in flywheel; Cable wear | Наладзіць damper to a higher level; Clean flywheel housing; Inspect and replace cables if worn. |
| Незвычайныя гукі падчас працы | Loose fasteners; Worn parts; Debris | Check and tighten all bolts; Inspect moving parts for wear; Clean any debris from the flywheel or cable path. |
| Handles not retracting smoothly | Friction in cable path; Worn cable | Ensure cable path is clear; Inspect and replace cable if damaged. |
Калі праблема не знікне пасля спробы гэтых рашэнняў, звярніцеся ў службу падтрымкі кліентаў.
7. Тэхнічныя характарыстыкі
Technical specifications for the PASYOU SKY80 Air Resistance Ski Trainer:
| Спецыфікацыя | Дэталь |
|---|---|
| Нумар мадэлі | SKY80 |
| Памеры прадукту (Д х Ш х У) | 126 х 58 х 225 см |
| Вага прадукту (нета) | 51 кг |
| Product Weight (Gross/Shipping) | 110 кг |
| Матэрыял | Легаваная сталь |
| Колер | White (as per specifications, actual product may vary) |
| Тып супраціву | Air Resistance (10 levels) |
| Тып дысплея | святлодыёд |
| Функцыі манітора | Time, Count, Distance, Watt, Calories, Pulse (optional) |
| зборка | 80% Pre-installed, quick assembly required |
8. Гарантыя і падтрымка
PASYOU is committed to providing high-quality products and specialized customer support.
- Інфармацыя аб гарантыі: For details regarding the product warranty, please refer to the warranty card included with your purchase or visit the official PASYOU webсайт.
- Падтрымка кліентаў: If you have any questions, require technical assistance, or need to report an issue, please contact PASYOU customer support. Contact information can typically be found on the product packaging, the official webсайце або праз вашага прадаўца.
