Кіраўніцтва карыстальніка бесправадной гульнявой мышы RAWM ES21PRO 8K

Уводзіны

The RAWM ES21PRO is an ultra-lightweight 8K wireless gaming mouse designed for high-performance gaming. Featuring the advanced PAW3950 optical sensor, it offers exceptional precision and responsiveness with up to 30,000 DPI and an 8K Hz polling rate. Its ergonomic design, durable components, and dual-mode connectivity provide a superior gaming experience.

Змест пакета

Перад пачаткам пераканайцеся, што ў камплекце ёсць усе неабходныя рэчы:

• RAWM ES21PRO Wireless Gaming Mouse
• Бесправадны ключ 8K
• 5 ft Type-C Charging Cable
• Кіраўніцтва карыстальніка (гэты дакумент)

Image: The RAWM ES21PRO wireless gaming mouse in green, shown alongside its compact 8K wireless dongle.

Настройка

1. Зарадка мышы

The ES21PRO mouse comes with a built-in rechargeable battery. For optimal performance, it is recommended to fully charge the mouse before first use.

1. Connect the Type-C end of the charging cable to the mouse's charging port.
2. Падключыце канец зараднага кабеля USB-A да даступнага порта USB на вашым кампутары або да разеткі USB.
3. The mouse's indicator light will show charging status. A full charge takes approximately 1.5 hours.

Image: The RAWM ES21PRO mouse connected via its Type-C cable, illustrating the efficient charging capability that allows for a full charge in 1.5 hours.

2. Падключэнне мышы (падвойны рэжым)

The ES21PRO supports both 2.4G wireless and wired connectivity.

2.1. Бесправадное злучэнне 2.4G

1. Устаўце бесправадны 8K-адаптар у даступны USB-порт на вашым кампутары.
2. Turn on the mouse using the power switch located on the bottom of the mouse.
3. The mouse should automatically connect to the dongle. The indicator light may change to solid green once connected.

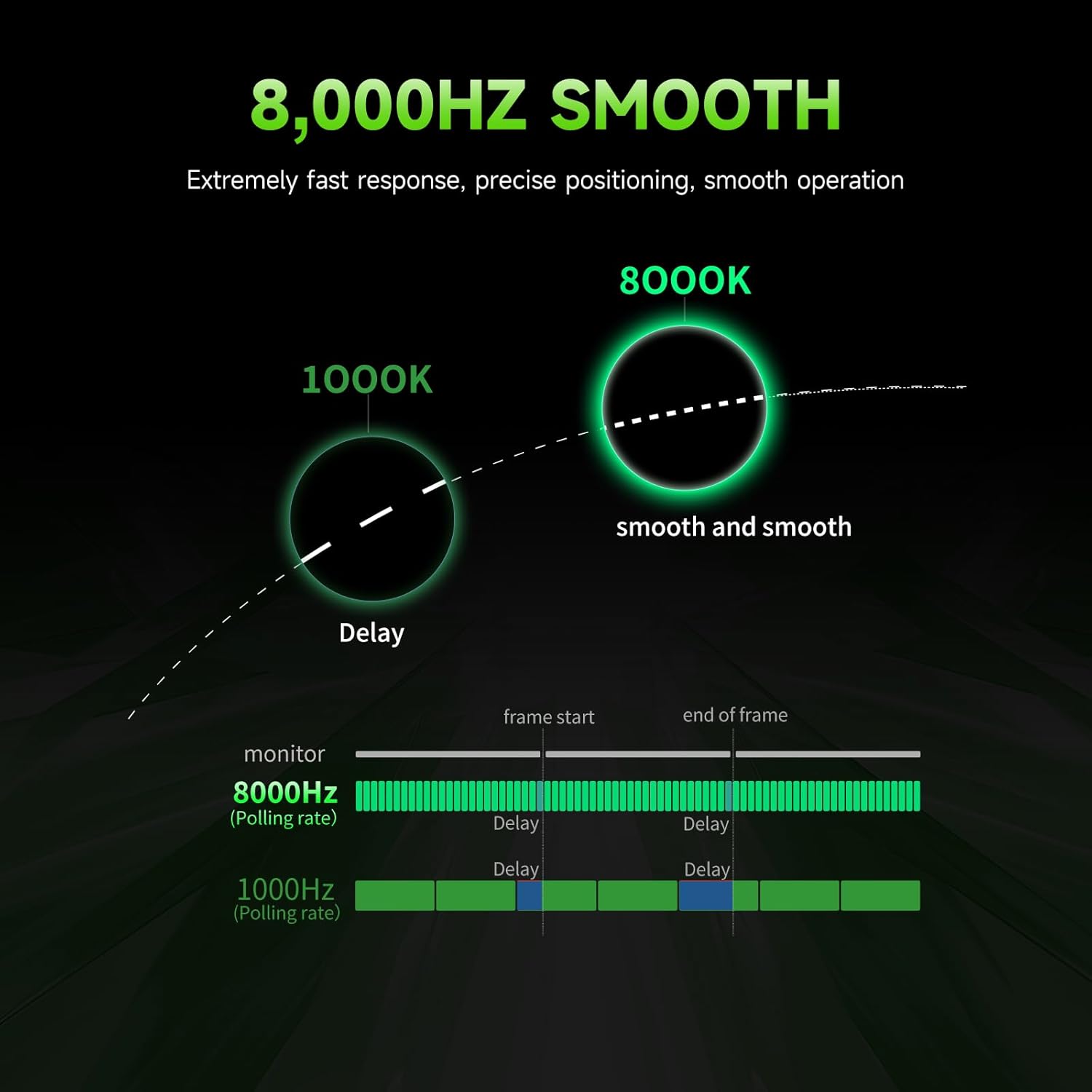

Image: A visual representation highlighting the reduced delay and smoother operation achieved with an 8,000Hz polling rate compared to 1,000Hz, demonstrating the mouse's high-speed wireless capability.

2.2. Правадное падключэнне

For a wired connection, simply connect the mouse to your computer using the provided Type-C charging cable. The mouse will function as a wired mouse and charge simultaneously.

Кіраванне мышшу

1. Ergonomics and Grip

The ES21PRO features a 47g ultra-lightweight design and a round corner design, making it suitable for various grip styles, including palm and claw grip, especially for medium and small hands.

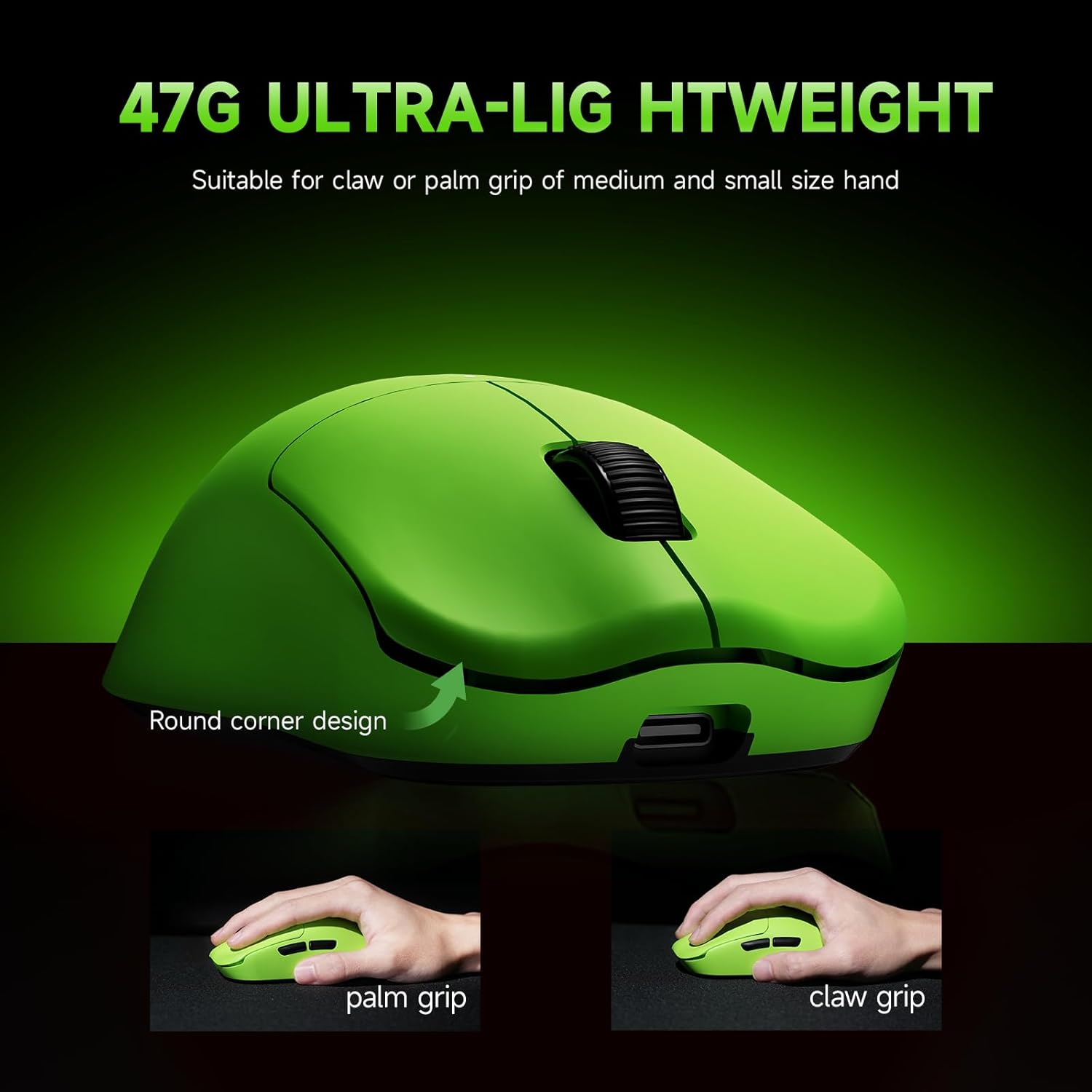

Image: The RAWM ES21PRO mouse highlighting its 47g ultra-lightweight design and ergonomic shape, with illustrations demonstrating both palm and claw grip styles for user comfort.

2. DPI Adjustment and Sensor

The PAW3950 optical sensor supports a wide DPI range from 50 to 30,000. You can adjust the DPI settings using the dedicated DPI button on the mouse or through the RAWM gaming software. This sensor also offers track-on-glass capability.

Image: The underside of the RAWM ES21PRO mouse, highlighting the PAW3950 optical sensor, which offers low power consumption and high CPI up to 30,000, even on clear glass.

Image: A screenshot of the RAWM gaming software interface, showing options for on-mouse DPI control, 1-DPI step adjustment, and separate X/Y DPI settings.

3. Узровень галасавання

The ES21PRO supports up to an 8K Hz polling rate with the included dongle, providing extremely fast response and precise positioning. The polling rate can be configured via the RAWM gaming software.

Image: The RAWM ES21PRO mouse and its dongle, emphasizing the Wireless 8000Hz capability for extremely fast response and smooth operation, with X-Polling feature for optimal polling rate settings.

4. Programmable Buttons and Software Features

The mouse features 6 programmable buttons. Utilize the RAWM gaming software (available via APP or web hub from the RAWM website) to customize button functions, macros, and other advanced settings.

• Mapping Type: Assign keys, macros, and functions. Up to 4 onboard configurations can be stored.
• Клавіша R-plus: Designate any key as an R-plus key to activate additional key mappings when pressed.
• Crazy Gaming+ Mode: Upgrade firmware and enable Gaming+ mode for over 20,000+ static frames per second, enhancing rifle accuracy and responsiveness in FPS games.
• Рэжым шкла: Allows the mouse to track on glass surfaces.
• Application-Specific Settings: Configure different DPI, polling rate, and angle tuning values for various games and applications.

Image: A graphic illustrating the "RAWM Gaming Firmware" and its capability to achieve over 20,000+ static frames per second in Competitive + Performance mode, enhancing racing speed and light-speed scanning.

Image: A screenshot of the RAWM gaming software, illustrating the "Mapping Type" section where users can customize keybinds, macros, and onboard configurations for the mouse's programmable buttons.

Image: A screenshot of the RAWM gaming software's advanced settings, showing options for Glass Mode, Gaming+ Mode, key delay, sleep time, LOD, and angle tuning.

Image: A screenshot of the RAWM gaming software, demonstrating the ability to set different DPI, polling rate, and angle tuning values for specific games and applications.

Тэхнічнае абслугоўванне

1. Уборка

• Gently wipe the mouse surface with a soft, dry, lint-free cloth.
• Для ўстойлівага бруду злёгку ачысціцеampпрамыйце тканіну вадой. Пазбягайце выкарыстання агрэсіўных хімічных рэчываў або абразіўных матэрыялаў.
• Clean the optical sensor area on the bottom of the mouse periodically to ensure accurate tracking.

2. PTFE Feet

The ES21PRO features large, double-layered, 100% virgin-grade PTFE feet for smooth gliding and durability. These feet are designed to be dustproof and long-lasting.

Image: The underside of the RAWM ES21PRO mouse, showcasing its large, double-layered PTFE feet designed for enhanced durability and smooth gliding across various surfaces.

Ліквідацыю непаладак

• Мышка не рэагуе:
  • Пераканайцеся, што мыш зараджана.
  • Check if the power switch on the bottom of the mouse is ON.
  • For wireless mode, ensure the 8K dongle is securely plugged into a USB port. Try a different USB port.
  • For wired mode, ensure the Type-C cable is securely connected to both the mouse and the computer.
  • Перазагрузіце кампутар.
• Затрымка або няўстойлівы рух:
  • Пераканайцеся, што датчык мышы чысты і без смецця.
  • Паспрабуйце выкарыстоўваць мыш на іншай паверхні.
  • Каб паменшыць бесправадныя перашкоды, перамясціце электронны ключ бліжэй да мышы або далей ад іншых бесправадных прылад.
  • Update the mouse firmware and software from the RAWM webсайт.
  • Check the polling rate settings in the RAWM software; a very high polling rate might cause issues on some systems.
• Buttons not working or double-clicking:
  • Ensure the RAWM gaming software is up to date.
  • Reset button mappings in the software to default and reconfigure if necessary.
  • The optical switches are designed to prevent double-clicking issues; if persistent, contact support.
• Акумулятар не зараджаецца:
  • Ensure the charging cable is not damaged and is properly connected.
  • Паспрабуйце іншы USB-порт або адаптар для разеткі.

Тэхнічныя характарыстыкі

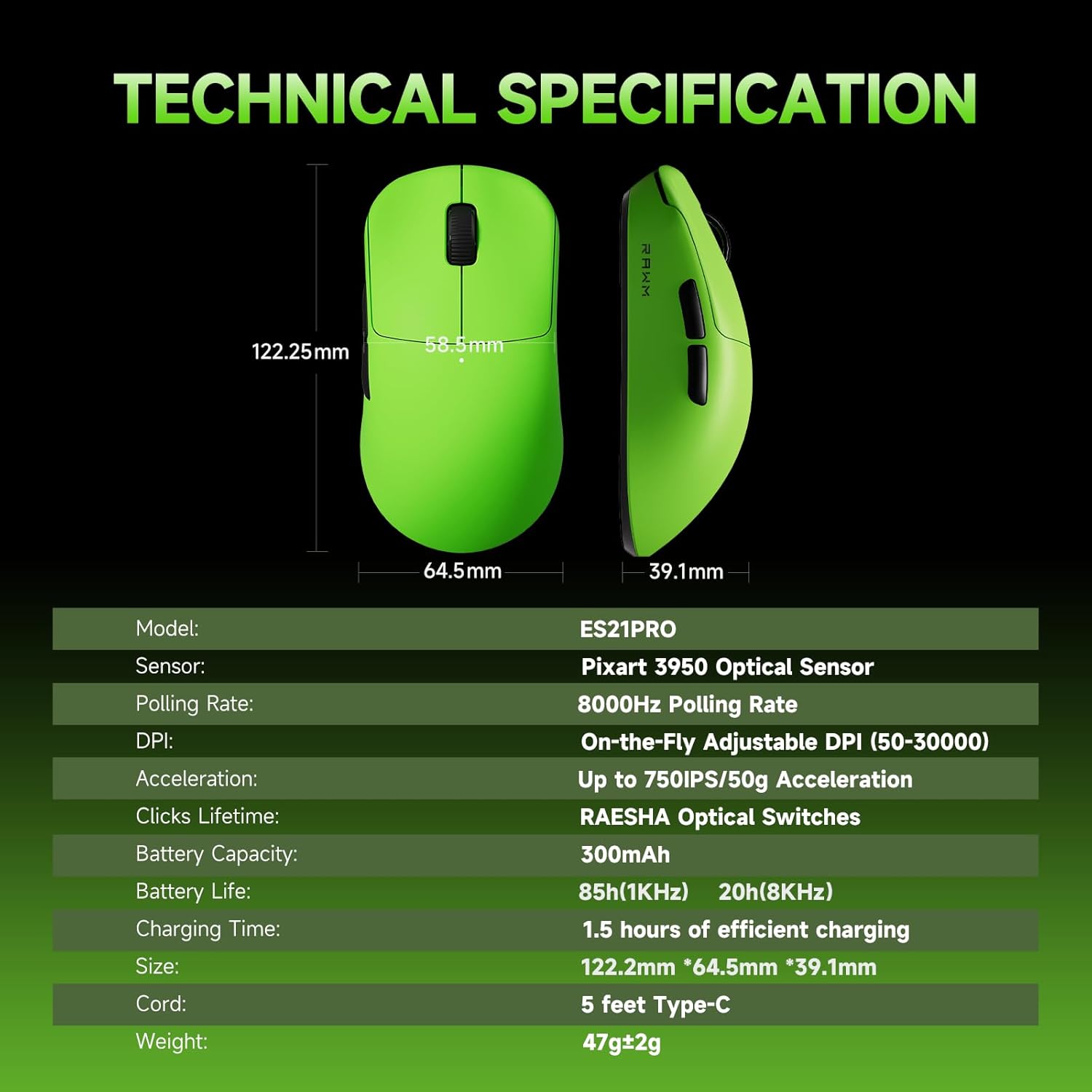

Image: A detailed table outlining the technical specifications of the RAWM ES21PRO gaming mouse, including model, sensor, polling rate, DPI, acceleration, switch type, battery, and dimensions.

Гарантыя і падтрымка

RAWM products are designed for durability and performance. For any technical assistance, warranty claims, or to download the latest software and firmware updates, please visit the official RAWM website. The software is continuously updated to enhance your experience.

Manufacturer: Shenzhen Renmo Electronic Technology Co., Ltd

Краіна паходжання: Кітай
