AJAZZ 308i Wireless Bluetooth Keyboard User Manual

Уводзіны

Дзякуй за пакупкуasing the AJAZZ 308i Wireless Bluetooth Keyboard. This manual provides detailed instructions on how to set up, operate, and maintain your keyboard. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

Прадукт скончаныview

The AJAZZ 308i is a compact 84-key wireless Bluetooth keyboard featuring a unique typewriter-inspired design with round keycaps. It offers multi-system compatibility and a comfortable typing experience.

Figure 1: AJAZZ 308i Wireless Bluetooth Keyboard (Gradient Green)

Асноўныя характарыстыкі:

• Typewriter-Inspired Design: Round keycaps provide a retro aesthetic and comfortable typing feel.
• Кампактная 84-клавішная раскладка: Lightweight and portable, measuring 32cm x 13.6cm x 3cm, making it easy to carry.
• Бесправадное злучэнне Bluetooth: Stable connection up to 10 meters, compatible with various devices.
• Сумяшчальнасць з некалькімі сістэмамі: Supports Windows, Mac OS, iOS, and Android operating systems.
• Разумнае энергазберажэнне: Automatically enters sleep mode after 15 minutes of inactivity to conserve battery.
• Ціхі ўвод: Soft chocolate keys ensure a smooth and silent typing experience.

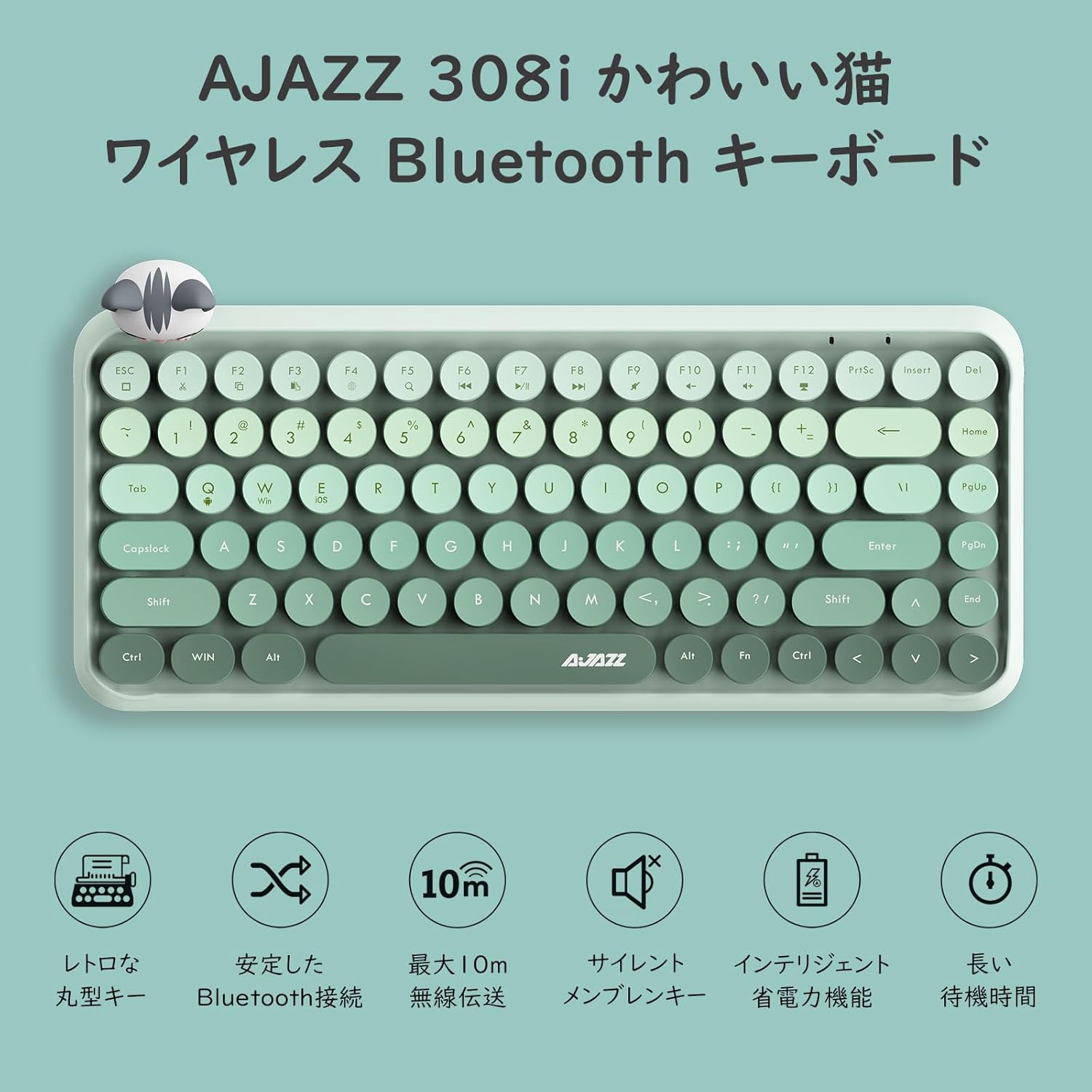

Малюнак 2: Закончанаview of AJAZZ 308i Keyboard Features

Налада: спалучэнне Bluetooth

Follow these steps to connect your AJAZZ 308i keyboard via Bluetooth:

1. Ensure your device's Bluetooth is turned ON.
2. Паварот ON the power switch on the keyboard.
3. Націсніце і ўтрымлівайце FN + C keys simultaneously on the keyboard. The keyboard will enter Bluetooth device search mode.
4. On your device (tablet, smartphone, computer), search for Bluetooth devices.
5. When "AJAZZ BLUETOOTH 5.0 KEYBOARD" appears in the list of available devices, tap or click on it to initiate pairing.
6. A code will be displayed on your device's screen. Type this code using the AJAZZ 308i keyboard and press УВОД.
7. The keyboard is now successfully connected to your device.

Figure 3: Multi-device compatibility and connection example

Інструкцыя па эксплуатацыі

Медыя-клавішы:

The keyboard includes dedicated media function keys, accessible by pressing the FN key in combination with the F-keys:

• FN+F1: Выразаць
• FN+F2: Копія
• FN+F3: Уставіць
• FN+F5: пошук
• FN+F6: Папярэдні трэк
• FN+F7: Прайграванне/Паўза
• FN+F8: Наступны трэк
• FN+F9: Адключыць гук
• FN+F10: Памяншэнне гучнасці
• FN+F11: Павялічыць гучнасць
• FN+F12: Замак

Note: On some devices like iPad, certain F-keys (e.g., F2, F3) might function directly without the FN key for copy/paste. Experimentation may be required depending on your operating system.

Рэжым энергазберажэння:

The AJAZZ 308i features a smart power-saving mechanism. If there is no key operation for more than 15 minutes, the keyboard will automatically enter sleep mode. To reactivate it, simply double-click any key.

Тэхнічнае абслугоўванне

Ўстаноўка і замена батарэі:

The keyboard is powered by two AAA alkaline batteries. To install or replace batteries:

1. Знайдзіце адсек для батарэек на ніжняй панэлі клавіятуры.
2. Адкрыйце крышку батарэйнага адсека.
3. Устаўце дзве новыя шчолачныя батарэйкі тыпу AAA, сачыце за правільнай палярнасцю (+/-).
4. Надзейна зачыніце крышку батарэйнага адсека.

With smart power-saving technology, two AAA alkaline batteries can last for several months under normal use. Avoid using rechargeable lithium batteries as their performance degradation can lead to keyboard malfunction.

Ліквідацыю непаладак

Key Layout Differences (English vs. Japanese Input):

The AJAZZ 308i keyboard has an English layout. When using Japanese input, some characters output may not match the characters printed on the keycaps. In such cases:

• Switch your device's input method to English and type according to the characters displayed on the keycaps.
• Alternatively, for Japanese input, refer to the standard Japanese keyboard layout for character mapping.

If you encounter any other issues or have questions, please refer to the warranty and support section for assistance.

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

The AJAZZ 308i Wireless Bluetooth Keyboard comes with a Гарантыя 12 месяцаў з дня пакупкі.

If you have any questions, concerns, or require technical assistance, please do not hesitate to contact our customer support. Contact details can typically be found on the product packaging or the retailer's webсайт, дзе вы зрабілі пакупку.
