Кіраўніцтва карыстальніка электрычнага самаката Evobike S6

1. Уводзіны

Thank you for choosing the Evobike S6 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new scooter. Please read it thoroughly before your first ride to ensure optimal performance and safety.

The Evobike S6 is designed for adults seeking a fast, practical, and exciting mode of transportation. With a powerful 1200W motor, it offers agile and fluid riding for urban commutes and leisure.

2. Інфармацыя па бяспецы

Ваша бяспека — найважнейшая. Заўсёды прытрымлівайцеся наступных рэкамендацый:

• Заўсёды апранайце шлем і адпаведнае ахоўнае рыштунак (накаленнікі, налакотнікі, пальчаткі) падчас язды.
• Азнаёмцеся з мясцовымі правіламі дарожнага руху і правіламі адносна электраскутараў.
• Не катайцеся пад уздзеяннем алкаголю або наркотыкаў.
• Ensure the scooter is in good working condition before each ride. Check brakes, tires, and battery level.
• The maximum weight capacity for the Evobike S6 is 150 кг (330 фунтаў)Не перавышайце гэтую мяжу.
• Avoid riding in heavy rain, snow, or icy conditions. The scooter is not waterproof.
• Трымайце бяспечную дыстанцыю ад іншых транспартных сродкаў і пешаходаў.
• Не рабіце трукаў або неабдуманых манеўраў.
• Трымайце пальцы і вопратку далей ад рухомых частак.

3. Прадукт скончыўсяview

The Evobike S6 features a robust design with key components for performance and convenience.

Малюнак 3.1: бок view of the Evobike S6 Electric Scooter, showcasing its overall design, seat, and rear storage box.

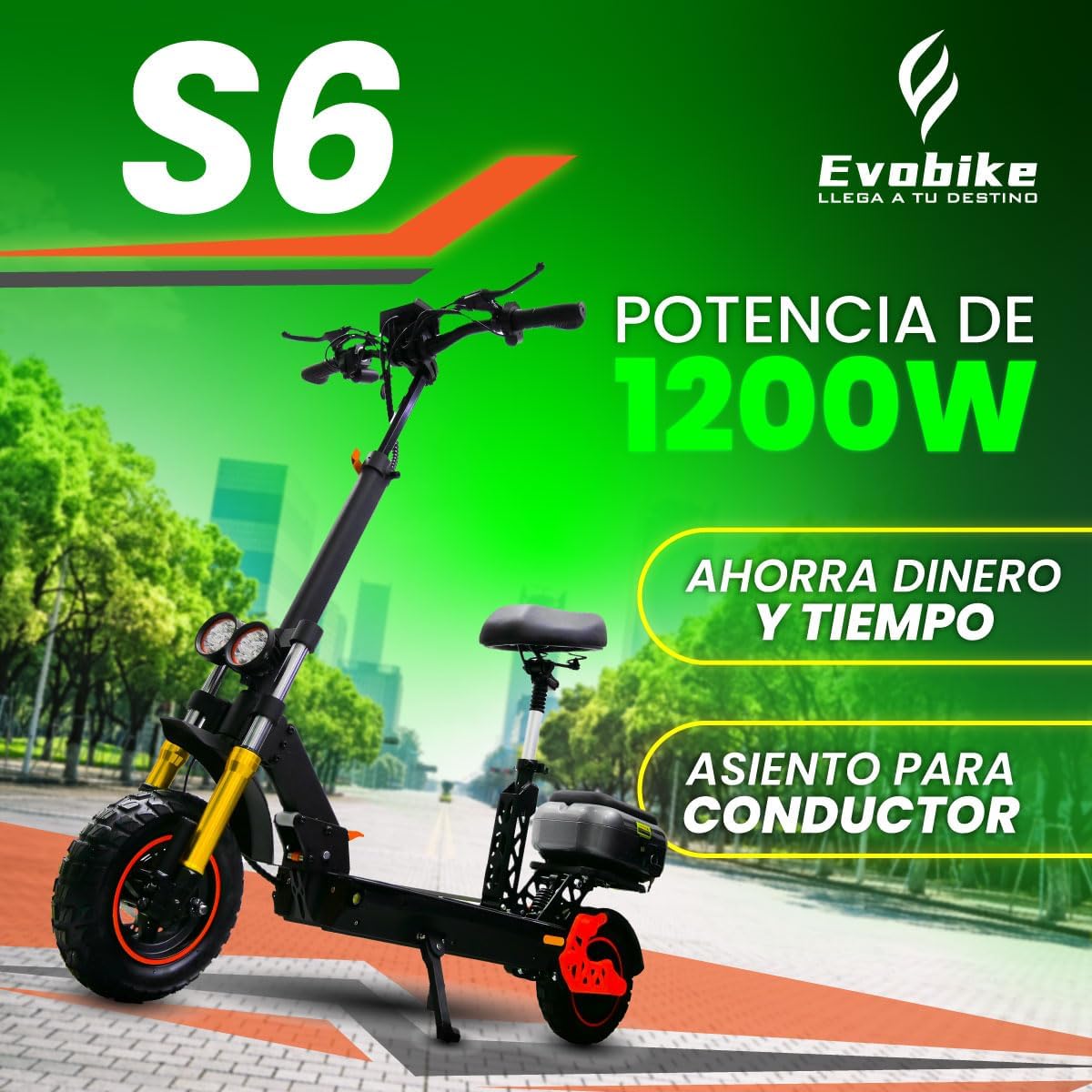

Figure 3.2: The Evobike S6 highlighting its 1200W motor power and the convenience of a rider's seat. This scooter is designed to save time and money on commutes.

Малюнак 3.3: Буйны план view of the Evobike S6's front and rear disc brakes, along with icons indicating battery (48V/20.8Ah), speed (up to 70 km/hr), and autonomy (45-55 KM).

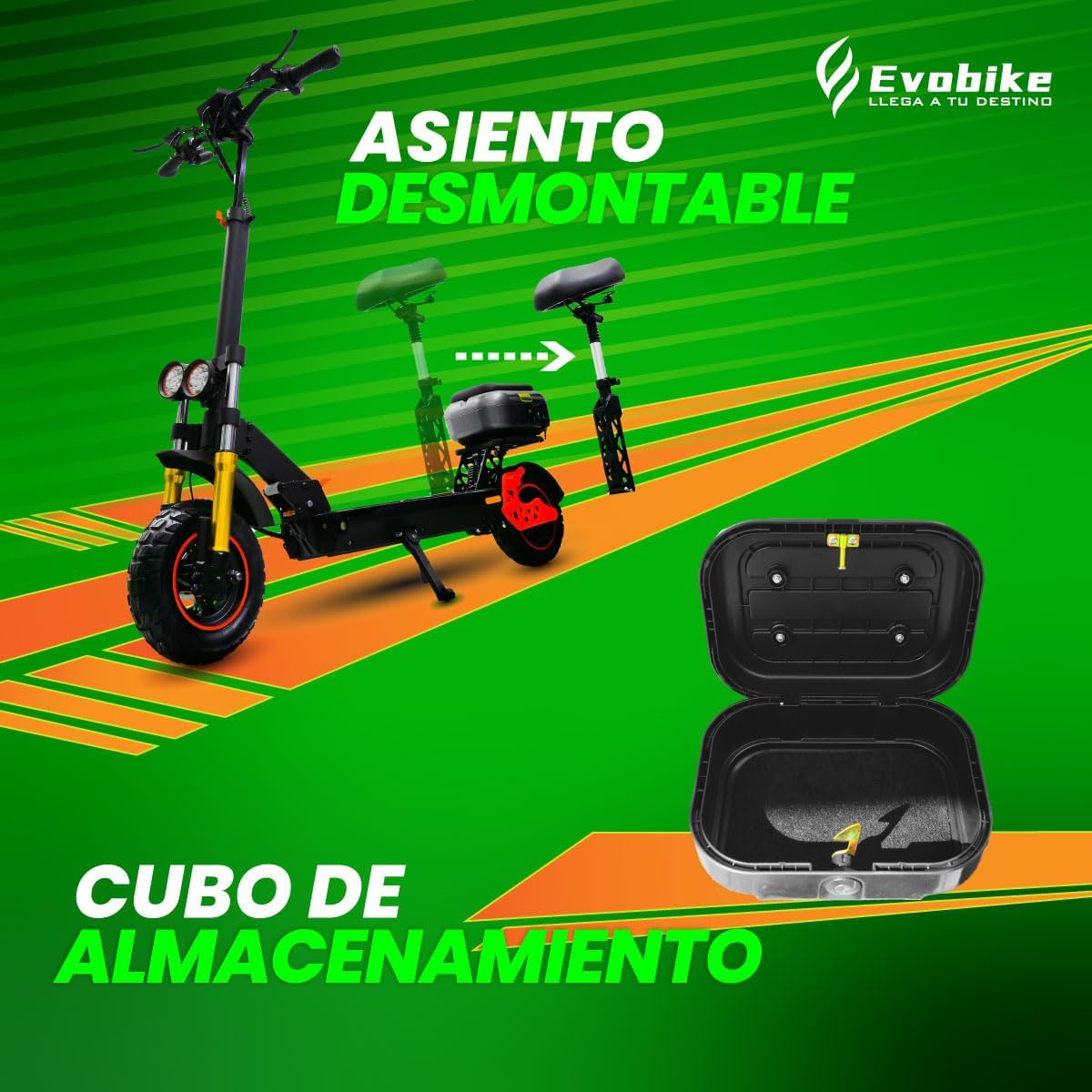

Figure 3.4: The Evobike S6 featuring its removable seat and the integrated storage box, providing practical solutions for carrying essentials.

4. Усталёўка і пачатковая падрыхтоўка

Before your first ride, follow these steps to prepare your Evobike S6 scooter:

1. Распакоўка: Carefully remove the scooter and all accessories from the packaging. Retain packaging for future transport or storage.
2. зборка:
   • Ўстаноўка руля: Attach the handlebar to the stem, ensuring all screws are tightened securely.
   • Seat and Storage Box: If not pre-installed, attach the seat and the rear storage box. Ensure they are firmly secured. The seat is designed to be removable for convenience.
3. Першапачатковая плата: Перад першым выкарыстаннем цалкам зарадзіце акумулятар.
   • Locate the charging port, usually near the battery compartment.
   • Connect the charger to the scooter and then to a power outlet.
   • The charging indicator on the charger will change (e.g., red to green) when fully charged.
   • Charging time is approximately 5-8 гадзін.
4. Праверка ціску ў шынах: Ensure tires are inflated to the recommended pressure (refer to tire sidewall for details).
5. Праверка тармазоў: Test both front and rear disc brakes to ensure they are functioning correctly and provide adequate stopping power.

5. Інструкцыя па эксплуатацыі

Learn how to operate your Evobike S6 for a smooth and enjoyable ride.

5.1 Уключэнне/выключэнне

• Каб уключыць: Press and hold the power button on the handlebar control panel for a few seconds until the LED display illuminates.
• Каб выключыць: Зноў націсніце і ўтрымлівайце кнопку харчавання, пакуль дысплей не выключыцца.

5.2 LED Display and Controls

Figure 5.1: The intuitive LED display of the Evobike S6, providing real-time information such as speedometer, kilometers traveled, light control, and turn signal indicators.

The LED display provides crucial information:

• спідометр: Паказвае бягучую хуткасць.
• Узровень батарэі: Паказвае рэшту зарада батарэі.
• Mode/Speed Gear: Allows switching between 3 speed modes for different riding conditions.
• Odometer/Trip Meter: Displays total distance traveled or current trip distance.
• Кіраванне святлом: Button to turn on/off the front LED lights and rear lights.
• Паваротнікі: Controls for left and right turn indicators.

5.3 Язда на скутэры

1. Пастаўце адну нагу трывала на падлогу і адштурхніцеся другой нагой, каб набраць пачатковы імпульс.
2. Gently press the throttle lever to engage the motor. Increase throttle gradually for smooth acceleration.
3. Use the handlebar to steer. Lean slightly into turns.
4. To brake, gently squeeze the brake levers on the handlebars. The S6 is equipped with front and rear disc brakes for reliable stopping power.
5. Utilize the LED lights for visibility during low-light conditions and turn signals for indicating direction.

5.4 Механізм складання

Figure 5.2: Illustration demonstrating the foldable design of the Evobike S6, making it easy to store and transport. Also shows icons for load capacity (120 kg), weight (37 kg), and charging time (5-8 hours).

The Evobike S6 features a convenient folding design for easy storage and transport:

1. Пераканайцеся, што скутэр адключаны.
2. Locate the folding latch or lever near the base of the handlebar stem.
3. Follow the specific instructions in your quick start guide (if provided) to release the locking mechanism.
4. Carefully fold the handlebar stem down towards the deck until it locks into place.
5. To unfold, reverse the process, ensuring the stem is securely locked in the upright position before riding.

6. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and safe operation of your Evobike S6.

• Уборка: Працярыце самакат рэкламайamp тканінай. Не выкарыстоўвайце струмені вады пад высокім ціскам і не апускайце самакат у ваду.
• Сыход за батарэяй:
  • Рэгулярна зараджайце акумулятар, нават калі ён не выкарыстоўваецца, каб падтрымліваць яго ў працоўным стане.
  • Пазбягайце поўнага разраду батарэі.
  • Захоўвайце самакат у прахалодным, сухім месцы, калі ён не выкарыстоўваецца, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.
• шыны: Regularly check tire pressure and for any signs of wear or punctures. Replace worn tires promptly.
• тармазы: Inspect brake pads and discs for wear. Adjust brake tension as needed to ensure effective stopping. If you notice reduced braking performance, have them serviced by a qualified technician.
• Зашпількі: Перыядычна правярайце ўсе шрубы, балты і крапежныя элементы, каб пераканацца ў іх надзейнасці.
• Падвеска: The S6 features dual suspension. Keep suspension components clean and free of debris.

7. Выпраўленне непаладак

Вось некаторыя распаўсюджаныя праблемы і іх магчымыя рашэнні:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Evobike customer support.

8. Тэхнічныя характарыстыкі

Detailed technical specifications for the Evobike S6 Electric Scooter:

9. Гарантыя і падтрымка

For warranty information, returns, or technical support, please refer to your purchase documentation or contact Evobike customer service directly. Keep your proof of purchase for any warranty claims.

For general inquiries or to view the return policy, you may visit the Evobike store on Amazon: Evobike Amazon Store.
