ACHTFACH SC-05 Steam Mop Instruction Manual

Уводзіны

This manual provides essential instructions for the safe and effective use of your ACHTFACH SC-05 Steam Mop. Please read all instructions carefully before operating the appliance and retain this manual for future reference. The ACHTFACH SC-05 Steam Mop is designed for deep cleaning and sanitizing various sealed surfaces using high-temperature steam, eliminating the need for harsh chemicals.

Інфармацыя па бяспецы

• Always ensure the appliance is unplugged before filling or emptying the water tank, or when changing accessories.
• Do not direct steam at people, pets, or electrical appliances. Steam is extremely hot and can cause burns.
• Use only clean tap water or distilled water in the water tank. Do not add cleaning solutions, perfumes, or other chemicals to the water tank, as this can damage the appliance and void the warranty.
• Захоўвайце прыбор у месцах, недаступных дзецям і хатнім жывёлам.
• Do not operate the steam mop on unsealed hardwood floors or surfaces that are sensitive to heat or moisture. Test on an inconspicuous area first.
• Ensure the mop pad is securely attached before use.

Змест пакета

• Main Steam Unit
• Mop Head Base
• Extension Handle Sections (3)
• Microfiber Mop Pads (2)
• Дыван -планёр
• Маленькая круглая пэндзаль
• Вялікая круглая пэндзаль
• Інструмент падвойнай пэндзля
• Ачыстка вокнаў
• Інструмент для скрабка
• Кутняя насадка
• Параход Jet

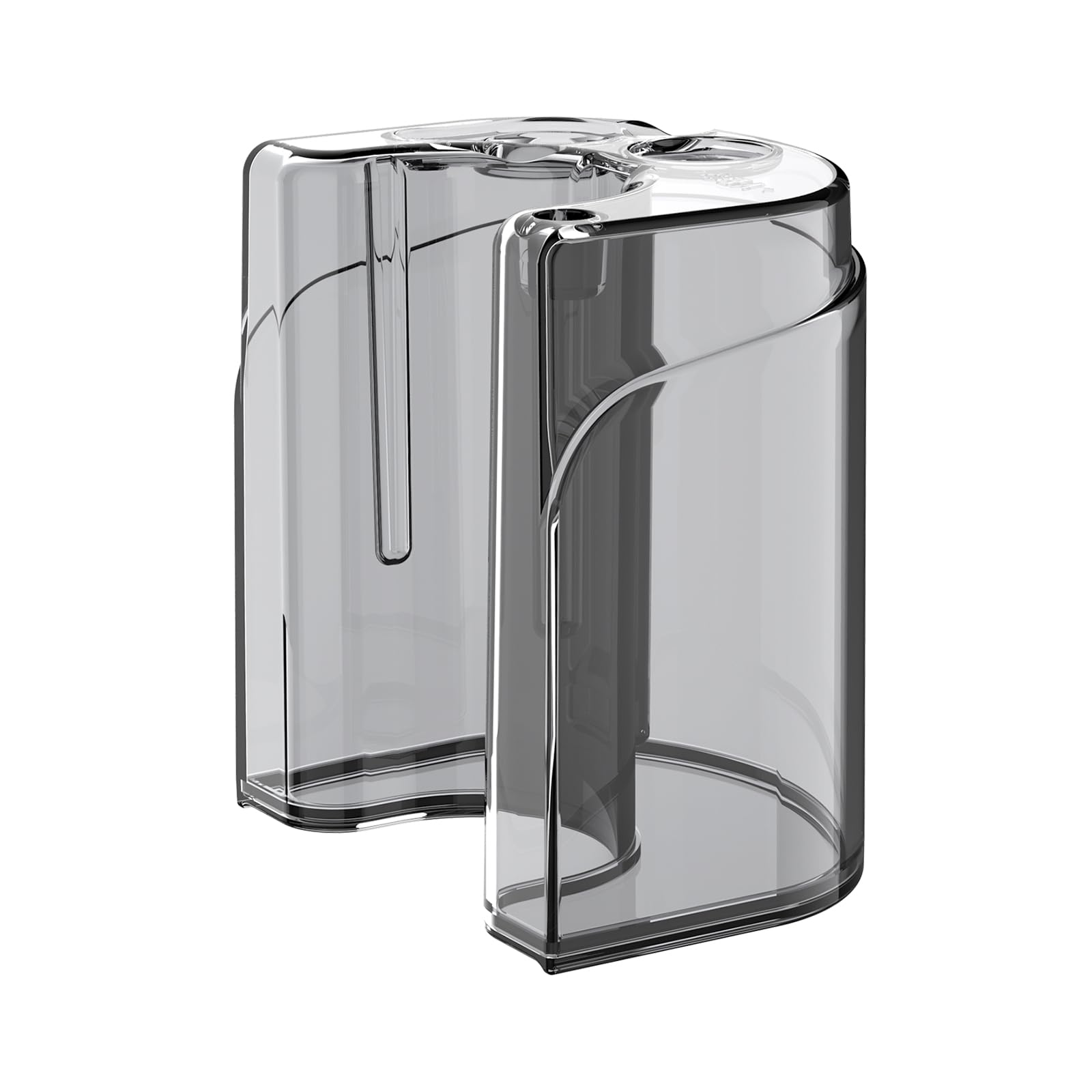

• Water Tank (400ML capacity)
• Сеткавы шнур (23 футаў)

Ўстаноўка і зборка

1. Прымацуйце падкладку для швабры: Securely attach a microfiber mop pad to the mop head base. The pads are designed to stick easily.
2. Зборка ручкі: Connect the extension handle sections by clicking them together. Then, attach the assembled handle to the main steam unit.
3. Connect Mop Head: Attach the mop head base to the bottom of the main steam unit. Ensure it clicks into place for a secure connection.
4. Запоўніце бак для вады: Press the unlock button on the water tank to remove it from the main unit. Open the cap, fill the tank with clean water, and securely close the cap. Reinsert the water tank into the main unit until it locks into place.

Інструкцыя па эксплуатацыі

1. Уключэнне: Plug the power cord into a suitable electrical outlet. Press the power button on the main unit. The preheating indicator light will illuminate.
2. Выберыце рэжым пара: Once preheated (approximately 15 seconds), select your desired steam mode (Small Steam or Large Steam) using the controls on the unit.
3. Пачаць уборку: Guide the steam mop across the surface to be cleaned. The rotatable brush head allows for easy access to tight corners and under furniture.
4. Чыстка дываноў: For carpets, attach the Carpet Glider over the mop head to allow the steam mop to glide smoothly, refreshing and cleaning carpeted surfaces.
5. Ручнае выкарыстанне: The main steam unit can be detached from the extension handle for handheld cleaning. Attach the appropriate accessory for the task.

Выкарыстанне ўкладанняў

The ACHTFACH SC-05 Steam Mop comes with a variety of interchangeable attachments for specialized cleaning tasks:

• Вуглавая насадка: Ideal for reaching tight spaces, corners, and around faucets.
• Small/Large Round Brushes: For scrubbing stubborn dirt and grime on various surfaces like grout lines, sinks, and stovetops.
• Double Brush Tool: Provides broader scrubbing action for larger areas.
• Window Cleaning Tool: Для мыцця вокнаў, люстэркаў і шкляных дзвярэй душавых кабін без разводаў.
• Scrape Tool: Helps remove baked-on messes or tough residues.
• Steamer Jet: Delivers concentrated steam for targeted cleaning.

Image: The ACHTFACH Steam Mop disassembled, showing the main unit, handle, mop head, and various cleaning attachments.

Тэхнічнае абслугоўванне

• Губкі для швабры: The microfiber mop pads are machine washable. Remove them from the mop head after use and wash with similar colors. Do not use bleach or fabric softeners.
• Апаражненне рэзервуара для вады: After each use, unplug the appliance and allow it to cool. Remove the water tank and empty any remaining water.
• захоўванне: Store the steam mop in a cool, dry place. The modular design allows for compact storage by disassembling the handle sections.

Ліквідацыю непаладак

• Без Steam: Ensure the water tank is filled and properly inserted. Check if the power cord is securely plugged in and the power button is activated. Allow adequate preheating time.
• Нізкі выхад пары: The water tank may be low, or the steam nozzle might be partially blocked. Clean the nozzle if necessary.
• Уцечка вады: Ensure all connections are secure and the water tank cap is tightly closed. Do not overfill the water tank.

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ACHTFACH webсайт. Захоўвайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.
