THIKPO TK063 Digital Brake Fluid Tester User Manual

1. Уводзіны

The THIKPO TK063 Digital Brake Fluid Tester is a high-sensitivity device designed for accurately measuring the moisture content in various types of brake fluid. This manual provides essential information for the safe and effective use of your tester, including setup, operation, maintenance, and troubleshooting.

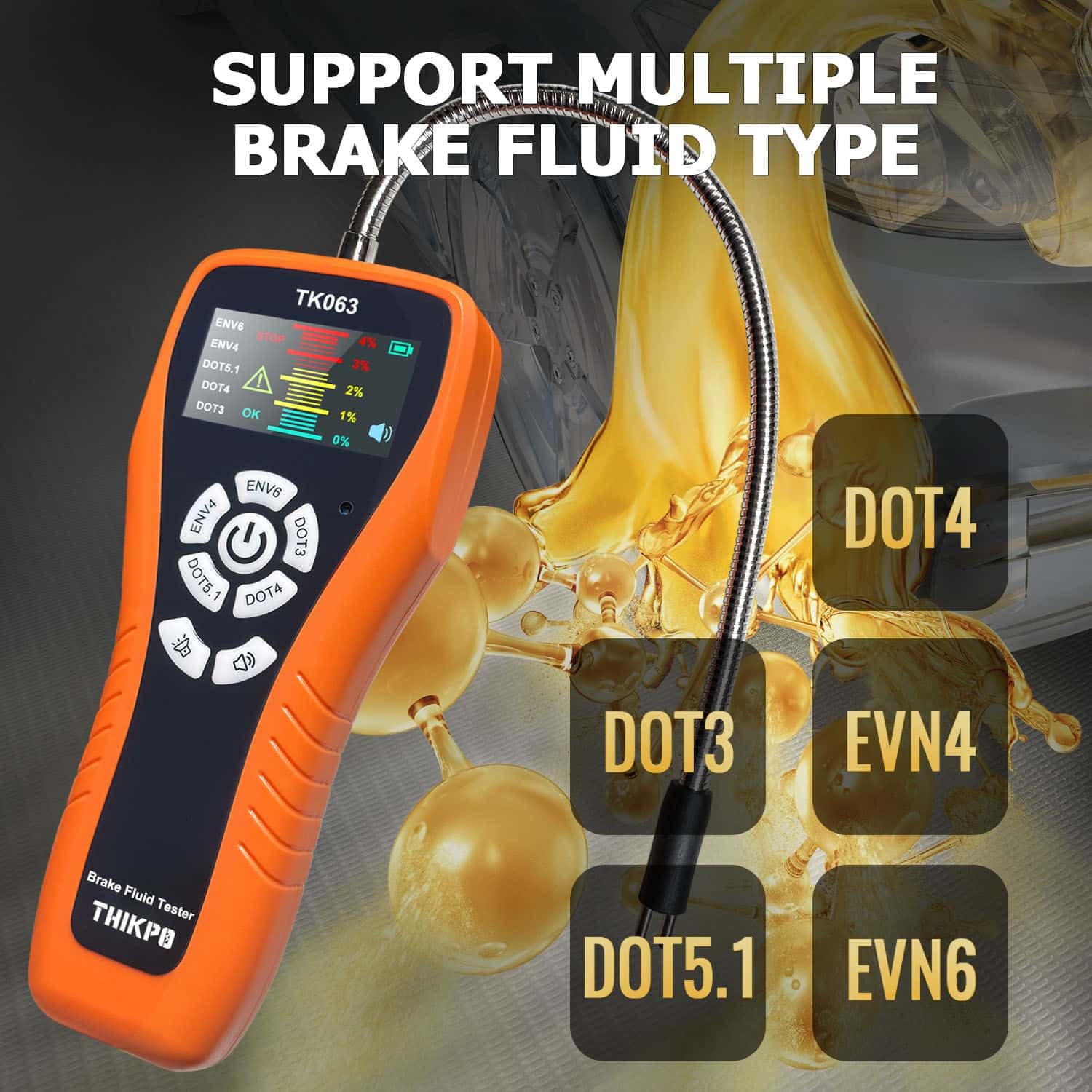

The TK063 is compatible with DOT3, DOT4, DOT5.1, EVN4, and EVN6 brake fluid types.

2. Інфармацыя па бяспецы

Please read all safety warnings and instructions carefully before using this product. Failure to follow these instructions may result in injury or damage to the device.

• Always wear appropriate personal protective equipment, such as gloves and eye protection, when handling brake fluid.
• Brake fluid is corrosive. Avoid contact with skin, eyes, and painted surfaces. In case of contact, rinse immediately with plenty of water.
• Keep the device and brake fluid out of reach of children and pets.
• Do not immerse the main body of the tester in any liquid. Only the flexible probe is designed for immersion.
• Ensure the probe is clean and dry before and after each use to prevent contamination and ensure accurate readings.
• Dispose of used brake fluid and contaminated cleaning materials according to local environmental regulations.

3. Прадукт скончыўсяview і кампаненты

The THIKPO TK063 Digital Brake Fluid Tester is designed for ease of use and accurate results. Familiarize yourself with its components:

• Асноўны блок: Houses the LCD display, control buttons, and battery compartment.

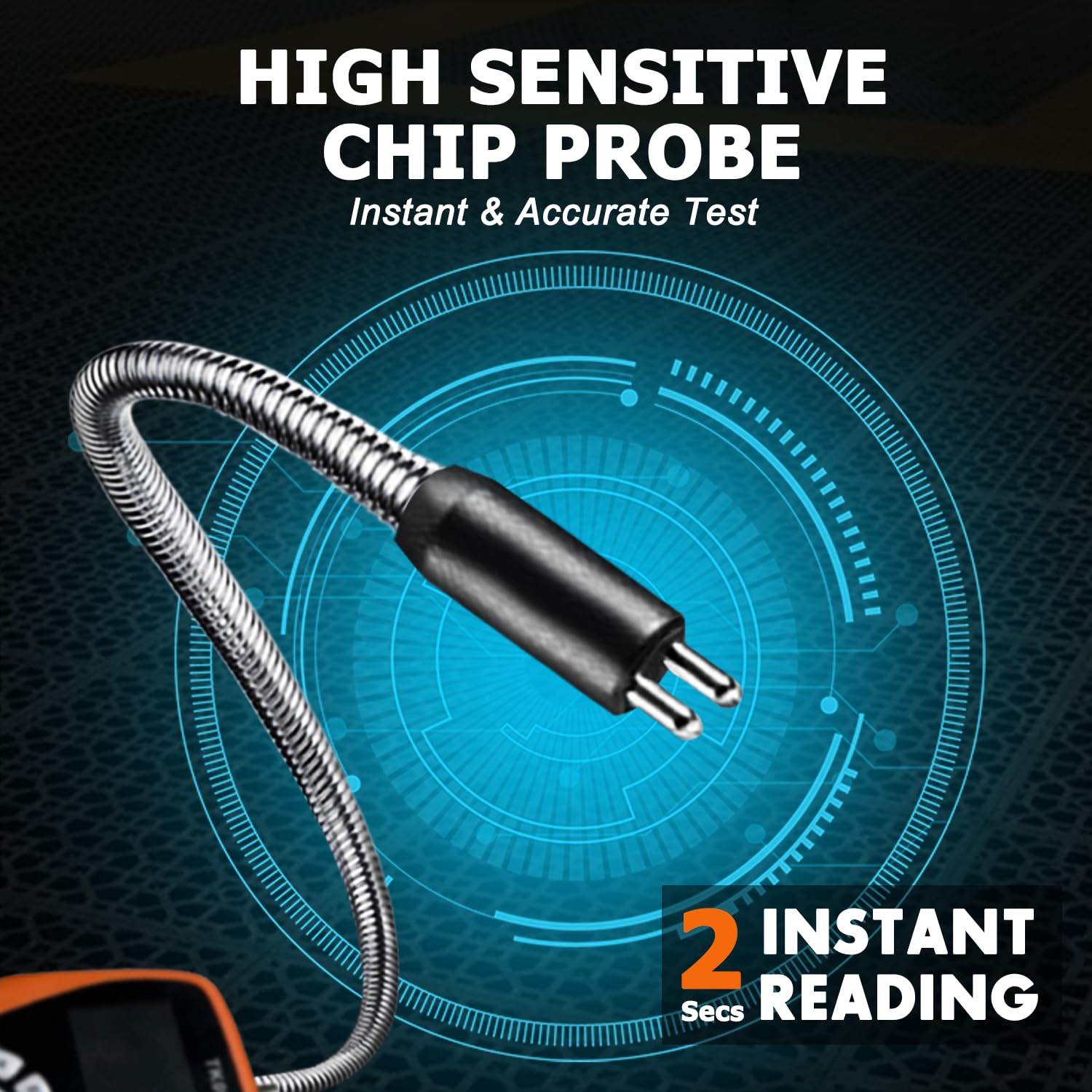

• Flexible Probe: A 10.35-inch (26.3 cm) corrosion-resistant zinc alloy probe for accessing brake fluid reservoirs.
• ВК-дысплей: Provides clear readings, fluid type selection, and moisture content levels with color-coded alerts.
• Кнопкі кіравання: For power, fluid type selection, backlight adjustment, and buzzer control.
• Calibration Port: For manual fine-tuning of the sensor.

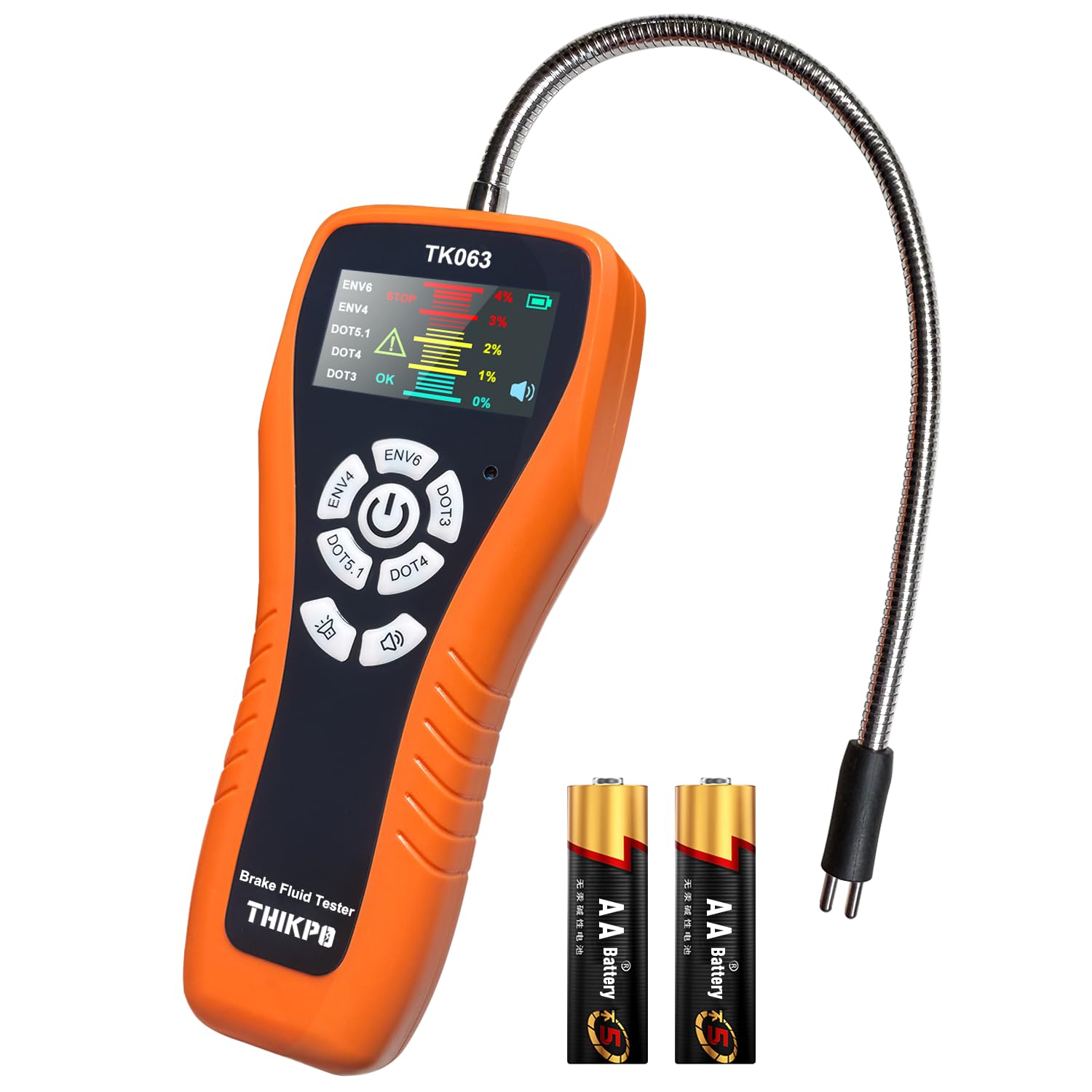

Што ў скрынцы:

• 1 x Brake Fluid Tester Main Unit
• 1 х Кіраўніцтва карыстальніка (гэты дакумент)
• 2 x AA High-quality batteries

4. Настройка

4.1 Устаноўка батарэі

1. Знайдзіце батарэйны адсек на задняй частцы асноўнага блока.
2. Адкрыйце крышку батарэйнага адсека.
3. Устаўце дзве батарэйкі тыпу АА, сачыце за правільнай палярнасцю (+/-).
4. Надзейна зачыніце крышку батарэйнага адсека.

4.2 Першапачатковае ўключэнне

Press and hold the power button (usually the central button with a power symbol) to turn on the device. The LCD display will illuminate.

5. Інструкцыя па эксплуатацыі

5.1 Уключэнне/выключэнне сілкавання

• Каб уключыць: Press and hold the central power button.
• Каб выключыць: Press and hold the central power button again. The device also features an auto-shutoff function after 5 minutes of inactivity to conserve battery life.

5.2 Fluid Type Selection

Before testing, select the correct brake fluid type:

1. With the device powered on, press the dedicated buttons for DOT3, DOT4, DOT5.1, EVN4, or EVN6 to cycle through the fluid types.
2. Ensure the selected fluid type on the display matches the brake fluid you are testing.

5.3 Працэдура тэсціравання

1. Prepare the Probe: Ensure the flexible probe is clean and dry.

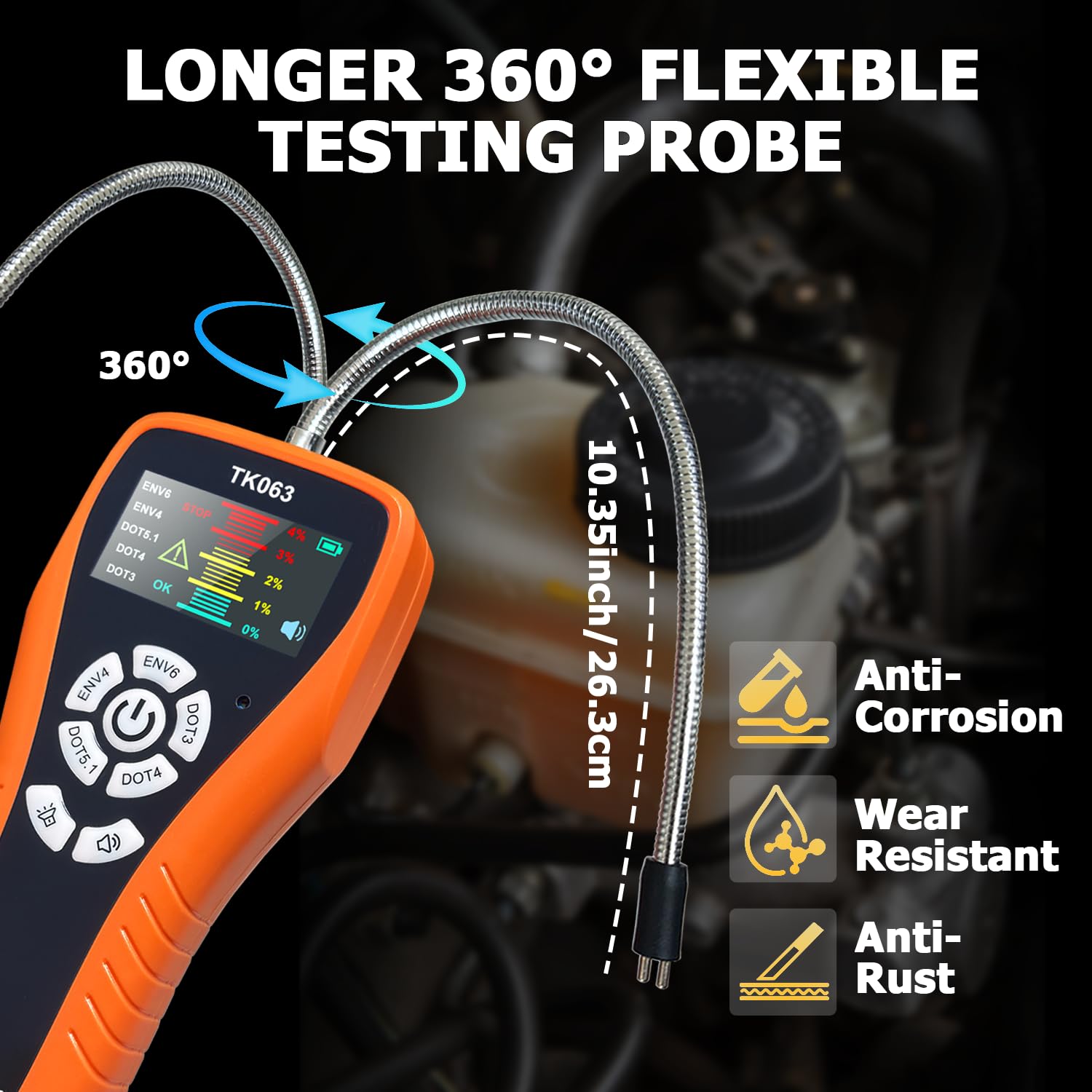

2. Immerse the Probe: Carefully immerse the metal tip of the flexible probe into the brake fluid reservoir. Ensure the probe tip is fully submerged in the fluid. The 10.35-inch flexible gooseneck hose allows easy access to narrow spaces.
3. Вынікі чытання: The LCD display will show the moisture content percentage within seconds.
4. Інтэрпрэтацыя чытанняў: The display uses color-coded alerts for easy interpretation:
   • Зялёны (0%): Indicates good brake fluid quality.
   • Yellow (1-2%): Indicates brake fluid should be replaced soon.
   • Red (3-4%): Indicates brake fluid needs immediate replacement.
5. гукавы сігнал: The device features a switchable buzzer alarm that activates for high moisture content (Red alert). Press the buzzer button to toggle it on or off.
6. Ачыстка пасля выкарыстання: After each test, thoroughly clean the probe with a clean cloth to remove any brake fluid residue. Rinse with water if necessary, then dry completely.

5.4 Ручная каліброўка

The TK063 features a precision calibration port for maintaining laboratory-level accuracy over its lifespan. This compensates for potential sensor drift.

1. Locate the calibration port on the device (refer to the product diagram if available).
2. Using a standard screwdriver, carefully adjust the calibration screw as needed. Refer to the specific calibration procedure in the full manufacturer's guide for detailed steps, typically involving testing with known fluid sampлес.

5.5 Функцыя ўтрымання дадзеных

Press the 'Hold' button (if available, typically indicated by a 'H' or similar icon) to freeze the current reading on the display. Press it again to release.

5.6 Рэгуляваная падсветка

The LCD display backlight can be adjusted for optimal visibility in various lighting conditions. Press the backlight button (typically indicated by a sun icon) to cycle through brightness levels.

5.7 Дэманстрацыйнае відэа прадукту

6. Тэхнічнае абслугоўванне

6.1 Ачыстка зонда

After each use, wipe the flexible probe thoroughly with a clean, lint-free cloth to remove any brake fluid residue. If necessary, rinse the probe tip with clean water and ensure it is completely dry before storage or next use. Do not use harsh chemicals or abrasive materials.

6.2 Замена батарэі

When the battery level indicator on the LCD display shows low power, replace the two AA batteries as described in Section 4.1. Remove batteries if the device will not be used for an extended period to prevent leakage.

6.3 Захоўванне

Store the THIKPO TK063 in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case to prevent damage.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

• мадэль: TK063
• Compatible Fluid Types: DOT3, DOT4, DOT5.1, EVN4, EVN6
• Даўжыня зонда: 10.35 цаляў (26.3 см)
• Матэрыял зонда: Corrosion-resistant zinc alloy
• Дакладнасць: 0.1%
• Дысплей: Colorful LCD with visual and audio alerts
• Крыніца харчавання: 2 х батарэек АА
• Аўтаматычнае адключэнне: Пасля 5 хвілін бяздзейнасці
• Вага прадмета: Прыкладна 8.8 унцый (249 грамаў)
• Памеры ўпакоўкі: 9.92 х 4.84 х 1.61 цалі (25.2 х 12.3 х 4.1 см)

9. Гарантыя і падтрымка

For detailed warranty information, please refer to the documentation provided with your purchase or visit the official THIKPO website. If you encounter any issues or require technical assistance, please contact THIKPO customer support through their official channels.
