ASAHOM S1080 Waterproof Control Box User Manual

Уводзіны

This manual provides essential instructions for the installation, operation, and maintenance of your ASAHOM S1080 Waterproof Control Box. This control box is designed exclusively for use with ASAHOM S1080 Series RGBCW Permanent Outdoor Lights PRO. Please read this manual thoroughly before use to ensure proper functionality and safety.

Змест пакета

Праверце, ці ўсе пералічаныя ніжэй прадметы ўваходзяць у вашу ўпакоўку:

• 1 x ASAHOM S1080 Waterproof Control Box with Dual Output and WLED

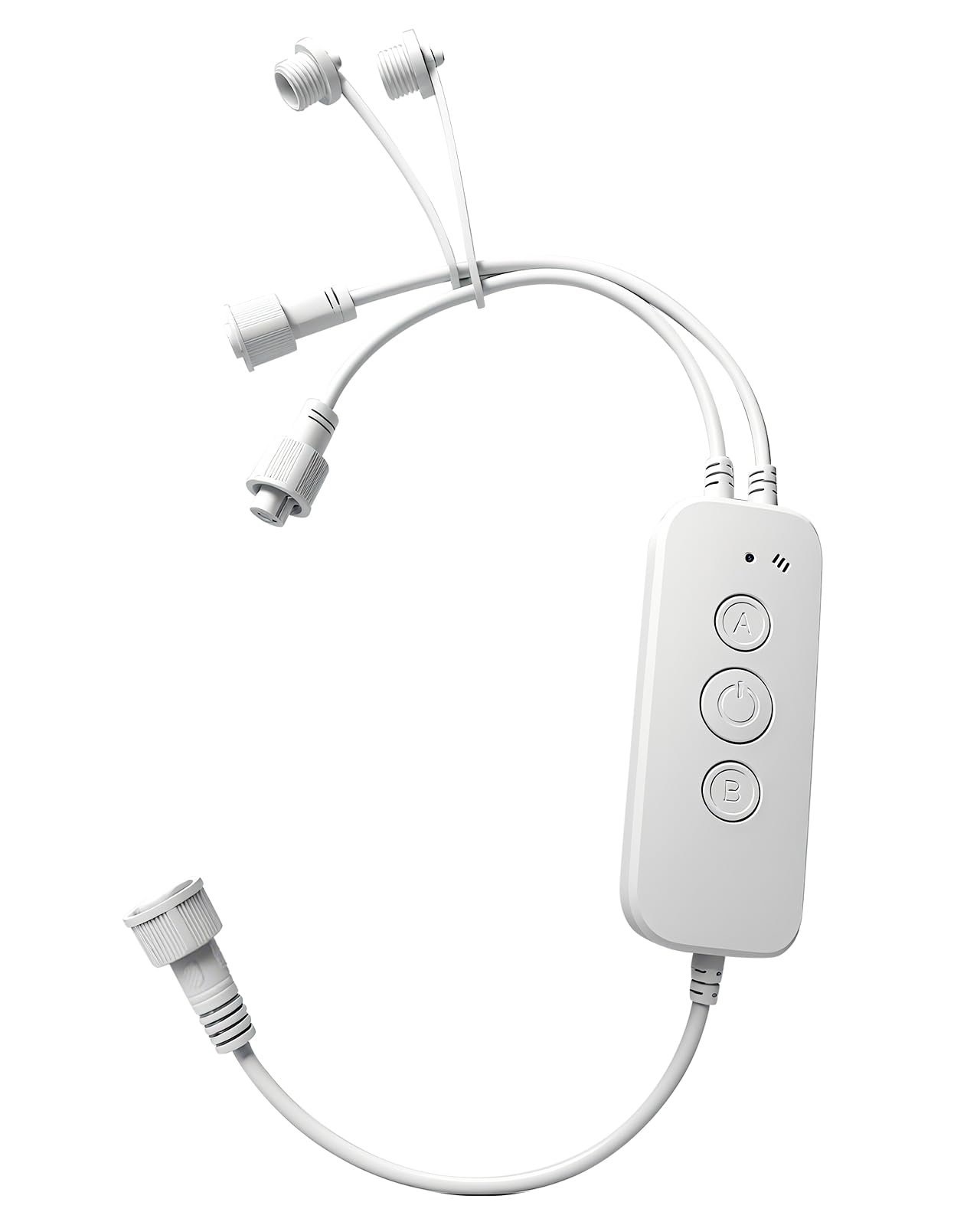

Image: The ASAHOM S1080 Waterproof Control Box, showing its compact design and white casing.

Настройка

The ASAHOM S1080 Control Box is designed for straightforward integration with your ASAHOM S1080 Series RGBCW Permanent Outdoor Lights PRO. Ensure the power supply is disconnected before making any connections.

1. Злучыце гірлянды святла: The control box features dual output ports. Connect your ASAHOM S1080 light strings to either or both output ports as required by your installation layout.
2. Secure Unused Ports: If only one output port is utilized, ensure the waterproof cap on the unused port is securely tightened. This is crucial for maintaining the waterproof integrity of the control box.
3. Размяшчэнне мікрафона: During installation, position the control box so that the microphone opening is not obstructed. This ensures optimal sound pickup for the Audio Reactive feature.
4. Падключэнне сілкавання: Once all light strings are securely connected and unused ports are capped, connect the control box to the compatible ASAHOM S1080 power supply.

Image: The ASAHOM S1080 Control Box illustrating its dual output ports for connecting light strings.

Інструкцыя па эксплуатацыі

Функцыі кнопак

The control box features three physical buttons for direct control:

• Кнопка ON/OFF:
  • Каротка націсніце, каб уключыць або выключыць святло.
  • Націсніце і ўтрымлівайце больш за 5 секунд, каб аднавіць заводскія налады.
• Кнопка: Single press to change the color of the lights.
• Кнопка B: Single press to switch between different lighting modes.

Двайны выхад

The control box supports connecting light strings to either or both output ports. This flexibility allows for various installation configurations. Always ensure any unused output port has its waterproof cap securely tightened to prevent water ingress.

Мікрафон

The integrated microphone enables the Audio Reactive feature, allowing the lights to respond to sound. For optimal performance, ensure the microphone opening is unobstructed and the sound source is positioned as close as possible to the microphone when this feature is active.

Светлавы індыкатар

The indicator light provides visual feedback on the device's status:

• Мігае сіні: The device is in pairing mode, ready to connect to a network.
• Суцэльны сіні: Прылада паспяхова падключана да сеткі.

The indicator light can also be turned off via the settings within the associated mobile application.

Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your ASAHOM S1080 Waterproof Control Box, follow these maintenance guidelines:

• Рэгулярная ўборка: Periodically wipe the exterior of the control box with a soft, damp тканінай, каб выдаліць пыл і смецце. Пазбягайце выкарыстання агрэсіўных хімікатаў або абразіўных ачышчальнікаў.
• Праверце злучэнні: Regularly check all cable connections to ensure they are secure and free from damage. Verify that waterproof caps on unused ports are tightly sealed.
• Ахова навакольнага асяроддзя: While the control box is waterproof, avoid submerging it in water or exposing it to extreme weather conditions beyond its rated specifications.
• Абнаўленні праграмнага забеспячэння: Keep the associated mobile application updated to the latest version to benefit from performance improvements and new features.

Ліквідацыю непаладак

If you encounter issues with your ASAHOM S1080 Waterproof Control Box, refer to the following common troubleshooting steps:

• Святло не ўключаецца:
  • Ensure the control box is properly connected to the power supply and the power supply is plugged into a functional outlet.
  • Check all connections between the control box and the light strings.
  • Briefly press the ON/OFF button on the control box.
• No Network Connection (Indicator Blinking Blue):
  • Пераканайцеся, што ваша сетка Wi-Fi актыўная і знаходзіцца ў зоне дзеяння.
  • Follow the pairing instructions in the mobile application to reconnect the device.
  • Паспрабуйце перазагрузіць маршрутызатар Wi-Fi.
• Incorrect Light Behavior:
  • If the lights are not responding as expected, try restoring the control box to factory settings by pressing and holding the ON/OFF button for more than 5 seconds.
  • Verify settings within the mobile application.
• Audio Reactive Feature Not Working:
  • Ensure the microphone opening is not blocked.
  • Position the sound source closer to the control box.
  • Check if the Audio Reactive feature is enabled in the mobile application.

If problems persist, contact ASAHOM customer support for further assistance.

Тэхнічныя характарыстыкі

Гарантыя

ASAHOM products are manufactured to high-quality standards. For specific warranty details, including coverage period and terms, please refer to the warranty information provided with your original purchase documentation or visit the official ASAHOM webсайт. Захоўвайце пацвярджэнне пакупкі для прэтэнзій па гарантыі.

Падтрымка

For technical assistance, product inquiries, or to report any issues not covered in this manual, please contact ASAHOM customer support. You can typically find contact information on the ASAHOM official webсайт або праз вашу платформу для пакупак.
