Уводзіны
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your WLIVE Double Slatted Bed with Movable Outlet and Headboard, Model ACHJ628. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.
Інфармацыя па бяспецы
- Перад пачаткам зборкі пераканайцеся, што ўсе кампаненты ёсць і не пашкоджаны. Не выкарыстоўвайце, калі якія-небудзь дэталі адсутнічаюць або зламаныя.
- Збірайце ложак на мяккай, чыстай паверхні, каб пазбегнуць драпін.
- Tighten all screws firmly, but do not overtighten to avoid damaging the wood. Periodically check and retighten screws as needed.
- The bed frame is designed for a maximum load capacity of 200kg. Do not exceed this weight limit.
- Трымайце дробныя дэталі далей ад дзяцей падчас зборкі.
- The headboard is designed to be placed against a wall for optimal stability.
Змест пакета
Before assembly, verify that all the following parts are included in your package:
- Падгалоўе ложка (1)
- Падножка (1)
- Бакавыя рэйкі (2)
- Цэнтральная апорная бэлька (1)
- Support Legs (various, as per design)
- Slats (multiple pieces)
- Movable Outlet Unit (1)
- Набор інструментаў (шрубы, балты, шасцігранны ключ)
- Assembly Manual (1)
Image: All components of the WLIVE Double Slatted Bed, including the headboard, footboard, side rails, slats, and hardware.
Інструкцыя па зборцы
Follow these steps carefully for proper assembly. An electric screwdriver is recommended for easier assembly, though a manual Allen wrench is provided.
- Падрыхтуйце тэрыторыю: Clear a spacious area and lay down a blanket or cardboard to protect the floor and bed components from scratches.
- Прымацуйце бакавыя парэнчы да ўзгалоўя і падножжа ложка: Connect the side rails to the headboard and footboard using the provided bolts and Allen wrench. Ensure all connections are secure.
- Усталюйце цэнтральную апорную бэльку і ножкі: Attach the center support beam to the designated points on the headboard and footboard. Securely fasten any additional support legs to the frame.
- Размясціць планкі: Lay the wooden slats across the bed frame. The slats are designed for optimal ventilation. Secure the slats to the frame using the provided screws. Note: Some slats may require screwing directly into the wood without pre-drilled holes.
- Install Movable Outlet: Insert the movable outlet unit into the designated slot on the headboard. Ensure it slides smoothly.

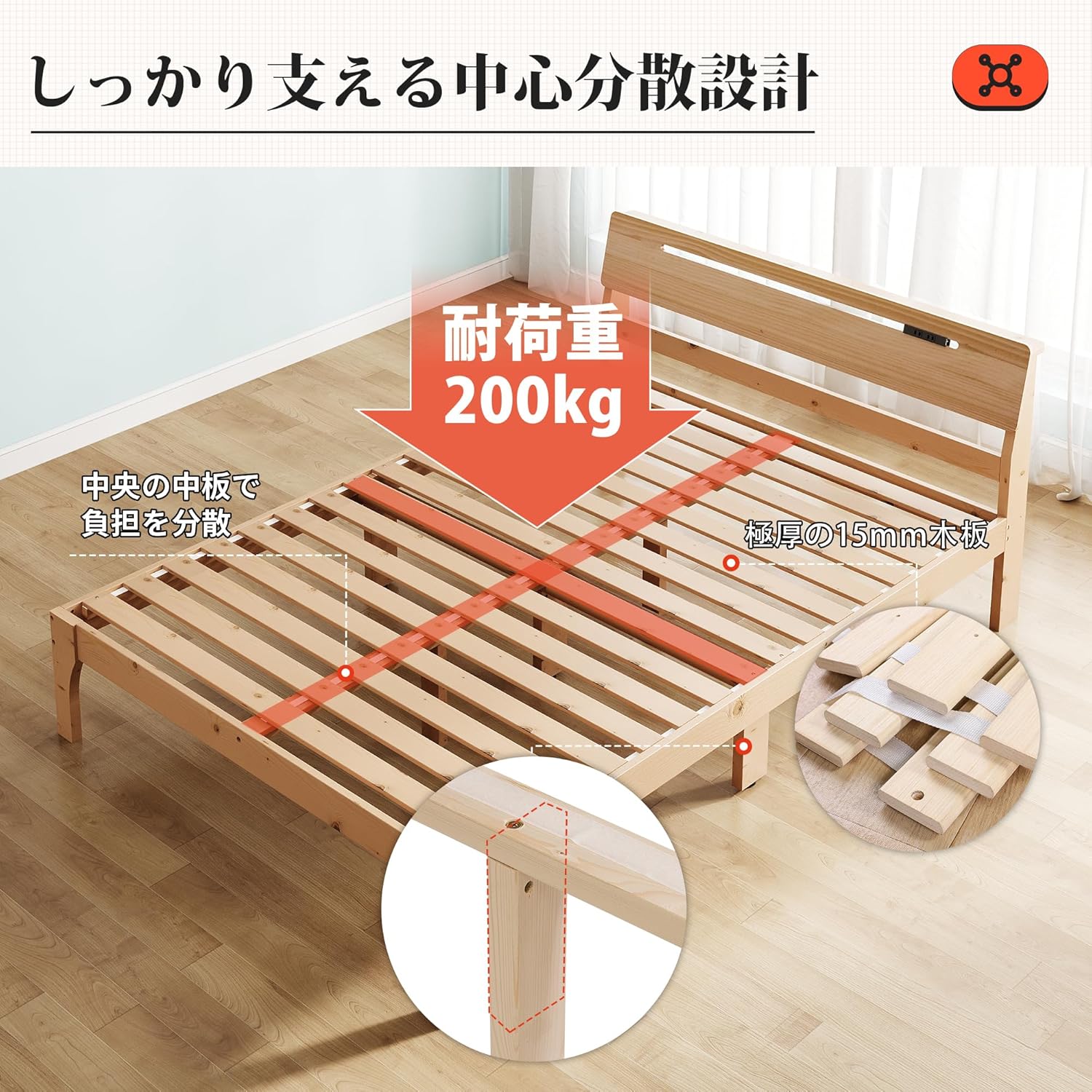

Image: Illustration of the bed frame's sturdy central support design and slat placement.
Інструкцыя па эксплуатацыі
Movable Outlet Usage
The headboard features an innovative movable outlet with two power ports. This allows you to position the outlet freely along the headboard to suit your needs.
- To move the outlet, gently slide it along the track on the headboard.
- Plug in your devices (e.g., smartphone, tablet, reading lamp) into the two available ports for convenient charging or power access.

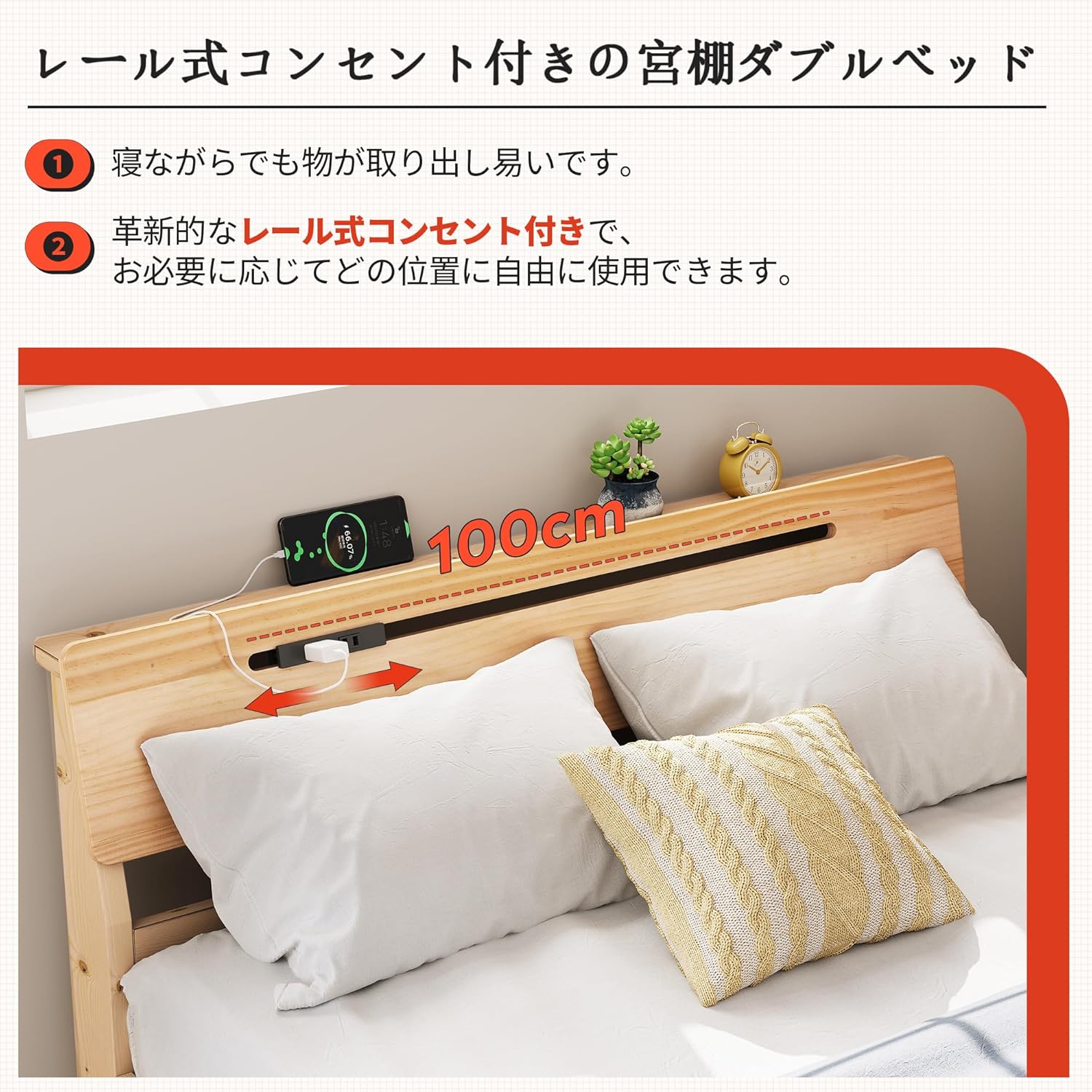

Image: A close-up of the movable outlet on the headboard, showing a smartphone being charged.
Headboard Comfort
The headboard is ergonomically designed with a 97-degree angle, providing comfortable back support for reading or watching TV in bed. This design helps reduce strain on your back, shoulders, and neck.
Image: A person demonstrating the comfortable, ergonomic design of the headboard while reading.
Месца для захоўвання пад ложкам
The bed frame provides a generous 32.5cm clearance from the floor, offering ample space for storage. Utilize this area for storage boxes, seasonal items, or other belongings to keep your room tidy.
Image: The spacious under-bed area, demonstrating its use for storage baskets and ease of cleaning with a vacuum.
Тэхнічнае абслугоўванне
- Уборка: Wipe the wooden surfaces with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and immediately dry with a clean cloth. Avoid harsh chemicals or abrasive cleaners.
- Вентыляцыя: The slatted design promotes airflow. To further prevent mold and maintain freshness, periodically air out your mattress and bedding.
- Шчыльнасць шруб: Over time, screws may loosen. Periodically check all screws and tighten them as necessary to maintain the bed's stability and safety.
- Сыход за дрэвам: As the bed is made of natural, unpainted pine, it may be susceptible to stains. Consider applying a wood finish or sealant if you desire additional protection.
Image: Visual representation of the excellent ventilation provided by the slatted bed base.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Bed feels wobbly or makes noise. | Аслабленыя шрубы або няроўная зборка. | Check and tighten all screws. Ensure the bed is on a level surface. If the slats are loose, ensure they are properly secured. |
| Movable outlet is stuck or difficult to slide. | Debris in the track or misalignment. | Clean the track of any dust or debris. Ensure the outlet unit is correctly seated in the track. |
| Screws strip during assembly. | Overtightening or using an unsuitable tool. | Use appropriate tools and avoid excessive force. If a screw is stripped, contact customer support for replacement hardware. |
| Mold growth on slats. | High humidity, insufficient ventilation. | Ensure good room ventilation. Periodically lift the mattress to air out the slats. Clean any mold with a mild solution and dry thoroughly. |
Тэхнічныя характарыстыкі
| Марка | ЖЫЦЬ |
| Нумар мадэлі | ACHJ628 |
| Памер | Двайны |
| Памеры прадукту (Д х Ш х У) | 2.07 м х 1.4 м х 0.79 м |
| Вага прадмета | 26.4 кг |
| Колер | Натуральны |
| стыль | Натуральны |
| Асаблівасці | Movable Outlet, Headboard |
| Сумяшчальнасць памераў матраца | Двайны |
| Варыянт захоўвання | Месца для захоўвання пад ложкам |
| Патрабуецца зборка | так |
| Аксэсуары ў камплекце | Кіраўніцтва па ўстаноўцы |
| Краіна паходжання | Кітай |
Image: Detailed dimensions of the WLIVE Double Slatted Bed.
Гарантыя і падтрымка
WLIVE offers a one-year warranty for this product. For warranty claims, missing parts, or any other support inquiries, please contact WLIVE customer service through the retailer where you purchased the product.
Калі ласка, захавайце пацвярджэнне пакупкі для пацверджання гарантыі.
