Кіраўніцтва карыстальніка двухбаковай радыёсувязі SAMCOM FPCN50A

1. Уводзіны

Thank you for choosing the SAMCOM FPCN50A Waterproof Dual Band Two-Way Radio. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

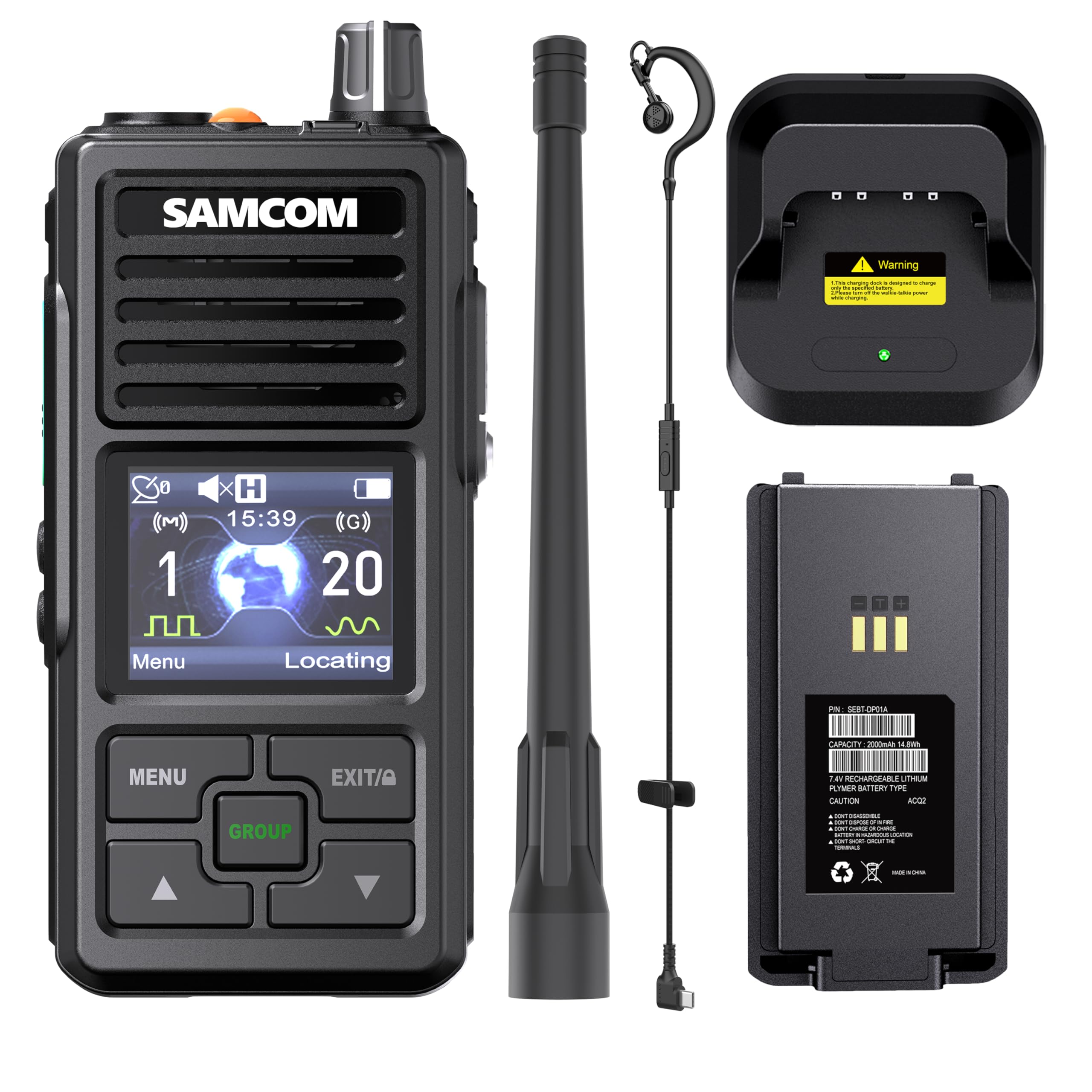

1.1 Змест пакета

• SAMCOM FPCN50A Two-Way Radio
• Lithium Polymer Battery (included)
• Зарадны кабель USB Type-C
• Адаптар сілкавання
• Заціск для рамяня
• Антэна
• Кіраўніцтва карыстальніка (гэты дакумент)

2. Інфармацыя па бяспецы

Observe the following safety precautions to prevent fire, injury, or damage to the radio.

• Бяспека акумулятара: Use only the specified battery and charger. Do not short-circuit, incinerate, or disassemble the battery.
• Воданепранікальнасць: The FPCN50A is IP67 waterproof. Ensure all port covers are securely closed before exposure to water. Do not immerse the radio beyond specified depths or durations.
• Выбуханебяспечныя асяроддзі: Do not operate the radio in potentially explosive atmospheres (e.g., near flammable gas, dust particles, metallic powders).
• Сыход за антэнай: Do not touch the antenna during transmission. Do not use a damaged antenna.
• Абарона слыху: Пазбягайце працяглага ўздзеяння высокай гучнасці.
• Адпаведнасць FCC: This device complies with FCC standards (FCC ID: 2BPIZ-FPCN50A) for safe and legal operation in the U.S.

3. Асаблівасці прадукту

The SAMCOM FPCN50A radio offers a range of advanced features designed for reliable communication:

• Воданепранікальнасць IP67: Built to withstand harsh conditions, including rain, snow, and extreme temperatures.
• Двухдыяпазонная праца: Seamlessly switch between digital (Channels 1-10) and analog (Channels 11-20) modes.
• Real-Time GPS: Share locations, display azimuth maps, and send emergency beacons.
• Custom Text Messaging: Communicate via text in trunking mode or digital channels, with editable messages through programming software.
• Group Call Functionality: Instantly connect with multiple radios via one-touch group calling.
• Параметры падвойнай зарадкі: Includes an adapter and a 2-in-1 USB Type-C port for versatile charging.
• Color LCD & User-Friendly Interface: Intuitive button layout and bright display for easy navigation, featuring customizable channel names and zone management.
• Multi-Time Zone Support: Automatically syncs to local UTC time and displays it on the home screen.

4. Пачатак працы

4.1 Устаноўка батарэі

1. Пераканайцеся, што радыё выключана.
2. Знайдзіце вечка батарэйнага адсека на задняй панэлі радыёпрыёмніка.
3. Slide the latch to unlock the cover and remove it.
4. Align the Lithium Polymer battery with the contacts inside the compartment.
5. Акуратна ўстаўце батарэйку на месца, пакуль не пачуеце пстрычку.
6. Зачыніце вечка батарэйнага адсека і надзейна зафіксуйце яго, пацягнуўшы зашчапку.

Выява: Задняя частка view of the SAMCOM FPCN50A radio, showing the battery compartment and its secure latch mechanism.

4.2 Зарадка акумулятара

The FPCN50A supports dual charging options:

• Using the Charging Adapter: Connect the provided power adapter to a wall outlet and then to the radio's charging port.
• Using the USB Type-C Port: Connect the provided USB Type-C cable to the radio's Type-C port and then to a compatible USB power source (e.g., computer, power bank, or USB wall adapter).

The charging indicator on the radio will illuminate during charging and change color or turn off when fully charged. Ensure the Type-C port cover is sealed when not charging to maintain IP67 rating.

Image: The SAMCOM FPCN50A radio with a USB Type-C cable inserted into its charging port, demonstrating the charging connection.

5. Асноўная аперацыя

5.1 Уключэнне/выключэнне сілкавання

• Каб уключыць: Rotate the Power/Volume knob clockwise until a click is heard and the LCD screen illuminates.
• Каб выключыць: Rotate the Power/Volume knob counter-clockwise until a click is heard and the LCD screen turns off.

5.2 Рэгуляванне гучнасці

Павярніце ручку харчавання/гучнасці па гадзіннікавай стрэлцы, каб павялічыць гучнасць, і супраць гадзіннікавай стрэлкі, каб паменшыць яе.

5.3 Выбар канала

Use the Channel Up/Down buttons (typically located on the side or front panel) to navigate through available channels. The current channel number and name will be displayed on the color LCD.

Image: The SAMCOM FPCN50A radio's color LCD screen, showing channel number, name, and other operational indicators.

6. Пашыраныя магчымасці

6.1 Dual Band Digital & Analog Modes

The FPCN50A supports both digital and analog communication. Channels 1-10 are typically configured for digital mode, while Channels 11-20 are for analog mode. The radio allows independent zone control for monitoring two channels simultaneously. Refer to the programming software for detailed configuration of digital and analog channels.

6.2 Real-Time GPS Functionality

The integrated GPS allows for real-time location tracking. Users can share their current location, view azimuth maps, and send emergency beacons to pre-programmed contacts or groups. This feature is particularly useful for outdoor activities and emergency coordination.

6.3 Custom Text Messaging

The radio supports text message communication in trunking mode or digital channels. Messages can be edited and sent using the programming software, providing SMS-like functionality for discreet communication.

6.4 Групавы выклік

Initiate a group call with a single touch to communicate with multiple radios simultaneously, even if they are not on the same channel. This enhances team communication efficiency.

6.5 Multi-Time Zone Support

The radio automatically syncs to local UTC time and displays it on the home screen, making it convenient for users operating across different time zones.

6.6 Custom Channel Naming

Channels can be customized with specific names via the programming software, allowing for easier identification and management of communication groups or frequencies.

7. Тэхнічнае абслугоўванне

• Уборка: Працярыце паверхню радыёпрыёмніка мяккай губкайamp тканіна. Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя ачышчальнікі.
• Вечкі партоў: Always ensure all port covers (e.g., Type-C charging port, accessory port) are securely closed when not in use to maintain the IP67 waterproof rating.
• Сыход за батарэяй: Store the battery in a cool, dry place. Avoid fully discharging the battery for extended periods.
• захоўванне: When storing the radio for long periods, remove the battery and store it separately.

8. Выпраўленне непаладак

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

SAMCOM provides a Пажыццёвая гарантыя for the FPCN50A Two-Way Radio. For technical assistance, troubleshooting, or warranty claims, please contact our UT Local Tech Support.

For further information or support, please visit the official SAMCOM website or contact customer service through your purchase platform.

Сертыфікат FCC: Гэта прылада адпавядае Частцы 15 Правілаў FCC. Эксплуатацыя ажыццяўляецца пры ўмове, што гэта прылада не стварае шкодных перашкод.
