Aairsk 26'' Electric Bike GT300 User Manual

1. Уводзіны

Welcome to the Aairsk GT300 Electric Bike user manual. This guide provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

2. Інфармацыя па бяспецы

Your safety is paramount. Always wear a helmet when riding. Observe all local traffic laws and regulations. Ensure the bike is in good working condition before each ride.

• Праверка перад паездкай: Before each ride, inspect tires for proper inflation, check brake functionality, and ensure all bolts and quick releases are secure.
• Начная язда: The GT300 is equipped with a 36V bicycle headlight and a rear bicycle reflector for enhanced visibility. Always use these features when riding in low-light conditions.
• Умовы надвор'я: Будзьце асцярожныя пры яздзе па мокрых або слізкіх дарогах. Тармазны шлях можа павялічыцца.
• Абмежаванне вагі: Не перавышайце максімальную грузападымальнасць 330 фунтаў.

3. Кампаненты большview

Familiarize yourself with the main components of your Aairsk GT300 Electric Bike.

Малюнак 3.1: У цэлым view of the Aairsk GT300 Electric Bike, showcasinяго канструкцыю і асноўныя кампаненты.

Малюнак 3.2: падрабязна view of the Smart LCD display, 7-speed Shimano shifter, 26-inch tires, and dual disc brakes.

Figure 3.3: Illustration of the detachable 36V 10Ah lithium battery integrated into the bike frame.

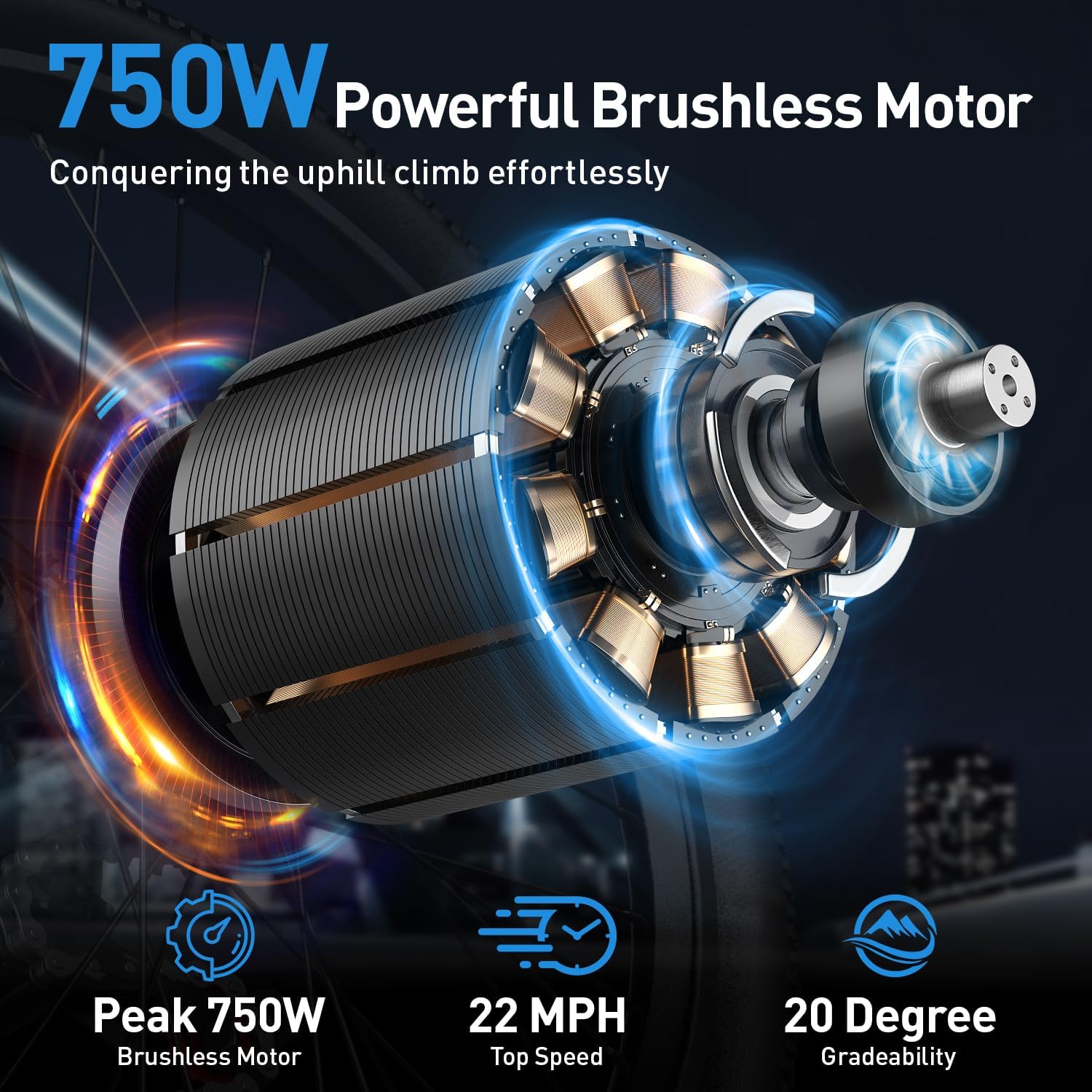

Figure 3.4: Diagram illustrating the powerful 750W peak brushless motor, capable of climbing 20-degree slopes.

Ключавыя кампаненты:

• Матор: 750W Peak Brushless Motor, providing speeds up to 20-23mph.
• акумулятар: Detachable 36V 10Ah 360WH Lithium Battery with BMS for protection. Offers 40+ miles range in PAS mode.
• Дысплей: Colorful LCD Display for speed, battery level, distance, and assistance mode. Features keyless unlock via card key.
• перадачы: Professional 7-speed Transmission for adapting to various terrains.
• Падвеска: Adjustable and lockable front suspension, along with a shock-absorbing seat bag for a comfortable ride.
• тармазы: Dual Disc Brakes (front and rear) for reliable stopping power.
• шыны: 26-inch tires designed for enhanced vibration dampвання і стабільнасці.

4. Настройка

The Aairsk GT300 electric bike comes 90% pre-assembled. The included tool kit contains necessary items for final assembly. For detailed visual instructions, please refer to the installation video available on the product page.

Этапы зборкі:

1. Распакаванне: Carefully remove the bike and all components from the packaging. Retain the original packaging for at least one month in case of return.
2. Ўстаноўка руля: Attach and secure the handlebar to the stem.
3. Ўстаноўка пярэдняга кола: Усталюйце пярэдняе кола, пераканаўшыся, што дыск дыскавага тормазнага дыска правільна выраўнаваны з суппортам.
4. Ўстаноўка педалі: Attach the pedals, noting that the left and right pedals are distinct (usually marked L and R).
5. Усталёўка падседзельнага штыфта: Insert the seat post and adjust the seat height for comfortable riding.
6. Устаўка батарэі: Ensure the battery is securely inserted into its compartment.
7. Першапачатковая плата: Fully charge the battery before your first ride. Charging time is approximately 5-6 hours.

5. Інструкцыя па эксплуатацыі

The Aairsk GT300 offers multiple riding modes and features for a versatile experience.

Figure 5.1: Illustration of the three working modes: Bicycle Mode, Pedal Assist Mode, and Throttle Mode.

Figure 5.2: Details on the adjustable shock-absorbing front fork and the shock-absorbing seat bag for enhanced comfort.

5.1 Уключэнне/выключэнне

• Keyless Unlock: To power on the bike, use the provided card key and touch it to the LCD display. The display will power on. To power off, repeat the process.

5.2 Рэжымы язды

The GT300 offers three distinct riding modes:

• Рэжым ровара: Ride the bike like a traditional bicycle without electric assistance.
• Рэжым дапамогі пры кручэнні педаляў (PAS): Engage pedal assist to make your ride easier. There are 5 assistance levels, which can be selected via the LCD display controls. The motor provides power as you pedal.
• Рэжым дросельнай засланкі: For a fully electric experience, engage the thumb throttle located on the right-hand grip. This provides power without pedaling.

5.3 Пераключэнне перадач

The professional 7-speed transmission allows you to easily shift gears to adapt to various terrains and riding conditions. Use the Shimano shifter on the handlebar to change gears smoothly.

5.4 Suspension Adjustment

The front suspension is adjustable and lockable. Riders can adjust or lock the suspension fork as needed to suit different riding surfaces, providing a smoother ride on rough terrain and more efficiency on smooth roads.

6. Тэхнічнае абслугоўванне

Regular maintenance ensures the longevity and safe operation of your Aairsk GT300 Electric Bike.

6.1 Сыход за акумулятарам

• Зарадка: Charge the battery using the provided charger. The battery can be fully charged in 5-6 hours.
• Атрад: The battery is detachable for convenience. However, it cannot be charged separately when removed from the bike.
• захоўванне: Калі вы збіраецеся захоўваць ровар працяглы час, зарадзіце акумулятар да 50-70% і захоўвайце яго ў прахалодным, сухім месцы. Зараджайце яго кожныя 2-3 месяцы, каб пазбегнуць глыбокага разраду.
• Абарона: The battery's BMS system provides overcharge and overheating protection.

6.2 General Bike Maintenance

• шыны: Regularly check tire pressure and inspect for wear or damage. Maintain recommended pressure for optimal performance and safety.
• тармазы: Periodically check brake pads for wear and ensure brake levers provide firm and responsive braking. Adjust or replace as needed.
• Ланцуг: Keep the chain clean and lubricated to ensure smooth gear changes and prevent premature wear.
• Зашпількі: Regularly check all bolts, nuts, and quick releases to ensure they are tight and secure.
• Уборка: Ачысціце ровар damp тканінай. Пазбягайце выкарыстання струменяў вады пад высокім ціскам непасрэдна на электрычныя кампаненты.

7. Выпраўленне непаладак

This section addresses common issues you might encounter with your Aairsk GT300 Electric Bike.

If you encounter issues not listed here or require further assistance, please contact Aairsk customer support.

8. Тэхнічныя характарыстыкі

Detailed technical specifications for the Aairsk 26'' Electric Bike GT300.

Figure 8.1: Diagram illustrating the key size parameters of the Aairsk GT300 Electric Bike.

9. Гарантыя і падтрымка

Aairsk is committed to providing quality products and customer satisfaction.

• Гарантыя вытворцы: Your Aairsk GT300 Electric Bike comes with a 12-month manufacturer warranty, covering free replacement parts for manufacturing defects.
• Тэхнічная падтрымка: Мы прапануем пажыццёвую тэхнічную падтрымку вашага прадукту.
• Звязацца з намі: If you have any issues with your bike, please send an email with a video or picture detailing the problem to: support@aairsk.com.
