Кіраўніцтва карыстальніка электравеласіпеда ESKUTE D200

1. Уводзіны

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your ESKUTE D200 Electric Bike. Please read this manual thoroughly before your first ride and keep it for future reference. Proper assembly and understanding of all features are crucial for your safety and the longevity of your e-bike.

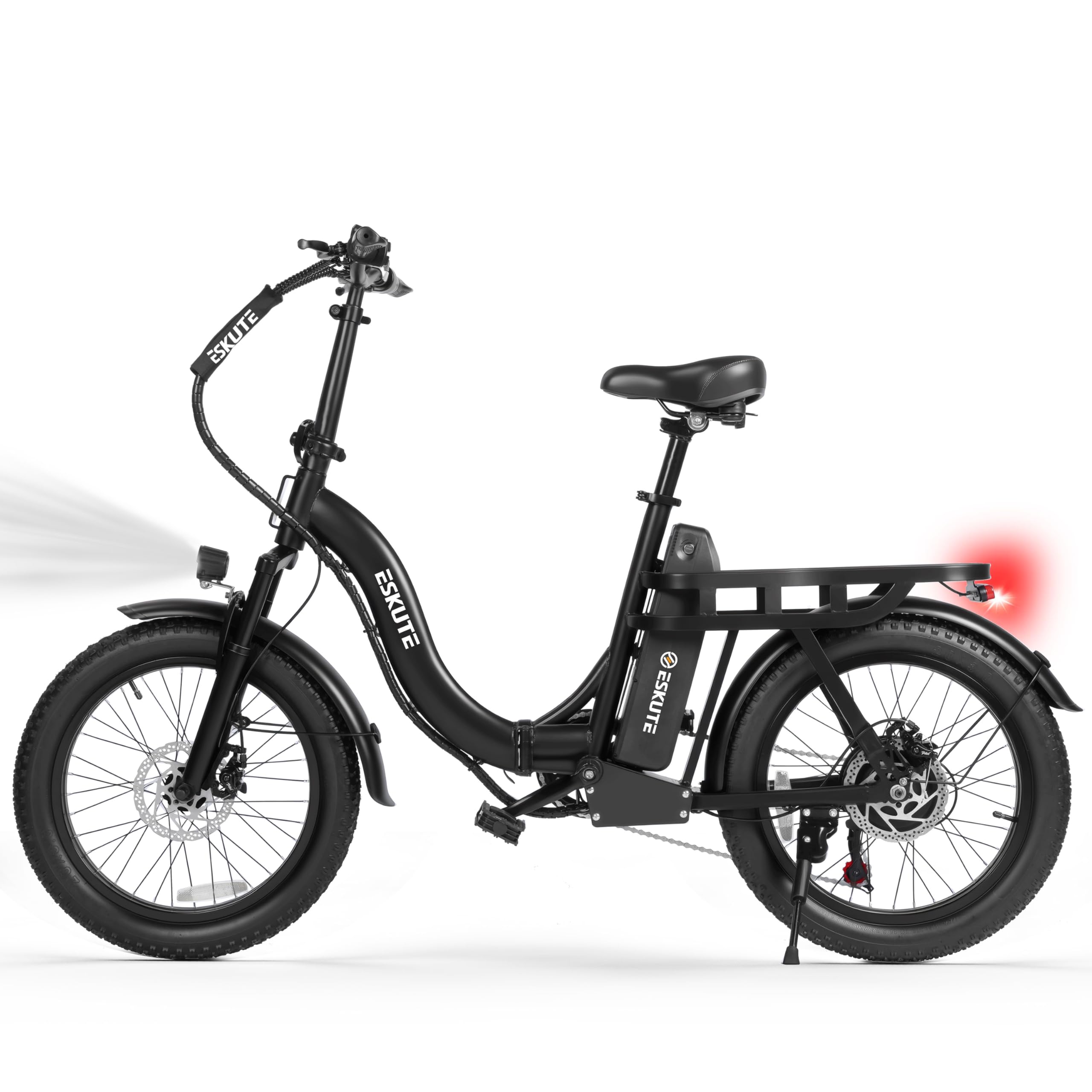

Image 1.1: The ESKUTE D200 Electric Bike.

2. Інфармацыя па бяспецы

Ваша бяспека — найважнейшая. Заўсёды прытрымлівайцеся наступных рэкамендацый:

• Выкарыстанне шлема: Always wear a certified helmet when riding your e-bike.
• Мясцовыя законы: Familiarize yourself with and obey all local traffic laws and regulations for electric bicycles.
• Праверка перад паездкай: Before each ride, check tire pressure, brake function, battery level, and ensure all quick releases and fasteners are secure.
• Бачнасць: Use the integrated headlights and taillights, especially during low light conditions. Consider wearing reflective clothing.
• Умовы надвор'я: Exercise caution when riding in wet or slippery conditions. Braking distances increase significantly.
• Абмежаванне вагі: Не перавышайце максімальную рэкамендаваную вагу ў 350 фунтаў.
• дзеці: This e-bike is designed for adults. Keep children away from the e-bike during operation and charging.

Image 2.1: Rider demonstrating safe operation with lights. Ensure all lights are functional before riding.

3. Зборка і ўстаноўка

Your ESKUTE D200 Electric Bike comes partially assembled. Follow these steps to complete the assembly:

3.1 Распакоўка і першапачатковы агляд

Асцярожна выміце ўсе кампаненты з упакоўкі. Праверце на наяўнасць пашкоджанняў падчас транспарціроўкі. Пераканайцеся, што ўсе дэталі, пералічаныя ў пакавальным лісце, наяўныя.

3.2 Handlebar and Stem Installation

1. Unfold the main frame of the bike.
2. Устаўце стрыжань руля ў галаўную трубу.
3. Adjust the handlebar height to a comfortable position and secure the quick-release lever.

3.3 Front Fender and Headlight Attachment

1. Прымацуйце пярэдні крыло да пярэдняй відэльцы з дапамогай прадугледжаных шруб і інструментаў.
2. Mount the headlight onto the front fender or fork bracket and connect its cable.

3.4 Устаноўка пярэдняга кола

1. Carefully align the front wheel with the front fork dropouts, ensuring the brake rotor slides correctly into the brake caliper.
2. Insert the axle bolt through the wheel hub and fork dropouts.
3. Securely tighten the axle nuts on both sides using the provided wrench.
4. Remove the protective disc from the brake rotor.

3.5 Устаноўка педалі

Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise.

1. Нанесці невялікую колькасць змазкі на разьбу педаляў.
2. Thread the right pedal (R) into the right crank arm (on the chain side) clockwise and tighten firmly with a wrench.
3. Thread the left pedal (L) into the left crank arm counter-clockwise and tighten firmly with a wrench.

3.6 Рэгуляванне падседзельнага штыра і сядла

1. Insert the seat post with the saddle into the seat tube.
2. Adjust the saddle height to ensure your feet can comfortably touch the ground when stopped, or your leg has a slight bend at the knee when the pedal is at its lowest point.
3. Secure the seat post quick-release lever firmly.

3.7 Усталёўка і зарадка акумулятара

1. Устаўце батарэйку ў адсек на рамцы. Пераканайцеся, што яна надзейна зашчапілася.
2. Use the provided key to lock the battery.
3. Connect the charger to the charging port on the battery and then to a power outlet. The charger indicator light will show charging status (red for charging, green for fully charged).
4. Allow the battery to fully charge before your first ride.

4. Operating Your ESKUTE D200

4.1 Powering On/Off and NFC Unlock

• To power on the bike, ensure the battery is locked in place and the power switch on the battery is ON.
• Use the NFC card to unlock the bike and activate the display.
• To power off, use the display controls or turn off the battery switch.

4.2 Digital Display and Controls

The handlebar-mounted digital display provides information such as speed, battery level, and pedal assist level. Use the '+' and '-' buttons to adjust the pedal assist level (0-3).

Выява 4.1: Канецview of ESKUTE D200 features, including the digital display, 7-speed Shimano gear, and 20x3.0" tires.

4.3 Рэжымы язды

• Рэжым дапамогі педалі: The motor provides assistance as you pedal. Adjust the assist level (0-3) via the display. Level 0 is no assist, while Level 3 provides maximum assistance.
• Рэжым дросельнай засланкі: Use the thumb throttle for power without pedaling. This mode can reach speeds up to 28 MPH.
• Ручной рэжым: Ездзіце на ровары як на звычайным ровары без дапамогі рухавіка.

4.4 Пераключэнне перадач

Your D200 is equipped with a 7-speed Shimano gear system. Use the trigger shifter on the handlebar to change gears, adapting to different terrains and inclines.

4.5 Тармажэнне

The bike features disc brakes for reliable stopping power. Apply both brake levers smoothly and evenly to slow down or stop. Avoid sudden, hard braking, especially at high speeds or on loose surfaces.

5. Асноўныя магчымасці

• Powerful 1200W Peak Motor: Experience dynamic acceleration and hill-climbing capability with the robust 1200W peak motor system. The intelligent pedal assist technology automatically adjusts power output based on your pedaling force, providing seamless transitions between different riding conditions. Three assist levels let you customize energy usage for maximum efficiency during long commutes or quick errands.
• All-Terrain Fat Tires: Conquer diverse landscapes with confidence thanks to the extra-wide 3-inch tires that provide exceptional surface grip and shock absorption. The enhanced air volume creates a cushioned ride that smooths out rough pavement, gravel paths, and uneven terrain. Deep tread patterns ensure reliable traction in wet conditions while resisting punctures from road debris.
• Складаны дызайн, які эканоміць месца: The innovative folding mechanism allows the frame to collapse in seconds without tools, creating a compact package for storage or transport. Reinforced locking hinges maintain structural integrity when unfolded while enabling easy portability. This practical design makes the bike ideal for commuters with limited storage space or those who need multimodal transportation.
• Practical Cargo Features: Beyond just transportation, this e-bike serves as a versatile utility vehicle with its integrated cargo solutions. The rust-resistant front basket offers capacity for groceries, work essentials, or recreational gear. The reinforced rear rack provides additional loading options, while the step-through frame design ensures easy mounting even with loaded cargo.

Image 5.1: Illustration of the 1200W Peak Brushless Motor, providing power for various speeds and inclines.

Image 5.2: Close-up of the 20x3.0 inch fat tires, designed for stability and grip on various terrains including snow, mountain, sand, and city roads.

Image 5.3: The 48V 10.4Ah battery, offering up to 55 miles range and featuring IP54 waterproof level and intelligent BMS for safety.

6. Тэхнічнае абслугоўванне

Regular maintenance ensures optimal performance and extends the lifespan of your e-bike.

• шыны: Check tire pressure before each ride. Maintain pressure within the recommended range printed on the tire sidewall.
• тармазы: Regularly inspect brake pads for wear and brake cables for proper tension. Adjust or replace as needed.
• Ланцуг: Трымайце ланцуг чыстым і змазаным, каб прадухіліць іржу і забяспечыць плаўнае пераключэнне.
• Сыход за батарэяй: Charge the battery regularly, even when not in use, to maintain its health. Avoid fully discharging the battery. Store in a cool, dry place.
• Уборка: Пачысціце свой электравеласіпед з дапамогай рэкламыamp тканінай і мяккім мылам. Пазбягайце мыцця пад высокім ціскам непасрэдна на электрычныя кампаненты.
• Зашпількі: Periodically check all bolts, nuts, and quick releases to ensure they are securely tightened.

7. Выпраўленне непаладак

Вось некаторыя распаўсюджаныя праблемы і іх магчымыя рашэнні:

If you encounter issues not listed here or require further assistance, please contact ESKUTE customer support.

8. Тэхнічныя характарыстыкі

Image 8.1: Size chart for the ESKUTE D200 Electric Bike, showing suggested height (5'3" - 6'3"), maximum load (330 lbs), and bicycle weight (70.5 lbs).

9. Гарантыя і падтрымка

Your ESKUTE D200 Electric Bike comes with a Гарантыя 1 год.

For any questions, technical support, or warranty claims, please contact ESKUTE customer support:

• Pre-sales: 1 888 886-2818
• Пасляпродажны: 1 240 332-0549
• электронная пошта: support.us@eskute.com
• Гадзіны працы: Mon-Fri 9:00am-6:00pm EST

Image 9.1: ESKUTE customer support contact details and warranty information.
