Cangaroo Galaxy i-Size Car Seat Instruction Manual

1. Прадукт скончыўсяview

The Cangaroo Galaxy i-Size child car seat is designed for safe and comfortable travel. This high-back booster seat is suitable for children approximately 6 to 12 years old, measuring between 125 and 150 cm (Group 3, 22-36 kg). It offers stable ISOFIX mounting for secure and easy vehicle installation, along with the option to secure the seat using only the car's three-point seat belt. The foldable backrest is practical for situations with limited space in the car or for easier transport and storage.

Важная інфармацыя па бяспецы:

• Always read this manual completely before installation and use.
• Ensure the car seat is correctly installed and the child is properly secured for every journey.
• Ніколі не пакідайце дзіця без нагляду ў аўтакрэсла.
• Ні ў якім разе не мадыфікуйце аўтамабільнае сядзенне.
• Пасля любой аварыі замяняйце аўтакрэсла, нават калі бачных пашкоджанняў няма.

Малюнак 1: Поўны view of the Cangaroo Galaxy i-Size car seat in black, showing the high backrest, seat base, and ISOFIX connectors extended.

2. Асаблівасці прадукту

• i-Size Standard: Conforms to ECE-R129/03 safety standard.
• Height & Weight Range: Suitable for children 125-150 cm (approx. 6-12 years old) and 22-36 kg.
• Варыянты ўстаноўкі: Secure installation using ISOFIX connectors and/or the vehicle's 3-point seat belt.
• Foldable Backrest: Allows for compact storage and transport, or use as a backless booster.
• Эрганамічны дызайн: Spacious seat and comfortable armrests for long journeys.
• Здымны чахол, які можна мыць: Easy to clean and maintain hygiene.

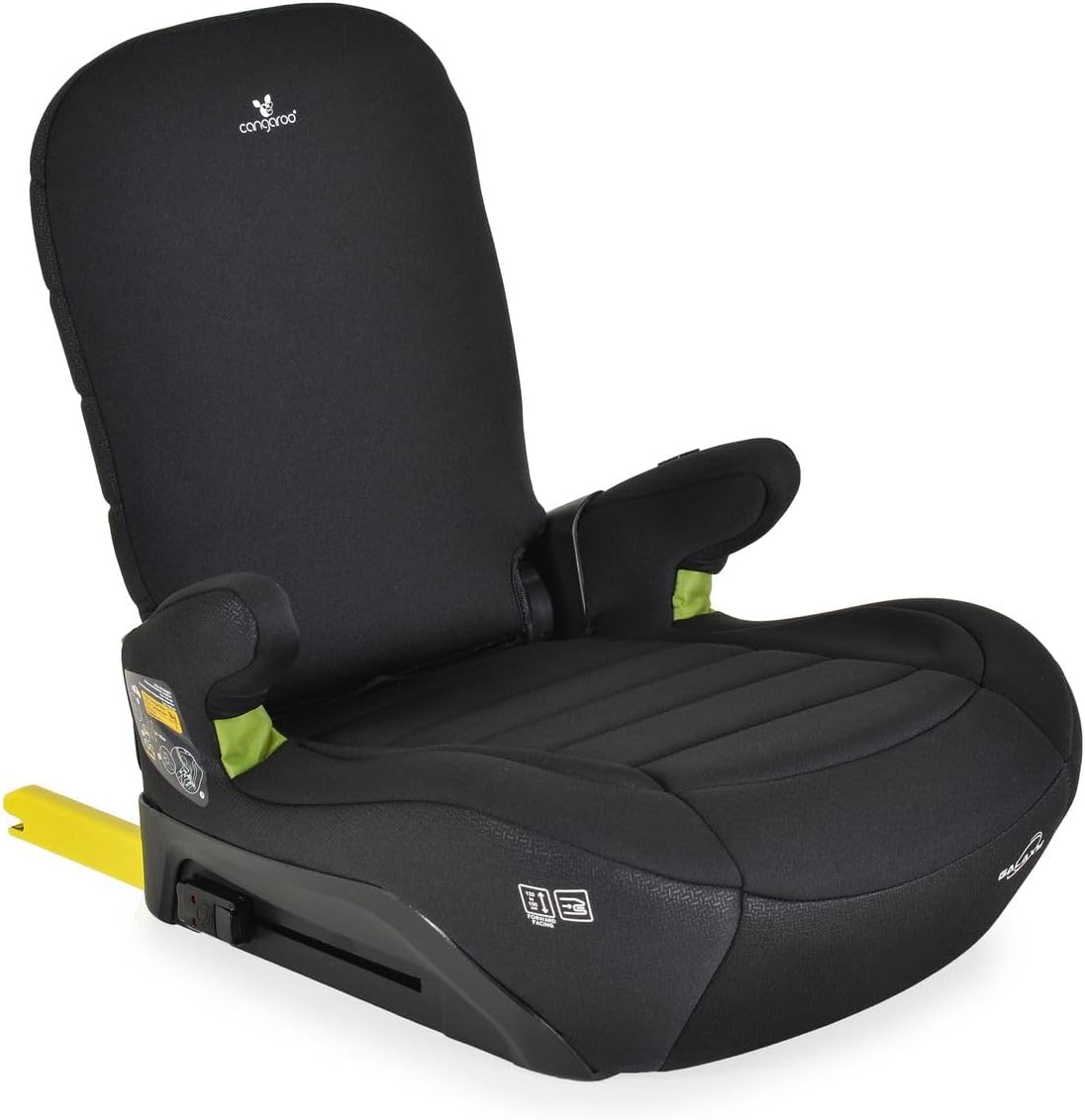

Малюнак 2: Фронтальная частка view of the Cangaroo Galaxy i-Size car seat, highlighting the ergonomic seat design and armrests.

3. Настройка і ўстаноўка

3.1. ISOFIX Installation (Recommended)

1. Prepare the Car Seat: Extend the ISOFIX connectors from the base of the car seat. These are typically yellow levers or buttons on the side of the seat base.
2. Locate ISOFIX Anchors: Find the ISOFIX anchor points in your vehicle. These are usually located between the backrest and the seat cushion of the rear seats, often marked with an ISOFIX symbol.
3. Далучыць раздымы: Push the ISOFIX connectors of the car seat onto the vehicle's ISOFIX anchor points until you hear a distinct "click" and the indicators turn green (if applicable).
4. Замацуйце сядзенне: Push the car seat firmly against the vehicle's backrest to ensure a tight fit. There should be minimal movement.
5. Route Seat Belt: Guide the vehicle's 3-point seat belt through the designated red belt guides on the car seat and buckle it. Ensure the lap belt is low across the child's hips and the shoulder belt rests across the child's shoulder, not their neck.

Малюнак 3: бок view of the Cangaroo Galaxy i-Size car seat, illustrating the adjustable backrest and the ISOFIX attachment points.

3.2. 3-Point Seat Belt Installation (Without ISOFIX)

1. Position the Car Seat: Place the car seat on the desired vehicle seat, ensuring it sits flat and stable.
2. Route Seat Belt: Guide the vehicle's 3-point seat belt through the designated red belt guides on the car seat. Ensure the lap belt passes under the armrests and over the child's hips, and the shoulder belt passes through the shoulder guide near the child's shoulder.
3. Buckle Up: Fasten the vehicle's seat belt securely.
4. Праверце напружанне: Pull the shoulder belt to remove any slack. The car seat should be held firmly by the vehicle's seat belt.

Заўвага: Always ensure the vehicle's seat belt is not twisted and lies flat across the child and the car seat.

4. Інструкцыя па эксплуатацыі

4.1. Бяспека вашага дзіцяці

• Пасадзіце дзіцяці ў аўтакрэсла.
• Pull the vehicle's 3-point seat belt over your child and through the red belt guides on the car seat.
• Ensure the lap belt is positioned low across your child's pelvis, touching their thighs.
• Ensure the shoulder belt passes over your child's shoulder and across their chest, not their neck. Adjust the vehicle's headrest if necessary to position the shoulder belt correctly.
• Buckle the seat belt and pull any slack to ensure a snug fit.

4.2. Рэгуляванне спінкі

The backrest of the Cangaroo Galaxy i-Size car seat is designed to be foldable for convenience. To fold the backrest, locate the release mechanism (usually a lever or button) at the base of the backrest. Press or pull the mechanism and gently fold the backrest forward onto the seat base. This feature is useful for storage or when using the seat as a backless booster (ensure local regulations permit this use).

Малюнак 4: View of the Cangaroo Galaxy i-Size car seat with the backrest folded down, demonstrating its compact form for storage or transport.

5. Тэхнічнае абслугоўванне

5.1. Інструкцыі па ачыстцы

• Тканкавая вокладка: The fabric cover is removable and washable. Please refer to the care label on the cover for specific washing instructions (typically machine wash cold on a gentle cycle). Do not bleach, tumble dry, or iron.
• Пластыкавыя дэталі: Працярыце пластыкавыя дэталі аб'явайamp тканіна і мяккае мыла. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.
• Рамяні бяспекі: Wipe seat belts with a damp cloth. Do not remove or machine wash the vehicle's seat belt.

5.2. Захоўванне

When not in use, store the car seat in a clean, dry place away from direct sunlight and extreme temperatures. The foldable backrest allows for more compact storage.

6. Выпраўленне непаладак

• Аўтакрэсла адчуваецца свабодным пасля ўстаноўкі:
  • Ensure ISOFIX connectors are fully engaged (green indicators visible).
  • Push the car seat firmly against the vehicle's backrest.
  • Check that the vehicle's 3-point seat belt is routed correctly through all guides and pulled taut.
• Child's Seat Belt is Twisted or Not Snug:
  • Unbuckle and re-route the vehicle's seat belt, ensuring it lies flat and is not twisted.
  • Pull the shoulder belt to remove all slack after buckling.
• Backrest Does Not Fold:
  • Ensure the release mechanism is fully engaged.
  • Check for any obstructions preventing the backrest from folding.

If you encounter issues not listed here or require further assistance, please contact Cangaroo customer support.

7. Тэхнічныя характарыстыкі

8. Гарантыя і падтрымка

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Cangaroo products are manufactured to high-quality standards, and specific warranty terms may vary by region.

For technical support, spare parts, or any questions regarding your Cangaroo Galaxy i-Size car seat, please contact Cangaroo customer service or your authorized dealer. Contact details can typically be found on the manufacturer's official webна сайце або ў чэку аб куплі.
