TIDRADIO TD-G100 Nationwide 4G PoC Walkie Talkie Instruction Manual

1. Уводзіны

The TIDRADIO TD-G100 is a state-of-the-art 4G PoC (Push-to-Talk over Cellular) walkie talkie designed for nationwide communication. Utilizing cellular networks, it offers unlimited range wherever AT&T signal is available, providing clear and instant communication. This manual will guide you through the setup, operation, and maintenance of your TD-G100 device.

Выява: спераду view of the TIDRADIO TD-G100 walkie talkie, showcasinяго кампактны дызайн і дысплей.

2. Што ў скрынцы

Your TIDRADIO TD-G100 package includes the following items:

• TIDRADIO TD-G100 Walkie Talkie Unit(s)
• Зарадны кабель Type-C
• 2 x 12V Batteries (included)
• AT&T SIM Card (pre-installed, with 12 months complimentary data)
• Кіраўніцтва карыстальніка (гэты дакумент)

3. Прадукт скончыўсяview і элементы кіравання

Familiarize yourself with the physical components and controls of your TD-G100 walkie talkie.

Image: Diagram highlighting the key controls of the TD-G100, including Volume Control, PTT Button, Menu/Confirm, Groups list, Single Call, Power on/EXIT Button, Microphone, and Speaker.

• Рэгулятар гучнасці: Павярніце, каб наладзіць узровень выхаднога гуку.
• Кнопка PTT (Націсні і размаўляй): Press and hold to transmit your voice. Release to listen.
• Кнопка меню: Доступ да меню прылады.
• Кнопка ВЫХОД: Выхад з бягучага меню або функцыі.
• Кнопкі навігацыі: Выкарыстоўвайце для выбару опцый меню.
• Groups List Button: Quickly access your configured talk groups.
• Адзіная кнопка выкліку: Initiate a private call with a specific contact.
• Мікрафон: Speak into the microphone for clear transmission.
• Дакладчык: Audio output for incoming transmissions.
• Схаваная антэна: The device features an internal antenna for a compact design.
• Shock-Resistant Protection Bar: Provides enhanced durability.

4. Кіраўніцтва па наладцы

4.1 Усталёўка SIM-карты і акумулятара

The TD-G100 comes with a pre-installed AT&T SIM card. If you need to access or re-install the SIM card or battery, follow these steps:

Image: Illustration showing the pre-installed SIM cards in the TD-G100, highlighting the 1-year free data plan.

1. Open the Lock Buckle: Gently push the SIM card slot latch downward to open it.
2. Устаўце SIM-карту: Place the SIM card into the designated slot. Ensure correct orientation.
3. Close the Lock Buckle: Close the latch and gently push it upward to secure the SIM card.
4. Усталюйце акумулятар: Insert the provided 12V battery into its compartment.
5. Надзейная вечка батарэі: Замяніце крышку батарэйнага адсека і пераканайцеся, што яна надзейна замацавана.

4.2 Odmaster App Download and Account Registration

The Odmaster app is essential for managing your TD-G100, including adding friends, creating groups, and managing your data plan. You can download the app by scanning the QR codes below or searching in your device's app market.

Image: Screenshot of the Odmaster app activation tutorial, showing QR codes for Android and iOS app downloads.

• Спампаваць прыкладанне: Scan the QR code for your device's operating system (Android or iOS) or visit odmaster.tid-china.com/odmasterAppDownload.
• Зарэгістраваць уліковы запіс: Open the Odmaster app and register a new account using your phone number or email. You can log in without verification if using email.
• Дадаць сяброў: From the app's main interface, you can add friends by scanning their QR code or entering their Odmaster ID.
• Стварыць групу: Create new talk groups within the app. You can name your group and invite friends to join.

4.3 Binding TD-G100 to Odmaster App

To link your TD-G100 walkie talkie to your Odmaster account:

Image: Visual guide for binding the TD-G100 to the Odmaster app, showing the steps to scan the device's QR code.

1. Open Odmaster App: Navigate to the "Program" interface and click "Add Poc Radio".
2. Сканаванне QR -кода: On your TD-G100, power it on and locate the QR code displayed on the screen. Use the Odmaster app to scan this QR code.
3. Confirm Binding: Follow the on-screen prompts to confirm the binding. Once successful, your device will be listed in the app.
4. Add Groups to Device: From the app, select your bound TD-G100 and add the desired talk groups to it. This will enable communication through these groups on your device.

5. Operating Your TD-G100

5.1 Асноўныя камунікацыі

The TD-G100 supports Full Call, Single Call, and Group Call functions.

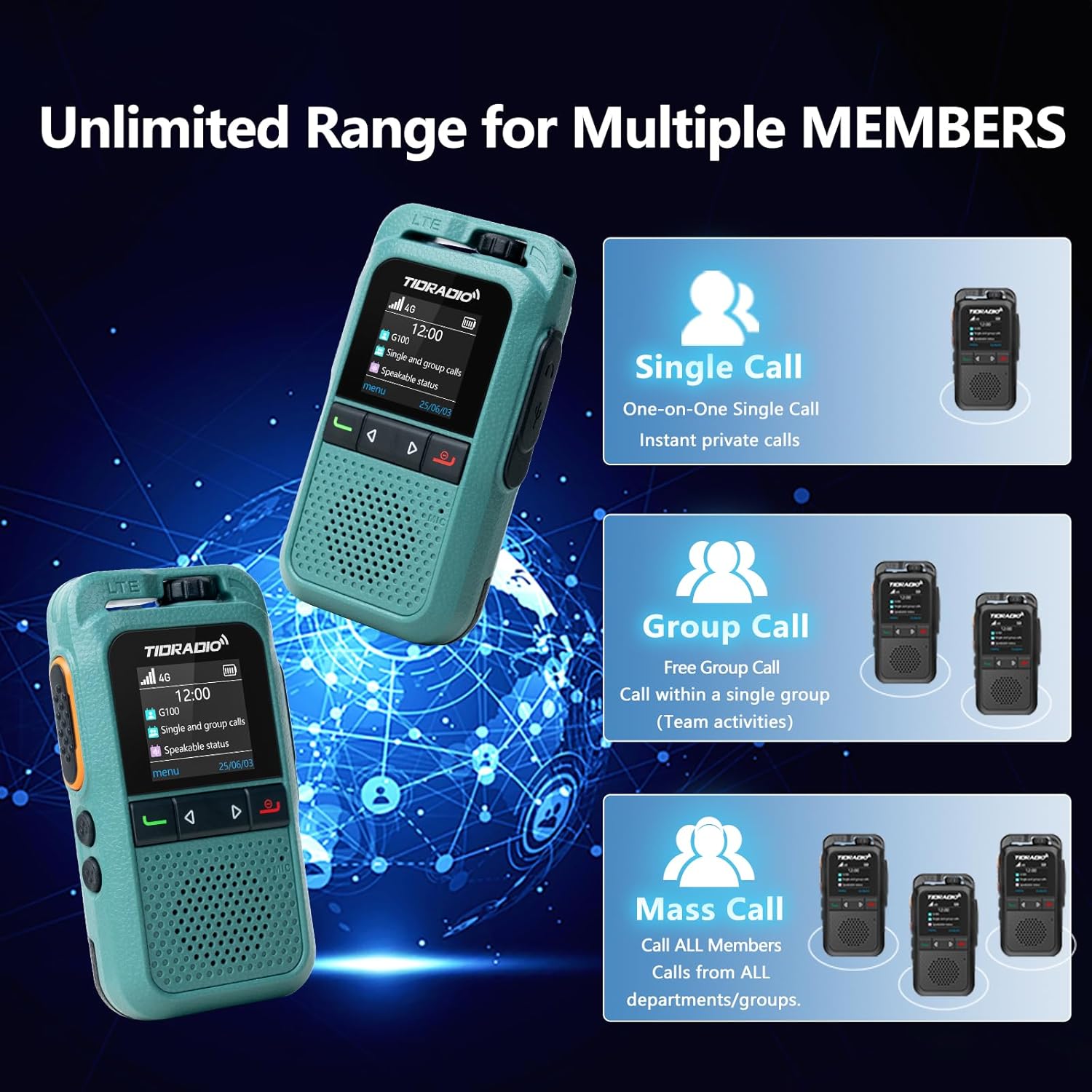

Image: Diagram illustrating the Single Call, Group Call, and Mass Call capabilities of the TD-G100.

• Full Call: To initiate a full call to all members in your current group, select the group using the Groups List button, then press and hold the PTT button to speak. Release to listen.
• Адзін званок: To make a private call, press the Single Call button, select the desired member from your contacts, then short press the PTT key to confirm. Press and hold the PTT key to speak.
• Групавы выклік: To communicate within a specific group, press the Groups List button, select the desired group, then press and hold the PTT button to speak.

5.2 Auto-Recording Function

The TD-G100 features an auto-recording function that captures all conversations within your groups. This ensures no important calls are missed and allows for reviewing chat history at any time.

Image: Visual representation of the auto-recording function, showing a walkie-talkie and a smartphone displaying chat history.

5.3 One-Click Auto-Update (OTA)

Your TD-G100 supports Over-The-Air (OTA) updates, allowing for seamless firmware optimizations and access to new features without needing a physical connection to a computer. This feature helps extend the device's life and ensures real-time parameter tuning.

Image: Graphic illustrating the OTA update process, emphasizing no computer is needed for effortless upgrades.

6. Тэхнічнае абслугоўванне

• Сыход за батарэяй: The 3000mAh battery provides approximately 24 hours of average use. Charge the device using the provided Type-C charging cable. Avoid overcharging or fully discharging the battery for extended periods to prolong its lifespan.
• Уборка: Для чысткі прылады выкарыстоўвайце мяккую сухую тканіну. Не выкарыстоўвайце агрэсіўныя хімікаты або абразіўныя ачышчальнікі.
• Воданепранікальнасць: The TD-G100 has an IP54 waterproof rating, meaning it is protected from dust and splashing water. Avoid submerging the device in water.
• Абнаўленні праграмнага забеспячэння: Regularly check for OTA updates through the Odmaster app to ensure your device has the latest features and performance improvements.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

9. Гарантыя і падтрымка

TIDRADIO is committed to providing the best communication experience. For any inquiries or support, please contact us.

• Гарантыя:
  • 30-day free return or replacement
  • 90-day quality warranty
  • Lifetime after-sales service & OTA updates
• Адрас электроннай пошты падтрымкі: support@tidradio.com

Image: A thank you message from TIDRADIO with their support email address.

10. Відэа ўрокі

For visual guidance on setting up and using your TD-G100, please refer to the official video tutorials below:
