1. Важная інфармацыя па бяспецы
Please read this manual thoroughly before operating your Jocoevol Pellet Smoker Grill. Failure to follow these instructions could result in property damage, bodily injury, or even death. Keep this manual for future reference.
- Толькі для вонкавага выкарыстання: Гэта прылада прызначана толькі для выкарыстання на вуліцы. Не выкарыстоўвайце яе ў памяшканні або ў закрытых памяшканнях.
- афармленне: Maintain a minimum distance of 10 feet (3 meters) from combustible materials.
- Электрабяспека: Ensure the power cord is not damaged and is connected to a grounded outlet. Do not operate in wet conditions.
- Pellet Fuel: Use only food-grade wood pellets. Do not use charcoal, lighter fluid, or other fuels.
- Гарачыя паверхні: The grill surfaces become extremely hot during operation. Use heat-resistant gloves and avoid direct contact.
- Дзеці і хатнія жывёлы: Keep children and pets away from the grill during operation and while it is cooling down.
2. Налада і зборка
Your Jocoevol Pellet Smoker Grill requires some assembly before first use. Follow these steps carefully.
2.1 Распакаванне і праверка
- Акуратна дастаньце ўсе кампаненты з упакоўкі.
- Праверце ўсе дэталі на наяўнасць пашкоджанняў. Калі якія-небудзь дэталі пашкоджаны або адсутнічаюць, не працягвайце зборку. Звярніцеся ў службу падтрымкі кліентаў.
- Retain packaging materials until assembly is complete and the grill is confirmed to be working correctly.
2.2 Інструкцыя па зборцы
Refer to the included assembly diagram for detailed steps. General assembly involves attaching the legs, wheels, side shelves, and internal components.
Малюнак 2.2.1: Выбухнуў view of the Jocoevol Pellet Smoker Grill, showing various components and their assembly points. This image illustrates the main body, hopper, control panel, legs, wheels, and side shelves.
2.3 Initial Burn-In Procedure
Before cooking food, perform an initial burn-in to remove any manufacturing oils or residues.
- Fill the pellet hopper with food-grade wood pellets.
- Падключыце грыль да заземленай электрычнай разеткі.
- Turn the grill on and set the temperature to 350°F (175°C).
- Allow the grill to run for at least 45 minutes.
- Turn off the grill and let it cool completely.
3. Інструкцыя па эксплуатацыі
Learn how to effectively use your Jocoevol Pellet Smoker Grill for various cooking methods.
3.1 Pellet Loading
The grill features a 20-lb (5.5 kg) pellet hopper. Ensure the hopper is adequately filled before starting a cook, especially for long smoking sessions.
Малюнак 3.1.1: The Jocoevol Pellet Smoker Grill with its hopper open, showing the wood pellets inside. The image also highlights the temperature control panel and the cooking area.
3.2 Уключэнне і кантроль тэмпературы
The grill uses advanced PID temperature control to maintain a consistent temperature range of 180-425°F (82-218°C).
- Ensure the grill is plugged in.
- Націсніце кнопку харчавання, каб уключыць грыль.
- Use the temperature dial to select your desired cooking temperature. The digital display will show the current internal temperature.
- Allow 10-15 minutes for the grill to reach the set temperature.
Малюнак 3.2.1: Падрабязны view of the Jocoevol Pellet Smoker Grill's control panel, featuring the temperature display, adjustment dial, and power switch. This panel allows precise temperature management.
3.3 Cooking Functions (6-in-1 Versatility)
Your Jocoevol grill offers multiple cooking functions:
- Курэнне: Use lower temperatures (180-225°F) for slow cooking and infusing rich wood-fired flavor.
- Грыль: Higher temperatures (350-425°F) are ideal for searing and grilling.
- Выпечка/запяканне: The consistent temperature control allows for baking and roasting various foods.
- Braising/BBQ: Achieve tender results with longer cooks at moderate temperatures.
Малюнак 3.3.1: The interior of the Jocoevol Pellet Smoker Grill, showcasing ribs, potatoes, and tomatoes cooking on the grates. Smoke is visible, indicating active smoking or grilling.
3.4 Выключэнне грылю
Always follow the proper shutdown procedure to ensure safety and longevity of your grill.
- Turn the temperature dial to the 'OFF' position or press the power button.
- The grill will enter a cool-down cycle, which typically takes 10-15 minutes. Do not unplug the grill during this cycle.
- Once the cool-down cycle is complete, the grill will automatically shut off. You can then unplug it.
4. Догляд і абслугоўванне
Regular cleaning and maintenance will ensure optimal performance and extend the life of your grill.
4.1 Ачыстка рашотак грылю
After each use, allow the grill to cool, then clean the enamel-coated grill grates with a grill brush. For stubborn residue, use warm soapy water.
4.2 Кіраванне тлушчам
The grill is equipped with a grease bucket to collect drippings. Regularly empty and clean the grease bucket to prevent flare-ups and maintain hygiene.

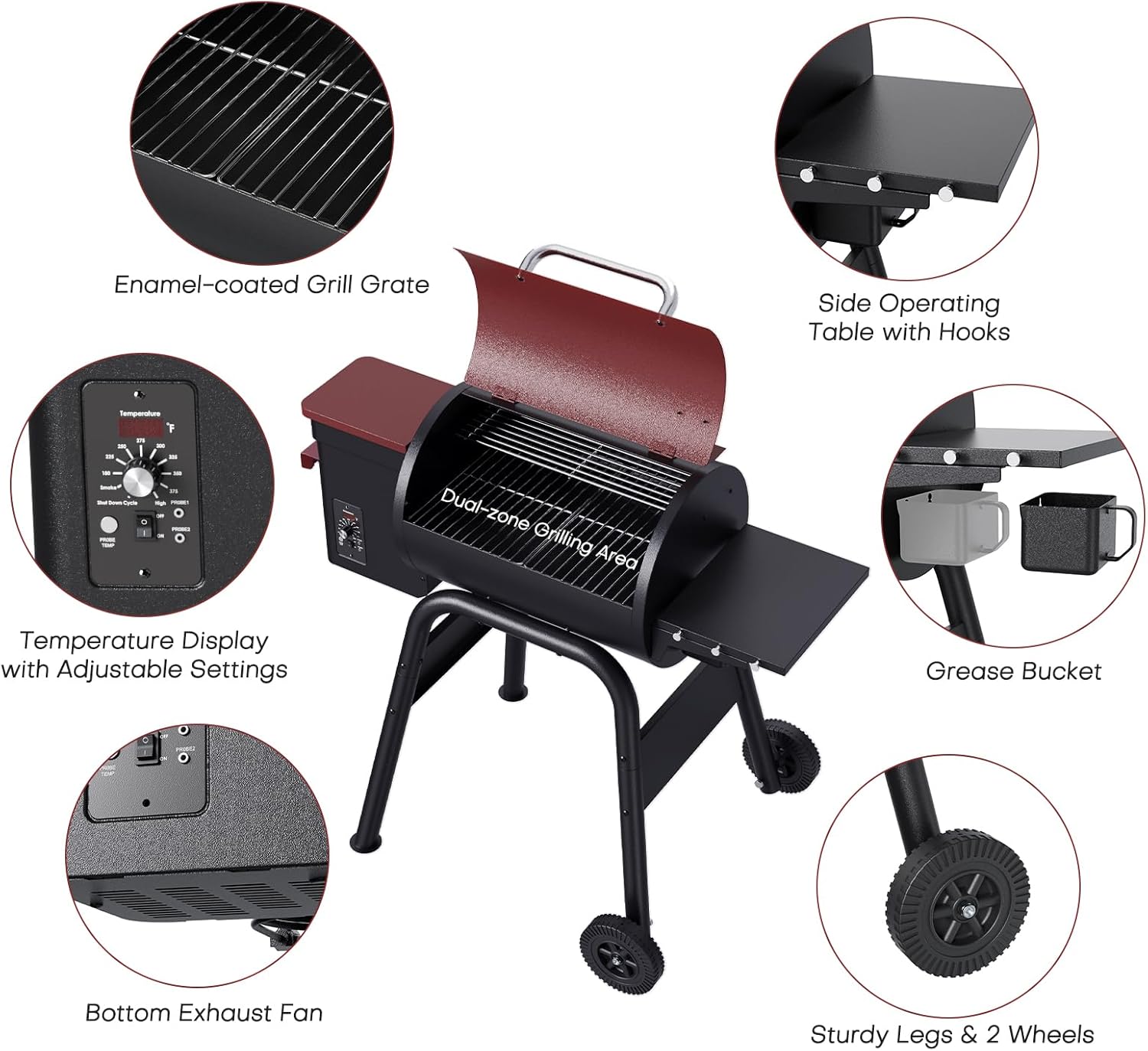

Малюнак 4.2.1: An image highlighting various features of the Jocoevol Pellet Smoker Grill, including a close-up of the grease bucket located on the side, designed for easy removal and cleaning.
4.3 Hopper Cleanout
If the grill will not be used for an extended period, it is recommended to empty the pellet hopper. Use the discharge port to release unused pellets into a bucket.
Малюнак 4.3.1: Буйны план view of the pellet hopper cleanout mechanism on the Jocoevol Pellet Smoker Grill. This feature allows for easy removal of unused pellets, preventing moisture absorption and extending pellet life.
4.4 Знешняя чыстка і захоўванне
Ачысціце знешні выгляд з дапамогай рэкламыamp cloth. For long-term storage, ensure the grill is clean, dry, and covered with the provided rain cover.
Малюнак 4.4.1: The Jocoevol Pellet Smoker Grill covered with its 420D waterproof Oxford fabric cover, demonstrating protection against water, UV, dust, and snow. This ensures durability and longevity for outdoor storage.
5. Кіраўніцтва па ліквідацыі непаладак
This section addresses common issues you might encounter with your pellet smoker grill.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Грыль не ўключаецца | No power, tripped breaker, faulty cord | Check power connection, reset breaker, inspect power cord for damage. |
| Нестабільная тэмпература | Low pellet level, dirty temperature probe, extreme weather | Ensure hopper is full, clean temperature probe, use grill in sheltered area if possible. |
| Няма дыму | No pellets, auger jam, igniter issue | Check pellet level, clear any auger obstructions, contact support if igniter is suspected. |
| Празмернае задымленне | Wet pellets, too much airflow restriction | Use dry pellets, ensure exhaust is clear. |
6. Тэхнічныя характарыстыкі прадукту
Detailed technical specifications for the Jocoevol Pellet Smoker Grill.
| Асаблівасць | Спецыфікацыя |
|---|---|
| Марка | Джакоэволь |
| Назва мадэлі | Курыльны грыль |
| Крыніца харчавання | Электрычны |
| Колер | Чырвоны |
| Знешні матэрыял | Нержавеючая сталь |
| Вага прадмета | 90 фунтаў (40.8 кг) |
| Памеры прадукту (Д х Ш х У) | 28.7" Г х 46.1" Ш х 40.5" В (72.9 см х 117.1 см х 102.9 см) |
| Тып паліва | Драўняныя гранулы |
| Кулінарыя | 456 кв. У. (2942 кв. см) |
| Дыяпазон кантролю тэмпературы | 180-425°F (82-218°C) |
| Ёмістасць бункера | 20 фунтаў (5.5 кг) |
Малюнак 6.1.1: Dimensional drawing of the Jocoevol Pellet Smoker Grill, illustrating its overall height, width, and depth, along with key component measurements for planning placement.
7. Гарантыя і падтрымка кліентаў
For any questions, concerns, or warranty claims, please contact Jocoevol customer support.
7.1 Палітыка вяртання
This product is eligible for a 30-day return policy (refund/replacement) from the date of purchase. Please refer to your retailer's specific return guidelines.
7.2 Кантактная інфармацыя
For assistance, please visit the official Jocoevol store or contact their customer service department. Keep your purchase receipt and product model information (Smoker Grill, ASIN: B0GRZJW3DH) handy when contacting support.
