1. Прадукт скончыўсяview
The FLUENTPOWER FSP65035DWB is a robust 3/4 HP submersible sewage effluent pump designed for efficient water transfer in residential applications. Constructed from durable cast iron, this pump features a non-clogging vortex impeller capable of handling solids up to 1.4 inches. It includes an automatic vertical float switch for reliable operation and is suitable for use in basements, septic basins, outdoor storage tanks, and sewers.

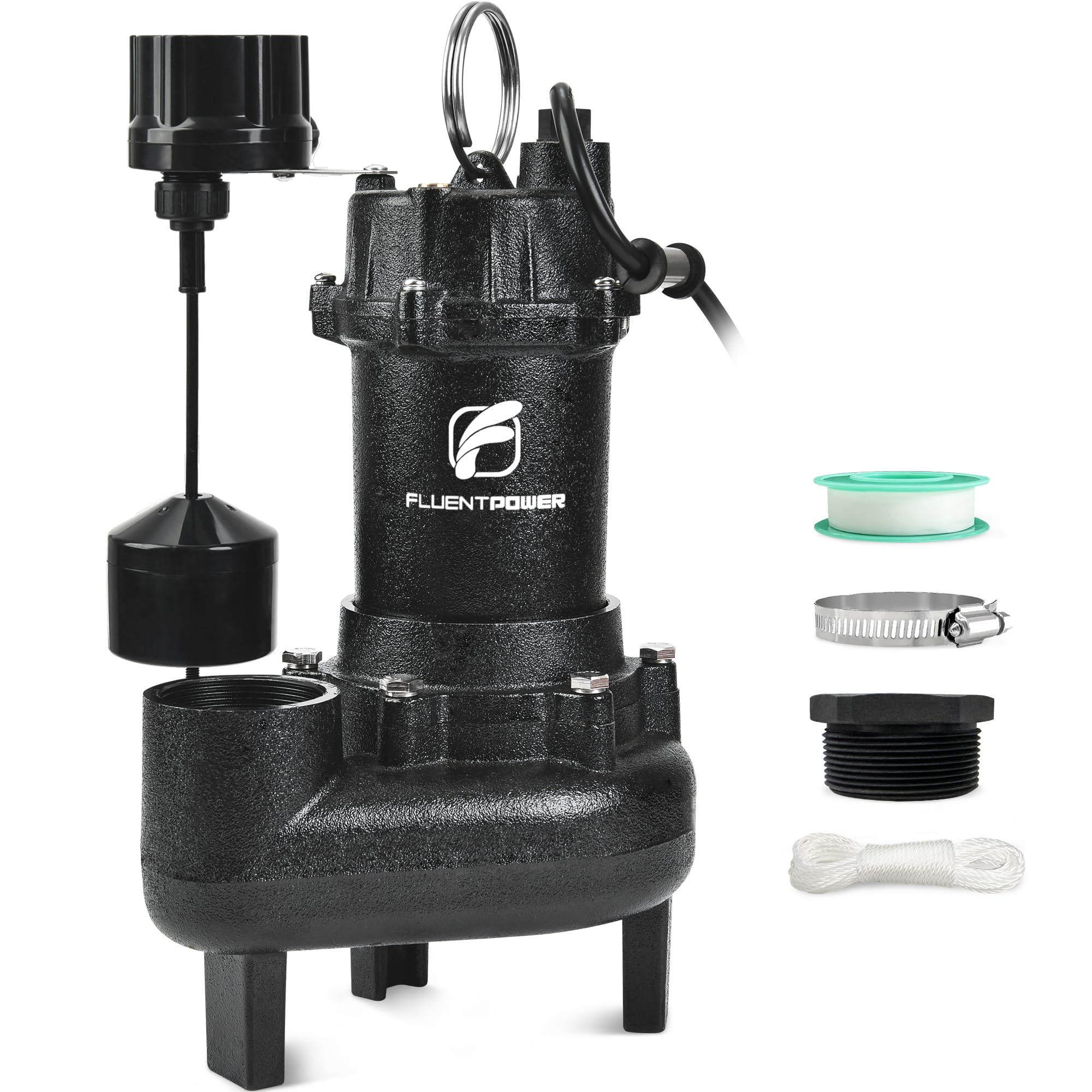

Image 1.1: FLUENTPOWER FSP65035DWB Sewage Effluent Pump.
2. Інфармацыя па бяспецы
Read and understand all safety instructions before operating the pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Электрабяспека: Always connect the pump to a grounded outlet. A Ground Fault Circuit Interrupter (GFCI) outlet is strongly recommended for enhanced safety. Ensure the power cord is free from damage.
- Апусканне ў ваду: The pump must be fully immersed in water during operation to prevent overheating and damage. Do not allow the pump to run dry.
- Сумяшчальнасць з вадкасцю: Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, or ethanol. This pump is designed for water and sewage effluent only.
- Апрацоўка: Do not lift the pump by the power cord. Use the integrated metal ring and the provided nylon rope for lifting and lowering the pump.
- Тэхнічнае абслугоўванне: Do not dismantle the motor casing. This can lead to oil leaks or hazardous electrical wiring issues. Refer to qualified personnel for internal repairs.
- Зазор паплаўкавага выключальніка: Ensure there is sufficient space for the float switch to move freely, allowing for proper automatic operation.
Image 2.1: Visual safety guidelines for pump usage.
3. Асаблівасці прадукту
- Магутны рухавік: Equipped with a 3/4 HP motor, ensuring efficient water transfer up to 5000 GPH.
- Трывалая канструкцыя: Features a full corrosion-resistant rugged cast iron casing for extended durability.
- Non-Clogging Impeller: Reinforced engineered vortex impeller designed to pass solids up to 1.4 inches without clogging.
- Абарона ад цеплавой перагрузкі: Built-in automatic thermal overload protection prevents motor burnout. The pump will automatically restart after cooling down if triggered.
- Automatic & Manual Operation: Can operate automatically via the vertical float switch or manually by plugging/unplugging the pump directly.
- Вертыкальны паплаўковы выключальнік: External mechanical float switch automatically turns the pump on and off based on water levels.
4. Тэхнічныя характарыстыкі
Image 4.1: Technical specifications of the pump.
| Спецыфікацыя | Каштоўнасць |
|---|---|
| Нумар мадэлі | FSP65035DWB |
| Магутнасць | 3 / 4 HP |
| Максімальны расход | 5000 GPH (84 галонаў у хвіліну) |
| Максімальная вышыня ўздыму | 21 футаў |
| Maximum Solid Size | 1.4 цалі |
| Матэрыял | Чыгун |
| Памер разраду | 2" NPT |
| Крыніца харчавання | Правадная электрычная |
| тtage | 110 вольт |
| Вага прадмета | 25 фунта |
| Памеры прадукту (Д х Ш х У) | 10.8" x 8.5" x 17.1" |
| Даўжыня шнура сілкавання | 10 футаў |
| Тэмпература працоўнай вады | 32-95°F |
5. Уключаныя кампаненты
The FLUENTPOWER FSP65035DWB pump package includes the following items:
- FLUENTPOWER Sewage Effluent Pump
- Vertical Mechanical Float Switch with Piggy-back Plug
- 10 ft UL Power Cable
- Hose Fitting (2" to 1.5" adapter)
- 26 ft Nylon Rope for lifting
- Tread Seal Tape
- Mounting Bracket for Float Switch (for pump and pipe mounting)
- Four Screws for mounting
Image 5.1: Included components.
6. Настройка і ўстаноўка
Follow these steps for proper installation of your FLUENTPOWER sewage effluent pump:
- Падрыхтуйце зліўную яму: Ensure the sump pit has a minimum diameter of 13 inches to allow for proper pump and float switch operation. The maximum operating depth is 8 feet.
- Attach Discharge Pipe: Select the appropriate adapter (2" NPT or 1.5" with adapter) and securely attach your discharge hose or PVC pipe to the pump's outlet. Use the provided tread seal tape for a watertight connection.
- Усталюйце зваротны клапан: It is recommended to install a check valve (not included) at the outlet pipe to prevent backflow of water into the sump pit.
- Float Switch Installation: The vertical float switch can be fixed on the pump or on the discharge pipe using the provided mounting brackets. Adjust the float switch to your desired ON/OFF water levels. Ensure the float switch can move freely without obstruction.
- Апусціце помпа: Carefully lower the pump into the sump pit using the 26 ft nylon rope attached to the metal ring on top of the pump. Ensure the pump rests on a stable, level surface at the bottom of the pit. Do not use the power cord to lower or retrieve the pump.
- Электрычнае падключэнне: Plug the pump's power cord into the piggy-back plug of the float switch. Then, plug the float switch's plug into a grounded GFCI outlet.
Image 6.1: Automatic operation setup in a sump pit.
Image 6.2: Connection, submersion, and power-on steps.
Image 6.3: Vertical float switch details.
Video 6.1: Demonstration of the FLUENTPOWER Cast Iron Sewage Effluent Pump with its float switch.
Video 6.2: Installation and testing of the FLUENTPOWER 3/4HP 5000GPH Sewage Effluent Cast Iron Pump.
7. Інструкцыя па эксплуатацыі
The FLUENTPOWER FSP65035DWB pump offers both automatic and manual operation modes:
- Аўтаматычная праца: When the pump is connected via the piggy-back plug to the vertical float switch, it will automatically turn on when the water level rises and lifts the float switch. It will turn off when the water level drops and the float switch returns to its lower position.
- Кіраванне ўручную: To operate the pump manually, unplug the pump's power cord from the float switch's piggy-back plug and plug the pump's power cord directly into a grounded GFCI outlet. The pump will run continuously until unplugged. Увага: Do not allow the pump to run dry in manual mode.
Image 7.1: Applicable scenarios for the sewage effluent pump.
8. Тэхнічнае абслугоўванне
Рэгулярнае тэхнічнае абслугоўванне забяспечвае даўгавечнасць і аптымальную прадукцыйнасць вашага помпы:
- Рэгулярны агляд: Periodically inspect the pump, power cord, and float switch for any signs of damage, wear, or debris accumulation.
- Чыстае крыльчатка: If the pump's performance decreases, disconnect power and inspect the impeller for any obstructions. Clear any debris carefully.
- Keep Submerged: Always ensure the pump remains fully submerged in water during operation to prevent motor damage from overheating.
- Зімоўка: In freezing climates, remove the pump from the pit before winter to prevent ice damage. Clean and store it in a dry, frost-free location.
9. Выпраўленне непаладак
Before attempting any troubleshooting, always disconnect the pump from the power source.
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Помпа не запускаецца | No power; Float switch stuck; Thermal overload activated; Clogged impeller. | Check power supply/GFCI; Ensure float switch moves freely; Allow pump to cool down; Inspect and clear impeller. |
| Помпа працуе, але вада не паступае | Air lock; Clogged discharge pipe; Impeller damaged. | Ensure pump is fully submerged; Check for kinks or blockages in the discharge pipe; Inspect impeller for damage. |
| Занадта часта цыклы помпаў | Float switch adjustment; Check valve issue; Water backflowing. | Adjust float switch settings; Inspect or install a check valve; Check for leaks in the discharge system. |
10. Гарантыя і падтрымка
FLUENTPOWER provides a 1-year warranty for this product, ensuring quality and reliability. We are committed to offering lifelong professional technical consultation and 24-hour customer service to assist you with any inquiries or issues.
For technical support or warranty claims, please contact FLUENTPOWER customer service through the retailer where the product was purchased or visit the official FLUENTPOWER webсайт.
