Hangrui D102 Instant Print Children's Camera User Manual

Уводзіны

This manual provides detailed instructions for the safe and effective use of your Hangrui D102 Instant Print Children's Camera. Please read this manual thoroughly before operating the device and retain it for future reference. The Hangrui D102 is designed to allow children to capture photos and print them instantly without ink, offering a fun and interactive photography experience.

Прадукт скончаныview

Асноўныя характарыстыкі

Instant ink-free black and white photo printing.
2.4-inch display screen.
1080P video recording capability.
10 -кратны лічбавы зум.
Time-lapse and continuous shooting functions.
MP3 playback function.
Integrated fun comic frames, mirror effects, and color filters.
Includes a 32GB memory card for digital storage.
Built-in 1300 mAh rechargeable battery with USB-C fast charging.

Кампаненты камеры

Familiarize yourself with the camera's main components as shown in the diagram below.

Hangrui D102 Instant Print Camera with labels for 2.4 inch screen, print photo, selfie mode, 1080P video, multi funny frame, 10x zoom, music player, time lapse, burst shooting, and free 32G card. Dimensions are also shown: 4.02 inches width, 3.94 inches height, 2.17 inches depth.

Выява: Зверхуview of the Hangrui D102 Instant Print Children's Camera, highlighting its features and dimensions.

Кнопка харчавання: Уключае/выключае камеру.
Кнопка спуску затвора/ОК: Takes photos, confirms selections.
Кнопкі навігацыі (Уверх/Уніз/Улева/Управа): Used for menu navigation and zoom control.
Кнопка меню: Accesses camera settings and modes.
Выхадны слот для друку: Дзе з'яўляюцца друкаваныя фатаграфіі.
Аб'ектыў: Camera lens for capturing images and videos.
Экран дысплея: 2.4-цалевы экран для viewing photos, videos, and menus.
Порт USB-C: Для зарадкі і перадачы дадзеных.
Слот для карты MicroSD: Для ўстаўкі карты памяці.

Настройка

1. Зарадка камеры

Before first use, fully charge the camera battery. Connect the included USB-C cable to the camera's USB-C port and the other end to a compatible USB power adapter (not included) or a computer's USB port. The charging indicator light will typically show the charging status and turn off or change color when fully charged. A full charge provides hours of operation.

2. Устаўка карты MicroSD

The camera comes with a 32GB MicroSD card. Locate the MicroSD card slot on the camera. Gently insert the MicroSD card with the gold contacts facing down until it clicks into place. To remove, push the card in again until it springs out.

3. Загрузка паперы для друку

The camera uses special thermal printing paper. Follow these steps to load a new roll:

Адкрыйце вечка аддзялення для паперы на камеры.
Insert a new roll of printing paper, ensuring the paper feeds out from the top of the roll.
Pull a small length of paper out of the compartment and close the cover, making sure the paper protrudes through the print output slot.

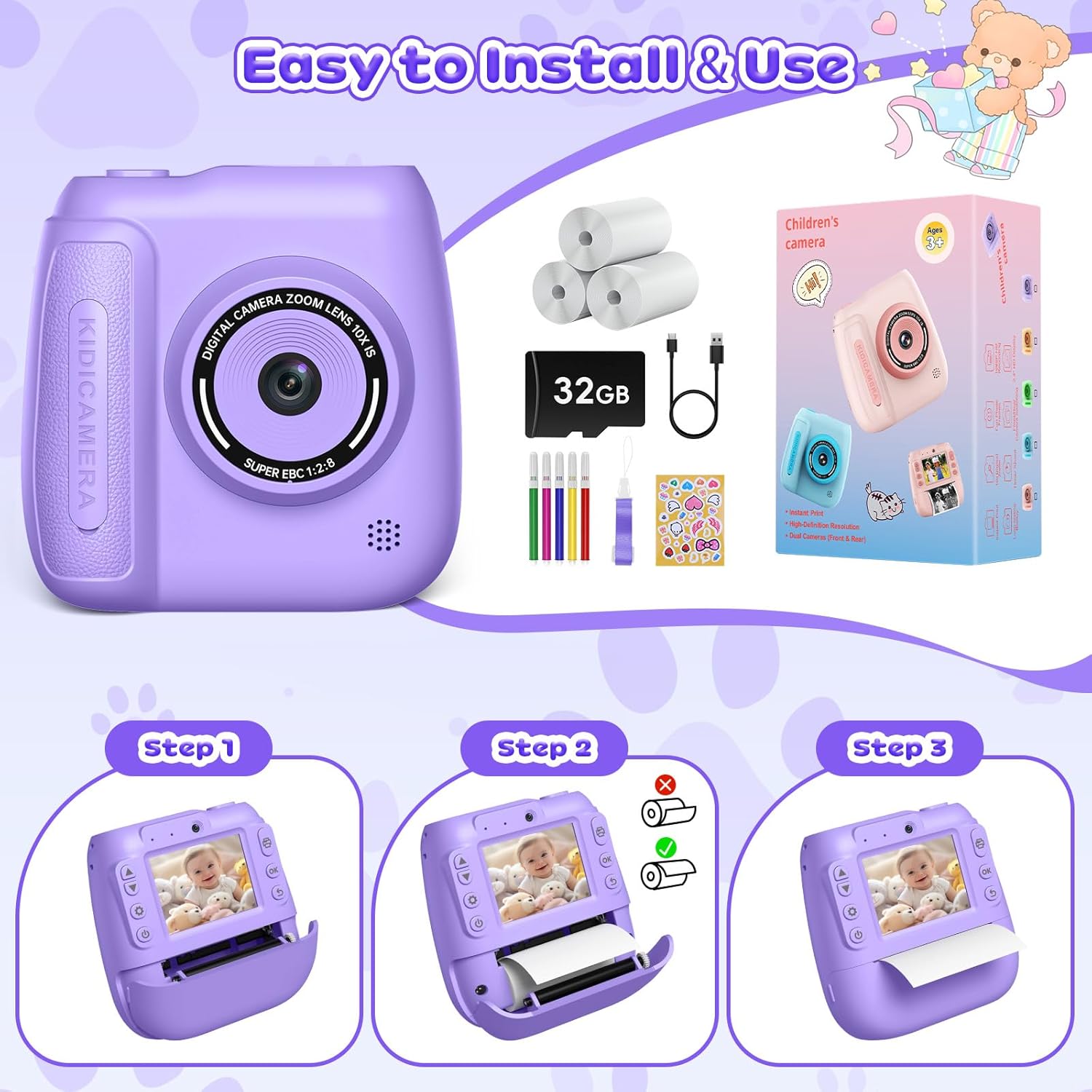

Three steps showing how to load printing paper into the Hangrui D102 camera. Step 1: Open the paper compartment. Step 2: Insert the paper roll with the paper end coming out. Step 3: Close the compartment with the paper protruding.

Image: Step-by-step guide for loading printing paper into the camera.

Інструкцыя па эксплуатацыі

1. Уключэнне/выключэнне харчавання

Press and hold the Power button for a few seconds to turn the camera on or off.

2. Taking Photos and Instant Printing

Turn on the camera. It will typically start in photo mode.
Скампануйце здымак з дапамогай экрана дысплея.
Націсніце кнопку спуску затвора/ОК, каб зрабіць фотаздымак.
The camera will automatically print the photo immediately after capture.

A child drawing on a freshly printed black and white photo from the Hangrui D102 camera, with other printed photos scattered around.

Малюнак: Example of printed photos from the camera, ready for coloring or decoration.

3. Запіс відэа

Navigate to video mode using the Menu button and navigation controls.
Press the Shutter/OK button to start recording. A recording indicator will appear on the screen.
Press the Shutter/OK button again to stop recording.

4. Лічбавы зум

In photo or video mode, use the Up/Down navigation buttons to adjust the digital zoom level (up to 10x).

5. Time-Lapse and Burst Shooting

Access these functions through the camera's menu settings.
Пакадравая здымка: Set a delay (e.g., 3s, 5s, 10s) before a photo is taken, allowing time to get into position.
Стрэльба: Capture multiple photos in quick succession with a single press of the shutter button.

Four panels illustrating camera functions: Video Recording with children, Time Lapse with a dog and child, 10X Zoom showing progressive zoom levels on a child's face, and Burst Shooting showing three sequential photos of a child.

Image: Demonstrations of video recording, time-lapse, 10x zoom, and burst shooting features.

6. Рэжым сэлфі

The camera supports a selfie mode, allowing users to easily take self-portraits. Use the front-facing lens and the display screen to compose your shot.

A child holding the Hangrui D102 camera to take a selfie, with an inset showing the camera's front lens and a graphic indicating 32G card storage and instant printing.

Image: The camera being used in selfie mode, highlighting its front lens and instant print capability.

7. Frames and Filters

Enhance your photos with various built-in comic frames, mirror effects, and color filters. These options can be selected through the camera's menu before taking a photo.

Collage showing various funny frames and photo filters available on the Hangrui D102 camera, applied to children's photos.

Малюнак: Examples of creative frames and filters that can be applied to photos.

8. MP3 Function

The camera supports MP3 playback. Transfer MP3 files to the MicroSD card. Access the MP3 player through the camera's main menu to play music.

Тэхнічнае абслугоўванне

Чыстка камеры

Выкарыстоўвайце мяккую, сухую тканіну для чысткі корпуса камеры.
For the lens and screen, use a specialized lens cleaning cloth to avoid scratches. Do not use liquid cleaners directly on the lens or screen.
Перад чысткай пераканайцеся, што камера выключана.

Сыход за батарэяй

Charge the camera regularly, even if not in frequent use, to maintain battery health.
Avoid exposing the camera to extreme temperatures, which can affect battery performance and lifespan.

Захоўванне

When not in use, store the camera in a cool, dry place away from direct sunlight and moisture. Use the included lanyard to prevent accidental drops.

Ліквідацыю непаладак

праблема	Магчымая прычына	Рашэнне
Камера не ўключаецца.	Акумулятар разраджаны.	Charge the camera using the USB-C cable.
Photos are too dark or unclear.	Недастатковыя ўмовы асвятлення.	Ensure adequate lighting when taking photos. The camera performs best in well-lit environments.
Фотаздымкі не друкуюцца.	No printing paper loaded or paper jam.	Check if printing paper is correctly loaded. Open the paper compartment and ensure there are no obstructions.
Паведамленне пра памылку «Картка поўная».	MicroSD card storage is full.	Transfer photos/videos to a computer and delete them from the card, or replace the MicroSD card.
Камера завісае або перастае рэагаваць.	Праграмны збой.	Press and hold the Power button for 10-15 seconds to force a restart. If the issue persists, ensure the battery is charged.

Тэхнічныя характарыстыкі

Назва мадэлі	D102
Марка	Хангруй
Экран дысплея	2.4 цаляў
Дазвол відэа	1080P
Лічбавы зум	10x
Ёмістасць батарэі	1300 мАг
Захоўванне	MicroSD card (32GB included)
Памеры прадукту (Д х Ш х У)	5.5 х 10 х 10 см (прыблізна 2.17 х 3.94 х 3.94 цалі)
Вага прадмета	380 грам
Асаблівасці	Time-lapse, Continuous Shooting, MP3 Function

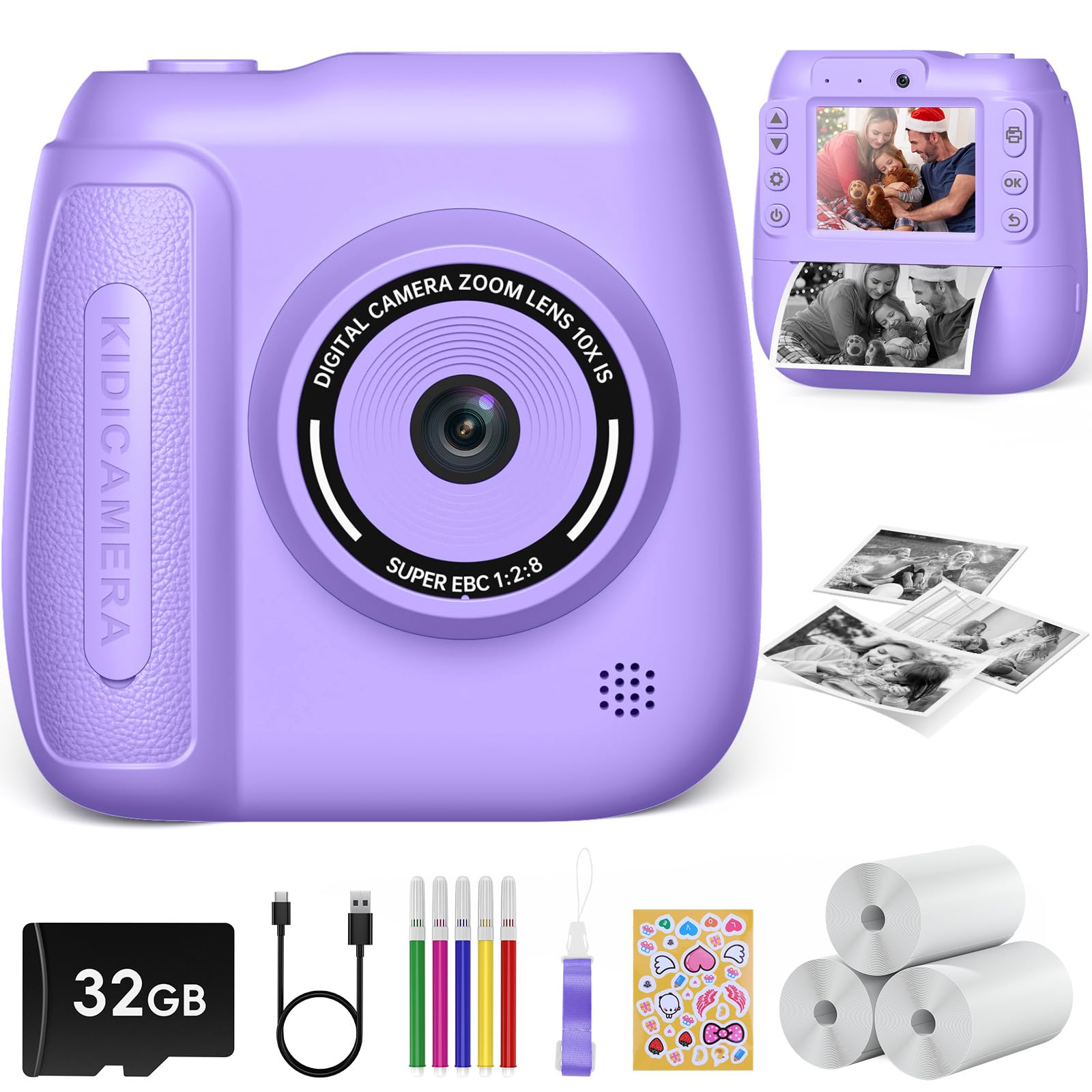

Уключаныя кампаненты	Camera Body, 32GB MicroSD Card, 3 Printing Paper Rolls, USB-C Cable, Lanyard, 5 Color Pens

Гарантыя і падтрымка

Specific warranty information is not provided in the product details. For warranty claims or technical support, please contact the retailer or the manufacturer, Hangrui, directly. Please retain your proof of purchase for any warranty-related inquiries.
