ALITOVE 12V 5A Power Supply Adapter Instruction Manual

1. Уводзіны

This manual provides essential information for the safe and effective use of your ALITOVE 12V 5A 60W Universal Regulated Switching Power Supply Adapter. Please read these instructions carefully before installation and operation. This power supply is designed to convert AC 110V/220V to DC 12V, suitable for various applications such as LED strip lights, 3D printers, CCTV cameras, and other 12V devices requiring up to 5 Amps.

2. Інфармацыя па бяспецы

• Толькі для выкарыстання ў памяшканні: This power supply is designed for indoor use in dry environments. Do not expose to water, moisture, or high humidity.
• Высокі кнtage: Агрэгат змяшчае высокі абtage components. Do not remove the cover. Servicing should only be performed by qualified personnel.
• Правільная вентыляцыя: Ensure adequate airflow around the unit. The metal case with ventilation holes is designed for efficient heat dissipation. Do not block these holes.
• Абарона ад перагрузкі: The power supply features automatic overload cut-off, over-voltage cut-off, automatic thermal cut-off, and short circuit protection. However, it is recommended to use a power supply with an amperage rating higher than your actual load requirements to ensure longevity and stable operation.
• Праводка: All wiring should be performed by a qualified electrician or knowledgeable individual following local electrical codes. Ensure all connections are secure.
• Fused Power Cord: For added safety, consider using a fused power cord safety switch with the power supply.

Выява: зверху ўніз view of the power supply showing the 'CAUTION! HIGH VOLTAGE' warning label.

3. Прадукт скончыўсяview

The ALITOVE 12V 5A Power Supply Adapter is a compact and efficient unit designed for various low-voltage DC applications. It provides a stable 12V DC output with a maximum current of 5 Ampс (60 Вт).

Асноўныя характарыстыкі:

• Уваходны кнtage: AC 110V/220V (selectable, typically auto-sensing or switchable, refer to unit label).
• Выхад Voltage: DC 12V (adjustable by 10%).
• Выхадны ток: 5 Amps максімум.
• Выходная магутнасць: 60 Вт.
• Аховы бяспекі: Перагрузка, перагрузкаtage, thermal, and short circuit protection.
• Астуджэнне: Fanless design for silent operation, relying on the perforated metal case for heat dissipation.

Кампаненты:

• AC Input Terminals (L, N): For connecting the AC power source.
• Ground Terminal (⏚): For connecting to earth ground for safety.
• DC Output Terminals (V-, V+): For connecting to your 12V DC device. V- is negative, V+ is positive.
• тtage Adjustment Potentiometer (+V ADJ): A small screw-adjustable component to fine-tune the output voltage within a 10% range.
• Светлавы індыкатар: Illuminates when the unit is powered on and operating.

Выява: Крупны план view of the terminal block on the power supply, clearly labeling AC input (L, N), Ground, DC output (V-, V+), and the voltage adjustment potentiometer (+V ADJ).

4. Інструкцыі па ўсталёўцы

Follow these steps to safely set up your ALITOVE power supply:

1. Мантаж: Securely mount the power supply in a well-ventilated area using the integrated mounting tabs. Ensure it is away from flammable materials and sources of heat or moisture.
2. Уваходнае злучэнне пераменнага току: Connect your AC power source (110V or 220V) to the 'L' (Live) and 'N' (Neutral) terminals. Use appropriate gauge wiring for your region and load.
3. Earth Ground Connection: Connect the earth ground wire from your AC source to the terminal marked with the ground symbol (⏚). This is crucial for safety.
4. DC Output Connection: Connect your 12V DC device to the 'V+' (positive) and 'V-' (negative) terminals. Ensure correct polarity to prevent damage to your device.
5. Праверка злучэнняў: Double-check all wiring connections for tightness and correct polarity before applying power. Loose connections can cause overheating or malfunction.
6. Пачатковы тtage Check (Optional but Recommended): Before connecting your sensitive device, you may wish to power on the unit and use a multimeter to verify the output voltage at the V+ and V- terminals.

Заўвага: Калі ваша адзінка мае абtage selector switch (110V/220V), ensure it is set correctly for your local mains voltage before connecting AC power.

5. Інструкцыя па эксплуатацыі

Once properly set up, operating the power supply is straightforward:

1. Уключэнне: Apply AC power to the unit. The indicator light should illuminate, signifying that the power supply is active.
2. тtage Рэгуляванне: If your application requires a precise 12V output or a slightly different voltage within the 10% adjustment range, use a small screwdriver to carefully turn the potentiometer labeled '+V ADJ'. Turn clockwise to increase voltage, counter-clockwise to decrease. Monitor the output with a multimeter during adjustment.
3. Маніторынг: The power supply is designed for continuous operation within its specified limits. Ensure the connected load does not exceed 5 Ampс або 60 Вт.
4. Выключэнне: Disconnect the AC input power when the unit is not in use or when performing maintenance.

Image: Close-up of the voltage adjustment potentiometer (+V ADJ) on the power supply circuit board.

6. Тэхнічнае абслугоўванне

The ALITOVE power supply requires minimal maintenance:

• Уборка: Перыядычна працірайце знешнія паверхні прылады сухой мяккай тканінай. Не выкарыстоўвайце вадкія ачышчальнікі або растваральнікі.
• Вентыляцыя: Ensure the ventilation holes on the metal casing remain clear of dust and debris to maintain optimal heat dissipation.
• агляд: Regularly inspect the wiring for any signs of damage, fraying, or loose connections. Address any issues promptly.
• Няма частак, якія абслугоўваюцца карыстальнікам: Не спрабуйце адкрываць блок харчавання casing. There are no user-serviceable parts inside, and opening the unit voids the warranty and poses a shock hazard.

Image: Diagram illustrating airflow through the perforated metal casinг для адводу цяпла.

7. Выпраўленне непаладак

Калі ў вас узніклі праблемы з блокам харчавання, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:

If troubleshooting steps do not resolve the issue, please contact ALITOVE customer support or your seller for assistance.

8. Тэхнічныя характарыстыкі

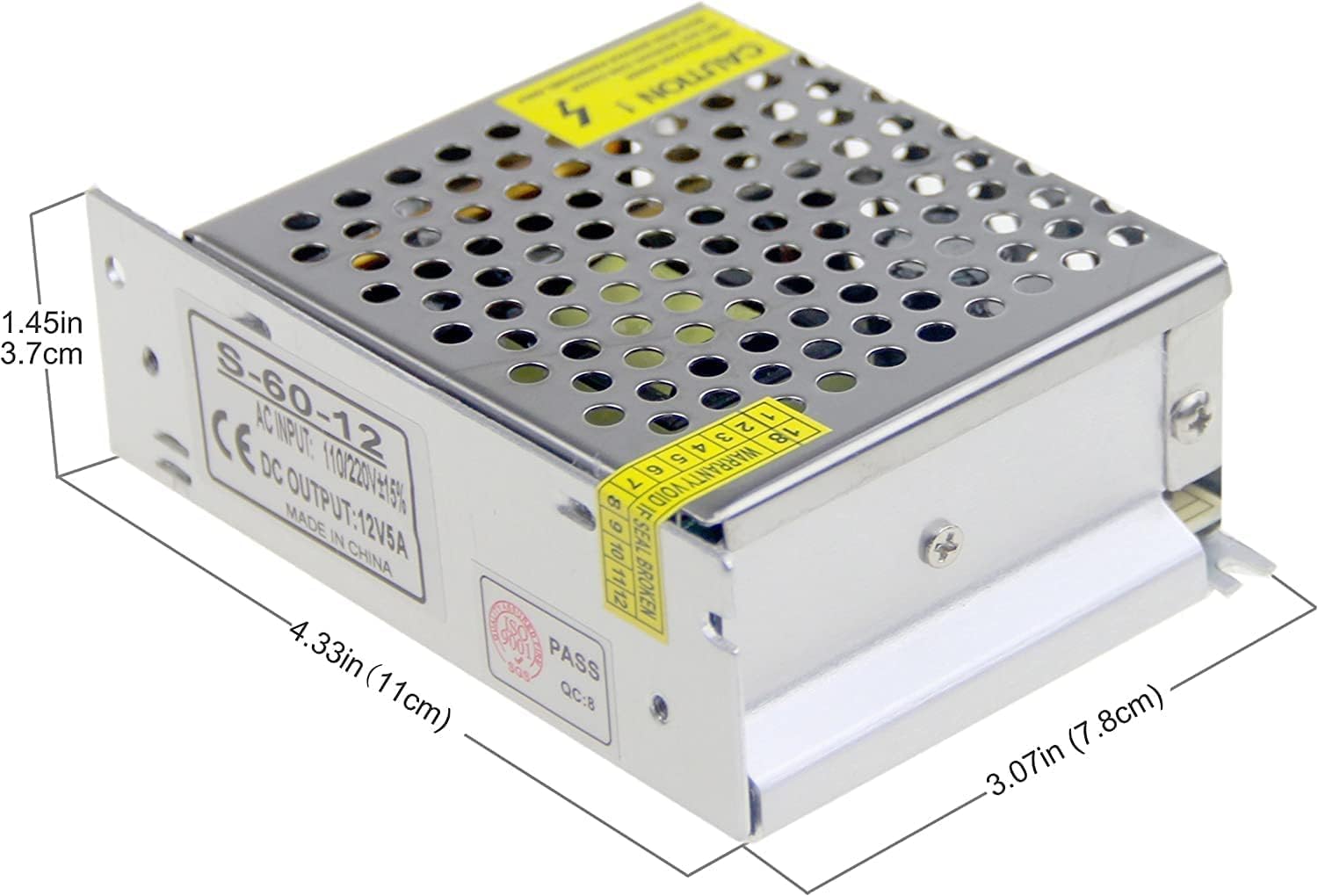

Image: Diagram showing the physical dimensions of the ALITOVE 12V 5A Power Supply.

9. Гарантыя і падтрымка

Гарантыя:

This ALITOVE power supply comes with a Гарантыя 24 месяцаў from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, unauthorized modification, improper installation, or external factors such as power surges or environmental damage.

Падтрымка кліентаў:

For technical assistance, warranty claims, or any questions regarding your ALITOVE power supply, please contact the seller through your purchase platform or visit the official ALITOVE website for contact information. When contacting support, please have your product model (ALT-1205T) and purchase details ready.
