The SMALLRIG LP-E6P Dual Slot Camera Battery Charger (Model 5490) is designed for efficient and safe charging of Canon LP-E6 series batteries. This manual provides essential information for proper setup, operation, maintenance, and troubleshooting of your charger.
Прадукт скончаныview
This charger features a dual-slot design, allowing for simultaneous or individual charging of two batteries. It supports rapid charging, capable of fully recharging two LP-E6NH batteries in approximately 2 hours. The charger is equipped with a universal 22.5W USB-C input port, offering versatile charging options via wall adapters, car chargers, or portable power banks. An intuitive LED display provides real-time battery level indication for each charging slot. Advanced safety features, including over-temperature and over-voltage protection, ensure battery health and longevity. Its compact and lightweight design makes it ideal for travel.
Image: The SMALLRIG LP-E6P Dual Slot Camera Battery Charger.
Настройка
- Падключыце харчаванне: Use the provided USB-C to USB-C cable to connect the charger to a power adapter with 22.5W or higher output.

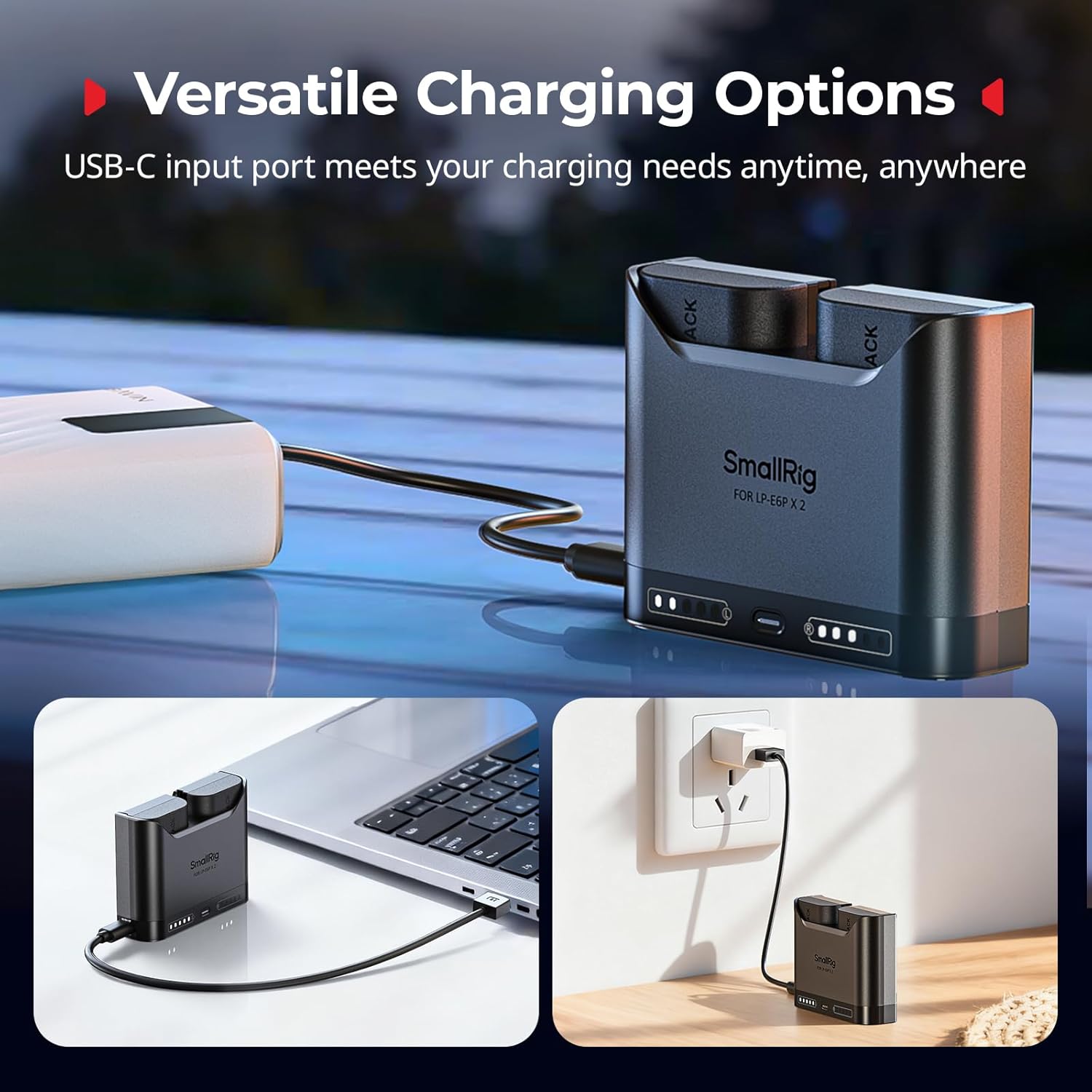

Image: The charger can be powered via various USB-C sources, including wall adapters, laptops, and power banks.
Важная заўвага:
- A power adapter with 22.5W or higher output is recommended for optimal performance.
- Not compatible with 5V / 1A power adapters.
- When using a 5V / 2.4A adapter, the charger operates in slow-charge mode, prioritizing Channel 1 first, then automatically switching to Channel 2 once Channel 1 is fully charged.
- Устаўце батарэі: Gently insert compatible Canon LP-E6 series batteries into the charging slots. Ensure proper alignment with the contacts.
Image: Two LP-E6P batteries inserted into the dual-slot charger.
Інструкцыя па эксплуатацыі
- Працэс зарадкі: The charger supports simultaneous charging of two batteries. The LED indicators will illuminate to show the charging status.
Image: The charger can fully recharge two LP-E6NH batteries in approximately 2 hours.
- Святлодыёдны дысплей харчавання: Each charging slot features 5 LED indicators.
- Press the power display button to check the battery level when not connected to a power source.
Выява: Падрабязная view of the LED indicators and power display button.
Статус святлодыёднага індыкатара:
- 0-10%: 1 red LED (steady)
- 10-20%: 1 white LED
- 20-40%: 2 white LEDs
- 40-60%: 3 white LEDs
- 60-80%: 4 white LEDs
- 80-100%: 5 white LEDs
A red warning light indicates a critically low battery.
If the first LED of both channels flashes red and white alternately, it indicates overheating. Charging will auto-resume when the temperature returns to a safe range.
Сумяшчальнасць
The SMALLRIG LP-E6P Dual Slot Camera Battery Charger is fully compatible with the following Canon battery models:
- LP-E6P
- LP-E6NH
- LP-E6N
- LP-E6
It supports power needs for a wide range of Canon EOS camera models, including:
- Canon EOS 5D Mark II / 5D Mark III / 5D Mark IV
- Canon EOS 6D / 6D Mark II
- Canon EOS 7D / 7D Mark II
- Canon EOS 60D / 60Da / 70D / 80D / 90D
- Canon EOS XC10 / XC15
- Canon EOS 5DS / 5DSR
- Canon EOS R / R5 / R6 / R5C / R7 / R6 Mark II / R5 Mark II / R6 Mark III / C50
Image: The charger is compatible with a wide range of Canon LP-E6 series batteries and camera models.
Інфармацыя па бяспецы
The charger incorporates advanced safety functions to protect your batteries and the device:
- Абарона ад перагрэву: The intelligent system continuously monitors temperature. If overheating is detected, the charger automatically reduces charging speed.
- Звышtagе Абарона: Upon detecting overvoltage, the charger immediately halts charging to prevent damage.
- Кропельная зарадка: As the battery nears a full charge, the system switches to trickle charging mode. This helps preserve the long-term health and lifespan of your LP-E6P batteries.
- Фізічная абарона: The semi-enclosed design prevents batteries from accidentally slipping out and protects them from scratches.
Image: Visual representation of the charger's safety certifications and protection mechanisms.
Тэхнічныя характарыстыкі
| Асаблівасць | Дэталь |
|---|---|
| Марка | SMALLRIG |
| Нумар мадэлі | 5490 |
| Памеры прадукту (Д х Ш х У) | 3.5" x 1.02" x 2.7" |
| Вага прадмета | 55 грам |
| Уваходны кнtage | 5 вольт |
| Выхад Voltage | 8.4 вольт |
| Бягучы рэйтынг | 1 Ampс (на канал) |
| Час зарадкі акумулятара | Approximately 2 Hours (for two LP-E6NH batteries) |
| Тып раздыма | USB-C |
| Колькасць партоў | 2 |
| Сертыфікаты | CE, FCC, RoHS |

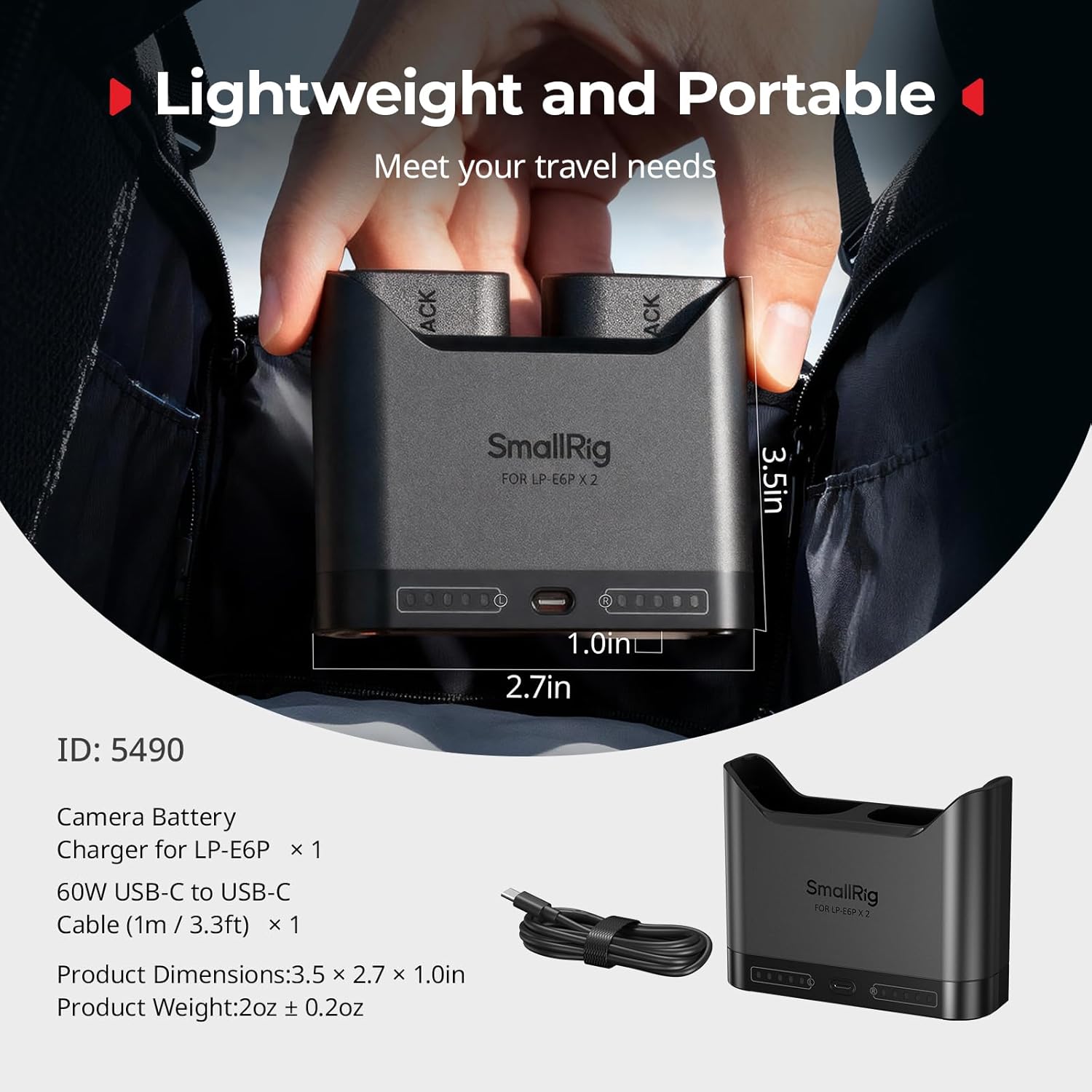

Image: The charger's compact dimensions and weight are shown, highlighting its portability.
Ліквідацыю непаладак
- Slow Charging / Only One Channel Charging: Ensure you are using a power adapter with an output of 22.5W or higher. Using a 5V / 2.4A adapter will result in slow-charge mode, where Channel 1 is prioritized before Channel 2 begins charging. The charger is not compatible with 5V / 1A power adapters.
- Battery Not Charging to 100%: Verify the power adapter meets the recommended specifications. If the issue persists with multiple batteries and a suitable power source, contact customer support.
- Overheating Indication: If the first LED of both channels flashes red and white alternately, the charger has detected overheating. It will automatically reduce charging speed and resume normal operation once the temperature returns to a safe range. Ensure adequate ventilation around the charger.
Гарантыя і падтрымка
The SMALLRIG LP-E6P Dual Slot Camera Battery Charger comes with a Гарантыя 1 год. For technical support, warranty claims, or further assistance, please visit the Official SMALLRIG Store або звярніцеся ў службу падтрымкі.
