Insoma Programmable Water Timer

Уводзіны

Thank you for choosing the Insoma Programmable Water Timer. This device is designed to automate your garden watering, providing convenience and efficient water management for various applications such as gardens, patios, flower beds, and lawns. Please read this manual carefully before installation and operation to ensure proper use and longevity of your product.

Інфармацыя па бяспецы

• Do not immerse the timer in water. The unit is IP55 waterproof, meaning it is protected against dust and low-pressure water jets, but not submersion.
• Ensure the water pressure is within the specified range of 0.5 bar to 8 bar (7.25 PSI to 116 PSI). Exceeding this range may damage the device.
• Выкарыстоўвайце толькі шчолачныя батарэйкі тыпу АА. Не змешвайце старыя і новыя батарэйкі, а таксама батарэйкі розных тыпаў.
• Remove batteries if the timer will not be used for an extended period or during freezing temperatures to prevent damage.
• Захоўваць у месцах, недаступных дзецям.

Змест пакета

Калі ласка, праверце ўпакоўку на наяўнасць наступных прадметаў:

• 1 x Insoma Programmable Water Timer
• 1 x Reduced Hex Bushing (3/4" male NPT to 1/2" female NPT)
• 1 x 3/4" Male GHT Thread (pre-installed or included as adapter)
• 1 x Thread Sealing Tape
• 1 х Кіраўніцтва карыстальніка

Прадукт скончаныview

The Insoma Water Timer features a large LCD display and intuitive controls for easy programming. Familiarize yourself with the main components:

• ВК-дысплей: Shows current time, watering schedule, battery level, and other settings.
• Набраць: Used to navigate between different setting modes (OFF, AUTO, Set Clock, Start Time, How Long, How Often).
• Кнопкі «+» / «-»: Adjust values and settings.
• 'OK' Button: Пацвярджае выбар.
• Кнопка ўручную: Activates temporary manual watering.
• Батарэйны адсек: Located on the back, requires 2 AA batteries.

Малюнак 1: Спераду view of the Insoma Water Timer, highlighting the LCD display, control dial, and buttons. The display shows a low battery indication, and labels point to tool-free installation, large LCD display, and 1-year battery life.

Настройка і ўстаноўка

1. Усталюйце батарэі: Open the battery compartment on the back of the timer. Insert two (2) new AA alkaline batteries, ensuring correct polarity. Close the compartment securely. The LCD screen will power on.
2. Падключэнне да крана: Screw the timer onto your outdoor faucet (hose bib). The timer features a 3/4" GHT (Garden Hose Thread) connection. If your faucet has a different size, use the provided reduced hex bushing and thread sealing tape as needed to ensure a watertight seal. The 360° rotating inlet thread allows for easy positioning.
3. Падключыце шланг: Attach your garden hose to the outlet of the water timer. Ensure all connections are tight to prevent leaks.

Figure 2: The water timer connected to a faucet, illustrating its leak-proof design, built-in metal filter, and 360° rotating inlet thread for easy installation and durability.

Інструкцыя па эксплуатацыі

The timer offers flexible watering options including timed, manual, and rain delay modes.

1. Устаноўка бягучага часу

1. Павярніце цыферблат у Усталюйце гадзіннік.
2. Выкарыстоўвайце «+» і '-' кнопкі для налады гадзіны. Націсніце OK каб пацвердзіць.
3. Адрэгулюйце хвіліны з дапамогай «+» і '-'. Прэса OK каб пацвердзіць.
4. The current time is now set.

2. Programming a Watering Schedule (Timed Watering)

This mode allows you to set specific start times, duration, and frequency for automatic watering.

1. Павярніце цыферблат у Час пачатку. Выкарыстоўвайце «+» і '-' to set the desired watering start time. Press OK каб пацвердзіць.
2. Павярніце цыферблат у Як доўга. Выкарыстоўвайце «+» і '-' to set the watering duration from 1 minute to 23 hours and 59 minutes. Press OK каб пацвердзіць.
3. Павярніце цыферблат у Як часта. You have two frequency modes:
   • Hourly Mode: Set frequency from 1 hour to 24 hours.
   • Daytime Mode: Set frequency from 1 day to 7 days.
   Выкарыстоўвайце «+» і '-' to select the desired frequency. Press OK каб пацвердзіць.
4. Once all settings are confirmed, turn the dial to АЎТА for the programmed schedule to take effect.

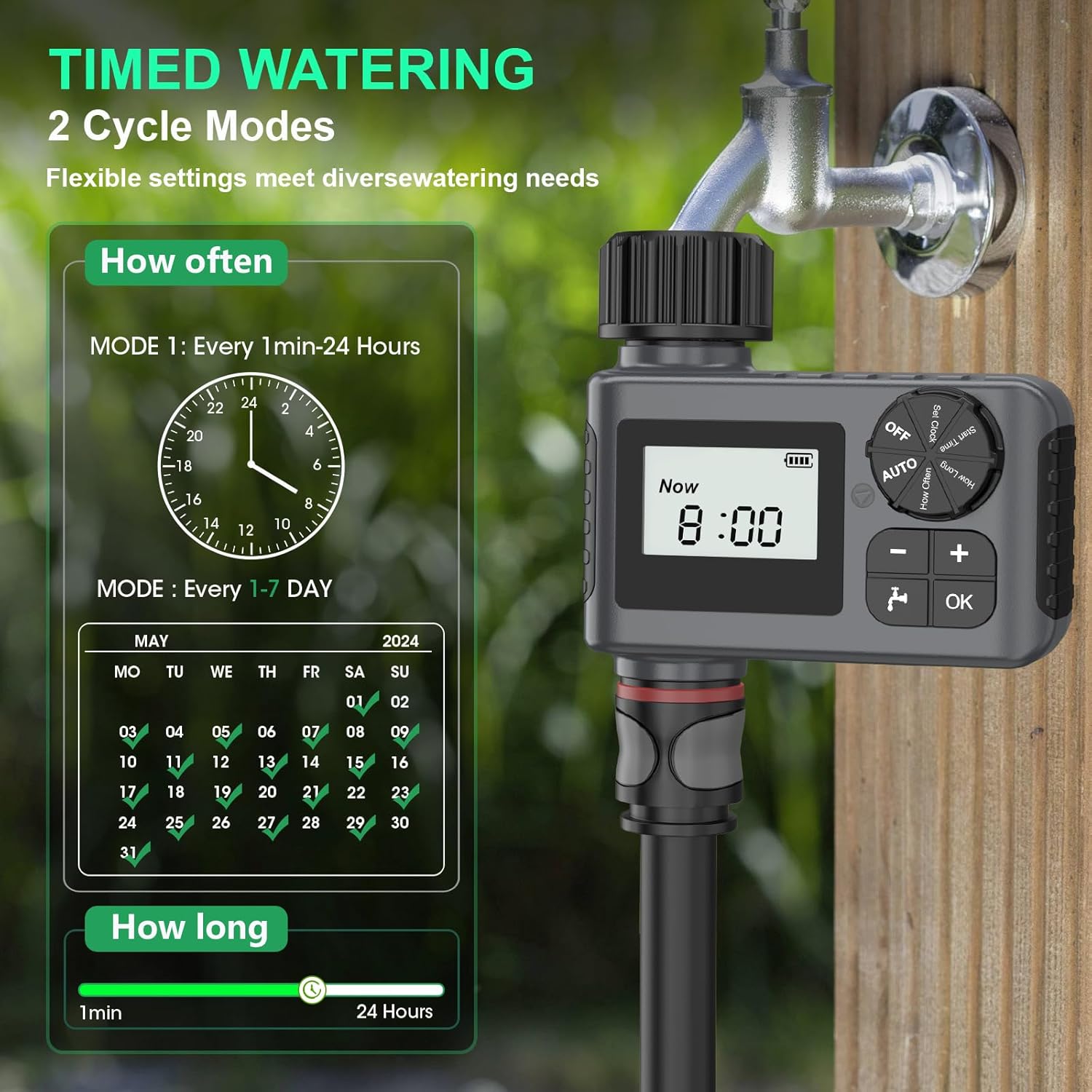

Figure 3: The timer's display illustrating the two cycle modes for timed watering: hourly (1 min-24 hours) and daily (1-7 days), along with duration settings.

3. Ручны паліў

This feature allows for temporary watering without interrupting your programmed schedule.

1. Пераканайцеся, што цыферблат знаходзіцца ў АЎТА становішча.
2. Націсніце Дапаможнік кнопка.
3. Выкарыстоўвайце «+» і '-' to set the desired manual watering duration (1 minute to 23 hours 59 minutes).
4. Прэса OK to start manual watering. The timer will automatically return to its programmed schedule after the manual watering duration ends.
5. To stop manual watering early, press the Дапаможнік button again or turn the dial to ВЫКЛ а потым назад да АЎТА.

Figure 4: A user demonstrating flexible manual watering with the Insoma Water Timer, which allows temporary water use without affecting automatic schedules. The display shows the manual irrigation duration setting.

4. Rain Delay Mode

This feature allows you to pause your watering schedule for a set number of days, conserving water during rainy periods.

1. Пераканайцеся, што цыферблат знаходзіцца ў АЎТА становішча.
2. Націсніце і ўтрымлівайце «+» button for 5 seconds until a cloud icon appears on the display.
3. Выкарыстоўвайце «+» і '-' to select the desired delay duration (1 to 7 days).
4. Прэса OK to confirm the rain delay. The timer will resume its programmed schedule after the delay period.
5. Каб адмяніць затрымку дажджу, націсніце і ўтрымлівайце «+» зноў націсніце кнопку на 5 секунд.

Figure 5: The water timer displaying the rain delay mode, indicating a 2-day delay. This feature helps save water by postponing watering during rainy conditions. The image also highlights the IP55 waterproof rating.

5. Функцыя блакіроўкі ад дзяцей

The timer includes a child lock feature to prevent accidental changes to the settings. Refer to the on-screen instructions or specific button combinations in the quick start guide for activation and deactivation.

Тэхнічнае абслугоўванне

• Экран фільтра: Periodically check the built-in metal filter screen at the inlet for debris or sediment. Clean it as necessary to ensure optimal water flow and prevent blockages.
• Замена батарэі: The LCD display features a low-battery warning indicator. When this appears, replace the batteries promptly. The valve will automatically close if the battery level becomes critically low to prevent continuous watering.
• Зімоўка: In regions with freezing temperatures, remove the water timer from the faucet before the first frost. Store it indoors in a dry, protected area with the batteries removed to prevent damage from freezing water.
• Уборка: Clean the exterior of the timer with a soft, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.

Ліквідацыю непаладак

Тэхнічныя характарыстыкі

• мадэль: SGW05-ZZ-5-04-F
• Дыяпазон ціску вады: 0.5 bar - 8 bar (7.25 PSI - 116 PSI)
• Працягласць паліву: 1 хвілін да 23 гадзін 59 хвілін
• Частата паліву: Hourly (1-24 hours) or Daily (1-7 days)
• Крыніца харчавання: 2 шчолачныя батарэйкі тыпу АА (не ўключаны)
• Рэйтынг воданепранікальнасці: IP55
• Памеры прадукту: 3" Г х 4" Ш х 2" В (прыблізна)
• Вага прадмета: 9.6 унцый (прыблізна)

Гарантыя і падтрымка

Insoma products are designed for reliability and performance. For any questions, technical support, or warranty inquiries, please contact Insoma customer service through the retailer's platform or the official Insoma website. Please have your model number (SGW05-ZZ-5-04-F) and purchase information ready.
