YESIMOM 8SM-1P

YESIMOM 1080P Baby Monitor Camera (Model 8SM-1P) User Manual

Your guide to setting up and using your YESIMOM Baby Monitor.

Уводзіны

The YESIMOM 1080P Baby Monitor Camera provides real-time monitoring of your baby with advanced features designed for peace of mind. This manual will guide you through the setup, operation, and maintenance of your device, ensuring you can utilize all its functionalities effectively.

Што ў скрынцы

Акуратна распакуйце скрынку і пераканайцеся, што ўсе прадметы ў наяўнасці. Калі якія-небудзь прадметы адсутнічаюць або пашкоджаныя, звярніцеся ў службу падтрымкі кліентаў.

  • YESIMOM Baby Monitor Camera
  • Baby Monitor Parent Unit (Screen)
  • Адаптар сілкавання
  • Зарадны кабель
  • Кіраўніцтва па эксплуатацыі (гэты дакумент)
  • Mounting Screws (for optional wall mounting)
Contents of the YESIMOM Baby Monitor package including camera, monitor, power adapters, cables, and manual.
Image: The package contents include the baby camera, parent unit monitor, power adapters, charging cables, mounting screws, and the user manual.

Прадукт скончаныview

The YESIMOM Baby Monitor system consists of a camera unit and a parent unit (monitor). The camera features a 1080P HD lens with pan-tilt-zoom capabilities, infrared night vision, and integrated night light and lullaby functions. The parent unit provides a clear display for real-time viewing and control. Both units are designed for indoor use.

Асноўныя характарыстыкі:

  • Відэа высокай выразнасці 1080P: High-definition resolution for clear images.
  • 360° PTZ: Pan, Tilt, and Zoom functionality for comprehensive room coverage.
  • Інфрачырвонае начное бачанне: Выразная бачнасць ва ўмовах нізкай асветленасці.
  • 4-Way Digital Zoom: Magnify details on the screen.
  • Выяўленне руху і гуку: Alerts for activity in the baby's room.
  • Аўтаматычнае адсочванне: Automatically follows your baby's movements.
  • Двухбаковы аўдыё: Communicate with your baby remotely.
  • Adjustable Night Light & Lullabies: Soothe your baby to sleep.
  • Dual Display Options: Monitor via the parent unit or a smartphone app.
The YESIMOM baby monitor parent unit displaying a baby in a crib, highlighting a 178-degree viewing angle and IPS screen technology.
Image: The parent unit features a high-quality IPS screen with a 178° viewing angle for clear, detailed images of your baby.

Настройка

1. Уключэнне

  1. Connect the power adapter to the baby camera and plug it into a power outlet. The camera will power on automatically.
  2. Connect the charging cable to the parent unit and plug it into a power outlet. Press and hold the power button on the parent unit to turn it on.

2. Пачатковае спалучэнне (пры неабходнасці)

The camera and parent unit are typically pre-paired at the factory. If they do not connect automatically:

  • Пераканайцеся, што абедзве прылады ўключаны і знаходзяцца ў зоне дзеяння.
  • Refer to the parent unit's menu for a 'Pairing' option. Follow the on-screen instructions to initiate pairing.
  • Press the pairing button on the camera (usually located on the back or bottom) when prompted by the parent unit.

3. Падключэнне да праграмы (неабавязкова)

For remote monitoring via smartphone, download the dedicated app (e.g., CloudEdge, as indicated by 'Controller Type' in specifications). The camera supports 2.4 GHz Wi-Fi connectivity.

  1. Download the app from your device's app store.
  2. Стварыце ўліковы запіс і ўвайдзіце.
  3. Follow the in-app instructions to add your camera. This usually involves scanning a QR code on the camera or manually entering its ID, and connecting it to your home's 2.4 GHz Wi-Fi network.
A split image showing the YESIMOM baby monitor parent unit in a kitchen setting and a smartphone displaying the monitoring app while a person is outdoors, illustrating dual display options.
Image: The monitor offers dual display options, allowing you to view your baby at home via the parent unit or on the go using the smartphone app.

Інструкцыя па эксплуатацыі

1. Панарамаванне, нахіл і маштабаванне (PTZ)

Use the controls on the parent unit or the app to remotely adjust the camera's viewing angle. The camera offers 355° horizontal pan and 55° vertical tilt for full room coverage. The 4x digital zoom allows you to magnify the image for a closer look.

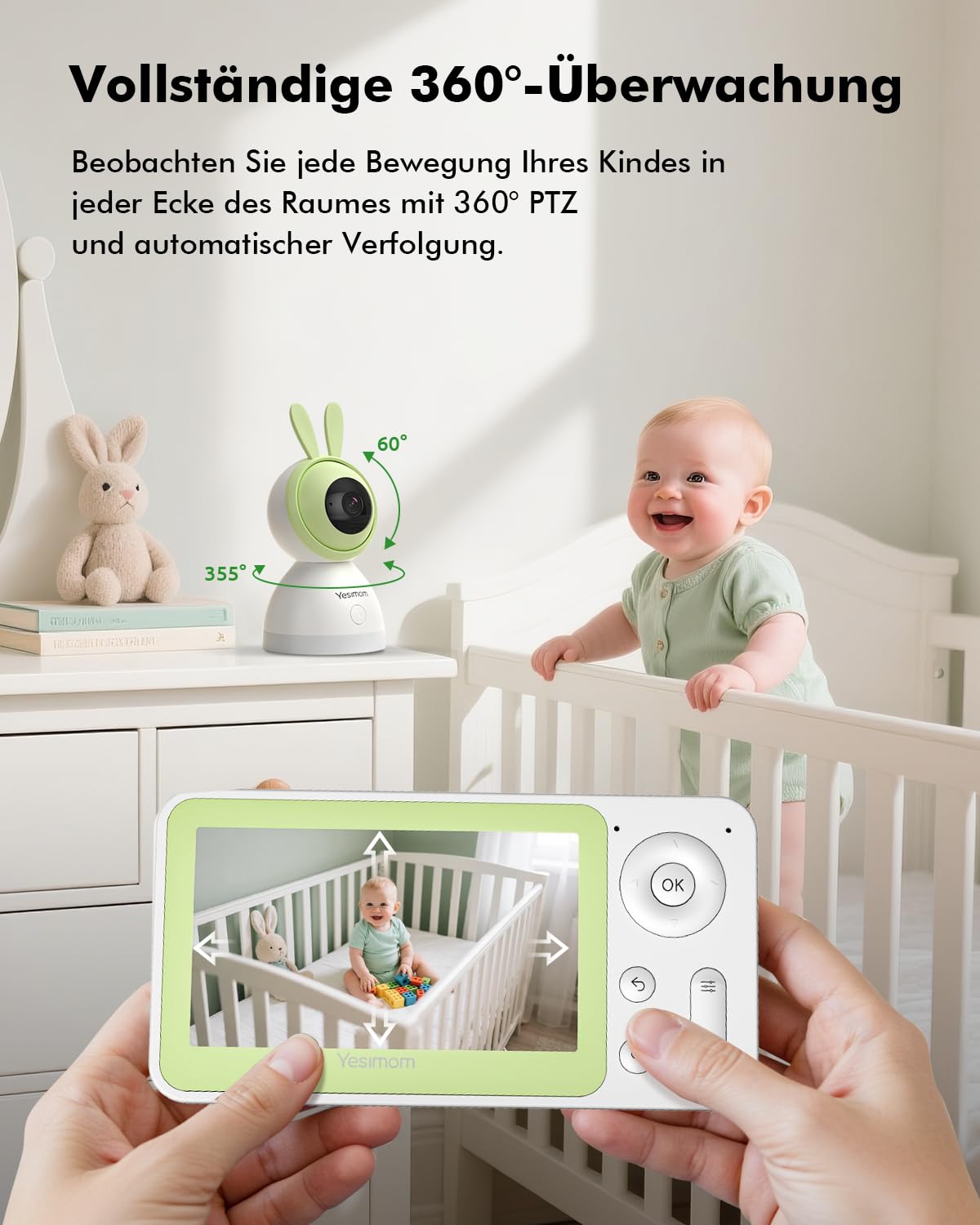

A hand holding the YESIMOM baby monitor parent unit, showing a baby in a crib. Arrows on the screen indicate 360-degree pan and tilt functionality.
Image: The monitor provides complete 360° surveillance with 355° horizontal and 60° vertical PTZ, allowing you to monitor every movement in the room.
A baby and a dog playing on a rug, with an inset showing a 4x zoomed view of the baby's face, demonstrating the 4x zoom feature.
Image: The 4x zoom feature allows you to capture every moment with clarity, providing detailed views of your baby.

2. Начное бачанне

The camera automatically switches to infrared night vision in low-light conditions, providing clear black-and-white video up to 10 meters. This ensures continuous monitoring even in a dark room.

3. Двухбаковая аўдыёсувязь

Press and hold the microphone button on the parent unit or use the talk function in the app to speak to your baby. Your voice will be transmitted through the camera's speaker.

4. Выяўленне руху і гуку

The monitor is equipped with intelligent AI detection for motion and sound. When movement or sound (like crying) is detected, you will receive an alert on your parent unit or smartphone app.

  • Аўтаматычнае адсочванне: Пры выяўленні руху камера можа аўтаматычна адсочваць аб'ект, які рухаецца ў межах свайго поля зроку view.
  • Zone Alarms: You can define specific activity zones within the camera's view. If movement is detected in these zones, an alert will be triggered.
A baby standing in a crib, with graphical overlays indicating sound detection, motion detection, and the ability to define security zones. A smartphone notification shows an alarm received from the baby monitor.
Image: Intelligent AI detection provides alerts for sound and motion, and allows you to define security zones for enhanced monitoring.

5. Night Light and Lullabies

The camera features an adjustable night light and can play up to 14 soothing lullabies to help your baby sleep. These functions can be controlled from the parent unit or the app.

The YESIMOM baby monitor camera with rabbit ears, emitting a soft glow from its base, with musical notes and colored light icons floating around it. A baby is shown sleeping peacefully in a crib in the background.
Image: The camera features a soft night light with adjustable colors and plays 14 soothing lullabies to improve your baby's sleep.

6. Запіс і захоўванне

The monitor supports flexible archiving options:

  • Micro SD-карта: Insert a Micro SD card (not included) into the camera for local 24/7 recording and event playback.
  • Воблачнае сховішча: Optional cloud storage may be available through the app for secure backup of recordings.
A collage of various baby moments, with the YESIMOM baby monitor camera in the foreground. Icons below represent flexible archiving, 24/7 recording, event playback, and multiple sharing options.
Image: Capture important moments with flexible archiving options, 24/7 recording, event playback, and the ability to share with multiple users.

7. Privacy and Security

Your privacy is protected with AES-128 encryption. The camera can also be used offline by disabling Wi-Fi for direct connection to the parent unit. An 'Image Privacy Mode' allows you to disable the camera lens when not needed.

Diagram illustrating security features of the YESIMOM baby monitor, including 128-bit AES encryption, WLAN deactivation option, OTA updates, and an image privacy mode that disables the camera lens.
Image: Enhanced security features include 128-bit AES encryption, the option to deactivate WLAN, OTA updates, and an image privacy mode to ensure your child's privacy.

Тэхнічнае абслугоўванне

To ensure optimal performance and longevity of your YESIMOM Baby Monitor, follow these maintenance guidelines:

  • Уборка: Use a soft, dry cloth to clean the camera lens and the monitor screen. Do not use liquid cleaners or aerosols.
  • Размяшчэнне: Place the camera on a stable, flat surface or mount it securely to a wall. Ensure it is out of reach of children and pets.
  • Магутнасць: Выкарыстоўвайце толькі прадастаўленыя адаптары харчавання і кабелі.
  • Асяроддзе: Avoid placing the device in direct sunlight, near heat sources, or in excessively humid or dusty environments. The device is not water resistant.

Ліквідацыю непаладак

If you encounter issues with your baby monitor, try the following solutions:

праблемаМагчымае рашэнне
Няма выявы на бацькоўскім блокуEnsure both camera and parent unit are powered on. Check if they are paired. Move units closer to each other.
Дрэнная якасць выявыClean the camera lens. Ensure adequate lighting (night vision will activate in darkness). Check for obstructions.
No sound or poor audioAdjust volume settings on the parent unit. Ensure no objects are blocking the microphone or speaker on either unit.
Праблемы з падключэннем праграмыEnsure your Wi-Fi network is 2.4 GHz. Restart your router, camera, and smartphone. Check app permissions.
Camera not responding to PTZ controlsCheck connection between parent unit/app and camera. Restart the camera.

Тэхнічныя характарыстыкі

Detailed technical specifications for the YESIMOM 1080P Baby Monitor Camera (Model 8SM-1P):

  • Назва мадэлі: 8SM
  • Нумар мадэлі: 8SM-1P
  • Дазвол відэазахопу: 1080p
  • Viewкут нахілу: 355 градусаў (гарызантальны панарамны паварот)
  • аптычны зум: 4x (лічбавы зум)
  • Дыяпазон начнога бачання: 10 метраў
  • Тэхналогія падключэння: WiFi 2.4 GHz, Wireless
  • Крыніца харчавання: Battery operated screen and plug-in baby camera
  • Выкарыстанне ў памяшканні/на вуліцы: У памяшканні
  • Тып абвесткі: Аўдыё і рух
  • Асаблівасці: 2 Way Audio, Frame Rate, HD Resolution, Image Sensor, Motion Sensor
  • захоўванне: Micro SD (not included), Optional Cloud
  • матэрыял: Акрыланітрылбутадыенстырол (АБС)
  • Памеры прадмета: 17.6 х 17.6 х 10.4 сантыметраў
  • тtage: 5 В (пастаянны ток)
  • Ватtage: 5 ват
  • GTIN/UPC: 706384489836

Гарантыя і падтрымка

For warranty information or technical support, please refer to the warranty card included in your product packaging or contact YESIMOM customer service directly. Contact details are typically provided in the 'Instruction Manual' or on the manufacturer's official webсайт.
