Generic 14L Heated Stainless Steel Ultrasonic Cleaning Machine User Manual

1. Уводзіны

Thank you for choosing the Generic 14L Heated Stainless Steel Ultrasonic Cleaning Machine. This device utilizes high-frequency ultrasonic vibrations to create cavitation bubbles, providing a deep and thorough clean for various items. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your ultrasonic cleaner. Please read it carefully before use and retain it for future reference.

The unit is designed for cleaning items such as jewelry, eyeglasses, dentures, small parts, and more, effectively removing dirt, grime, and residue without causing damage. It features a durable 304 stainless steel tank, adjustable temperature settings from 20°C to 80°C, and a customizable timer from 0 to 30 minutes.

2. Інфармацыя па бяспецы

Каб забяспечыць бяспечную працу і пазбегнуць пашкоджання прылады або траўмаў, калі ласка, выконвайце наступныя меры бяспекі:

• Заўсёды падключайце прыладу да заземленай электрычнай разеткі.
• Do not attempt to disassemble or repair the unit yourself. Refer all servicing to authorized personnel.
• Avoid touching the power socket or plug with wet hands to prevent the risk of electric shock.
• Never operate the unit without sufficient water in the tank. Running the unit dry can cause severe damage.
• Ensure the unit is placed on a stable, level, and heat-resistant surface.
• Захоўвайце прыладу ў месцах, недаступных дзецям.
• Do not immerse the main body of the cleaner in water or other liquids.
• Адключайце прыладу ад электрычнай разеткі, калі яна не выкарыстоўваецца або перад чысткай.

3. Асаблівасці прадукту

• Thorough Ultrasonic Cleaning: Employs high-frequency ultrasonic vibrations (40KHz) to generate cavitation bubbles, reaching intricate areas for a deep and reliable clean without damaging delicate items.
• Трывалая канструкцыя: Manufactured with a 304 stainless steel inner tank, ensuring rust resistance, leak-proof performance, and long-lasting durability. The stainless steel cover protects the unit from dust.
• Лічбавая панэль кіравання: Features a user-friendly digital display for precise adjustment of cleaning time (0-30 minutes) and temperature (20-80°C / 68-176°F).
• Advanced Transducer Technology: Utilizes innovative Sandwich Piezoelectric Transducer Technology to enhance cleaning efficiency across various applications.
• Універсальныя прымянення: Suitable for cleaning a wide range of items including jewelry, lenses, watches, musical instruments, coins, pens, industrial parts, and electronic equipment.
• Функцыі бяспекі: Includes anti-overheating heat sink, dual fuse protection, and vibration-damping rubber pads.

4. Змесціва ўпакоўкі

Калі ласка, праверце змесціва пасылкі пасля атрымання, каб пераканацца ў наяўнасці ўсіх прадметаў:

• Ultrasonic Cleaning Machine Unit
• Кошык для ўборкі з нержавеючай сталі
• Stainless Steel Lid (Muffler Cover)
• Шнур харчавання
• Кіраўніцтва карыстальніка (гэты дакумент)

5. Прадукт скончыўсяview і кампаненты

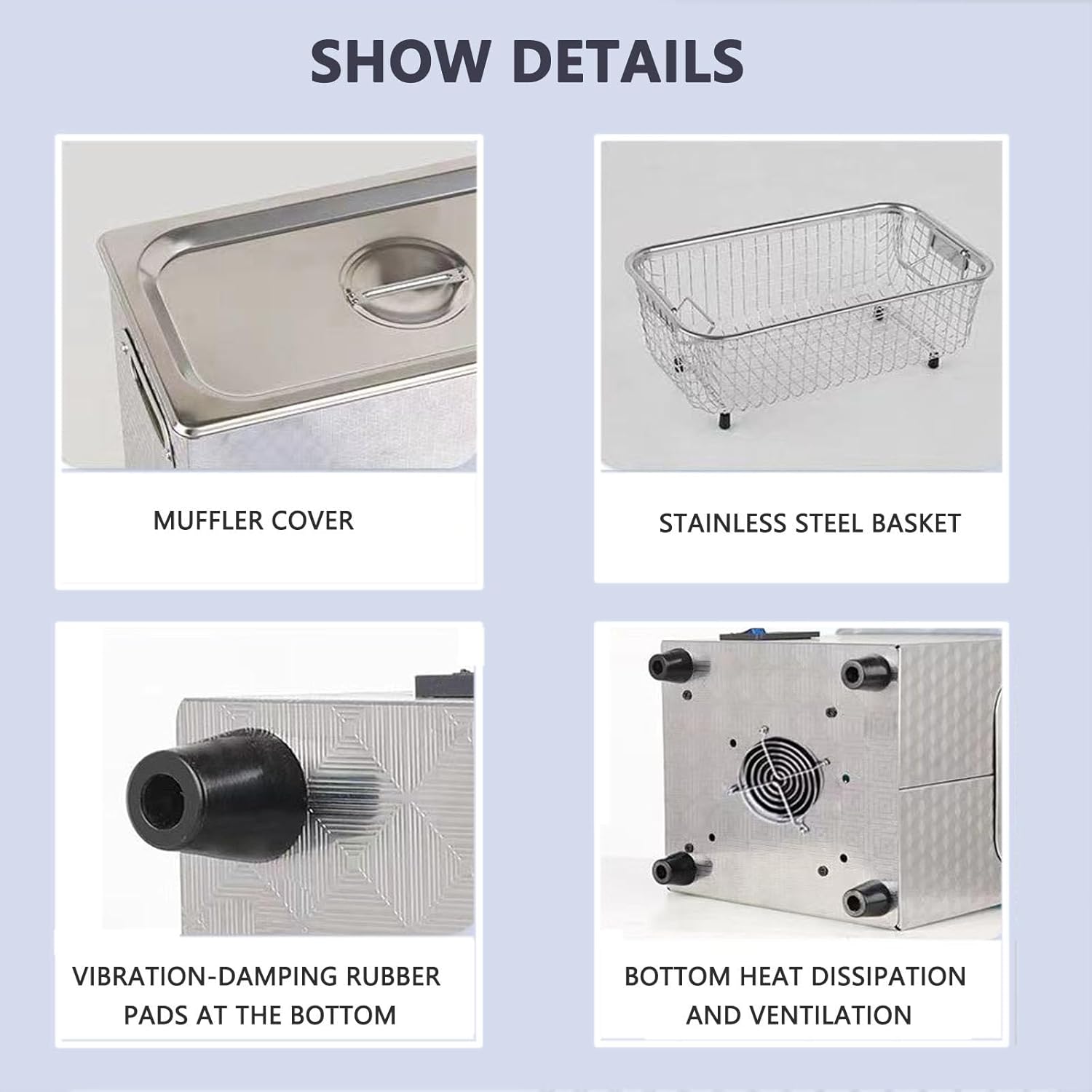

Малюнак 1: Асноўныя кампаненты
This image displays the muffler cover, stainless steel basket, vibration-damping rubber pads at the bottom, and the bottom heat dissipation and ventilation system.

Малюнак 2: Падрабязнасці праектавання
This image highlights the anti-overheating heat sink, dual fuse protection, built-in handle, and the four rubber feet for stability.

The unit features a robust stainless steel construction with integrated handles for easy portability. The bottom includes vibration-damping rubber pads for stable operation and a heat dissipation system to prevent overheating. Dual fuse protection enhances electrical safety.

6. Control Panel Description

Малюнак 3: Лічбавая панэль кіравання
This diagram illustrates the layout of the digital control panel, showing buttons for temperature and time adjustments, heating indicator, and the ultrasonic switch.

The digital control panel allows for precise management of cleaning parameters:

• Set °C / Actual °C: Displays the set temperature and the current actual temperature of the water.
• ТЭМП+ / ТЭМП-: Buttons to increase or decrease the desired cleaning temperature.
• HEATING ON/OFF: Button to activate or deactivate the heating function. The heating indicator light will illuminate when active.
• Minute / Second: Displays the set cleaning time in minutes and seconds.
• ЧАС+ / ЧАС-: Buttons to increase or decrease the desired cleaning duration.
• ULTRASONIC SWITCH (ON/OFF): Button to start or stop the ultrasonic cleaning process.

7. Настройка

1. Размяшчэнне: Place the ultrasonic cleaner on a firm, level, and dry surface, ensuring adequate ventilation around the unit.
2. Падключэнне сілкавання: Ensure the power switch is in the OFF position. Connect the power cord securely to the unit's power inlet and then plug it into a grounded electrical outlet.
3. Заліць вадой: Open the lid and fill the stainless steel tank with an appropriate amount of water. It is recommended to use bottled water to protect your items and the unit. Ensure the water level is between the 'MIN' and 'MAX' marks (if present) or at least covers the items to be cleaned, but not exceeding 2/3 of the tank capacity.
4. Дадайце ачышчальны раствор (неабавязкова): For enhanced cleaning, a small amount of non-foaming, non-corrosive ultrasonic cleaning solution can be added to the water. Follow the solution manufacturer's instructions for dilution.

8. Аперацыя

Figure 4: Cleaning Scope
This image illustrates the wide range of items suitable for cleaning with this ultrasonic machine, from medical tools to electronic components.

1. Падрыхтуйце прадметы: Place the items to be cleaned into the stainless steel cleaning basket. Avoid overcrowding the basket.
2. Размясціць кошык: Carefully lower the basket with items into the water-filled tank. Ensure items are fully submerged but not touching the bottom of the tank directly.
3. Задаць тэмпературу: Press the 'HEATING ON/OFF' button to activate the heater. Use the 'TEMP+' and 'TEMP-' buttons to set the desired cleaning temperature. A recommended temperature for general cleaning is 35°C (95°F). The unit will heat the water to the set temperature.
4. Устанавіць таймер: Use the 'TIME+' and 'TIME-' buttons to set the desired cleaning duration. A common starting point for many items is 8 minutes. Adjust as needed based on the item's condition and material.
5. Пачаць ачыстку: Press the 'ULTRASONIC SWITCH' button to begin the ultrasonic cleaning cycle. The unit will operate for the set duration.
6. Пасля ачысткі: Once the cycle is complete, the unit will stop automatically. Carefully lift the basket out of the tank.
7. Прамыйце і высушыце: Rinse the cleaned items thoroughly with clean water to remove any loosened debris or cleaning solution residue. Dry the items completely before storage or use.

Figure 5: Before and After Cleaning Results
This image provides a visual comparison of various items, such as engine components and bearings, before and after undergoing the ultrasonic cleaning process, highlighting the effectiveness of the machine.

9. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and optimal performance of your ultrasonic cleaner:

• Зліць ваду: After each use, especially if using cleaning solutions, drain the water from the tank. Use the drain valve (if present) or carefully pour out the water.
• Чысты бак: Wipe the inside of the stainless steel tank with a soft cloth to remove any residue. For stubborn stains, use a mild, non-abrasive cleaner. Do not use harsh chemicals or abrasive pads.
• Знешняя ачыстка: Працярыце знешні бок прылады з аб'явайamp cloth. Do not spray water directly onto the control panel or electrical components.
• захоўванне: Store the unit in a cool, dry place with the lid closed to prevent dust accumulation. Ensure the tank is completely dry before storage.
• Рэгулярны агляд: Periodically check the power cord for any signs of damage. If damaged, contact authorized service personnel for replacement.

10. Выпраўленне непаладак

If you encounter issues with your ultrasonic cleaner, refer to the following troubleshooting guide:

Калі праблема не знікне пасля спробы гэтых рашэнняў, звярніцеся ў службу падтрымкі кліентаў для атрымання дадатковай дапамогі.

11. Тэхнічныя характарыстыкі

12. Гарантыя і падтрымка

This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact the seller directly.

For technical support, troubleshooting assistance, or inquiries regarding parts and service, please contact the seller or manufacturer through the platform where the product was purchased. Please have your purchase details and model information ready when contacting support.
