Уводзіны
This manual provides instructions for the installation, operation, and maintenance of the Generic replacement transmission belt for Craftsman Z5200 Zero Turn Mowers, model CMXGNAM211701. This product is a replacement part designed to function similarly to the original component. Please read all instructions carefully before proceeding with installation or maintenance.
Важная інфармацыя па бяспецы
- Always disconnect the spark plug wire or remove the battery cable before performing any maintenance or installation on your mower to prevent accidental starting.
- Wear appropriate personal protective equipment, including gloves and eye protection, when working with machinery.
- Ensure the mower is on a flat, stable surface and the parking brake is engaged before beginning work.
- Refer to your Craftsman Z5200 Zero Turn Mower's original owner's manual for specific safety procedures and diagrams related to belt replacement.
- Калі вы не ўпэўненыя ў якім-небудзь кроку, звярніцеся да кваліфікаванага спецыяліста па абслугоўванні.
Настройка і ўстаноўка
This section outlines the general steps for replacing the transmission belt. Specific procedures may vary slightly depending on your mower's configuration. Always consult your mower's service manual for detailed diagrams and instructions.
- Падрыхтоўка: Park the mower on a level surface, engage the parking brake, and turn off the engine. Disconnect the spark plug wire or battery to prevent accidental starting. Allow the engine and any hot components to cool down.
- Доступ да зоны пояса: Depending on your mower model, you may need to remove the mower deck, protective covers, or other components to gain access to the transmission belt.
- Зняць напружанне: Locate the belt tensioning mechanism (e.g., idler pulley). Use appropriate tools to relieve tension on the old belt.
- Зняць стары рамень: Carefully remove the old transmission belt from all pulleys. Note the routing path of the old belt for correct installation of the new one.
- Праверце шківы: Before installing the new belt, inspect all pulleys for wear, damage, or misalignment. Replace any worn components as necessary.
- Усталяваць новы рамень: Route the new Generic replacement transmission belt around the pulleys, following the exact path of the old belt. Ensure the belt is seated correctly in all pulley grooves.
- Прыкласці напружанне: Re-engage the belt tensioning mechanism. Verify that the belt has proper tension according to your mower's specifications. The belt should be snug but not overly tight.
- Зборка: Reinstall any covers or components that were removed to access the belt.
- Падключыце сілкаванне: Reconnect the spark plug wire or battery cable.

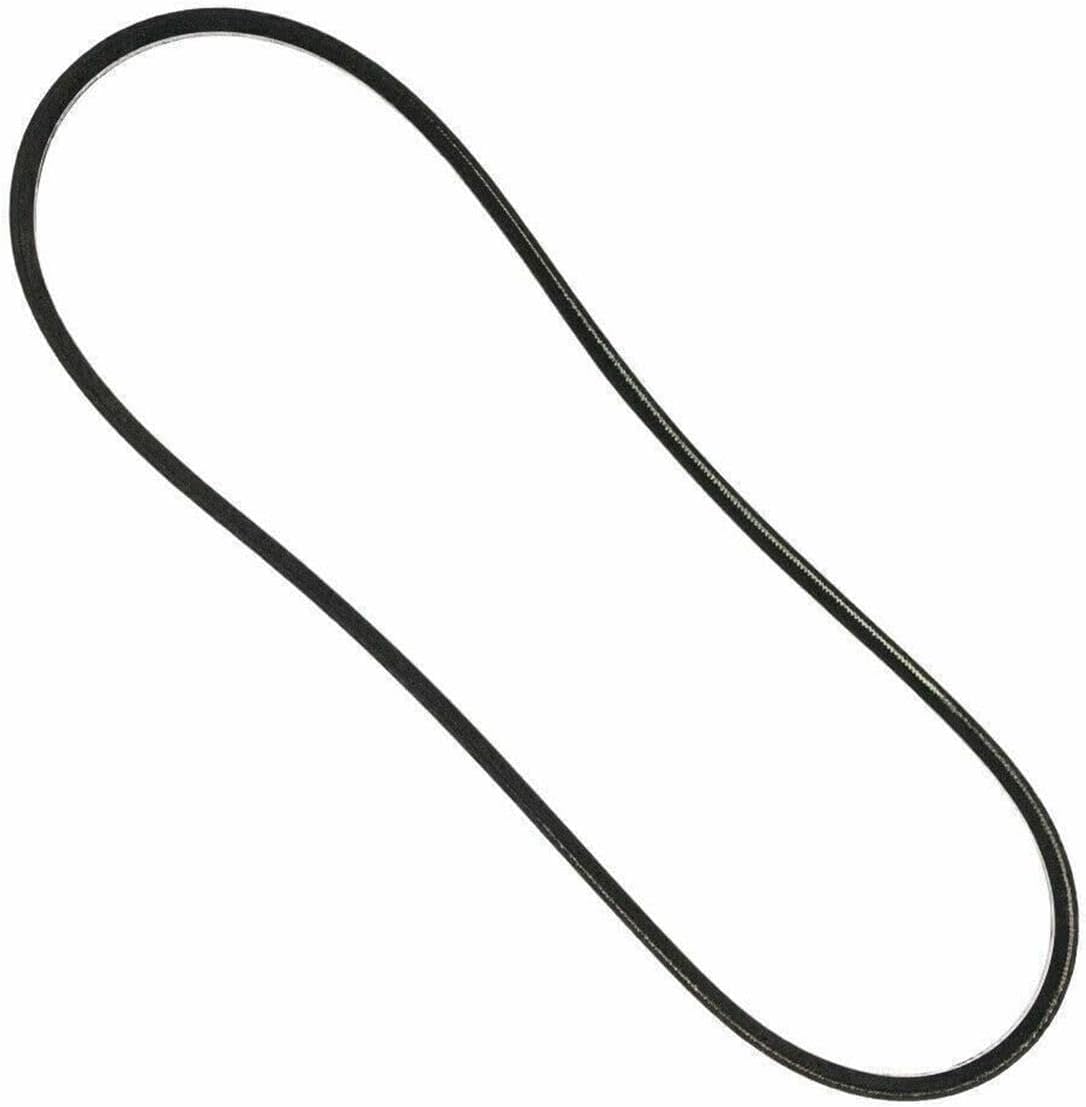

выява: A black, looped transmission belt, designed for power transfer in machinery. The belt appears new and ready for installation.
Аперацыйная
After installing the new transmission belt, perform the following checks before operating the mower:
- Візуальны агляд: Ensure the belt is properly seated on all pulleys and there are no obstructions.
- Першапачатковы запуск: Start the mower in a safe, open area. Listen for any unusual noises, such as squealing or grinding, which could indicate improper installation or tension.
- Тэставая аперацыя: Slowly engage the transmission and test the mower's movement in both forward and reverse. Ensure smooth engagement and disengagement.
- Манітор прадукцыйнасці: During initial use, pay attention to the mower's performance. If the belt slips, makes excessive noise, or the mower's drive system feels sluggish, stop operation and re-check the installation and tension.
Тэхнічнае абслугоўванне
Regular inspection and maintenance will extend the life of your transmission belt and ensure optimal mower performance.
- Звычайная праверка: Periodically inspect the transmission belt for signs of wear, cracking, fraying, glazing, or stretching. Check for proper tension.
- Уборка: Keep the belt and pulleys free from dirt, grass clippings, oil, and other debris. Clean with a dry cloth or brush. Avoid using solvents that could damage the belt material.
- Замена: Replace the belt if any signs of significant wear or damage are observed, or if it consistently slips despite proper tensioning. The lifespan of a belt varies based on usage and operating conditions.
- Стан шківа: Ensure all pulleys are clean, free-spinning, and properly aligned. Worn or damaged pulleys can significantly reduce belt life.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Belt squeals or slips | Incorrect belt tension; Worn or glazed belt; Oil/grease on belt/pulleys | Adjust tension; Replace belt; Clean belt and pulleys |
| Mower drive is sluggish or inconsistent | Belt stretched or worn; Incorrect belt routing; Damaged pulleys | Replace belt; Verify routing; Inspect and replace pulleys |
| Belt comes off pulleys | Incorrect belt tension; Incorrect belt routing; Worn or bent pulleys; Damaged belt guides | Adjust tension; Verify routing; Inspect and replace pulleys/guides |
Тэхнічныя характарыстыкі
- Тып дэталі: Replacement Transmission Belt
- Сумяшчальны з: Craftsman Z5200 Zero Turn Mowers
- Reference Model Number: CMXGNAM211701
- Item Model Number (Generic): 122584 тайландскіх тэнісаў
- Памеры прадукту: Прыблізна 1 х 1 х 1 цаляў (у ўпакоўцы)
- Крыніца харчавання: Hand-powered (for installation/maintenance)
Гарантыя
No warranty is provided with this replacement part.
Падтрымка
For further assistance or if you encounter issues not covered in this manual, please refer to your Craftsman Z5200 Zero Turn Mower's original service manual or contact a qualified small engine technician.
