1. Уводзіны
Thank you for choosing the Frizzlife WB99 Countertop Reverse Osmosis System. This system provides purified, alkaline water directly from your countertop without the need for complex installation. It is designed to remove a wide range of contaminants, ensuring clean and healthy drinking water for you and your family. This manual will guide you through the setup, operation, and maintenance of your new water purification system.
2. Прадукт скончыўсяview
2.1 Асноўныя магчымасці
- Пашыраная фільтрацыя: Reduces over 1000 harmful contaminants, including large particles, chlorine, fluoride, heavy metals, and TDS.
- Шчолачная вада: Features a composite alkaline carbon fiber filter (SC90) to increase water's pH level.
- Ўстаноўка не патрабуецца: Plug-and-use design eliminates the need for drilling or plumbing.
- Portable Water Pitcher: Includes a convenient pitcher for easy serving and storage.
- Маніторынг у рэжыме рэальнага часу: Digital display shows real-time TDS levels and filter life indicators.
- Customizable Dispensing: Select from preset volumes (4oz, 8oz, 17oz) or continuous dispensing.
- Высокая эфектыўнасць: Achieves a 3.5:1 pure to drain ratio, saving water compared to traditional RO systems.
2.2 Contaminant Reduction and Filtration Stages
The Frizzlife WB99 system utilizes a multi-stage filtration process, including an FCR100+ RO membrane and an SC90 alkaline carbon filter, certified by NSF/ANSI 58 for structural integrity and material safety.
Image: The Frizzlife WB99 system highlights its ability to reduce large particles, chlorine, fluoride, heavy metals, TDS, odor, and chloramine. It also shows the SC90 Composite Alkaline Carbon Fiber filter for pH balance and the FCR100+ filter with 0.0001 micron filtration, certified by NSF/ANSI 58.
3. Інструкцыі па ўсталёўцы
The Frizzlife WB99 system is designed for easy, no-installation setup. Follow these steps to get started:
- Распакаваць сістэму: Асцярожна выміце ўсе кампаненты з упакоўкі. Пераканайцеся, што ўсе дэталі наяўныя і непашкоджаныя.
- Place the System: Position the system on a flat, stable countertop near a power outlet.
- Падключыць: Connect the power cord to the system and then into a standard electrical outlet. The display will illuminate.
- Запоўніце бак: Remove the raw water tank from the back of the unit. Fill it with tap water up to the MAX line. Place the tank back into the unit securely.
- Пачатковы змыў: For the first use, it is recommended to flush the system. Dispense and discard at least two full tanks of water to rinse the filters and system components.
Image: Visual guide for the simple setup process: 1. Plug in the power cord. 2. Fill the raw water tank. 3. Tap the display to select dispensing options. 4. Dispense purified water. This image also illustrates the easy 'Twist and Pull' filter replacement method.
4. Інструкцыя па эксплуатацыі
4.1 Падача вады
- Ensure Tank is Full: Make sure the raw water tank has sufficient water.
- Змесціце кантэйнер: Position your cup or the portable pitcher under the dispenser spout.
- Выберыце гучнасць: On the touch display, tap the desired volume button (4oz, 8oz, or 17oz). The system will automatically dispense the selected amount.
- Continuous Dispensing: To dispense continuously, ensure no volume buttons are selected, then press the dispense button. Press again to stop.

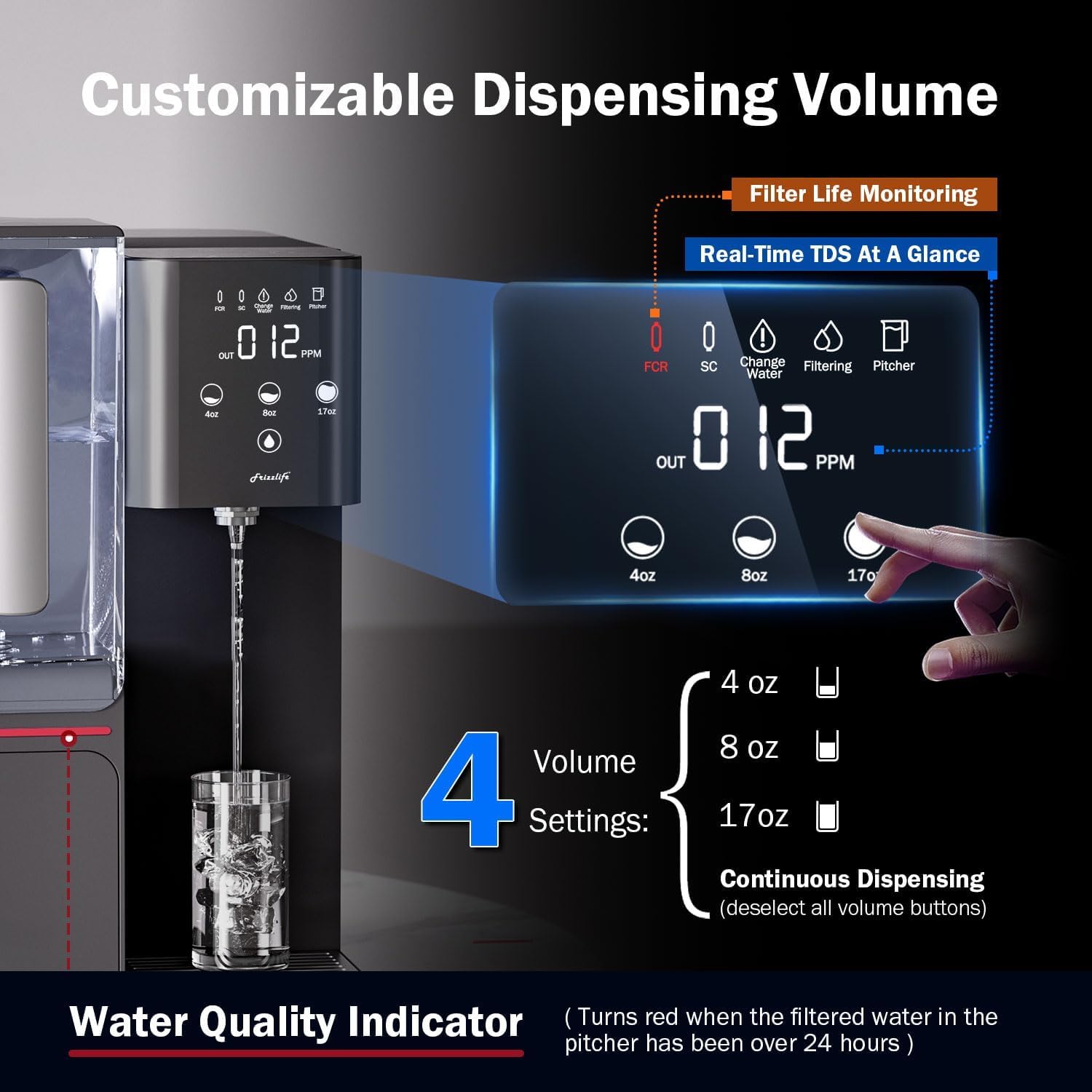

Image: The Frizzlife WB99 control panel displaying real-time TDS levels, filter life indicators (FCR, SC), and customizable dispensing volume options (4oz, 8oz, 17oz, and continuous dispensing).
4.2 Portable Pitcher Usage
The included portable pitcher allows you to easily store and serve purified water. Simply place the pitcher under the dispenser and select your desired volume. Once filled, the pitcher can be stored in your refrigerator.
Image: A woman pouring water from the Frizzlife WB99's portable pitcher, demonstrating its convenience for serving and storage, with an inset showing the pitcher stored inside a refrigerator.
4.3 Water Quality Indicator
The system features a water quality indicator. If the filtered water in the pitcher has been stored for over 24 hours, this indicator may turn red, suggesting the water should be refreshed for optimal quality.
5. Тэхнічнае абслугоўванне
5.1 Замена фільтра
The Frizzlife WB99 system features a simple 'Twist and Pull' filter replacement mechanism. The display will indicate when filters need to be replaced (FCR for the RO filter, SC for the alkaline carbon filter).
- Выключэнне: Unplug the system from the power outlet.
- Выдаліць фільтры: Locate the filter housing. Twist the old filter counter-clockwise and pull it out.
- Усталюйце новыя фільтры: Insert the new filter into the housing and twist clockwise until it locks into place. Ensure the correct filter type is installed in the designated slot.
- Скінуць тэрмін службы фільтра: After replacing, plug the system back in. Refer to the manual's specific instructions for resetting the filter life indicator on the display.
5.2 Ачыстка сістэмы
Рэгулярная чыстка забяспечвае аптымальную прадукцыйнасць і гігіену.
- Raw Water Tank: Remove the raw water tank and wash it with mild soap and water. Rinse thoroughly before refilling.
- Паддон для капель: The drip tray should be emptied and cleaned regularly to prevent water buildup.
- Знешні выгляд: Працярыце вонкавую частку прылады мяккай, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі.
Image: The Frizzlife WB99's large capacity 4.5L (152 oz) raw water tank, shown being refilled, emphasizing its convenience for refilling and ease of cleaning.
6. Выпраўленне непаладак
If you encounter any issues with your Frizzlife WB99 system, please refer to the following common problems and solutions:
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Вада не выдаецца | Raw water tank empty; System not plugged in; Filter clogged. | Refill raw water tank; Check power connection; Replace filters. |
| Незвычайны смак/пах | New filters not flushed; Filters need replacement. | Perform initial flush; Replace filters as indicated by the display. |
| TDS reading is high | RO filter needs replacement; System malfunction. | Check FCR filter life indicator and replace if necessary. Contact support if issue persists. |
| Water Quality Indicator red | Filtered water in pitcher is over 24 hours old. | Discard old water and refill with fresh purified water. |
If the problem persists after attempting these solutions, please contact Frizzlife customer support.
7. Тэхнічныя характарыстыкі
- Нумар мадэлі: WB99
- Перавагі прадукту: Removes over 60 contaminants and increases water's pH level.
- Фільтрацыя Stages: Мульты-сtage Reverse Osmosis with Alkaline Remineralization.
- Pure to Drain Ratio: 3.5:1
- Ёмістасць бака: 4.5 Liters (Raw Water)
- Узровень шуму: Very Low (approx. 50 dB)
- Сертыфікаты: NSF/ANSI 58 Certified Elements.
- UPC: 850040788846, 850073755990
Image: A comparison table highlighting the features of the Frizzlife WB99-C, such as its portable pitcher, alkaline water, plug-and-use installation, filter life monitoring, TDS display, very low noise level (50 dB), and suitability for various scenarios like kitchen, living room, bedroom, and RV.
8. Гарантыя і падтрымка
Frizzlife provides USA-based technical support for your WB99 Countertop Reverse Osmosis System. For warranty information, technical assistance, or to purchase replacement filters, please visit the official Frizzlife webсайт або звярніцеся непасрэдна ў службу падтрымкі кліентаў.
Webсайт: www.frizzlife.com
Кантакты: Refer to the contact section on the Frizzlife webсайт для нумароў тэлефонаў або падтрымкі па электроннай пошце.
