FTVOGUE Cordless Electric Drain Auger Instruction Manual

1. Уводзіны

Thank you for choosing the FTVOGUE Cordless Electric Drain Auger. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new drain cleaning tool. Please read this manual thoroughly before first use and keep it for future reference.

This powerful, cordless tool is designed to clear clogs in pipes ranging from 3/4 inch to 2 inches in diameter, making it suitable for various household drains including sinks, toilets, and bathtubs. Its auto-feed mechanism, flexible cable, and integrated LED light ensure ease of use and effective results.

2. Інструкцыі па тэхніцы бяспекі

ПАПЯРЭДЖАННЕ: Заўсёды выконвайце асноўныя меры бяспекі, каб знізіць рызыку пажару, паражэння электрычным токам і траўмаў пры выкарыстанні гэтага вырабу.

• Wear appropriate personal protective equipment, including safety glasses and heavy-duty gloves, to protect against splashing water, debris, and rotating cable.
• Ensure the work area is well-lit and free from obstructions. Keep children and bystanders away.
• Do not operate the drain auger in wet or damp умовах або ў прысутнасці лёгкаўзгаральных вадкасцей або газаў.
• Never touch the rotating cable with your hands or allow clothing to become entangled. Maintain a firm grip on the tool.
• Use only compatible lithium-ion batteries (BL1820, BL1830, BL1840, BL1850, BL1860) with this device. Batteries are not included.
• Do not force the cable. If it binds, release the trigger immediately to prevent damage to the cable or tool.
• Заўсёды адключайце акумулятарную батарэю перад тым, як рабіць якія-небудзь рэгуляванні, замяняць аксэсуары або захоўваць інструмент.
• Inspect the cable for kinks, breaks, or wear before each use. Replace damaged cables immediately.
• This tool is designed for pipes from 3/4 inch to 2 inches. Using it on larger or smaller pipes may cause damage or be ineffective.

3. Змесціва ўпакоўкі

Праверце, ці ёсць усе прадметы ў вашай упакоўцы:

• 1 x FTVOGUE Cordless Electric Drain Auger (DL21VYS)
• 1 х ачышчальная тканіна
• 1 х Кіраўніцтва карыстальніка

Note: Battery pack and charger are not included and must be purchased separately. Ensure compatibility with specified battery models.

4. Прадукт скончыўсяview

The FTVOGUE Cordless Electric Drain Auger is engineered for efficient and convenient drain cleaning. Key features include:

• Бесправадная канструкцыя: Забяспечвае свабоду рухаў без шнуроў харчавання.
• Auto-Feed Mechanism: Automatically feeds and retracts the cable, simplifying operation.
• Убудаваны святлодыёдны святло: Асвятляе цёмныя рабочыя зоны для паляпшэння бачнасці.
• Рэгуляваная хуткасць: Variable speed trigger allows control up to 610 RPM for different clog types.
• 7m Flexible Cable: Reinforced cable effectively navigates P-traps and clears blockages in 3/4in to 2in pipes.
• Эрганамічная ручка: Rubberized handle ensures comfortable and secure handling.
• Rear Pipe Drain Port: Prevents water accumulation in the drum.

Figure 4.1: Main components of the drain auger, showing the battery slot, trigger, and steel cable storage drum.

Малюнак 4.2: бок view of the drain auger, emphasizing its cordless design and power source.

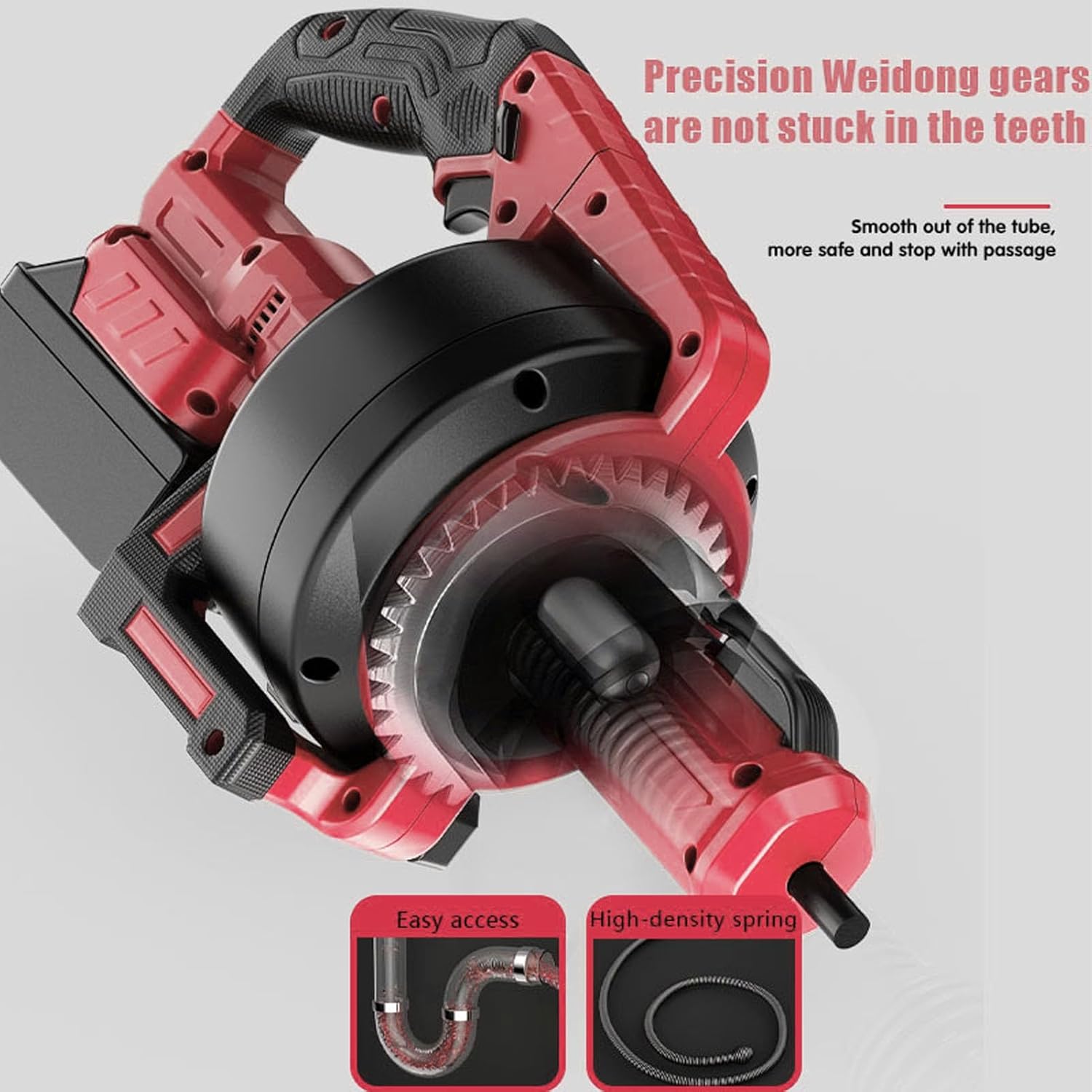

Figure 4.3: Illustration of internal mechanisms and cable flexibility for navigating P-traps.

5. Настройка

1. Усталяваць батарэю: Ensure the battery pack (not included) is fully charged. Align the battery pack with the battery slot on the tool and slide it in until it clicks securely into place.
2. Праверце кабель: Before each use, pull out a small section of the cable and inspect it for any signs of damage, kinks, or excessive wear. Do not use if the cable is damaged.
3. Падрыхтуйце працоўнае месца: Clear the area around the drain. Place a bucket or towels to catch any water or debris that may come out of the drain.

6. Інструкцыя па эксплуатацыі

Follow these steps for effective drain cleaning:

1. Устаўце кабель: Carefully feed the end of the auger cable into the drain opening.
2. Уключыць аўтаматычную падачу: Press the auto-feed lever (if applicable) or manually push the cable into the pipe until it meets resistance, indicating the clog.
3. Запуск рухавіка: Squeeze the trigger to start the motor. The cable will begin to rotate. Apply varying pressure to the trigger to adjust the speed as needed, up to 610 RPM.
4. Ачысціць засор: While the cable is rotating, continue to feed it slowly into the pipe. The rotating cable will break up or hook the obstruction. If the cable gets stuck, release the trigger, pull back slightly, and then re-engage. Do not force the cable.
5. Уцягваць кабель: Once the clog is cleared and water begins to flow, reverse the auto-feed mechanism or manually retract the cable while the motor is still running to clean it as it comes out.
6. Тэставы сцёк: Run water down the drain to ensure the clog is completely cleared. Repeat the process if necessary.

Figure 6.1: Demonstrating the drain auger in action, clearing a sink blockage.

Figure 6.2: Close-up of the drain auger being used for pipe cleaning.

7. Тэхнічнае абслугоўванне

Proper maintenance ensures the longevity and performance of your drain auger.

• Чысты кабель: After each use, retract the cable and wipe it clean with the provided cleaning cloth or a damp rag. This prevents rust and buildup.
• Clean Drum: The rear pipe drain port helps prevent water accumulation. Ensure the drum is dry before storage.
• Ачыстка інструментаў: Wipe down the exterior of the tool with a dry cloth. Do not use harsh chemicals or immerse the tool in water.
• Сыход за батарэяй: Remove the battery pack from the tool when not in use. Store batteries in a cool, dry place. Follow battery manufacturer's instructions for charging and storage.
• захоўванне: Store the drain auger in a dry, secure location out of reach of children.
• Замена кабеля: The 7m reinforced flexible cable is replaceable. If the cable becomes severely damaged or worn, replace it with an original FTVOGUE replacement cable.

8. Выпраўленне непаладак

9. Тэхнічныя характарыстыкі

10. Гарантыя і падтрымка

FTVOGUE is committed to providing quality products. For warranty information, technical support, or replacement parts, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
